Display HAT Mini features a bright 18-bit capable 320x240 pixel display with vibrant colours and formidable IPS viewing angles, connected via SPI. It's got four tactile buttons for interacting with your Raspberry Pi with your digits and a RGB LED for notifications. A QwST connector (Qwiic / STEMMA QT) and a Breakout Garden header is also squeezed in so it's a doddle to connect up different kinds of breakouts.It will work with any model of Raspberry Pi with a 40 pin header, but we think it goes with the Raspberry Pi Zero particularly well - we've included a pair of standoffs so you can use to bolt HAT and Raspberry Pi together to make a sturdy little unit. To accommodate the screen Display HAT Mini is a bit bigger than a standard mini HAT or pHAT – it's around 5 mm taller than a Raspberry Pi Zero (so a Mini HAT XL or a Mini HAT Pro, if you will).Display HAT Mini lets you turn a Raspberry Pi into a convenient IoT control panel, a tiny photo frame, digital art display or gif-box, or a desktop display for news headlines, tweets, or other info from online APIs. This screen is a handy 3:2 ratio, useful for retro gaming purposes!Features 2.0” 320x240 pixel IPS LCD screen, connected via SPI (~220 PPI, 65K colours) 4x tactile buttons RGB LED Qw/ST (Qwiic/STEMMA QT) connector Breakout Garden / I²C header Pre-soldered socket header for attaching to Raspberry Pi Compatible with all models of Raspberry Pi with a 40-pin header. Fully assembled No soldering required (as long as your RPi has header pins attached). Dimensions: approx 65.5 x 35 x 9 mm (W x H x D, includes header and display). With a Raspberry Pi Zero attached with standoffs, the total depth is 17 mm. Screen usable area: 40.8 x 30.6 mm (L x W) Pinout Schematic Dimensional drawing Display HAT Mini Python library ST7789 Python library Included Display HAT Mini 2x 10 mm standoffs

Lees meer minder

LoRa HAT, a low-power consumption data transmission module, comes with an onboard CH340 USB to UART converter, Voltage Level Translator (74HC125V), E22-900T22S and E22-400T22S SMA antenna connector, IPEX antenna connector, LoRa Spread Spectrum Modulation technology with auto multi-level repeating. Features Onboard 1.14' LCD Voltage Level Translator (74HC125V) Communication range up to 5 km Supports auto repeating to transmit longer Low Power Consumption Highly Secured For Evaluating signal quality with the RSSI or 'Received Signal Strength Indicator' Wireless parameter configuration support Fixed-point transmission support SMA and IPEX Antenna Connector USB to LoRa and Pico to LoRa Communication via UART Comes with development resources and manual LED Indicators: RXD/TXD: UART RX/TX indicator AUX: auxiliary indicator PWR: power indicator Serial/USB selection jumpers: A: USB TO UART to control the LoRa module through USB B: control the LoRa module through Raspberry Pi Pico Data/Command mode selection jumpers: Short M0, short M1: Transmission mode Short M0, open M1: Configuration mode Open M0, short M1: WOR mode Open M0, open M1: Deep sleep mode Specifications Frequency: 850.125~930.125 MHz / 410~493 MHz (Programmable Range) Power: 22dBm Distance: Up to 5 km Interface: UART Communication Serial Port Module: E22-900T22S1B / E22-400T22S Voltage Level Translator: 74HC125V Included 1x LoRa Module 1x Antenna Note: Raspberry Pi Board is not included. Downloads GitHub Wiki

Lees meer minder

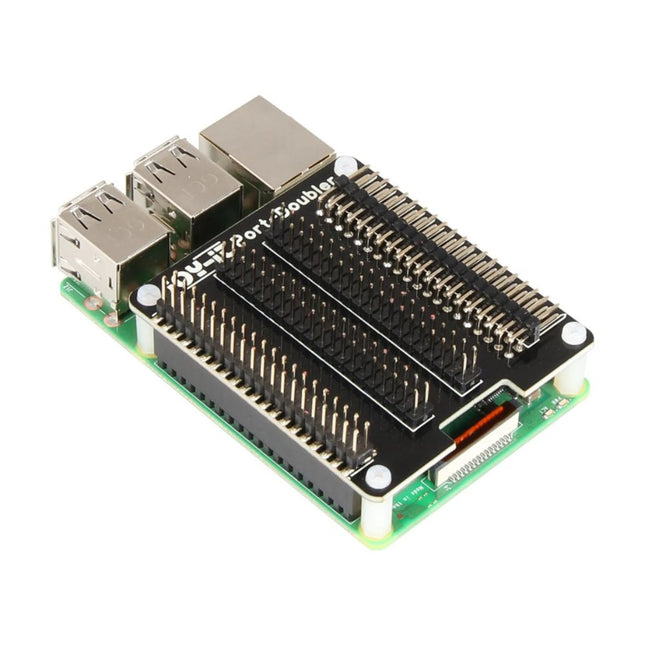

MODEL Port-Doubler FUNCTION Provides 4 GPIO bars CONNECTIVITY Attaches directly to the existing GPIO bar of the Raspberry Pi DIMENSIONS 55 x 66 mm WEIGHT 30 g ITEMS SHIPPED Port-Doubler, Mounting material EAN 4250236817057 ARTICLE NO. RB-Port-Doubler

Lees meer minder

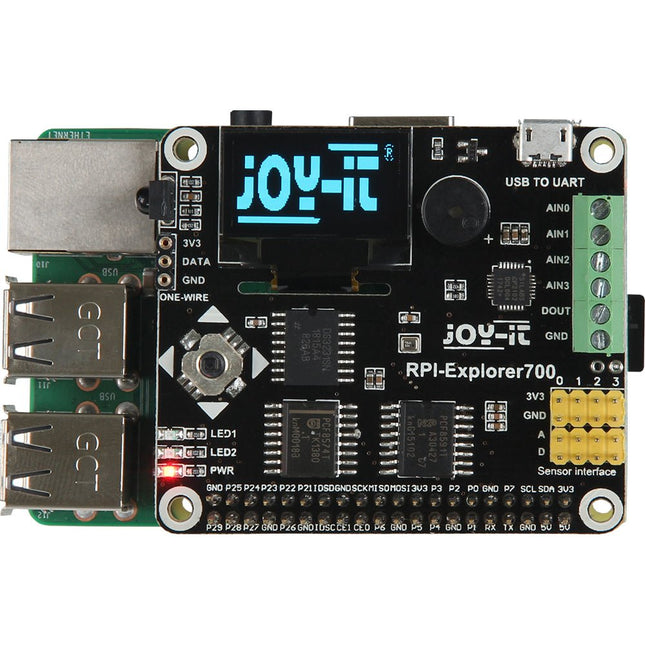

The JOY-iT Explorer 700 Expansion Board for Raspberry Pi expansion board has the following functions: Pin-Header to put directly on the Raspberry Pi B+, 2B, 3B or 4B UART interface: connect easily UART modules like for example RS232, RS485, USB to UART (TTL-cable) AD/DA IO interface: connected cable via screws definable 1-WIRE interface: to connect a 1-WIRE device Sensor interface: digital and analogue sensors can be connected 0.96 inch OLED display: SSD1306 Driver, 128 x 64 Pixel, SPI interface Buzzer USB to UART, converter with CP2102 chipset (mini USB-Port) PCF8591: 8-bit analog / digital converter, I²C interface BMP180: sensor for atmospheric pressure, temperature and height over normal zero, I²C interface PCF8574: I/O Chip for I²C interface DS3231: high precision RTC chip, I²C interface Power LED Programmable LED Joystick LFN0038K IR infrared receiver Interfaces UART, AD/DA: connected cables can be fixed with screws, 1-Wire, Sensor Display 0.96“ OLED Display (SSD1306 Driver, 128x64 Pixel) Dimensions 85 mm x 56 mm x 17 mm Weight 30 g For more information, check out the user manual here.

Lees meer minder

Features Stereo input and output Dedicated 192 kHz / 24-bit high-quality Burr-Brown DAC Dedicated 192 kHz / 24-bit high-quality Burr-Brown ADC Hardware volume control for DAC. The output volume can be controlled using “alsamixer” or any application that supports ALSA mixer controls. Connects directly onto the Raspberry Pi. No soldering required. Compatible with all Raspberry Pi models, that have a 40-pin GPIO connector No additional power supply required. Three ultra-low-noise linear voltage regulators. HAT compliant, EEPROM for automatic configuration. Gold plated RCA output connectors. Includes 4 M 2.5 x 12 mm spacers. Analogue input, phone jack 3.5 mm Analogue output RCA Analogue output (P5) Input configuration jumper (J1) Connector for balanced input (P6) Please note: Layout and components might change without further notice. Balanced/unbalanced input connector (P6)The 5-pin connector can be used to connect a balanced input. Please note that the balanced input has to be selected with the jumpers and will always have a 12 dB gain. It shouldn't be used with line-level inputs.Pin 1 is on the left. right + right – GND left – left + Output connector (P5)The output connector realizes connections to external components like an amplifier.Pin 1 is on the top left. +5V 1 2 R GND 3 4 GND +5V 5 6 L Input gain settings (J1)The jumper block is responsible for the input configuration. It is recommended to use the default setting without additional input gain. 32 dB gain can be used to connect dynamic microphones.Jumpers are numbered from top to bottom. 1 2 3 4 function 1 0 0 – 0 dB gain 0 1 1 – 12 dB gain 0 1 0 – 32 dB gain 0 0 1 – balanced input, 12 dB gain Specifications Maximum input voltage: 2.1 Vrms - 4.2 Vrms for balanced input Maximum output voltage: 2.1 Vrms ADC signal-to-noise ratio: 110 dB DAC signal-to-noise ratio: 112 dB ADC THD+N: -93 dB DAC THD+N: -93 dB Input voltage for lowest distortions: 0.8 Vrms Input gain (configurable with Jumpers): 0 dB, 12 dB, 32 dB Power consumption: < 0.3 W Sample rates: 44.1 kHz - 192 kHz In order to use the HiFiBerry DAC + ADC, your Raspberry Pi Linux kernel must be at least version 4.18.12. Click here to learn how to update the Raspberry Pi kernelUsing microphones with the DAC+ ADCThe DAC+ ADC is equipped with a stereo analogue input that can be configured for a wide range of input voltages. It performs best with line-level analogue sources. However, it is also possible to use it as a microphone input. You can only use dynamic microphones. Microphones that require a power supply are not supported. The microphone output voltage is very low. This means you need to amplify it. The DAC+ ADC has the necessary pre-amplifier already equipped. You will have to set the jumpers correctly. The sound from the input won’t be played back automatically on the output. You will have to use some software that reads the input and outputs it again. Setting the correct input amplifier settings for a microphoneBy default, the input sensitivity is matched for line-level audio sources. This is done via a jumper on the J1 header.In order to use a microphone, the jumper needs to be set up as shown below.Audio input to outputThere is no direct connection between the input and the output. That leads to the input from the connected microphone to not be played back automatically. If you want to hear it on the output, you need to use the command line tool alsaloop can be used for this.

Lees meer minder

Witty Pi is een add-on bord dat realtime klok- en energiebeheer toevoegt aan uw Raspberry Pi. Het kan de ON/OFF-volgorde van uw Raspberry Pi bepalen, en het energieverbruik aanzienlijk verminderen. Witty Pi 4 is de vierde generatie van Witty Pi en het heeft deze hardware aan boord: In de fabriek gekalibreerde en temperatuurgecompenseerde realtime klok met ±2 ppm nauwkeurigheid. Eigen temperatuursensor met 0,125 °C resolutie. On-board DC/DC converter die tot 30 V DC accepteert. AVR 8-bit microcontroller (MCU) met 8 KB programmeerbare flash. Nauwkeurige real-time klok en aan/uit-schema De realtime klok (RTC) op Witty Pi 4 is in de fabriek gekalibreerd en de firmware van Witty Pi 4 maakt ook temperatuurcompensatie voor het kristal. Hierdoor is de RTC zeer nauwkeurig en is de werkelijke jaarlijkse fout beperkt tot ±2 ppm. Wanneer uw Raspberry Pi opstart, zal de tijd opgeslagen in de RTC de systeemtijd overschrijven. Hierdoor weet uw Raspberry Pi de juiste tijd, zelfs zonder toegang tot het internet. U kunt het opstarten en/of afsluiten van uw Raspberry Pi plannen, en er een tijdgestuurd apparaat van maken. U kunt zelfs een schema-script definiëren om een ingewikkelde aan/uit-sequentie voor uw Raspberry Pi te plannen. Het plannen van de aan/uit-volgorde voor Raspberry Pi is de populairste functie van Witty Pi, en het is erg handig voor systemen die gevoed worden door een batterij. Door Raspberry Pi alleen aan te zetten wanneer dat nodig is, kan de batterij veel langer meegaan als Witty Pi is geïnstalleerd. Temperatuur-gestuurd apparaat De temperatuursensor op Witty Pi 4 heeft een resolutie van 0,125 °C. De temperatuurgegevens worden gebruikt om het kristal te compenseren en de RTC nauwkeuriger te maken. U kunt ook de actie (opstarten of uitschakelen) specificeren wanneer de temperatuur boven of onder de vooraf ingestelde drempel komt. Dit betekent dat u van uw Raspberry Pi ook een temperatuurgestuurd apparaat kunt maken. DC/DC converter en e-latching power switch Witty Pi 4 wordt geleverd met een DC/DC converter aan boord, waarmee u uw apparaat kunt voeden met 6~30V voeding. U kunt uw apparaat ook van 5 V voorzien via de USB type C connector. Witty Pi 4 heeft ook een e-Latching aan/uit-schakelaar, die veel lijkt op de aan/uit-schakelaar op uw PC/Laptop computer. U kunt uw Raspberry Pi aan/uit zetten met een enkele tik op de knop. De software die op de achtergrond draait, voert het uitschakelcommando uit voordat de stroom wordt uitgeschakeld, dit voorkomt dat gegevens worden beschadigd door hard uitschakelen. Witty Pi 4 ondersteunt alle Raspberry Pi modellen die de 40-pins GPIO header hebben, inclusief A+, B+, 2B, Zero, Zero W, Zero 2 W, 3B, 3B+, 3A+ en 4B. U moet de 40-pins header van tevoren aan het Zero/Zero W/Zero 2 W model solderen, zodat ze een betrouwbare verbinding met Witty Pi kunnen maken. Een enkel I²C-apparaat Witty Pi 4 gebruikt MCU om een enkel I²C-apparaat met standaard adres 0x08 te emuleren, en mapt ook alle I²C-registers in realtime klok en temperatuursensor als virtuele I²C-registers in hetzelfde apparaat. U kunt alle I²C registers in de realtime klok en temperatuursensor benaderen via het enkele I²C apparaat dat door Witty Pi 4 wordt geëmuleerd. Het voordeel van dit nieuwe ontwerp is dat Witty Pi 4 andere I²C-apparaten (realtimeklok, temperatuursensor) verbergt en de proxy van hen wordt om met Raspberry Pi te praten. Omdat het door Witty Pi 4 gebruikte I²C-adres in elke waarde kan worden veranderd, kunt u altijd voorkomen dat het I²C-adres conflicteert. UWI ondersteuning Witty Pi 4 wordt volledig ondersteund door UWI (UUGear Web Interface), en u kunt toegang krijgen tot uw Witty Pi 4 op elk apparaat dat netwerk toegang heeft. Specificaties Microcontroller ATtiny841 (datasheet) Realtime klok PCF85063A (datasheet), gekalibreerd in fabriek Temperatuursensor Temperatuursensor LM75B (datasheet) DC/DC converter MP4462 (datasheet) MOSFET-schakelaar AO4616 (datasheet) Batterij Batterij CR2032 (voor het bijhouden van de tijd als de stroomvoorziening is onderbroken) Voeding In DC 5 V (via USB type C connector)of DC 6 V~30 V (via XH2.54 connector) Uitgangsstroom Tot 3 A voor Raspberry Pi en zijn randapparatuur Standby-stroom ~0.5 mA Bedrijfsomgeving Temperatuur -30°C~80°C (-22°F~176°F)Vochtigheid 0~80% RH, geen condensatie, geen corrosief gas Hoeveelheden afmeting 65 x 56 x 19 mm Gewicht 23 g (zonder accessoires) Inbegrepen 1x Witty Pi 4 bord 1x CR2032 batterij 4x M2.5 x 11mm Koperen Standoff 8x M2.5 schroeven Downloads Gebruikshandleiding GitHub

Lees meer minder

Gebruik je Raspberry Pi met LTE Cat-4 4G/3G/2G communicatie & GNSS plaatsbepaling, voor data transmissie/telefoon/SMS op afstand, geschikt voor het op afstand bewaken/alarmeren. Deze 4G Hat is gebaseerd op de Maduino Zero 4G LTE, maar zonder controller. Hij moet werken met de Raspberry Pi (2x20 connector en USB). De Raspberry Pi communiceert met deze Hat met behulp van AT commando's (via de TX/RX pinnen in de 2X20 connector) voor eenvoudige besturingen, zoals SMS/Phone/GNSS; met de USB aansluiting en de juiste Linux driver geïnstalleerd, fungeert de 4G hat als een 4G netwerkadapter, die toegang heeft tot het Internet en gegevens kan verzenden met het 4G protocol. Vergeleken met een gewone USB 4G dongle heeft deze Raspberry Pi 4G Hat de volgende voordelen: Onboard audio codec, zodat je rechtstreeks met je RPi kunt bellen, of automatisch met een luidspreker kunt meeluisteren; Hardware UART communicatie, hardware besturing van de stroomvoorziening (door 2s puls van PI GPIO of POWERKEY toets), hardware besturing van de flight mode; Twee antennes voor LTE 4G en een voor GPS Kenmerken LTE Cat-4, met uplink snelheid van 50 Mbps en downlink snelheid 150 Mbps GNSS Positionering Audio Driver NAU8810 Ondersteuning voor dial-up, phone, SMS, TCP, UDP, DTMF, HTTP, FTP, etcetera Ondersteuning voor GPS, BeiDou, Glonass, LBS base station positionering SIM card slot, ondersteuning voor 1.8V/3V SIM card Onboard audio jack en audio decoder voor het maken van een telefoongesprek 2x LED indicatoren, om de bedrijfstatus eenvouding te volgen Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT Inbegrepen 1x 4G LTE Hat voor Raspberry Pi 1x GPS antenne 2x 4G LTE antenne 2x Afstandbussen Downloads GitHub

Lees meer minder

Specifications CM4 socket Suitable for all variants of Compute Module 4 Networking Gigabit Ethernet RJ45 connectorM.2 M KEY, supports communication modules or NVME SSD Connector Raspberry Pi 40-PIN GPIO header USB 2x USB 2.0 Type A2x USB 2.0 via FFC connector Display MIPI DSI display port (15-pin 1.0 mm FPC connector) Camera 2x MIPI CSI-2 camera port (15-pin 1.0 mm FPC connector) Video 2x HDMI port (including one port via FFC connector), supports 4K 30fps output RTC N/A Storage MicroSD card socket for Compute Module 4 Lite (without eMMC) variants Fan header No fan control, 5 V Power input 5 V Dimensions 85 x 56 mm Included 1x CM4-IO-BASE-A 1x SSD mounting screw Downloads Wiki

Lees meer minder

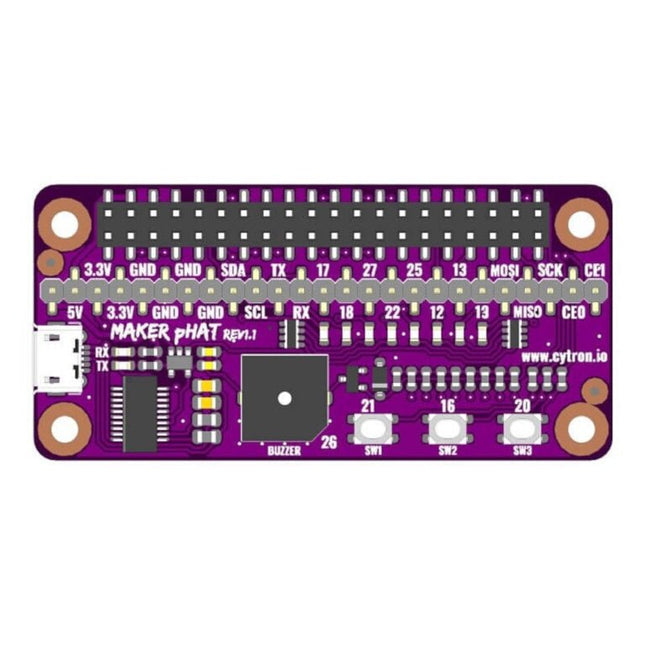

The Maker pHAT is the solution to the most common problems beginners face starting with Raspberry PI. Its intelligent and simple design makes it easy to attach to your Pi, and it helps you avoid all the tedious work of connection various other accessories. Additionally, the LEDs corresponding to each pin makes it extremely easy to see where a potential problem lies The Maker pHat has the same size as the Raspberry Pi Zero with all 4mounting holes aligned. However, it can be used with Raspberry Pi 3B, 3B+ and 3A+, by inserting a 2 x 20 stacking header. Features Raspberry Pi Zero size, stack perfectly on to Raspberry Pi Zero Compatible with standard size Raspberry Pi 3B / 3B+, medium size Raspberry Pi 3A+ and smaller size Raspberry Pi Zero / W / WH. Standard Raspberry Pi GPIO footprint. LED array for selected GPIO pins (GPIO 17, 18, 27, 22, 25, 12, 13, 19). 3x on board programmable push buttons (GPIO 21, 19 and 20, need to configure as input pull up). Onboard active buzzer (GPIO 26). Proper labels for all GPIOs, including SPI, UART, I2C, 5V, 3.3V, and GND. Utilize USB Micro-B socket for 5V input and USB to UART communication. USB serial facilitated by the FT231X Input voltage: USB 5 V, from a computer, power bank or a standard USB adapter. Mount on Raspberry Pi Zero Mount on Raspberry Pi 3B, 3B+ and 3A+

Lees meer minder

The Picon Zero is an add-on for the Raspberry Pi. It has the same size as a Raspberry Pi Zero, making it ideal to function as a pHat. Of course, it can be used on any other Raspberry Pi via a 40-pin GPIO connector.As well as two full H-Bridge motor drivers, the Picon Zero has several Input/Output pins giving you multiple configuration options. That allows you to easily add outputs or analog inputs to your Raspberry Pi without any complicated software or kernel-specific drivers. At the same time, it opens up 5 GPIO pins from the Raspberry Pi, and it provides the interface for an HC-SR04 ultrasonic distance sensor.The Picon Zero comes with all components, including the headers and screw terminals, fully soldered. Soldering isn't required. You can use it right out of the box.Features pHat format PCB: 65 mm x 30 mm Two full H-Bridge motor drivers. Drive up to 1.5 A continuously per channel, at 3 V - 11 V. Each motor output has both a 2-pin male header and a 2-pin screw terminal. The motors can be powered from the Picon Zero's 5 V or an external power source (3 V - 11 V). The Picon Zero's 5 V can be selected to be from the Raspberry Pi's 5 V line, or a USB connector on the Picon Zero. That means that you can effectively have 2 USB battery banks: one to power the servos and motors on the Picon Zero and the other to power the Pi. 4 Inputs that can accept up to 5 V. These inputs can be configured as follows: Digital inputs Analog inputs DS18B20 DHT11 6 Outputs that can drive 5 V and be configured as: Digital Output PWM Output Servo NeoPixel WS2812 All Inputs and Outputs use GVS 3-pin male headers. 4-pin female header that connects directly to an HC-SR04 ultrasonic distance sensor. 8-pin female header for Ground, 3.3 V, 5 V, and 5 GPIO signals allowing you to add their additional features. Hardware ConfigurationPicon Zero has two jumpers for setting the hardware configuration. Ensure that you have placed them in the correct position. JP1 – Board 5 V Selector. This jumper selects where to get the 5 V power from for the Picon Zero Outputs. The options are: Jumper at the top between RPI and 5 V. The 5 V power for the board is taken from the Raspberry Pi pins on the GPIO connector. Because of the low power output devices and the 5 V motors, all devices can be powered with a single 5 V power input. Jumper at the bottom between USB and 5 V. The 5 V power is taken from the microUSB connector on the Picon Zero. Useful for higher power output devices, since you can provide extra power through the micro-USB connector on the board JP2 – Motor Power Selector. This jumper selects where the motors get the power. The two options here are the following: Jumper at the top between MotorPower and Vin. The motors are driven via the 2-pin screw terminal. The voltage can be between 3 V and 11 V. Useful for motors that require a voltage different from 5 V, or that require more current than is available on either of the USB input connectors Jumper at the bottom between 5 V and MotorPower. The motors are driven from the board's 5 V. Raspberry Pi ConfigurationThe Picon Zero is an I²C device. Make sure your Raspberry Pi is set up correctly to use I²C and SMBus: sudo apt-get install python-smbus python3-smbus python-dev python3-dev sudo nano /boot/config.txt Add the following lines at the end of the file dtparam=i2c1=on dtparam=i2c_arm=on Press Ctrl-X and use the default prompts to save sudo reboot Plugin the Picon Zero onto the Pi and run i2cdetect -y 1If everything goes well, you will see the Picon Zero showing up as address 22 as shown below:

Lees meer minder

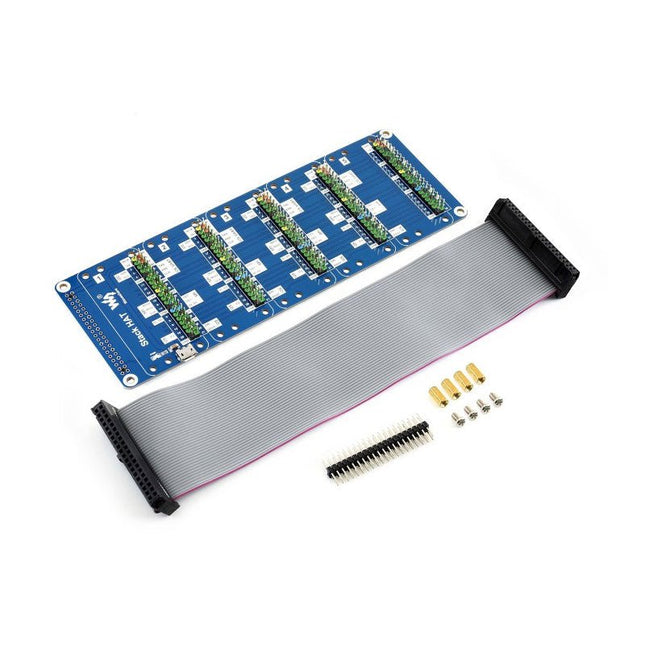

This is an I/O expansion kit designed for Raspberry Pi, which provides 5 sets of 2x20 pinheaders, that means a handy way to 'stack' multi different HATs together, and use them as a specific combination / project. Features Standard Raspberry Pi connectivity, directly pluggable OR through ribbon cable 5 sets of 2x20 pinheaders, connect multi HATs together USB external power port, provides enough power supply for multi HATs Clear and descriptive pin labels for easy use Reserved jumper pads on the bottom side, pin connections are changeable by soldering, to avoid pin conflicts Note: make sure there are no any pin conflicts between the HATs you want to use together before connecting. Specifications Dimensions: 183 × 65 mm Mounting hole size: 3 mm Included 1x Stack HAT 1x Ribbon cable 40-Pin 1x 2x20 male pinheader 1x RPi screws pack (4pcs) x1

Lees meer minder

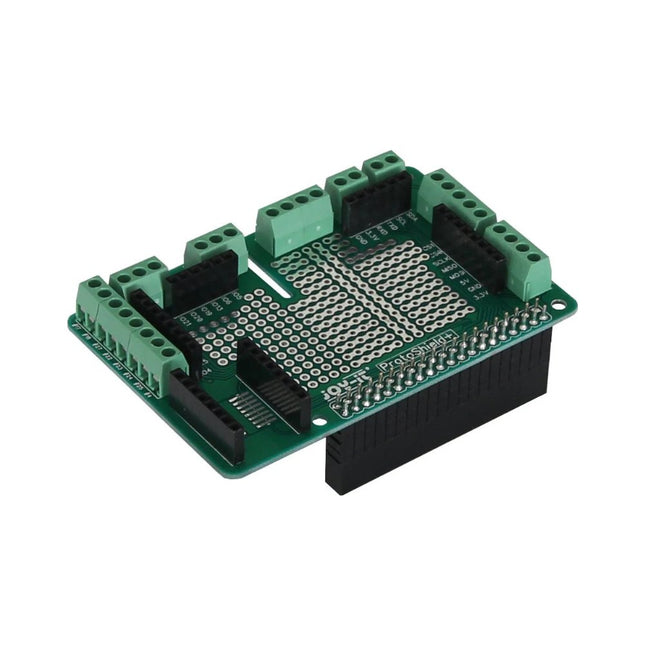

With our Proto+ prototype circuit board your own designs and projects can be implemented easily. The board is equipped with all popular connectors and also has a built-in breadboard for quick implementation of your ideas and developments.The built-in GPIO bar allows the expansion board to be easily plugged onto a Raspberry Pi and can be used immediately. The supplied screws and spacers allow the PCB to be connected directly to the Raspberry Pi. The screw terminals are already installed and facilitate the use and fast experimenting. MODEL Proto+ Prototyp-Board AVAILABLE CONNECTIONS GPIO (40-pole), SOIC16, Breadboard, 2x 3,3V, 2x 5V, UART, I2C, SPI NOTICE The outter screw terminals are connected to the GPIO connectors. COMPATIBLE TO Raspberry Pi B+, 2, 3 DIMENSIONS 55 x 85 mm WEIGHT 44 g ITEMS SHIPPED Proto+ Board, Screws, Spacers EAN 4250236814797 ARTICLE NO. RB-Proto+

Lees meer minder

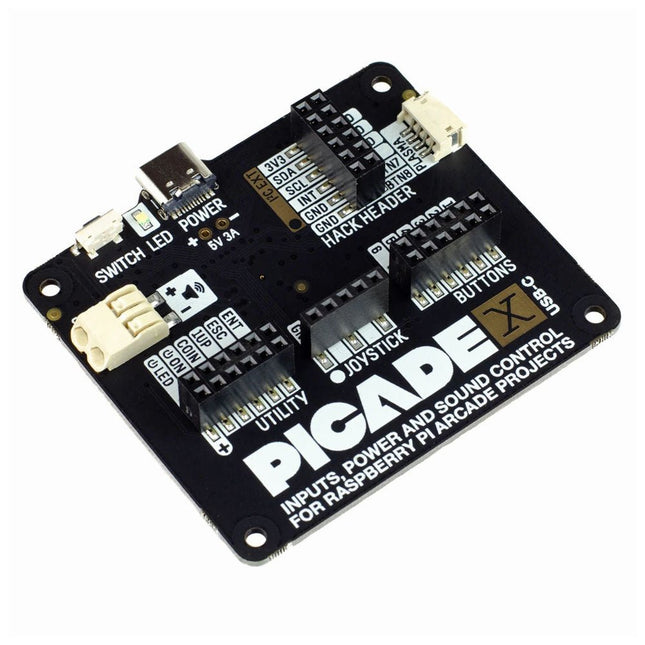

Turn your Raspberry Pi into a retro games console! Picade X HAT includes joystick and button inputs, a 3 W I²S DAC/amplifier, and soft power switch. This HAT has all the same great features as the original Picade HAT but now has no-fuss female Dupont connectors to hook up your joystick and buttons. Simply pop Picade X HAT onto your Pi, plug a USB-C power supply into the connector on the HAT (it back-powers your Pi through the GPIO, so no need for a separate power supply), wire up your controls, and install the driver! It's ideal for your own DIY arcade cabinet builds, or for interfaces that need big, colourful buttons and sound. Features I²S audio DAC with 3 W amplifier (mono) and push-fit terminals Safe power on/off system with tactile power button and LED USB-C connector for power (back-powers your Pi) 4-way digital joystick inputs 6x player button inputs 4x utility button inputs 1x soft power switch input 1x power LED output Plasma button connector Breakout pins for power, I²C, and 2 additional buttons Picade X HAT pinout Compatible with all 40-pin Raspberry Pi models The I²S DAC blends both channels of digital audio from the Raspberry Pi into a single mono output. This is then passed through a 3 W amplifier to power a connected speaker. The board also features a soft power switch that allows you turn your Pi on and off safely without risk of SD card corruption. Tap the connected button to start up, and press and hold it for 3 seconds to fully shutdown and disconnect power. Software/Installation Open a terminal and type curl https://get.pimoroni.com/picadehat | bash to run the installer. You'll need to reboot once the installation is complete, if it doesn't prompt you to do so. The software does not support Raspbian Wheezy Notes With USB-C power connected through Picade X HAT you'll need either to tap the connected power button or the button marked 'switch' on the HAT to power on your Pi.

Lees meer minder

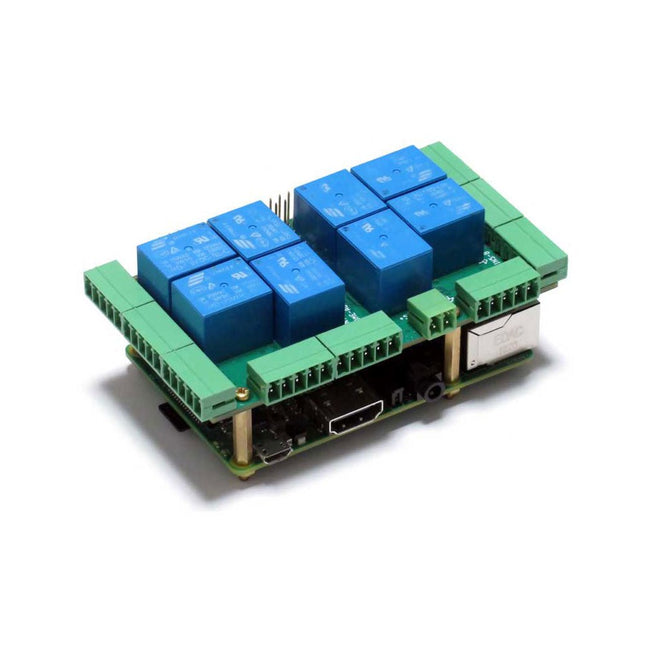

The Home Automation HAT uses only pluggable connectors. In addition, the latest release (V4.0 and up) has two new communication ports: 1-Wire and RS485.The card uses only 5 V power. On-board step-up power supply generates 12 V to power the 0-10 V analog outputs.A general purpose push-button, wired directly to a Raspberry Pi GPIO pin, can be used to shut down Raspberry Pi without a keyboard, or to force any output to a desired state. Ideal solution for your Raspberry Pi Home Automation projects. Read temperatures in up to 8 zones with analog inputs. Control your heating and cooling system with the 8 onboard relays. Use the 8 optically isolated digital inputs for your security system. Activate the hardware watchdog to monitor and power cycle the Raspberry Pi in case of software lockup. Control four-light systems with the four PWM open-drain outputs (you supply external power up to 24 V). Control four light dimmers using 0-10 V outputs. CompatibilityThe card is compatible with all Raspberry Pi versions from Zero to 4. It shares the I²C bus using only two of the Raspberry Pi’s GPIO pins to manage all eight cards. This feature leaves the remaining 24 GPIOs available for the user.Power RequirementsThe Home Automation card needs 5 V to operate and can be powered from Raspberry Pi or from its own pluggable connector. The onboard relay coils are also powered from the 5 V. An on-board 5V to 12V step-up power supply generates the voltage to drive the 0-10 V analog outputs. A local 3.3 V regulator powers the rest of the circuitry. The card needs 50 mA to operate with all relays off. Each relay needs up to 80 mA to turn on. RelaysThe 8 on-board relays have contacts brought out to heavy duty pluggable connectors, which make the card easy to use when multiple cards are stacked up. Relays are grouped in two sections of four relays each, with one common terminal and one N-O contact for each relay. Relays are rated 10 A/24 VDC and 250 VAC, but due to the board geometry limitation, the relays can switch only 3 A and 24 V, AC or DC. Status LEDs show when RELAYS are ON or OFF.Stacking Multiple CardsUp to eight Home Automation cards can be stacked on your Raspberry Pi. Each card is identified by jumpers you install to indicate the level in the stack. Cards can be installed in any order. The three position jumper on the upper right corner of the card selects the stack level.Features Eight relays with status LEDs and and N.O contacts Eight layer stackable Eight 12-bit A/D inputs, 250 Hz sample rate Four 13-bit DAC outputs (0-10 V dimmers) Four PWM 24 V/4 A open-drain outputs Eight optically isolated digital inputs Contact closure/Event counters up to 500 Hz Four Quadrature Encoder inputs 26 GPIOs from Raspberry Pi available 1-WIRE and RS485 communication ports Pluggable Connectors 26-16 AWG for all ports On-board hardware watchdog On-board resettable fuse Reverse power supply protection Brass stand-offs, screws and nuts included Hardware self-test with loop-back cable Open source hardware, schematics available 32-bit Processor running at 64 MHz Uses only I²C port (address 0x28..0x2f ), all GPIO pins available Specifications Power supply: Pluggable Connector, 5 V/3 A Power consumption: 50 mA (all relays off), 700 mA (all relays on) On board resettable fuse: 3 A Open Drain outputs: maximum 3 A, 24 V Relays 1,2,3,4,5,8: N-O contacts, 6 A/24 VAC or DC Relays 6,7: 3 A/24 VAC or DC Analog Inputs: Maximum input voltage: 3 V Input Impedance: 50 K? Resolution: 12 bits Sample rate: 250 samples/sec. DAC Outputs: Resistive load: Minimum 1 K? Accuracy: ±1% Opto-isolated Digital Inputs: Input Forward Current: Typical 5 mA, maximum 50 mA Input Series Resistor: 1K Input Reverse Voltage: 5 V Input Forward Voltage: 25 V @ 10 mA Isolation Resistance: Minimum 1012 ? Included Home Automation stackable Card for Raspberry Pi with self-test Card Mounting hardware 4x M2.5x18 mm male-female brass standoffs 4x M2.5x5 mm brass screws 4x M2.5 brass nuts 2x Stack level Jumpers All required Connector Plugs Laminated Plastic Card showing IO Pinout Downloads User's Guide Open Source Hardware Schematic 2D CAD Drawing Command Line Python Libraries Node-RED Nodes Domoticz Plugin OpenPLC

Lees meer minder

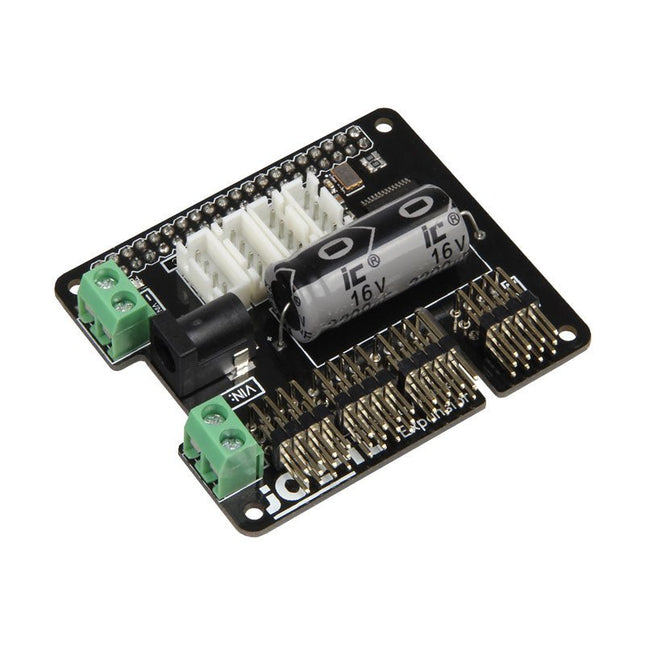

The MotoPi is an extension-board to control and use up to 16 PWM-controlled 5 V servo motors. The board can be additional powered by a voltage between 4.8 V and 6 V so a perfect supply is always guaranteed and even larger projects can be powered. With the additional power supply and the integrated Analog-Digital-Converter, new possibilities can be reached. An additional power supply per motor is not required anymore because all connections (Voltage, Ground, Control) are directly connected to the board. The control and the programing can be directly done, as usual, on the Raspberry Pi. Special features 16 Channels, own clock generator, Inkl. Analog Digital Converter Input 1 Coaxial power connector 5.5 / 2.1 mm, 5 V / 6 A max Input 2 Screw terminal, 4.8-6 V / 6 A max Compatible with Raspberry Pi A+, B+, 2B, 3B Dimensions 65 x 56 x 24 mm Scope of supply Board, manual, fixing material

Lees meer minder

The JOY-iT Explorer 500 Expansion Board for Raspberry Pi expansion board has the following functions: Pin-Header to put directly on the Raspberry Pi B+, 2B or 3B UART interface: you can easily connect UART modules like for example RS232, RS485, USB to UART (TTL-cable) 8x I/O interface: you can easily connect with I/O controlled modules SPI interface for SPI controlled modules I²C interface for I²C controlled modules LCD interface for HD44780 industrial standard LCD module USB to UART, converter with CP2102 chipset (mini USB port) Power LED 4x programmable LED 4x programmable buttons Potentiometer: control of contrast for LCD displays (point 6) RTC battery holder 32.768K quartz: RTC quartz CP2102: onboard USB to UART chip for debugging CP2102: Jumper for: on / off RTC: Jumper for: on / off User LEDs Jumper for: on / off (point 9) User keys Jumper for: on / off (point 10) It can be directly plugged onto the Raspberry. Interfaces UART, 8x I/O, SPI, I²C, HD44780 Industry-Standard-LCD RTC Battery-Holder, PCF8564-RTC-Chip incl. 32.789K RTC-Quartz Jumper (ON / OFF) RTC, CP2102 (USB to UART), User LEDs, User Keys Dimensions 85 mm x 17 mm x 56 mm Weight 36 g For more information, check out the user manual here.

Lees meer minder

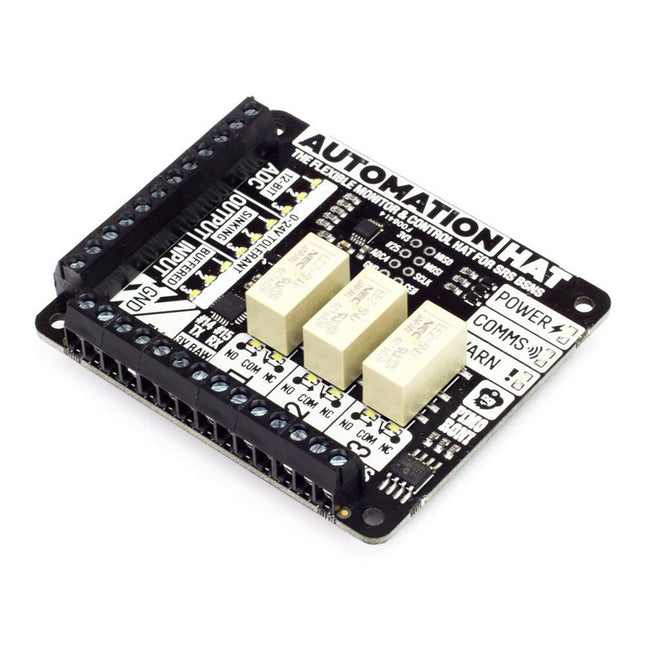

Take control of and monitor your world with our ultimate jack-of-all-trades Raspberry Pi HAT!We've pulled together a great set of features into this home monitoring and automation controller. With relays, analog channels, powered outputs, and buffered inputs (all 24 V tolerant) you can now hook up a plethora of goodies to your Raspberry Pi all at once.Better still each channel has an indicator LEDs which means at a glance you can see what's happening with your setup. Even the analog channels have dimming LEDs that allow you to see the value they are currently sensing – swish!Ideal for smart home and automation projects, giving your greenhouse intelligent sprinklers, or scheduling your fish feeding!Features 3x 24 V @ 2 A relays (NC and NO terminals) 3x 12-bit ADC @ 0-24 V (±2% accuracy) 3x 24 V tolerant buffered inputs 3x 24 V tolerant sinking outputs 15x channel indicator LEDs 1x 12-bit ADC @ 0-3.3 V 3.5 mm screw terminals Power, Comms, and Warn! LED indicators SPI, TX (#14), RX (#15), #25 pins broken out Automation HAT pinout Compatible with all 40-pin header Raspberry Pi models Python library Schematic Comes fully assembled (broken out pins require soldering) SoftwareAs ever, we've made a super-simple to use Python library to take advantage of Automation HAT's multitudinous functions, with examples to get you started.Our input, output and relay examples show you how to read the analog and digital inputs, switch the outputs on and off, and control the relays.Notes We recommend you use a set of brass M2.5 standoffs with Automation HAT to avoid pins contacting the HDMI port if the HAT is pushed down Loads for the buffered outputs should be switched on the ground side, i.e. 12/24 V (from supply) -> load -> output terminal -> ground (from supply) The relays can tolerate up to 2 A each and should be switched on the high side The sinking outputs can sink a maximum 500 mA total across the 3 outputs, so if you use a single channel you can sink the whole 500 mA across it. The accuracy of the ADC is ±2%. Do not use to switch mains voltages!

Lees meer minder

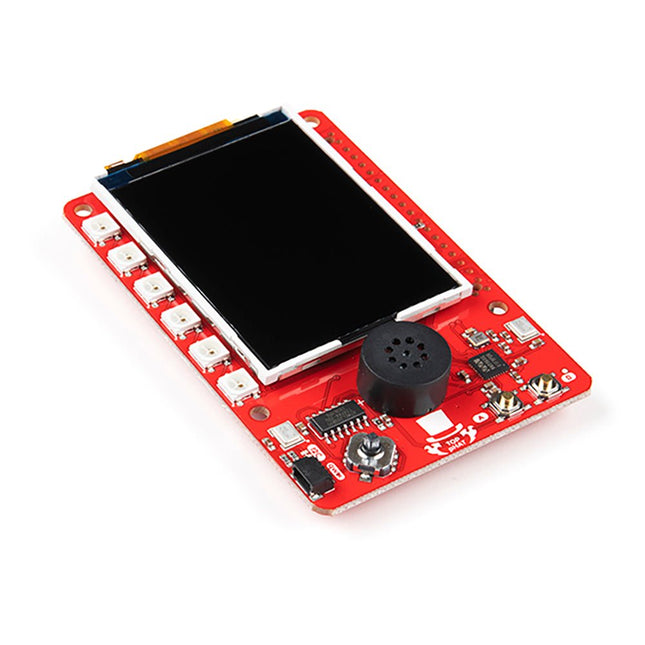

Kunt u de SparkFun Top pHAT gebruiken om een prototype te maken van machinaal leren op uw Raspberry Pi 4, NVIDIA Jetson, Google Coral of een andere single-board computer? Ongetwijfeld! De SparkFun Top pHAT ondersteunt machine learning interacties, inclusief spraakbesturing met onboard microfoons & luidspreker, grafische display voor camera controle feedback, en onbelemmerde toegang tot de RPi camera connector. Bovendien kunt u de programmeerbare knoppen, joystick, en RGB LED gebruiken voor gebruiker-gedefinieerde I/O, dynamische systeeminteractie, of systeemstatus displays.Kun je het gebruiken als een interface om je project te introduceren in het SparkFun Qwiic ecosysteem? Inderdaad! In aanvulling op alle voorgaande functies, hebben we ook een Qwiic connector opgenomen om eenvoudige integratie via I2C mogelijk te maken. Miljarden combinaties van Qwiic-geschikte boards zijn beschikbaar voor u om uit te breiden op de mogelijkheden van de SparkFun Top pHAT.Met alle I/O interactie op dit bord en het gebrek aan solderen nodig om aan de slag te gaan, is de SparkFun Top pHAT de fundamentele machine leren add-on voor Raspberry Pi of elke 2x20 GPIO SBC!Features Een Raspberry Pi pHAT die zich richt op gebruikersinteractie met een SBC/RPi.Ondersteuning voor machine learning interacties Voice control (microfoons, luidspreker) Grafisch display op 2.4' kleuren TFT Twee programmeerbare knoppen voor door de gebruiker te definiëren I/O Programmeerbare joystick - voor dynamische/interactie met het systeem (GUI menu's, robotbesturing). Programmeerbare RGB LED's - voor systeemstatus, weergave. Belemmert de toegang tot de RPi-camera of displayconnector niet Aan/uit schakelaar voor Rpi. Ondersteunt toegang tot het SparkFun Qwiic ecosysteem Bedoeld om aan de top van een pHAT stack te staan - geen pinnen voor stapelen bovenop dit bord. Het is de Top pHAT!

Lees meer minder

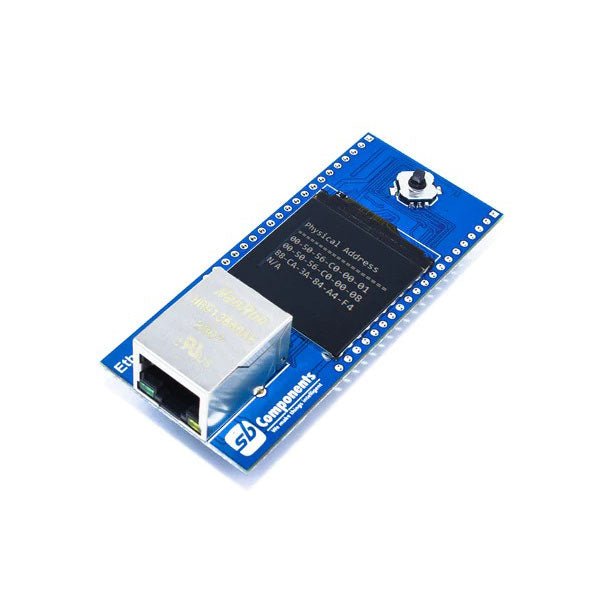

NetPi is the perfect solution for your Raspberry Pi Pico's connectivity needs. It's an Ethernet HAT that enables your Pico to easily connect to the internet. With support for various internet protocols such as TCP, UDP, WOL over UDP, ICMP, IPv4, and more, NetPi can create IoT devices, robots, home automation systems, and industrial control systems. It has four independent SOCKETs that can be used simultaneously, and it also supports SOCKET-less commands like ARP-Request and PING-Request. The Ethernet HAT is equipped with 10Base-T/100Base-TX Ethernet PHY and auto-negotiation for a full and half duplex with 10 and 100-based connections. NetPi is ideal for various applications. With NetPi, you can now support hardwired internet protocols like TCP, UDP, ICMP, and more. Enjoy four independent sockets for simultaneous connections and perform socket-less commands like ARP-Request and PING-Request. NetPi also supports Ethernet power down mode and wake on LAN over UDP for energy-saving. NetPi is equipped with a 10Base-T/100Base-TX Ethernet PHY and supports auto-negotiation for a full and half duplex with 10 and 100-based connections. The device features network indicator LEDs for full/half duplex, link, 10/100 speed, and active status. Features Compatible with Raspberry Pi Pico (W) Built-in RJ45 with Transformer: Ethernet Port Support 4 independent SOCKETs simultaneously Support Hardwired TCP/IP Protocols: TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE Ethernet power down mode and Wake on LAN over UDP for energy-saving 10Base-T/100Base-TX Ethernet PHY with auto-negotiation for full and half duplex with 10 and 100-based connections Network indicator LEDs for full/half duplex, link, 10/100 speed, and active status RP2040 pins breakout with female pin header for other shield and peripheral interfacing 1.3' TFT LCD (240 x 240) and a 5-way joystick for user experience SPI, I²C, UART interfacing Dimensions: 74.54 x 21.00 mm Applications Internet of Things (IoT) devices Industrial automation and control systems Home automation and smart home systems Remote monitoring and data logging systems Robotics and autonomous systems Networked sensor systems Building automation and energy management systems Security and access control systems Downloads GitHub

Lees meer minder

Deze LR1302 module is een LoRaWAN gateway module van de nieuwe generatie. Zijn vormfactor is gebaseerd op mini-PCIe, en hij heeft een laag stroomverbruik en hoge prestaties. Voorzien van de SX1302 LoRaWAN baseband chip van Semtech Network biedt de LR1302 gateway module diverse gateway functies met potentieel de capaciteit voor draadloze transmissie over lange afstanden. Vergeleken met de vorige SX1301 en SX1308 LoRa chips heeft de SX1302 chip een hogere gevoeligheid, een lager stroomverbruik en een lagere bedrijfstemperatuur. Hij ondersteunt 8-kanaals gegevensoverdracht, verbetert de communicatie efficiëntie en capaciteit, en ondersteunt de verbindingen en gegevensoverdracht naar meer apparaten. Hij heeft twee antenne interfaces, één voor het verzenden en ontvangen van LoRa-signalen en één U.FL (IPEX) interface voor onafhankelijke transmissie. Hij heeft ook een metalen afscherming om te beschermen tegen externe interferentie, en om een betrouwbare communicatieomgeving te bieden. De LR1302 is speciaal ontworpen voor IoT, en is derhalve geschikt voor een verscheidenheid aan IoT toepassingen. Of het nu gaat om gebruik in smart cities, landbouw, industriële automatisering of andere gebieden, de LR1302 module kan betrouwbare verbindingen en efficiënte gegevensoverdracht bieden. Kenmerken Maakt gebruik van de Semtech SX1302 baseband LoRa chip met extreem laag stroomverbruik en uitstekende prestaties De Mini-PCIe vormfactor en het compact ontwerp maken het gemakkelijker om hem te integreren in verschillende gateway-apparaten, en maakt hem geschikt voor toepassingen met beperkte ruimte, en biedt flexibele implementatieopties Ondersteuning van 8-kanaals datatransmissie, zorgt voor betere communicatie-efficiëntie en capaciteit Ultra-lage bedrijfstemperatuur elimineert de noodzaak van extra koeling, en verkleint de afmeting van de LoRaWAN gateway Gebruikt het SX1250 TX/RX front-end met een gevoeligheid tot -139 dBm@SF12; TX-vermogen tot 26 dBm @3,3 V Specificaties Frequentie 863 - 870 MHz (EU868) Chipset Semtech SX1302 chip Gevoeligheid -125 dBm @125K/SF7-139 dBm @125K/SF12 TX vermogen 26 dBm (met 3,3 V voeding) Bandbreedte 125/250/500 kHz Kanalen 8 kanaals LED's Power: GroenConfig: RoodTX: GroenRX: Blauw Vormfactor Mini PCIe, 52-pins Golden Finger Stroomverbruik (SPI-versie) Stand-by: 7,5 mATX maximaal vermogen: 415 mARX: 40 mA Stroomverbruik (USB-versie) Stand-by: 20 mATX maximaal vermogen: 425 mARX: 53 mA LBT (Listen Before Talk) Ondersteund Antenne connector U.FL Bedrijfstemperatuur -40 tot 85°C Afmetingen (B x L) 30 x 50,95 mm Note De LR1302 LoRaWAN Gateway Module is niet inbegrepen. Downloads Wiki SX1302 Datasheet Schema

Lees meer minder

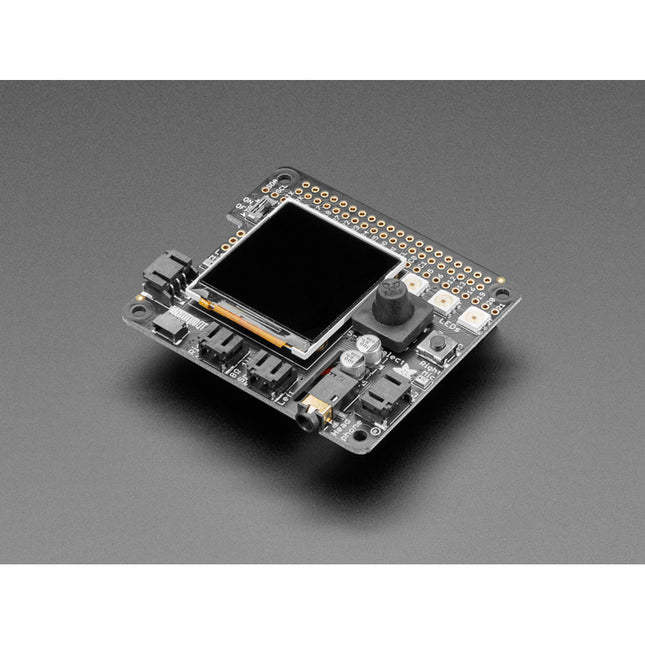

Features: 1.54' IPS TFT display with 240x240 resolution that can show text or video Stereo speaker ports for audio playback - either text-to-speech, alerts or for creating a voice assistant. Stereo headphone out for audio playback through a stereo system, headphones, or powered speakers. Stereo microphone input - perfect for making your very own smart home assistants Two 3-pin JST STEMMA connectors that can be used to connect more buttons, a relay, or even some NeoPixels! STEMMA QT plug-and-play I2C port can be used with any of Adafruits 50+ I2C STEMMA QT boards or can be used to connect to Grove I2C devices with an adapter cable. 5-Way Joystick + Button for user interface and control. Three RGB DotStar LEDs for colorful LED feedback. The STEMMA QT port means you can attach heat image sensors like the Panasonic Grid-EYE or MLX90640. Heat-Sensitive cameras can be used as a person detector, even in the dark! An external accelerometer can be attached for gesture or vibration sensing such as machinery/industrial predictive maintenance projects Please note: A Raspberry Pi 4 is not included.
