Oscilloscopen

46 producten

  • PeakTech 1404 2 - ch Oscilloscope (100 MHz) - Elektor

    PeakTech PeakTech 1404 2-kanaals Oscilloscoop (100 MHz)

    Niet op voorraad

    Deze volwaardige digitale storage-oscilloscoop, speciaal ontwikkeld voor de onderwijs- en hobbysector, biedt de best mogelijke prijs/prestatie-verhouding zonder concessies te hoeven doen aan functionaliteit of technische eigenschappen. Autoset en Autoscale, wiskundige meetfuncties, FFT, Cursor- of XY-modus en zelfs een zoomfunctie, alle standaard functies zijn al aanwezig in deze serie. De gegevensopslag van de golfvormen is ofwel intern met geheugen voor 16 golfvormen of extern op een USB stick in TXT, CSV of BIN formaat, dat met de meegeleverde software kan worden uitgelezen. Configuraties kunnen ook intern worden opgeslagen of screenshots van het display kunnen extern worden opgeslagen. De weergave van de golfvormen kan snel en gebruiksvriendelijk gebeuren via de Autoset-functie, via AutoScale kunnen de gemeten golfvormen naar wens nog nauwkeuriger worden weergegeven, waarbij deze instellingen natuurlijk ook volledig handmatig kunnen worden uitgevoerd via de toetsbediening. Kenmerken 2-kanaals oscilloscoop met 100 MHz analoge bandbreedte bij max. 1 GS/s sampling rate 17,5 cm (7") TFT-kleurenscherm met 800 x 480 pixels USB-apparaatverbinding voor real-time gegevensoverdracht USB-hostaansluiting voor externe USB-gegevensdragers Handige en platte behuizing met handgreep Autoset functie voor gebruiksvriendelijke bediening Opnameduur van max. 10.000 punten Automatische meetmodi, XY-modus en FFT-functie Specificaties Bandbreedte 100 MHz Kanalen 2 Sampling kanaal 1 1 GS/s Sampling kanaal 2 500 MS/s Stijgtijd < 3.5 ns Display Type Color TFT Resolutie 800 x 480 Pixels Scherm formaat (TFT) 17.5 cm (7') Horizontale schaal max. 1000 s/div Horizontale schaal min. 2 ns/div Geheugen capaciteit 10,000 Points Verticale resolutie 8 Bit Verticale schaal max. 5 V/div Verticale schaal min. 2 mV/div Voedingsspanning 110/240 V AC; 50/60 Hz Downloads Manual Driver Software

    Niet op voorraad

    € 299,00

    Leden € 269,10

  •  -12% OWON SDS1102 2 - ch Oscilloscope (100 MHz) - Elektor

    OWON OWON SDS1102 2-kanaals Oscilloscoop (100 MHz)

    OWON SDS1102 is een betaalbare desktop digitale oscilloscoop met topeigenschappen. Het 2-kanaals toestel heeft 100 MHz bandbreedte, 1 GSa/s bemonsteringssnelheid en 10 K pts golflengte. OWON SDS1102 heeft een vereenvoudigd synchronisatiesysteem dat twee triggertypes ondersteunt: niveau en flank. Ontworpen om problemen op te lossen die geen grote hoeveelheden geheugen en moeilijke triggertypes vereisen. Specificaties Bandbreedte 100 MHz Horizontale schaal (s/div) 5 ns/div - 1000 s/div Kanalen 2 Verticale gevoeligheid 5 mV/div - 5 V/div (bij ingang) DC Gain nauwkeurigheid 3% Verticale resolutie (A/D) 8 bits (2 kanalen tegelijk) Ingang Ingangsimpedantie 1 MΩ, 10 pF Ingangskoppeling AC, DC, GND Max ingangsspanning ± 400 V, CATI, CATII Passieve probes x1; 10 Probe verzwakkingsfactor x1; x10; x100; x1000 Triggersysteem Trigger mode Auto, Normal, Single Trigger type Flank, Video Flank triggerbron CH1, CH2 Video trigger Sampletype real-time Samplefrequentie 1 GSa/s Equivalente samplesnelheid No Golflengte 10K pts Interpolatie sin(x)/x Meet- en rekenkundig bewerkingssysteem Automatische meting Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre-shoot Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A->B, Delay A->B, area, cycle area Rekenkundige functies Addition, Subtraction, Multiplication, Division, FFT Algemene kenmerken Display maat 7' color LCD Display resolutie 800 × 480 Voeding 100-240 V, 45-440 Hz, <15 W Afmetingen 301 × 70 × 152 mm Gewicht 1.1 kg Inbegrepen 1x OWON SDS1102 Oscilloscoop 2x Oscilloscoopsonde 1x Sonde aanpassen 1x Netsnoer 1x USB-kabel 1x CD-Rom 1x Snelstartgids Downloads Manual Datasheet

    € 249,00€ 219,00

    Leden identiek

  •  -20% FNIRSI DSO - TC3 (3 - in - 1) Oscilloscope, Component Tester & Signal Generator - Elektor

    FNIRSI FNIRSI DSO-TC3 (3-in-1) Oscilloscoop + Componententester + Signaalgenerator

    De DSO-TC3 combineert een digitale oscilloscoop, elektronische componenttester, signaalgenerator, geleidingstest, spanningstest, temperatuur- en vochtigheidsmeting, infrarooddecodering, en andere vakkundig geïntegreerde functies. Hij is uitgerust met een 2,4 inch kleuren TFT-scherm en een ingebouwde oplaadbare lithium accu voor mobiel gebruik. Specificaties (Oscilloscoop) De oscilloscoop heeft een real-time sample frequentie van 10 MSa/s en een bandbreedte van 500 kHz. Met een complete triggerfunctie (enkelvoudig, normaal, automatisch), ongeacht of u periodieke analoge signalen of niet-periodieke digitale signalen gebruikt. Het maximaal meetbare spanningssignaal is 400 V. Met de efficiënte AUTO modus kan de gemeten golfvorm worden weergegeven zonder omslachtige instellingen. Real-time sample frequentie 10 MSa/s Bandbreedte 500 KHz Ingangsimpedantie 1 MΩ Type ingangssignaal AC/DC Spanningsbereik meting 400 V Verticale gevoeligheid (x1) 10 mV - 10 V Bereik horizontale tijdbasis 1 μs - 10 s Trigger modus Auto / Normal / Single Trigger type Stijgende flank / dalende flank Golfvorm freeze Ja Automatische meting Ja Specificaties (Componententester) Het apparaat kan automatisch verschillende soorten transistors identificeren en meten, waaronder NPN en PNP triodes, N-kanaal- en P-kanaal mosfets, junction mosfets, diodes, dubbele diodes en thyristors, en ook weerstanden, spoelen, condensatoren en andere passieve componenten. Automatische detectie van de pindefinitie. Analyseert automatisch het NEC infrarood transmissie protocol. Andere functionele modi: inclusief geleidingstest, 0-40 V ingangsspanningsmeting, PWM uitgang, 0-32 V zenerdiode meting, DS18B20 temperatuursensor meting, DHT11 temperatuur- en vochtigheidssensor meting, enz. Specificaties (Signaalgenerator) De signaalgenerator heeft in totaal 6 golfvormen om uit te kiezen, met instelbare frequentie en amplitude. Sinusgolf 1-100 KHz/0-3,3 V/50% Blokgolf 1-100 KHz/3,3 V/50% Pulsgolf 1-100 KHz/3,3 V/0-100% Driehoeksgolf 1-100 KHz/0-3,3 V/50% Rampgolf 1-100 KHz/0-3,3 V/0-100% DC 0-3.3 V Inbegrepen 1x DSO-TC3 1x P6100 oscilloscoopsonde (100 MHz) 3x Testklemmen 1x Adapter 1x USB-C kabel 1x Manual Downloads Manual Firmware V0.3

    € 74,95€ 59,95

    Leden identiek

  •  -26% FNIRSI 2C23T (3 - in - 1) 2 - ch Oscilloscope (10 MHz) + Multimeter + Signal Generator - Elektor

    FNIRSI FNIRSI 2C23T (3-in-1) 2-kanaals Oscilloscoop (10 MHz) + Multimeter + Signaalgenerator

    De FNIRSI 2C23T is een volledig functionele en zeer praktische 3-in-1 2-kanaals digitale oscilloscoop met een hoge resolutie 2,8-inch LCD-scherm (320 x 240 pixels), ontworpen voor onderhoud en ontwikkeling. Het apparaat is uitgerust met 3 hoofdfuncties: oscilloscoop, multimeter en signaalgenerator. De oscilloscoop heeft een FPGA+MCU+ADC hardware architectuur, met een sample frequentie van 50 MS/s, een analoge bandbreedte van 10 MHz, en een ingebouwde hoogspanning beveiligingsmodule, die meting van piekspanningen van maximaal ±400 V ondersteunt. De multimeter heeft een 4-digit 10000 counts RMS-waarde, en ondersteunt AC/DC spannings- en stroommetingen, evenals metingen van capaciteit, weerstand, diode, aan/uit en andere meetfuncties. Uitgerust met een ingebouwde DDS-functie signaalgenerator, kan hij 7 soorten functiesignalen genereren, met een maximale output van 2 MHz voor alle signalen met stappen van 1 Hz. De uitgangsfrequentie, amplitude en duty cycle zijn instelbaar. De ingebouwde oplaadbare lithium accu van 3000 mAh is goed voor een standby tijd van maximaal 6 uur. Kenmerken 2-kanaals oscilloscoop 10 MHz bandbreedte 50 MS/s real-time sample frequentie 7 signaal golfvormen 10000 counts 2,8" HD-kleurenscherm (320 x 240 pixels) Afmetingen: 167 x 89 x 35 mm Gewicht: 300 g Specificaties Oscilloscoop 2-Kanaals, 2x 10 MHz bandbreedte, 50 MS/s real-time sampling frequentie Maximaal te meten spanning: ±400 V FPGA+ADC+MCU high-performance hardware architectuur, die golfvorm details vastlegt zonder verlies Uitgerust met complete triggerfuncties (auto, single, normal) Uitgerust met efficiënte automatische aanpassing, die de gemeten golfvorm weergeeft zonder ingewikkelde instelling Bewaart screenshots van golfvormen, ondersteunt het exporteren van afbeeldingen naar een computer, vergemakkelijkt secundaire golfvormanalyse Multimeter 4-bits integer 9999 counts met True RMS meting Herkenning van spanning, stroom, capaciteit, weerstand, diode, aan/uit en zero live wire Maximale ingangsspanning: AC 750 V, DC 1000 V Automatisch bereik, intelligente anti burning Data retentie, digitaal kleurenscherm Signaal generator 7 signaalgolfvormen: sinusgolf, blokgolf, triangelgolf, volledige golf, halve golf, ruisgolf, DC Uitgangsfrequentie: 1 Hz-2 MHz Uitgangsamplitude: 0,1-3,3 V Output duty cycle: 0-100% Inbegrepen 1x FNIRSI 2C23T (3-in-1) 2-kanaals oscilloscoop 1x P6100 oscilloscoop probe (10X) 1x Multimeter probe 1x Krokodillenklem probe 1x USB-C oplaadkabel 1x Manual Downloads Manual

    € 94,95€ 69,95

    Leden identiek

  • LabNation SmartScope USB Oscilloscope - Elektor

    LabNation LabNation SmartScope USB-oscilloscoop

    Niet op voorraad

    SmartScope is een compacte 2-kanaals USB-oscilloscoop met een bandbreedte van 30 MHz en een sampling rate van 2x 100 MSa/s. Het is compatibel met alle belangrijke platforms, waaronder Windows, macOS, Linux en Android. De bediening en weergave van meetsignalen gebeurt via smartphone, tablet of pc. Daarnaast zijn een logic analyzer en een signaalgenerator geïntegreerd. Met de SmartScope ontwikkelt u uw digitale interfaces met behulp van de 100 MS/s logic analyzer. Met dit gereedschap kunt u elk gewenst signaal ontwerpen met behulp van Excel, en het vervolgens uploaden naar de ingebouwde Arbitrary Waveform Generator (AWG). Aan het eind legt u 100 miljoen keer per seconde de spanning vast op elk punt van uw ontwerp. De software voor de ondersteuning van Windows / macOS / Linux / Android en exportformaten (Excel .csv / Matlab .mat) worden gegeven. Kenmerken Elk kanaal bemonsterd op 100 MHz/s AC/DC-koppeling op analoge ingangen 100% geruisloos 64 Mbit RAM: x10000 zoom Arbitraire golfvormgenerator 8 digitale ingangen bij 100 MS/s elk 4 digitale uitgangen van elk 100 MS/s Externe voeding voor het geval uw mobiel geen stroom kan leveren. Specificaties Oscilloscope Bandwidth 30 MHz (-3 dB point) Sample rate 2 x 100 MS/s Channels 2 Max pre-trigger position 16 x full scale Max post-trigger position Full scale Max full voltage scale 10 V/div (±35 V input range) Min full voltage scale 20 mV/div Analog input range -35 V, +35 V Max input peak-to-peak 40 V Signal coupling AC / DC Precision 8 bit Input impedance 1 MΩ // 10 pF Waverforms 200 waveforms/s Data delay to host < 10 ms Sample depth Up to 4 million samples per channel External trigger Yes Logic Analyzer Input channels 8 Input impedance 100 kOhm // 2 pF to GND Sample rate 100 MS/s Logic level 1.8 V to 5.0 V Diode protection Bidirectional Input data buffer 4 million samples Waverforms 200 waveforms/s Data delay to host < 10 ms Protocol decoders I²C, SPI, UART, I²S integrated User extensible Wave Generator (Analog Output) Output channels 1 Data rate Up to 50 MS/s Output level 0-3.3 V (Opamp driven) Output buffer Up to 2048 samples Max slew rate 30 ns/V Step 13 mV Wave Generator (Digital Output) Channels 4 Data rate Up to 100 MS/s Output level 3.3 V or 5 V (selectable) Output buffer Up to 2048 samples Diode protected Yes Programmable Logic USB controller MicroChip PIC18F14K50 USB interface PicKit3 or USB flashable FPGA Xilinx Spartan 6 FPGA interface JTAG and USB flashable Size & Weight Dimensions 110 x 64 x 24.2 mm (L x W x D) Weight 158 g Case Aluminium Connectivity Device/Host mini USB included Record waveforms Store Matlab (.mat) or Excel (.csv) files through Dropbox Analog BNC 2 probes included Digital 8 x 0.1' pitch, probes (included) Sync USB micro B-B Power USB micro B (optional) Inbegrepen 1x SmartScope USB-oscilloscoop 2x Analog probes 1x Digital probe kabels 1x USB-kabel Downloads Manual Software GitHub Wiki

    Niet op voorraad

    € 239,00

    Leden € 215,10

  • FNIRSI DPOX180H (2 - in - 1) 2 - ch Phosphor Oscilloscope (180 MHz) & Signal Generator - Elektor

    FNIRSI FNIRSI DPOX180H (2-in-1) 2-kanaals Oscilloscoop (180 MHz) & Signaalgenerator

    De FNIRSI-DPOX180H is een kosteneffectieve draagbare 2-kanaals digitale fosfor oscilloscoop en signaalgenerator. De oscilloscoop heeft een real-time sampling rate van 500 MS/s en een analoge bandbreedte van 180 MHz. De meetresultaten worden weergegeven op het contrastrijke 2,8-inch IPS full-view LCD-scherm met digitale fluorescentietechnologie. Kenmerken 2-kanaals draagbare oscilloscoop en DDS signaalgenerator 180 MHz bandbreedte Sample frequentie van 500 MS/s 20 MHz signaalgenerator Innovatief digitaal triggersysteem Cursormeting functie Gevoeligheid van 5 mV 50000 wfm/s golfvorm verversingssnelheid 2,8-inch IPS full-vision high-definition display Ingebouwde 4,2 V / 3000 mAh lithium accu Schakelt automatisch uit Beveiligd tegen verbranding door hoogspanning Specificaties Aantal kanalen 2 Analoge bandbreedte 180 MHz Maximale sampling frequentie 500 MS/s Ingangssignaal DC/AC Stijgtijd 2,5s Opslag bereik 120 Kpts Ingangsimpedantie 1 MQ-18 PF Verticale gevoeligheid 5 mV-10 V (1X) Bereik van de tijdbasis 5 nS~50 S DC nauwkeurigheid ±2% Tijdbasis nauwkeurigheid +0.01% Trigger detectie Digitale trigger Trigger modus Auto/Enkelvoudig/Normaal Trigger edge Stijgend/Dalend Meetbereik 40 mV~80 V (1X) Opslag van screenshots 90 Signaal captures 500 Schermgrootte 2,8-inch Beeldscherm resolutie 320 x 240 Display technologie IPS full-view Uitbreidingsinterface USB transmission-interface Auto power off 5 minuten - 2 uur Firmware upgrade Ondersteuning van iso-image upgrade Opladen 5 V / 2 A Capaciteit van de accu 3000 mAh Standby tijd 3,5 uur bij volledige lading Signaalgenerator 14 signalen met standaard functies Opslag van golfvormen 250 groepen Parameter meting 12 groepen Afmetingen 135 x 90 x 40 mm Digitale fosfor oscilloscoop De FNIRSI DPOX180H Oscilloscoop maakt gebruik van de nieuwste digitale fosfortechnologie ter voorkoming van ruis door storingen als bij de traditionele oscilloscoop. De weergavefunctie met verschillende kleuren laat duidelijk de verdeling van het signaal, de waarschijnlijkheidskenmerken en de stijg- en daaltijd van het signaal zien. En er is een X-Y-modus met digitale fosfortechnologie voor vergelijking van amplitude, frequentie en fase van twee groepen signalen. DDS functie signaalgenerator Hij heeft een ingebouwde 20 MHz DDS functie signaalgenerator, met 14 signalen met standaard functies, uitgangsamplitude vast op 1 VPP, sinusgolf frequentie van 20 MHz, andere golfvorm frequenties van 10 MHz, en een instelbare frequentiestap van 1 Hz. Beschikt over originele chopping technologie die delen van de oscilloscoopmeting van complexe signalen kan onderscheppen, en het uitgangssignaal van de signaalgenerator is objectiever en realistischer dan bij de traditionele signaalgenerator Inbegrepen 1x FNIRSI DPOX180H fosfor oscilloscoop 2x Sondes (200 MHz) 1x USB-voeding 1x USB-kabel 1x Handleiding Downloads Manual Firmware V40

    € 159,95

    Leden € 143,96

  •  -23% JOY - iT 3 - in - 1 Handheld Oscilloscope, Signal Generator and Multimeter (DMSO2D72) - Elektor

    JOY-iT JOY-iT (3-in-1) Handheld Oscilloscoop, Signaalgenerator en Multimeter (DMSO2D72)

    De JOY-iT DMSO2D72 is je ideale metgezel voor in de werkplaats en in het veld. Het combineert een 2-kanaals oscilloscoop, een signaalgenerator voor elke golfvorm en een multimeter met 6 verschillende meettypes in één apparaat en vervult alle functies die je van afzonderlijke apparaten verwacht. JOY-iT heeft bijzondere nadruk gelegd op een eenvoudige, duidelijke en praktische bediening om het werk voor de gebruiker zo aangenaam mogelijk te maken. Hiervoor is de DMSOD72 uitgerust met een 'één-knops' auto-meetfunctie en een 'één-knops' page out. Bovendien kunnen 2 signalen direct op het 2,8' 65K kleuren-LCD-display worden vergeleken. De stroomvoorziening wordt verzorgd door twee 18650 lithiumbatterijen, die bij de levering zijn inbegrepen en een continue werking van een dag en een standby-tijd mogelijk maken tijd tot 8 weken Verder is bediening via de USB-C-interface ook mogelijk, waarbij de batterijen tegelijkertijd worden opgeladen. Om het toestel bij gebruik in het veld optimaal te beschermen, is de DMSO2D72 voorzien van een siliconen omhulsel, dat bescherming biedt tegen schokken, vuil en hitte. De uitgebreide en zeer gebruiksvriendelijke software is beschikbaar in het Engels, Duits en Frans en kan eenvoudig op het apparaat worden ingesteld. Je zult ook onder de indruk zijn van de pc-software, die je een veelvoud aan functies biedt met een zeer hoog gebruiksgemak. Algemene specificaties Display type 2.8' 64K color TFT-LCD Display resolution 320 x 240 Display settings Adjustable background brightness, backlight duration, auto power off time Protective case Silicon cover, good impact resistance, outstanding heat resistance, easy to disassemble Special features Mobile use through battery operation, 3-in-1 device (oscilloscope, signal generator, multimeter), 3 languages (German, English, French) Assembly / Stand function 45° suspension bracket Interface USB Type C for power/data Rechargeable battery 2x 16850 Lithium Charging current 5 V / 2 A Battery life In use: A full dayIn standby: Up to 8 weeks PC software Windows 7 and higher Operating temperature 0-50°C Dimensions 199 x 98 x 40 mm Weight 624 g Oscilloscoop Channels 2 + DMM + AWG Bandwidth 70 MHz Sampling Rate 250 MSa/s Single channel125 MSa/s Dual channel Vertical resolution 10 mV - 10 V Automatic measurement of Frequency and amplitude Manual cursor measurement Voltage and time Output impedance (DC) 25 pF ±3 pF; 1 M? ±2% Maximum input voltage 150 V RMS Signaalgenerator Sampling rate 250 MSa/s Vertical resolution 12 bits Waveforms Sine, square, triangle, trapezoid, and many more Sine 1 Hz - 25 MHz Square 1 Hz - 10 MHz Triangle 1 Hz - 1 MHz Trapezoid 1 Hz - 5 MHz Frequency resolution 1 Hz Output impedance 50 ? Digitale multimeter 6 Multimeter measuring modes Voltage, current, resistance, capacity, diode, on-off Max. resolution 4000 Counts Ranges Voltage 0 µV - 600 V DC0 mV - 600 V AC, 40-400 Hz Current 0 µA - 10 A Resistance 0 m? - 40 M? Capacity 0 pF - 100 µF Diode 0-2 V On-off <50 ? Inbegrepen JOY-iT 3-in-1 handheld DMSO2D72 2 oplaadbare batterijen (18650, 2600 mAh) Passieve 80 MHz-Probe + accessoires 2x BNC naar krokodilklem coaxkabel 2x DMM-meetsnoer USB naar USB-C-kabel USB-voeding (5 V, 2 A) Downloads Datasheet Manual PC Software 1.1.10 Flash Manual 28-07-2021 Flash Software Latest firmware version (13-01-2022)

    € 259,00€ 199,00

    Leden identiek

  • FNIRSI 1014D (2 - in - 1) 2 - ch Oscilloscope (100 MHz) & Signal Generator - Elektor

    FNIRSI FNIRSI 1014D (2-in-1) 2-kanaals Oscilloscoop (100 MHz) & Signaalgenerator

    Niet op voorraad

    De FNIRSI 1014D is een 2-in-1 oscilloscoop en signaalgenerator met uitgebreide functies en een hoge bruikbaarheid. Het is een betaalbare 2-kanaals desktop-oscilloscoop voor servicebedrijven en de R&D industrie. De oscilloscoop heeft een real-time sampling rate van 1 GSa/s en een analoge bandbreedte van 100 MHz. De ingebouwde DDS signaalgenerator ondersteunt 12 keuzes aan functiesignalen. Specificaties Kanalen 2 Schermgrootte 7 inch LCD LCD resolutie 800 x 480 Bandbreedte 100 MHz Sampling rate 1 GSa/s Stijgtijd <3nS Opslagdiepte 240 Kbit Ingangsimpedantie 1 M? Gevoeligheid 50 mV ~ 500 V Tijdbasis 50s ~ 10nS Trigger modus Single / Normal / Auto Triggerwijze Stijgend / Dalend Ingangskoppeling AC/DC Hoogste testspanning 1X: 40V, 10X: 400V Cursor Positie XY, Trigger Y Golfvorm opslag 1000 afdrukken + 1000 golfvormen Roll modus Ja AUTO middels één knop Ja Golfvorm manager Ja Uitvoer capture Ja Nauwkeurigheid spanning ±5% Frequentie precisie ±0,01% high precision Parameters 12 keuzes in totaal Generator 14 varianten in totaal Uitbreiding Uitvoer via USB Voeding 5 V / 2 A, 3 A, 4 A Afmetingen 310 x 145 x 70 mm Inbegrepen 1x FNIRSI 1014D Oscilloscoop 2x Oscilloscoop sondes (100 MHz) 1x USB-oplader 1x Handleiding Downloads Manual Firmware V3.0

    Niet op voorraad

    € 169,95

    Leden € 152,96

  • DSO3D12 (3 - in - 1) 2 - ch Oscilloscope (120 MHz) + Multimeter + Signal Generator - Elektor

    ZEEWEII DSO3D12 (3-in-1) 2-kanaals Oscilloscoop (120 MHz) + Multimeter + Signaalgenerator

    De DSO3D12 is een draagbare 2-kanaals oscilloscoop met een high-definition 3,2-inch display, een bandbreedte van 120 MHz en boordevol krachtige functies. Hij bevat een uiterst nauwkeurige True RMS multimeter, die snelle softwarekalibratie ondersteunt. Bij het meten van laagspanning, weerstand of continuïteit kunnen zowel de oscilloscoop- als de multimeterfunctie tegelijkertijd worden gebruikt. De ingebouwde golfvormgenerator kan verschillende golfvormen genereren, waaronder sinus-, blok- en triangelgolven. De amplitude daarvan is 2,5 V, de frequentie is instelbaar van 0 tot 2 MHz en de duty cycle van de blokgolf kan worden aangepast van 1% tot 99%. Met behulp van MCU en FPGA chips zorgt de DSO3D12 voor snelle signaal- en gegevensverwerking, wat een soepele gebruikerservaring biedt met een schat aan functies. De DSO3D12 wordt veel gebruikt in verschillende toepassingen, waaronder: R&D toepassingen Foutopsporing in chips Reparatie en onderhoud van auto's Reparatie van huishoudelijke apparaten Doe-het-zelf foutopsporing Radio amateur activiteiten Schakelende voedingen Frequentie omzetters Lasapparaten Bus golfvormanalyse Golfvormanalyse bij kristallen Deze veelzijdigheid aan functies maakt de DSO3D12 tot een zeer bruikbaar hulpmiddel bij een breed scala aan technische en elektronische taken. Kenmerken Scherm: 3,2-inch HD-kleurenscherm Behuizing: inklapbare standaard Toetsenbord: zachte siliconen toetsen Opladen: USB-C / 5 V Ingebouwde oplaadbare accu voor ca. 6 uur gebruik Afmetingen: 145 x 86 x 33 mm Gewicht: 266 g Specificaties (oscilloscoop) Kanalen 2 Bandbreedte 120 MHz (alleen CH1)60 MHz (CH1 + CH2) Sample frequentie 250 MSa/S Sample equivalent 500 M Stijgtijd <3 ns Opslag 128 KB Impedantie 1 MΩ Tijdbasis 5ns ~ 10s Piekspanning ±400 V (10x) Trigger modus Auto / Normal / Single Trigger type Stijgen / Dalen Trigger niveau Manual / Auto Trigger bron CH1 / CH2 Weergave modus YT / XY / Roll Persistentie Geen / 1s / ∞ Ingang AC / DC Auto modus OneKey auto / Fully auto Gevoeligheid X1: 10 mV/div ~ 10 V/divX10: 100 mV/div ~ 100 V/div Meetfuncties 14 Types DC offset ±2% XY modus Ja Screenshot Ja Frequentie ±0,01% Zoom modus Ja FFT Ja Generator golfvormen Sinus / Blok / Triangel Generator spanning 2,5 V ±0,05 Generator frequentie 1 Hz ~ 2 MHz Specificaties (multimeter) Functie Bereik Precisie DC Spanning 600 mV / 6,00 V / 60,0 V / 600 V / 750 V ±(0,5% +3) AC Spanning 600 mV / 6,00 V / 60,0 V / 600 V ±(1% +3) DC Stroom 600 mA / 10 A ±(2% +5) AC Stroom 600 mA / 10 A ±(3% +5) Weerstand 600,0 Ω ±(1,5% +3) 6,000 kΩ / 60,00 kΩ / 600,0 kΩ ±(1% +3) 6,000 MΩ ±(1,5% +5) 60,00 MΩ ±(3% +3) Capaciteit 60,00 nF / 600,0 nF / 6,000 μF ±(10% +5) 60,00 μF / 600,0 μF ±(15% +5) Diode 0,0 ~ 3,3 V, Weergave "OL" boven 3,3 V Continuïteit Geluidsignaal bij 50 Ω en lager Inbegrepen 1x DSO3D12 Oscilloscoop 2x P6100 Oscilloscoopsondes 2x Meetsnoeren 1x USB-C Oplaadkabel 1x Handleiding Downloads Handleiding

    € 149,95

    Leden € 134,96

  • FNIRSI 1013D 2 - ch Tablet Oscilloscope (100 MHz) - Elektor

    FNIRSI FNIRSI 1013D 2-kanaals Tablet-oscilloscoop (100 MHz)

    The FNIRSI 1013D is a fully featured 2-channel tablet oscilloscope with a high-resolution 7-inch LCD screen (800 x 480). The oscilloscope has a real-time sampling rate of 1 GSa/s and an analog bandwidth of 100 MHz. With full trigger functions (single/normal/automatic), it can be used for periodic analog signals or non-periodic digital signals. The built-in high-voltage protection module can withstand a continuous voltage of up to 400 V. Kenmerken Intelligent anti-burn,1X can withstand up to 400 V withstand voltage. 100 MHz analog bandwidth @ 1 GSa/s sampling rate (1X = 5 MHz,10X = 100 MHz). Fully fit 7-inch 800 x 480 resolution color TFT LCD display with bright colors and high contrast. Capacitive touching screen, the same as the touching mode of modern mobile tablet, is not a resistive touching screen with ancient nail operation. High measurement voltage range, 1X can measure 0~40 V, 10X can measure 0~400 V,100X can measure 0~4000 V. Up to 12 parameters measurement: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Period. Cursor measurement function, it is convenient to manually measure the period and frequency and voltage. Complete triggering function (single, normal, automatic). At any time, the waveform display (pause function) is frozen. Equipped with high efficiency One-button AUTO. One-button waveform storage and screenshot. Built-in 1 GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data. Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc. Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis. Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals. FFT display function, can analyze the spectral characteristics of the signal. Built-in 6000 mAh rechargeable lithium battery, fully charged for 4 hours of continuous use at the highest screen brightness. Memory compression technology, waveform refresh screen does not flicker. Screen brightness adjustment. Background grid brightness adjustment. Toepassingen Electronic DIY Appliance repair Car repair Equipment debug Scientific research Product development Specificaties Channels 2 LCD size 7 inch LCD resolution 800 x 480 Display technology TFT Bandwidth 100 Mhz Sampling rate 1 GSa/s Rise time <3nS Storage depth 240 Kbit Input resistance 1 MΩ Sensitivity 50 mV ~ 500 V Time base 50S ~ 10nS Trigger mode Single/Normal/Auto Trigger edge Rising/Falling Coupling AC/DC Highest test voltage 1X: 40 V, 10X: 400 V Cursor Position XY, Trigger Y Roll mode Yes One button AUTO Yes Waveform storage 1000 pictures + 1000 waveforms Waveform manager Yes Voltage accuracy ±2% Frequency precision ±0.01% high precision Parameter 12 kinds in total Battery 6000 mAh Lithium Standby 4 hours Extension USB export Power supply USB-C, 5 V @ 2 A/3 A/4 A Dimensions 184 x 124 x 50 mm Weight 650 g Inbegrepen 1x FNIRSI 1013D 2-ch Tablet Oscilloscope 2x 100 MHz Probes (1X and 10X) 1x USB charger 1x USB cable 1x Manual Downloads Manual Firmware

    € 169,95

    Leden € 152,96

  • FNIRSI DSO152 Oscilloscope (200 kHz) - Elektor

    FNIRSI FNIRSI DSO152 Oscilloscoop (200 kHz)

    De FNIRSI DSO152 is een uiterst praktische, betaalbare en draagbare oscilloscoop met een real-time bemonsteringsfrequentie van 2,5 MSa/s, een bandbreedte van 200 kHz, en een complete set triggerfuncties (enkelvoudig, normaal en automatisch). Hij kan worden gebruikt voor zowel periodieke analoge signalen als niet-periodieke digitale signalen, en kan spanningen meten tot ±400 V. Doordat hij is uitgerust met een efficiënte one-key AUTO kan hij de gemeten golfvorm weergeven zonder omslachtige instellingen. Verder is hij voorzien van een 2,8-inch high-resolution LCD-scherm met een resolutie van 320 x 240 pixels, en een ingebouwde hoogwaardige lithium accu van 1000 mAh voor maximaal 4 uur gebruik. Specificaties Sampling rate 2,5 MSa/s Bandbreedte 200 kHz Verticale gevoeligheid 10 mV/DIV - 20 V/DIV (oplopend op de 1-2-5-wijze) Tijdbasis bereik 10?S/DIV - 50s/DIV (oplopend op de 1-2-5-wijze) Spanningsbereik X1: ±40 V (Vpp: 80 V)X10: ±400 V (Vpp: 800 V) Triggerwijze Auto/Normal/Single Ingangskoppeling AC/DC Scherm 2,8" (320x240 pixels) Opladen via USB 5 V / 1 A Lithium accu capaciteit 1000 mAh Blokgolf kalibratie Frequentie: 1K, duty cycle: 50% Afmetingen 99 x 68,3 x 19,5 mm Gewicht 100 g Inbegrepen FNIRSI DSO152 oscilloscoop Sonde met krokodillenklem USB kabel Lanyard Handleiding Downloads Manual Firmware V0.1

    € 39,95

    Leden € 35,96

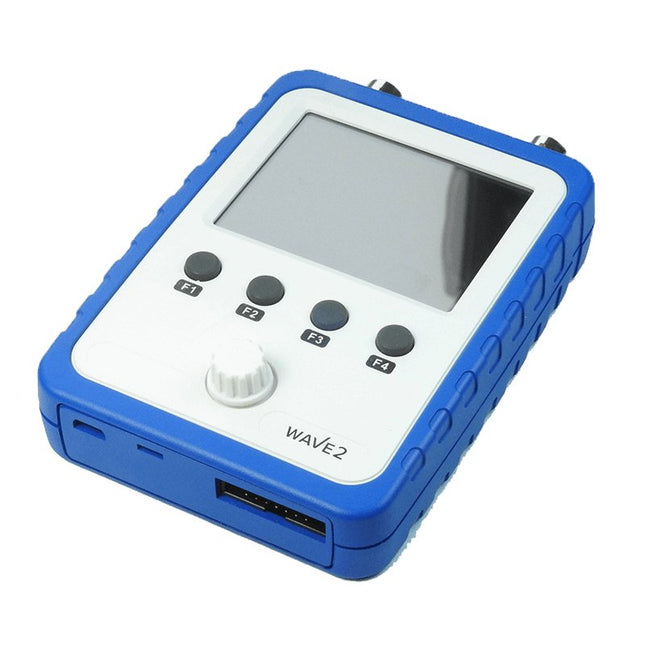

  •  -41% JYE Tech WAVE2 2 - ch Portable Oscilloscope DIY Kit - Elektor

    JYE Tech JYE Tech WAVE2 2-kanaals Oscilloscoop DIY Kit

    Kenmerken No. of Channels: 2 Bandwidth: 0-200 KHz per channel Sensitivity range: 5 mV/DIV – 20 V/DIV (using x1 probe) Maximum input voltage: 50 Vpk (using x1 probe) Maximum real time sampling rate: 1 MS/s Time Base range 10 us/DIV – 500 s/DIV X-Y Display Feature: Yes Function Generator Capability: Built-in 0 – 20 KHz (sine) dual channel DDS function generator Display Resolution: 320 x 240 Color display Display Size: 2.4? Touch Display Capability: Yes Battery powered and portable (battery not included in DIY Kit) Specificaties General 2.4” 320x240 color display Touch panel operation Y-X mode available Built-in 2-channel DDS function generator Light weight and portable Vertical Number of Channel: 2 Analog Bandwidth: DC – 200 KHz Sensitivity: 5 mV/Div - 20 V/Div (with x1 probe) Sensitivity error: < 5% Resolution: 12-bit Input Impedance: 1 M ohm / 25 pF Maximum Input Voltage: 50 Vpk Coupling: DC, AC Horizontal Max Real-time Sampling Rate: 1 Msps (per channel) Timebase: 10 us/Div - 500 s/Div Record Length: 1024 points Trigger Trigger Modes: Auto, Normal, Single Trigger Types: Rising/falling edge Trigger Position: 1/2 of buffer size Trigger Source: Ch1, Ch2, External Maximum external trigger voltage: 15 V External trigger threshold: LVTTL Function Generator Number of channel: 2 Waveform type: Sine, Square, Saw-tooth, Stair Frequency range: DC – 20 KHz (Sine) Amplitude range: 0 – 3 V (peak value) Offset: 0 V or +3.3 V Duty Cycle: 0 – 100% Phase: -360 – 360 degree Power Supply Powered on 3.7 V Li-ion battery or USB Current consumption: ~30 0mA @ 3.7 – 5V Internal batter charger (optional) Automatic power off on battery Battery running time: Appr. 3 hrs (when fully charged) Other Features Y-X display mode On-screen measurement display Save / recall up to 4 captures Serial output of captured data Serial port format: LVTTL, 115200 bps, 8N1 Built-in 1 KHz/3.3 V test signal Physical Dimension: 115 x 72 x 30 mm Weight: 0.29 kg (excluding battery and probes)

    € 84,95€ 49,95

    Leden identiek

  • OWON HDS242 2 - ch Oscilloscope (40 MHz) + Multimeter - Elektor

    OWON OWON HDS242 2-ch Oscilloscope (40 MHz) + Multimeter

    Niet op voorraad

    De HDS242 is een draagbare 2-in-1 multifunctionele tester, die kan worden gebruikt als een 2-kanaals oscilloscoop en multimeter. Hij beschikt over een contrastrijk 3,5-inch kleurendisplay dat geschikt is voor outdoor service, snelle metingen op locatie, voertuigonderhoud, spanningsdetectie, en meer.Kenmerken Oscilloscoop + multimeter 3,5-inch LCD-kleurenscherm met hoge resolutie en hoog contrast – geschikt voor gebruik buitenshuis 18650 lithium accu – kan tot 6 uur continu werken USB Type-C interface - ondersteuning voor powerbank en PC-aansluiting Zelfkalibratie functie SCPI ondersteund – faciliteer secundairy development Specificaties Oscilloscoop Bandbreedte 40 MHz Kanalen 2-kanaals oscilloscoop Sample frequentie 250 MSa/s Acquisition modi Normaal, Piekdetectie Record Lengte 8K Display 3,5-inch LCD Golfvorm refresh rate 10.000 wfrms/s Ingangssignaal DC, AC en Ground Ingangsimpedantie 1 M? ±2%, parallel aan 16pF ±10pF Probe dempingen 1X, 10X, 100X, 1000X, 10000X Max. Ingangsspanning 400 V (DC+AC, PK-PK, 1M? ingangsimpedantie) (10:1 probe demping) Bandbreedte (typical) 20 MHz Horizontale schaal 5ns/div - 1000s/div, in stappen van 1 - 2 - 52ns/div - 1000s/div, in stappen van 1 - 2 - 55ns/div - 1000s/div, in stappen van 1 - 2 - 52ns/div - 1000s/div, in stappen van 1 - 2 - 5 Verticale gevoeligheid 10mV/div - 10V/div Verticale resolutie 8 bits Trigger Type Edge Trigger Modi Auto, Normal, Single Automatische Meting Frequency, Period, Amplitude, Max, Min, Mean, PK-PK Cursor meting ? V, ? T, ?T & ?V tussen cursors Multimeter Max resolutie 20.000 counts Test modi Spanning, Stroom, Weerstand, Capaciteit, Diode en Continuïteitstest Ingangsimpedantie 10 M? Max ingangsspanning AC: 750 V | DC: 1000 V Max ingangsstroom DC: 10 A | AC: 10 A Diode 0-2 V Overig Connectiviteit USB Type-C Afmetingen 198 x 96 x 38 mm (7,68 x 3,74 x 1,5') Gewicht 600 g (zonder accu) Inbegrepen 1x OWON HDS242 Oscilloscoop 1x tasje 1x probe 1x netsnoer 1x probe adjust 1x USB-kabel 1x voedingsadapter 1x set multimeter probe kabels (rode en zwarte) 1x set oscilloscoop probe leads (BNC naar Krokodil) 1x gebruikershandleiding (Engels) Downloads User Manual for HDS200 Series SCPI Protocol for HDS200 Series Quick Guide for HDS200 Series PC Software for OWON HDS200 Series

    Niet op voorraad

    € 129,95

    Leden € 116,96

  • OWON XDS2102A 2 - ch Oscilloscope (100 MHz) - Elektor

    OWON OWON XDS2102A 2-ch Oscilloscope (100 MHz)

    Niet op voorraad

    12-bit high-resolution ADC, restoring the waveform detail fully 20M record length, and 55,000 wfms/s waveform refresh rate low background noise, vertical sensitivity in 1 mV/div - 10 V/div multi-trigger, and bus decoding function SCPI and LabVIEW supported ultra-thin body-design, less space accommodation multi-interface integration 8 inch 800 x 600 high-resolution LCD XDS2102A Bandwidth 100MHz Sample Rate 1GS/s Vertical Resolution (A/D) 12 bits Record length 20M Horizontal Scale (s/div) 2ns/div - 1000s/div, step by 1 - 2 - 5 Channel 2 + 1 (external) Display 8' color LCD, 800 x 600 pixels Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I2C, SPI, RS232, and CAN (standard for XDS2102A/optional for other models) Bus Decoding I2C, SPI, RS232, and CAN Communication Interface USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional) Power Supply 100V - 240V AC, 50/60Hz, CAT II Fuse 2A, T class, 250V Dimension (W x H x D) 340 mm x 177 mm x 90 mm Weight 2.60 kg

    Niet op voorraad

    € 469,00

    Leden € 422,10

  • Bijna uitverkocht Siglent SDS1202X - E 2 - ch Oscilloscope (200 MHz) - Elektor

    Siglent Siglent SDS1202X-E 2-kanaals oscilloscoop (200 MHz)

    Nog 2 op voorraad

    SIGLENT’s SDS1000X-E Series Super Phosphor Oscilloscope is available in one bandwidth, 200 MHz. It has a maximum sample rate of 1 GSa/s and a standard record length of 1 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design. The SDS1000X-E series employs a new generation of SPO (Super Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It comes with a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/ sec (sequence mode). The SDS1000X-E also employs a 256-level intensity grading display function and a color temperature display mode not found in other models in this class. Siglent’s latest oscilloscopes offering supportsmultiple powerful triggering modes including serial bus triggering. Decoding is standard configuration including IIC,SPI,UART,CAN,LIN. History waveform recording and sequential triggering enable extended waveform recording and analysis. Another powerful addition is the new 1 million points FFT math function that gives the SDS1000X-E very high frequency resolution when observing signal spectra. The new design also includes a hardware co-processor that delivers measurements quickly and accurately. The features and performance of Siglent’s new SDS1000X-E cannot be matched anywhere else in this price class. Specificaties Bandwidth 200 MHz Channels 2CH+1EXT Real time sampling rate 1 GSa/s Memory depth 7 Mpts/CH (Dual-Channel); 14 Mpts/CH (Single-Channel) Waveform Capture Rate (Max.) 100,000 wfm/s (normal mode); 400,000 wfm/s (sequence mode) Serial Trigger (Standard) IIC, SPI, UART/RS232, CAN, LIN Decode Type (Standard) IIC, SPI, UART/RS232, CAN, LIN Trigger Type Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video Probe (Std) 2 pcs passive probe PP215 Display 7 inch TFT-LCD (800x480) Weight Without package 2.5 kg; with package 3.5 kg Downloads Datasheet Manual Programming Guide

    Nog 2 op voorraad

    € 409,00

    Leden identiek

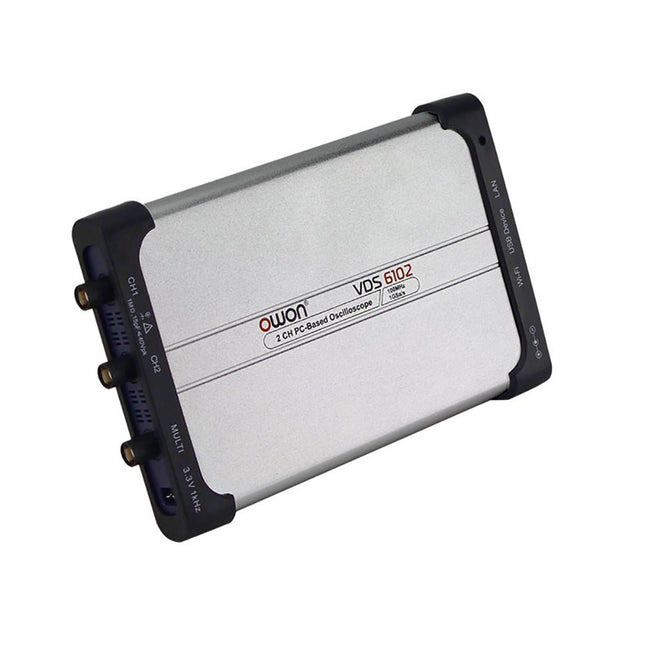

  • OWON VDS6102A 2 - ch USB Oscilloscope (100 MHz) - Elektor

    OWON OWON VDS6102A 2-kanaals USB-oscilloscoop (100 MHz)

    The OWON VDS6000 Series PC Oscilloscope combines powerful performance with a sleek, ultra-thin design. With 100 MHz bandwidth, 1 GSa/s real-time sampling, and up to 14-bit resolution, it delivers highly accurate measurements. The built-in 5 MHz function generator, USB-C power supply, and optional WiFi connectivity make it incredibly versatile. Compatible with Windows, Linux, Android, and iOS, the VDS6000 is perfect for labs, fieldwork, and remote diagnostics – compact, flexible, and ready for any challenge. Features Bandwidth: 100 MHz Vertical resolution: 14 bits Rise time: ≤3.5 ns Memory: 10 Mpts Number of channels: 2 channels + 1 channel function generator Horizontal scale: 5ns - 100s/div Sample rate: Max. 1 GSa/s Maximum voltage: 40 V (peak - peak) Automatic measurements: Vpp, Vavg, Vamp, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, Rise Time, Connectivity: USB-C, LAN, Wifi (optional) Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty Bandwidth: 5 MHz Sample rate: 25 MSa/s Standard waveforms: Sine (0.1 Hz - 5 MHz), Square (0.1 Hz - 200 kHz), Ramp (1 Hz - 10 kHz), Pulse (1 Hz - 10 kHz) Resolution: 10 bits DC offset range (AC + DC): ±2.5 V Amplitude range: 10 mVpp - 5 Vpp Dimensions: 190 x 120 x 18 mm Weight: 380 g Downloads Manual Quick Guide PC Software MacOS Software

    € 329,00

    Leden € 296,10

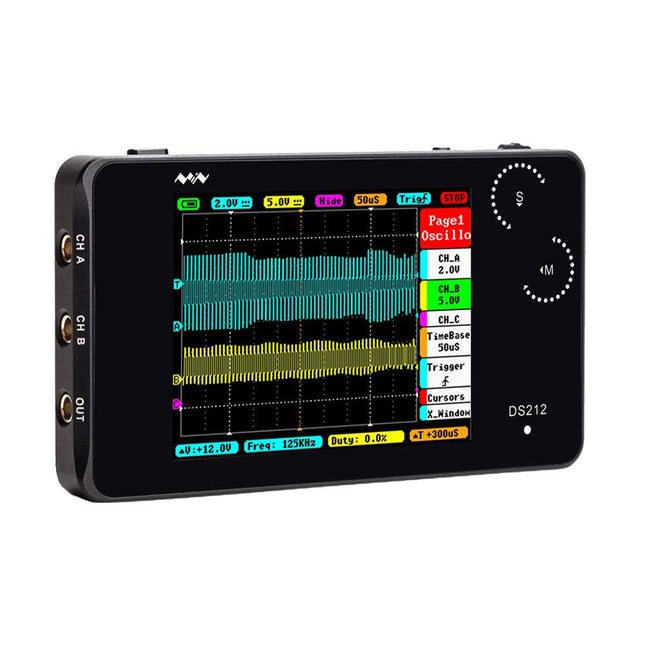

  • Miniware DS212 2 - ch Mini Oscilloscope (1 MHz) - Elektor

    Miniware Miniware DS212 2-ch Mini Oscilloscope (1 MHz)

    Features Synchronous mode: Auto, Normal, Single, None, Scan Rising/Falling edge trigger Modes of vertical precise, horizontal precise measurement and triggering threshold Auto Measurement: frequency, cycle time, duty cycle, DC RMS voltage/Vpp /Vmax/Vmin/Vavg Inbuilt signal generator/10 Hz-1 MHz square wave (duty adjustable) or 10 Hz-20 KHz Sine/Square/Triangle/Sawtooth wave Specifications Analog bandwidth 1 MHz Max sample rate 10 Msa/s Max sample memory depth 8K Analog input impedance 1 M? Max input voltage ±40 V (X1) Coupling AC/DC Vertical sensitivity 20 mv/Div~10 V/Div (1-2-5) Horizontal sensitivity 1 uS/Div~2 S/Div (1-2-5) Storage Built-in 8 MB U disk storage for waveform data and images Power supply Internal 550 mAh Lithium battery, recharging through Micro USB port Display 2.8' Full Color TFT LCD (320x240 pixels) Dimensions 100 x 56.5 x 10.7 mm Downloads User Manual Source Code App

    € 149,95

    Leden € 134,96

  • FNIRSI DSO153 (2 - in - 1) Oscilloscope (1 MHz) & Signal Generator - Elektor

    FNIRSI FNIRSI DSO153 (2-in-1) Oscilloscoop (1 MHz) & Signaalgenerator

    The FNIRSI DSO153 is a highly practical and cost-effective handheld oscilloscope with a real-time sampling rate of 5 MSa/s, 1 MHz bandwidth, and complete triggering function (single, normal, auto). It can be used freely for both periodic analog signals and non-periodic digital signals, and can measure up to ±400 V voltage with an efficient one-click AUTO, which can display the measured waveform without complicated adjustments. Additionally, it features a function signal generator capable of outputting 14 types of signals (10 KHz). Equipped with a 2.8-inch 320x240 resolution HD LCD screen and a built-in 1000 mAh high-quality lithium battery, it can be used for about 4 hours when fully charged. Kenmerken 2.8-inch HD LCD display with 320x240 Resolution Portable Pocket Oscilloscope with Signal Generator Lightweight, mini-sized, assembled Faster sampling: 5 MS/s, 1 MHz bandwidth Versatile triggering: Single, Normal, Auto User-friendly: One-button setup Extended battery: 1000 mAh, 4 hours Multi-functionality: 10 KHz Sine Wave Generator Specificaties Bandwidth 1 MHz Sampling rate 5 MSa/s Vertical Sensitivity 10mV/Div – 20V/Div Time Base Range 500ns/Div – 20s/Div Voltage Range X1: ±40 V (Vpp: 80 V)X10: ±400 V (Vpp: 800 V) Trigger Method Auto / Normal / Single Coupling Method AC/DC Frequency Range 0-10 KHz Duty Cycle Range 0-100% Amplitude Range 0.1-3.3 V Display 2.8 inches (Resolution: 320 x 240) USB Charging 5 V/1 A Lithium Battery Capacity 1000 mAh Dimensions 99 x 68.3 x 19.5 mm Weight 100 g Inbegrepen 1x FNIRSI DSO153 1x P6100 High Voltage Oscilloscope Probe 1x Adapter 1x Alligator clip probe 1x USB charging cable 1x Lanyard 1x Manual Downloads Manual Firmware V1.1.8

    € 49,95

    Leden € 44,96

  • OWON XDS3102A 2 - ch Oscilloscope (100 MHz) - Elektor

    OWON OWON XDS3102A (3-in-1) 2-kanaals Oscilloscoop (100 MHz) + Multimeter + Signaalgenerator

    The OWON XDS3102A is a 12-bit 2-channel digital storage oscilloscope (100 MHz) with digital multimeter and 2-channel arbitrary waveform generator (25 MHz). It features a touchscreen, a VGA output, WiFi and a 13200 mA battery. Performance 8-bit, 12-bit or 14-bit high-resolution ADC, restoring the waveform detail fully 40M record length, max 75,000 wfms/s waveform refresh rate Ow background noise, vertical sensitivity in 1 mV/div - 10 V/div Multi-trigger, and bus decoding function SCPI and LabVIEW supported Features Ultra-thin body-design, less space accommodation Multi-interface integration – USB host, USB device, USB port for PictBridge, LAN, AUX, and more VGA port – a better solution for video expansion, and teaching demonstration 8 inch 800 x 600 high-resolution LCD Optional multi-point touch screen, more user-friendly operation experience Specifications Bandwidth 100 MHz Sample Rate 1 GS/s Vertical Resolution (A/D) 12 bits Record length 40M Horizontal Scale (s/div) 2 ns/div - 1000s/div, step by 1 - 2 - 5 Channel 2 + 1 (external) Display 8" color LCD, 800 x 600 pixels Waveform Math   ?, ?, ×, ÷, FFT, FFTrms, Intg, Diff, Sqrt, User Defined Function, digital filter (low pass, high pass, band pass, band reject) Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge, Logic, I²C, SPI, RS232 Bus Decoding I²C, SPI, RS232 Communication Interface USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN Power Supply 100-240 V AC, 50/60 Hz, CAT II Power Consumption ?15 W Fuse 2A, T class, 250 V Dimension 340 x 177 x 90 mm Weight 2.6 kg

    € 669,00

    Leden € 602,10

  • OWON SDS1202 2 - ch Oscilloscope (200 MHz) - Elektor

    OWON OWON SDS1202 2-ch Oscilloscope (200 MHz)

    De OWON SDS1202 2-kanaals oscilloscoop heeft een hoge bandbreedte van 200 MHz, een samplefrequentie van 1 GSa/s, een zeer dunne behuizing, en een 7-inch kleuren-LCD met hoge resolutie. De scoop ondersteunt SCPI en LabVIEW.Kenmerken Bandbreedte: 200 MHz 2 kanalen Sample frequentie: 1 GS/s Zeer dunne behuizing 7-inch LCD-scherm met hoge resolutie SCPI en LabVIEW wordt ondersteund Specificaties Bandbreedte 200 MHz Sample frequentie 1 GSa/s Horizontale schaal (s/div) 2 ns/div - 1000 s/div, in stappen van 1 - 2 - 5 Kanalen 2 Display 7' kleuren-LCD, 800 x 480 pixels Ingang DC, AC en GND Verticale resolutie (A/D) 8-bits (2 kanalen tegelijk) Verticale gevoeligheid 5 mV/div - 5 V/div (op de ingang) Trigger type Edge, Video Trigger modus Auto, Normal, and Single Golfvorm math ?, ?, x, ÷, invert, FFT Zekering 2A, T class, 250V Afmetingen (W x H x D) 301 x 152 x 70 mm Gewicht 1,10 kg Inbegrepen 1x OWON SDS1202 oscilloscoop 1x Probe 1x Probe aanpassing 1x Netsnoer 1x USB-kabel 1x CD-ROM 1x Quick Guide Downloads Datasheet User manual PC software SCPI commands

    € 319,00

    Leden € 287,10

  • OWON HDS2202s 2 - ch Oscilloscope (200 MHz) + Multimeter + Signal Generator - Elektor

    OWON OWON HDS2202s 2-kanaals oscilloscoop (200 MHz) + multimeter + signaalgenerator

    Niet op voorraad

    De OWON HDS2202s is een draagbare 3-in-1 multifunctionele tester, die kan worden gebruikt als een 2-kanaals oscilloscoop met een bandbreedte van 200 MHz, en als een multimeter en signaalgenerator. Hij beschikt over een contrastrijk 3,5-inch kleurendisplay dat geschikt is voor onderhoud buitenshuis, snelle metingen ter plaatse, auto-onderhoud, stroomdetectie, enzovoort./p> Kenmerken Oscilloscoop + multimeter + golfvormgenerator, multifunctioneel in één 3,5-inch LCD-kleurenscherm met hoge resolutie en hoog contrast, geschikt voor gebruik buitenshuis 18650 lithium accu, kan 3-6 uur continu werken USB type-C interface, ondersteuning voor powerbank, ondersteuning voor software via een pc Zelfkalibratie functie Ondersteunt SCPI, faciliteert secundary development Specificaties Bandbreedte 200 MHz Kanalen 2-kanaals oscilloscoop + 1-kanaals generator Sample frequentie 1 GSa/s Acquisitie methode Normaal, Piekdetectie Record length 8K Scherm 3,5-inch LCD Golfvorm refresh rate 10.000 wfrms/s Ingangssignaal DC, AC en Aarde Ingangsimpedantie 1 MΩ ±2%, met parallel 16pF ±10pF Dempingswaarden probe 1X,10X,100X,1000X,10000X Maximale ingangsspanning 400 V (DC+AC, PK-PK, 1MΩ ingangsimpedantie) (10:1 demping op de probe) Bandbreedte limiet (typical) 20 MHz Horizontale schaal 2ns/div - 1000s/div, in stappen van 1 - 2 - 5 Verticale gevoeligheid 10mV/div - 10V/div Verticale resolutie 8 bits Triggertype Edge Triggermodi Auto, Normaal, Single Automatische metingen Frequentie, Periode, Amplitude, Max, Min, Gemiddelde, PK-PK Cursormeting ΔV, ΔT, ΔT&ΔV tussen cursors Communicatie interface USB Type-C Multimeter Specificaties Max. resolutie 20.000 counts Testmodus Spanning, Stroom, Weerstand, Capaciteit, Diode en Continuïteitstest Ingangsimpedantie 10 MΩ Maximale ingangsspanning AC 750 V, DC 1000 V Max ingangsstroom DC: 10 A, AC: 10 A Diode 0-2 V Waveform Generator Specificaties Frequentie uitgang Sinus 0,1 Hz - 25 MHz Square 0,1 Hz - 5MHz Ramp 0,1 Hz - 1 MHz Pulse 0,1 Hz - 5 MHz Arbitrary 0,1 Hz - 5 MHz Sample frequentie 125 MSa/s Kanalen 1 kanaal Amplitudebereik (hoge impedantie) 20 mVpp - 5 Vpp Golfvorm Lengte 8K Verticale resolutie 14 bits Uitgangsimpedantie 50 Ω Inbegrepen 1x OWON HDS2202s 1x Voedingsadapter 1x USB-kabel 1x Passieve probe 2x Krokodillenklem kabels 1x Set multimeter probes (een rode en een zwarte) 1x Gebruiksaanwijzing 1x Insteltool voor aanpassing van de probe Downloads Gebruikershandleiding Specificaties SCPI Protocol Quick Guide Software

    Niet op voorraad

    € 299,00

    Leden € 269,10

  • OWON HDS310S (3 - in - 1) 2 - ch Oscilloscope (100 MHz) + Multimeter + Signal Generator - Elektor

    OWON OWON HDS310S (3-in-1) 2-kanaals oscilloscoop (100 MHz) + multimeter + signaalgenerator

    Niet op voorraad

    This multifunction device combines a dual-channel oscilloscope, multimeter, and waveform generator into one unit. It features a 3.5-inch high-resolution, high-contrast color LCD display, making it suitable for outdoor use. The device is powered by an integrated 18650 lithium battery and includes a USB-C interface, supporting power bank charging and PC software connection. Additionally, it has a self-calibration function and supports SCPI (Standard Commands for Programmable Instruments), facilitating secondary development. Specificaties (oscilloscoop) Model HDS307S HDS310S Bandwidth 70 MHz 100 MHz Channels 2+1 (Signal Generator) Sample rate 250 MSa/s 500 MSa/s Acquisition model Sample, Peak detect Record length 8K Display 3.5 inch LCD Waveform refresh rate 10000 wfrms/s Input coupling DC, AC, Ground Input impedance 1 MΩ ±2%, in parallel with 16 pF ±10 pF Probe attenuation 1X, 10X, 100X, 1000X, 10000X Max. input voltage 400 V (DC+AC, PK - PK) Bandwidth limit (typical) 20 MHz / Full bandwidth Sampling rate range 5ns/div ~ 1000s/div, step by 1 – 2 - 5 Sensitivity Resolution 10mV/div~10V/div Low Frequency(-3db) ≥10 Hz (at input, AC coupling) Rise time (at input, Typical) ≤5ns ≤3.5ns Trigger type Edge Trigger model Auto, Normal, Single Trigger level range ±4 div from the screen center Automatic measurement Period, Frequency, Mean, PK-PK, Max, Min, RMS, Rise Time, Fall Time, +Width, -Width Cursor measurement ΔV, ΔT Communication interface USB-C Specificaties (multimeter) Full scale reading 4 1/2 digitals(max 20000 Counts) Testing Modes Voltage, Current, Resistance, Capacitance, Diode, Continuity Maximum Input Voltage AC 750 VDC 1000 V Maximum Input Current DC: 10 AAC: 10 A Diodes Test 0-2 V Specificaties (signaalgenerator) Frequency Output Sine 0.1 Hz~30 MHz Square 0.1 Hz~6 MHz Ramp 0.1 Hz~1 MHz Pulse 0.1 Hz~5 MHz Arbitrary Waveform 0.1 Hz~5 MHz Sample Rate 125 MSa/s Channel 1 Amplitude 20 mVpp-5 Vpp (high impedance)10 mVpp-2.5 Vpp (50 Ω) Waveform length 8K Vertical resolution 14 bits Load impedance 1 MΩ/50 Ω Inbegrepen 1x OWON HDS310S 2x Passive probes 1x Crocodile clip cable 2x Multimeter probes (1x red and 1x black) 1x Probe correction adjustment knife 1x USB cable 1x Manual Downloads Specifications Quick Guide Manual

    Niet op voorraad

    € 249,00

    Leden € 224,10

  • Bijna uitverkocht PeakTech 1240 2 - ch Oscilloscope (60 MHz) - Elektor

    PeakTech PeakTech 1240 2-ch Oscilloscope (60 MHz)

    Nog 1 op voorraad

    Digital storage osczilloscope of the latest generation with high-resolution color display, backlight, high bandwidth and high sampling rate, VGA-output, large internal memory, USB port and LAN connection for integration into networks. The amazing value for money and modern technology allows a wide range of applications in education, service and quality assurance area. High-resolution TFT color display with 800 x 600 pixels and 65536 colors USB port for real-time data transmission or reading of internal memory Saving of measured values and graphics directly onto the USB-stick VGA-output port for external monitor Autoset and autoscale function for easy operation LAN connection for remote access via network Internal memory of 10 million points per channel or 15 waveforms 20 automatic measurement modes and FFT function PASS/FAIL function Safety: EN 61010-1; CAT II Accessories: 2 pcs. BNC cable, USB cable, software CD for Windows 2000/XP/Vista/7/8/10, power cable, 2 probes, carrying case and manual Bandwidth 60 MHz Display 20 cm (8”) TFT with 65536 colors Resolution 800 x 600 Pixel Channel 2 CH Sampling mode normal/peak detect/average Sampling rate each Channel 250 MSa/s Input coupling AC, DC, GND Input impedance 1 MΩ +/- 2 % in parallel with 10 pF +/- 5 pF Input voltage 400 V DC or ACpp Sensitivity 2 mV - 10 V/Skt/div. Rise time < 5,8 ns Accuracy +/- 3 % Vertical resolutions 8 Bits (2 CH simultaneously) Horizontal scale 5ns-100s/Skt./div Sampling range 0,5 - 250 S/s Trigger type Edge/Video/Pulse/Slope Trigger mode Auto, Normal, Single Trigger coupling DC, AC, LF, HF 20 automat. measurements peak-peak, cycle RMS, Vmax, Vmin, Vtop, Vbase, Vamp, overshoot, preshoot, rise time, fall time, +width, -width, +duty, -duty, delay A->B (rising), delay A->B(falling), frequency, period, min, max Phase difference +/- 3° Record length 10.000.000 points/CH Interfaces USB Device 2.0, USB Host 2.0, VGA, LAN Operation voltage 100 ~ 240 V ACrms / 50/60 Hz Dimensions (WxHxD) 340 x 155 x 70 mm Weight 1.8 kg

    Nog 1 op voorraad

    € 499,00

    Leden € 449,10

  • OWON HDS307S (3 - in - 1) 2 - ch Oscilloscope (70 MHz) + Multimeter + Signal Generator - Elektor

    OWON OWON HDS307S (3-in-1) 2-kanaals oscilloscoop (70 MHz) + multimeter + signaalgenerator

    Niet op voorraad

    This multifunction device combines a dual-channel oscilloscope, multimeter, and waveform generator into one unit. It features a 3.5-inch high-resolution, high-contrast color LCD display, making it suitable for outdoor use. The device is powered by an integrated 18650 lithium battery and includes a USB-C interface, supporting power bank charging and PC software connection. Additionally, it has a self-calibration function and supports SCPI (Standard Commands for Programmable Instruments), facilitating secondary development. Specificaties (oscilloscoop) Model HDS307S HDS310S Bandwidth 70 MHz 100 MHz Channels 2+1 (Signal Generator) Sample rate 250 MSa/s 500 MSa/s Acquisition model Sample, Peak detect Record length 8K Display 3.5 inch LCD Waveform refresh rate 10000 wfrms/s Input coupling DC, AC, Ground Input impedance 1 MΩ ±2%, in parallel with 16 pF ±10 pF Probe attenuation 1X, 10X, 100X, 1000X, 10000X Max. input voltage 400 V (DC+AC, PK - PK) Bandwidth limit (typical) 20 MHz / Full bandwidth Sampling rate range 5ns/div ~ 1000s/div, step by 1 – 2 - 5 Sensitivity Resolution 10mV/div~10V/div Low Frequency(-3db) ≥10 Hz (at input, AC coupling) Rise time (at input, Typical) ≤5ns ≤3.5ns Trigger type Edge Trigger model Auto, Normal, Single Trigger level range ±4 div from the screen center Automatic measurement Period, Frequency, Mean, PK-PK, Max, Min, RMS, Rise Time, Fall Time, +Width, -Width Cursor measurement ΔV, ΔT Communication interface USB-C Specificaties (multimeter) Full scale reading 4 1/2 digitals(max 20000 Counts) Testing Modes Voltage, Current, Resistance, Capacitance, Diode, Continuity Maximum Input Voltage AC 750 VDC 1000 V Maximum Input Current DC: 10 AAC: 10 A Diodes Test 0-2 V Specificaties (signaalgenerator) Frequency Output Sine 0.1 Hz~30 MHz Square 0.1 Hz~6 MHz Ramp 0.1 Hz~1 MHz Pulse 0.1 Hz~5 MHz Arbitrary Waveform 0.1 Hz~5 MHz Sample Rate 125 MSa/s Channel 1 Amplitude 20 mVpp-5 Vpp (high impedance)10 mVpp-2.5 Vpp (50 Ω) Waveform length 8K Vertical resolution 14 bits Load impedance 1 MΩ/50 Ω Inbegrepen 1x OWON HDS307S 2x Passive probes 1x Crocodile clip cable 2x Multimeter probes (1x red and 1x black) 1x Probe correction adjustment knife 1x USB cable 1x Manual Downloads Specifications Quick Guide Manual

    Niet op voorraad

    € 219,00

    Leden € 197,10

Wat is een oscilloscoop? Wat zijn de voordelen van een digitale oscilloscoop?

Oscilloscopen zijn elektronische instrumenten waarmee we op een 2D plot verschillende signalen kunnen visualiseren als functie van de tijd. Oscilloscopen zijn in verschillende maten verkrijgbaar en kunnen iedereen met belangstelling voor elektronica – van leerlingen tot makers tot vakmensen – in staat stellen te ontdekken hoe golfvormen variëren als een schakeling wordt aangepast.

Een digitale oscilloscoop is een handig hulpmiddel om de respons van een schakeling te analyseren, en het stelt ons in staat op het scherm waar te nemen wat onze ogen niet kunnen zien. Met een digitale oscilloscoop kun je de analoge uitgangen van sensoren testen en debuggen, en je kunt verschillende parameters, zoals amplitude, frequentie, en vervorming, verifiëren en snel analyseren.

Als je naar een oscilloscoop kijkt, zie je het beeldscherm en de knoppen voor de verticale instellingen, de horizontale instellingen en de triggering. Het beeldscherm is meestal een kathodestraalbuis (CRT), die niet alleen voor oscilloscopen gebruikt wordt, maar ook voor andere toepassingen, zoals televisie en computermonitors. Zijn functie is het omzetten van een elektrisch signaal in een visuele weergave.

Welke soorten oscilloscopen zijn er? En wat zijn de verschillen?

Tegenwoordig zijn digitale oscilloscopen de meest populaire soort. Bij een analoge oscilloscoop wordt de golfvorm in de oorspronkelijke vorm weergegeven, terwijl een digitale oscilloscoop de oorspronkelijke analoge golfvorm bemonstert en het resultaat omzet in digitale getallen, en dan in digitaal formaat opslaat.

Een ander belangrijk type oscilloscoop is de USB-oscilloscoop. Hij wordt met behulp van een USB-poort bediend via een computer of tablet. De USB-oscilloscoop heeft een of meer analoge kanalen, eventueel digitale kanalen, en knoppen of schakelaars voor de bediening.

USB-oscilloscopen zijn minder duur dan de traditionele omdat de grafische weergave door de host PC wordt verzorgd. Een A/D-converter en een USB-interface zijn alles wat nodig is voor een USB-oscilloscoop. Bovendien zijn USB-oscilloscopen meestal klein en kunnen ze gebruikt worden op plaatsen waar de toegang beperkt is. Bovendien zijn ze een prima oplossing voor toepassingen die flexibiliteit vereisen, want ze zijn een prima optie als draagbare variant.

Een automotive oscilloscoop is een noodzakelijk instrument voor het opsporen van storingen aan allerlei elektronische onderdelen in voertuigen. Bovendien wordt hij vaak door autotechnici gebruikt voor autodiagnostiek. Het enige verschil tussen een automotive oscilloscoop en een digitale oscilloscoop is dat hij extra mogelijkheden biedt voor het testen en diagnosticeren.

Wat is een PicoScope?

PicoScope is computersoftware waarmee Pico Technology oscilloscopen real-time signalen kunnen meten. Een PicoScope PC-oscilloscoop is een toepassing voor het meten en testen van alle elektrische componenten en circuits in voertuigen. Je PC kan een krachtig diagnose-instrument worden met behulp van een PicoScope.

Een oscilloscoop kopen. Wat heeft Elektor te bieden?

Een oscilloscoop is essentieel gereedschap voor iedereen die met elektronische schakelingen werkt. Hij komt van pas als je het gedrag van je project wilt leren kennen, en je fouten in je schakelingen wilt opsporen.

Elektor biedt een ruime keuze aan oscilloscopen in diverse maten en met uiteenlopende specificaties, o.a. bandbreedte, verticale resolutie, en horizontale schaal. Bovendien bieden we een keur aan oscilloscopen die zeer geschikt zijn voor een aantal aandachtsgebieden. Enkele van de populairste producten die Elektor verkoopt zijn de PicoScope 2204A USB-oscilloscoop en de SmartScope USB-oscilloscoop, die een compleet elektronica lab in één compact, goedkoop, USB-gevoed apparaat vormen. De betaalbare PicoScope en SmartScope modellen zijn ideaal voor onderwijs, hobby en buitendienst gebruik.

Welke accessoires zijn er voor oscilloscopen?

Digitale oscilloscopen worden meestal geleverd met een set probes. Behalve scopes verkoopt Elektor een reeks verwante producten, waaronder kabels en doe-het-zelf bouwpakketten.

Waarom zou je een oscilloscoop van Elektor kopen?

Elektrotechnici, makers en elektronicaliefhebbers wenden zich tot Elektor voor betaalbare, hoogwaardige test- en meetapparatuur zoals oscilloscopen. We hebben een hele reeks oscilloscopen op voorraad – van draagbare handheld apparaten tot high-end desktop oplossingen – om aan de verschillende behoeften van een breed publiek te voldoen.
