Pimoroni Automation HAT

  • FabrikantPimoroni

Omschrijving

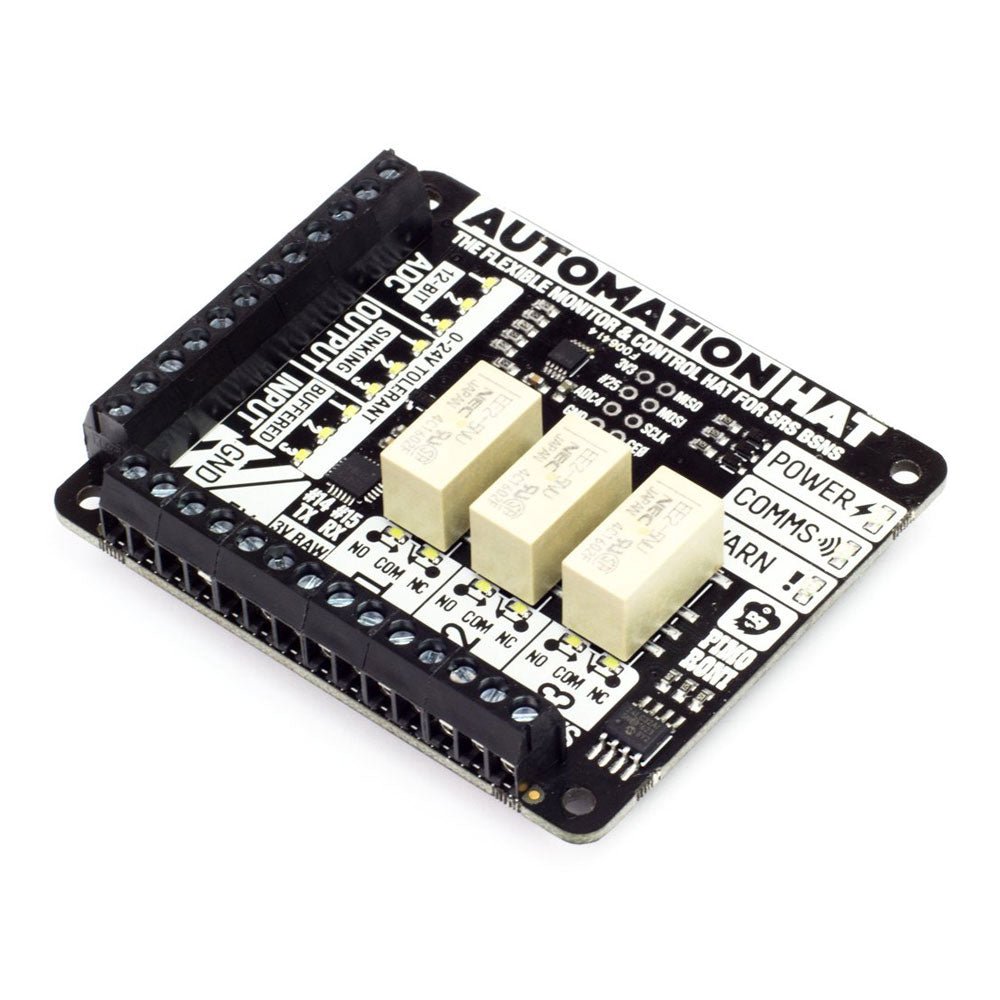

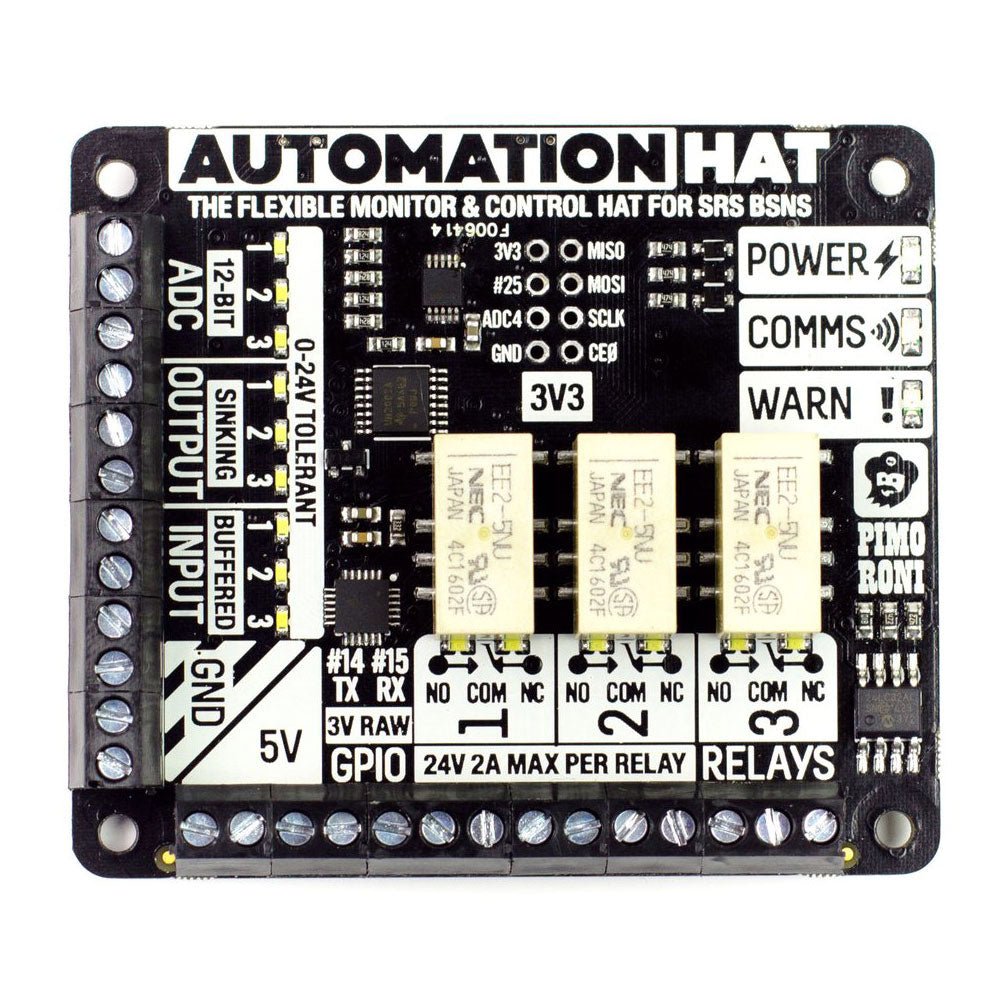

Take control of and monitor your world with our ultimate jack-of-all-trades Raspberry Pi HAT!

We've pulled together a great set of features into this home monitoring and automation controller. With relays, analog channels, powered outputs, and buffered inputs (all 24 V tolerant) you can now hook up a plethora of goodies to your Raspberry Pi all at once.

Better still each channel has an indicator LEDs which means at a glance you can see what's happening with your setup. Even the analog channels have dimming LEDs that allow you to see the value they are currently sensing – swish!

Ideal for smart home and automation projects, giving your greenhouse intelligent sprinklers, or scheduling your fish feeding!

Features

  • 3x 24 V @ 2 A relays (NC and NO terminals)
  • 3x 12-bit ADC @ 0-24 V (±2% accuracy)
  • 3x 24 V tolerant buffered inputs
  • 3x 24 V tolerant sinking outputs
  • 15x channel indicator LEDs
  • 1x 12-bit ADC @ 0-3.3 V
  • 3.5 mm screw terminals
  • Power, Comms, and Warn! LED indicators
  • SPI, TX (#14), RX (#15), #25 pins broken out
  • Automation HAT pinout
  • Compatible with all 40-pin header Raspberry Pi models
  • Python library
  • Schematic
  • Comes fully assembled (broken out pins require soldering)

Software

As ever, we've made a super-simple to use Python library to take advantage of Automation HAT's multitudinous functions, with examples to get you started.

Our input, output and relay examples show you how to read the analog and digital inputs, switch the outputs on and off, and control the relays.

Notes

  • We recommend you use a set of brass M2.5 standoffs with Automation HAT to avoid pins contacting the HDMI port if the HAT is pushed down
  • Loads for the buffered outputs should be switched on the ground side, i.e. 12/24 V (from supply) -> load -> output terminal -> ground (from supply)
  • The relays can tolerate up to 2 A each and should be switched on the high side
  • The sinking outputs can sink a maximum 500 mA total across the 3 outputs, so if you use a single channel you can sink the whole 500 mA across it.
  • The accuracy of the ADC is ±2%.
  • Do not use to switch mains voltages!
Productformulier

Take control of and monitor your world with our ultimate jack-of-all-trades Raspberry Pi HAT!We've pulled together a great set of... Lees meer

€ 39,95 incl. BTW
Leden € 35,96

    • Vandaag verstuurd? Je hebt nog May 28, 2024 17:00:00 +0200

    Details

    SKU: 19260
    EAN: 0704256794705

    Omschrijving

    Take control of and monitor your world with our ultimate jack-of-all-trades Raspberry Pi HAT!

    We've pulled together a great set of features into this home monitoring and automation controller. With relays, analog channels, powered outputs, and buffered inputs (all 24 V tolerant) you can now hook up a plethora of goodies to your Raspberry Pi all at once.

    Better still each channel has an indicator LEDs which means at a glance you can see what's happening with your setup. Even the analog channels have dimming LEDs that allow you to see the value they are currently sensing – swish!

    Ideal for smart home and automation projects, giving your greenhouse intelligent sprinklers, or scheduling your fish feeding!

    Features

    • 3x 24 V @ 2 A relays (NC and NO terminals)
    • 3x 12-bit ADC @ 0-24 V (±2% accuracy)
    • 3x 24 V tolerant buffered inputs
    • 3x 24 V tolerant sinking outputs
    • 15x channel indicator LEDs
    • 1x 12-bit ADC @ 0-3.3 V
    • 3.5 mm screw terminals
    • Power, Comms, and Warn! LED indicators
    • SPI, TX (#14), RX (#15), #25 pins broken out
    • Automation HAT pinout
    • Compatible with all 40-pin header Raspberry Pi models
    • Python library
    • Schematic
    • Comes fully assembled (broken out pins require soldering)

    Software

    As ever, we've made a super-simple to use Python library to take advantage of Automation HAT's multitudinous functions, with examples to get you started.

    Our input, output and relay examples show you how to read the analog and digital inputs, switch the outputs on and off, and control the relays.

    Notes

    • We recommend you use a set of brass M2.5 standoffs with Automation HAT to avoid pins contacting the HDMI port if the HAT is pushed down
    • Loads for the buffered outputs should be switched on the ground side, i.e. 12/24 V (from supply) -> load -> output terminal -> ground (from supply)
    • The relays can tolerate up to 2 A each and should be switched on the high side
    • The sinking outputs can sink a maximum 500 mA total across the 3 outputs, so if you use a single channel you can sink the whole 500 mA across it.
    • The accuracy of the ADC is ±2%.
    • Do not use to switch mains voltages!
