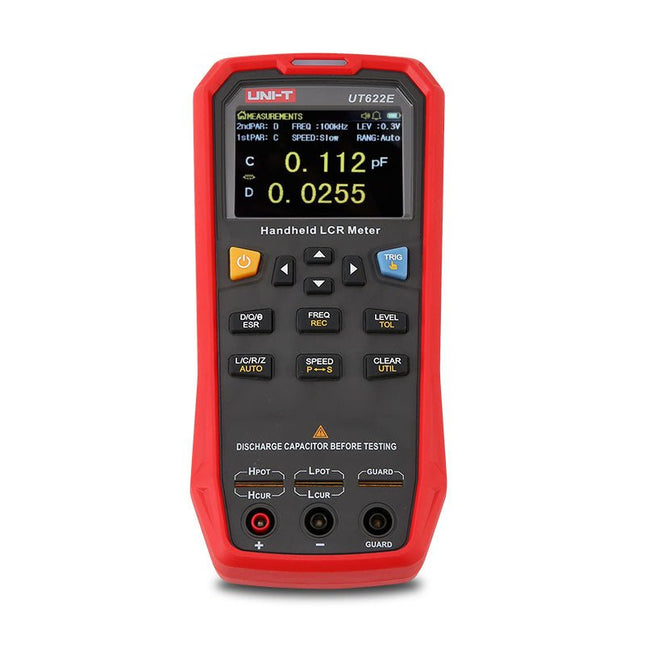

The UT622E handheld LCR meter features powerful functions, high accuracy, fast speed, and long standby time. With a clear and intuitive 2.8-inch TFT LCD display, large-capacity rechargeable battery, and 100 kHz test frequency, the meter can be used for longstanding accurate and convenient measurement in any occasion.
It is suitable for the measurement and screening of inductance, capacitance, and resistance in laboratories, production lines, maintenance points, etc.
Features
Max. test frequency: 100 kHz
Accuracy: 0.1%
Display count: 99999
Max. test rate: 20 times/s
DCR: Yes
Connectivity: Mini-USB
Display: 2.8" TFT LCD
Specifications
Testfrequency
100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz
Test level
0.1 Vmrs, 0.3 Vrms, 1 Vrms
Output impedance
100 Ω
Measurement parameters
Primary: L/C/R/Z/DCRSecondary: D/Q/Θ/ESR
DSR speed test
Fast (20 times/s), medium (5 times/s), or slow (2 times/s)
Range
Auto/Hold
Tolerance range
1%~20%
Equivalent mode
Series/Parallel
Clearing connection
Open/Short circuit
Fuse of test ports
0.1 A/250 V
Communication interface
Mini-USB
MAX reading of primary parameters
99999
MIN resolution
0.0001
Maximum accuracy
0.10%
L
0.00 µH~99.999 H
C
0.00 pF~99.999 mF
Z/R
0.0000 Ω~9.9999 MΩ
ESR
0.0000 Ω~999.99 Ω
D
0.0000~9.9999
Q
0.0000~99999
Θ
-179.9°~179.9°
DCR
0.01 mΩ~20.000 MΩ
Power supply
3.7 V/1800 mAh lithium polymer battery
Display
2.8" TFT LCD (320x240)
Dimensions
93 x 192 x 44 mm
Weight
420 g
Included
UT622E LCR meter
Short circuit board
Four-terminal kelvin test leads
USB cable
Manual
Downloads
Datasheet
Manual
Software
Deze LCR-meter biedt een breed scala aan functies tegen een lage prijs. De LCR-meter kan onder andere capaciteit, weerstand en inductie meten. Daarnaast kan hij automatisch componenten herkennen. Daarbij kan hij bijvoorbeeld onderscheid maken tussen verschillende soorten transistors, zoals NPN- of PNP-transistors. Het apparaat is bijzonder eenvoudig te bedienen omdat alle metingen met één druk op de knop worden gestart.
Dankzij de geïntegreerde 350 mAh accu kunnen metingen ook mobiel worden uitgevoerd. De accu wordt opgeladen met behulp van een 5 V voeding (apart verkrijgbaar) en de meegeleverde micro-USB kabel.
Daarnaast kan dit meetapparaat infraroodsignalen decoderen en als golfvorm op het display weergeven.
Specificaties
Meetbare componenten
Weerstand, condensator, spoel, thyristor, triac, (dubbele) diode, Z-diode, field effect transistor, bipolaire transistor, infrarooddecoder
Display
3,5" TFT LCD-scherm (160 x 128 p)
Speciale functies
Automatische kalibratie, bediening met één toets
Ingebouwde accu
Lithium Ion oplaadbaar, 3,7 V, 350 mAh
Afmetingen
90 x 70 x 27 mm
Inbegrepen
tester, micro-USB kabel, testclip, LED, condensator
Meetbereik
Capaciteit
25 pF - 100 mF
Weerstand
0,01 Ω - 50 MΩ
Inductie
0,01 mH - 20 H
Accu
0,1V – 4,5V, 300 mAh
Z-diode doorslagspanning
0,01 V - 30 V
Z-diode
0,01 V - 4,5 V
Diode
UF < 4,5 V
Thyristor / Triac
IGT < 6 mA
Downloads
Handleiding

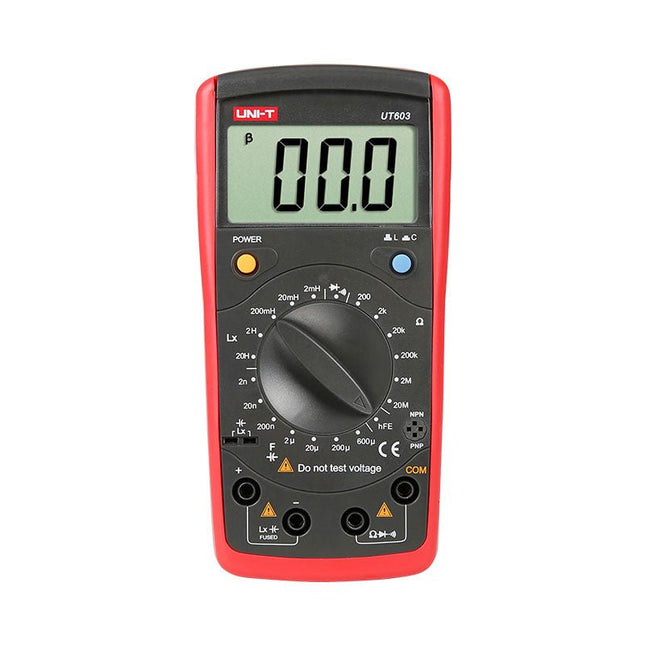

De UT603 is een draagbare digitale inductie- en capaciteitsmeter voor het testen van weerstanden, condensatoren en spoelen. Hij kan ook worden ingezet om transistorparameters te meten. Deze nauwkeurige meter (met count 2000) kan worden gebruikt om elektronische componenten in laboratoria, productielijnen en onderhoudsfaciliteiten te controleren.
Kenmerken
Handmatig in te stellen
Continuïteitstester
Diode- en transistortest
Batterij indicatie indien bijna leeg
Specificaties
Weerstand (?)
200 ? / 2 k? / 20 k? / 200 k? / 2 M? / 20 M?
±(0,8%+1)
Capaciteit (F)
2 nF / 20 nF / 200 nF / 2uF / 20 uF / 200 uF / 600uF
±(1%+5)
Inductie (H)
2 mH / 20 mH / 200 mH / 2 H / 20 H
±(2%+8)
Display count
2000
Voeding
9 V batterij (6F22)
Display
61 x 32 mm
Afmetingen
172 x 83 x 38 mm
Gewicht
312 g
Inbegrepen
1x UNI-T UT603 LCR meter
1x 9 V batterij
2x Meetsnoeren met krokodillenklemmen
1x Handleiding
Downloads
Handleiding
Datasheet

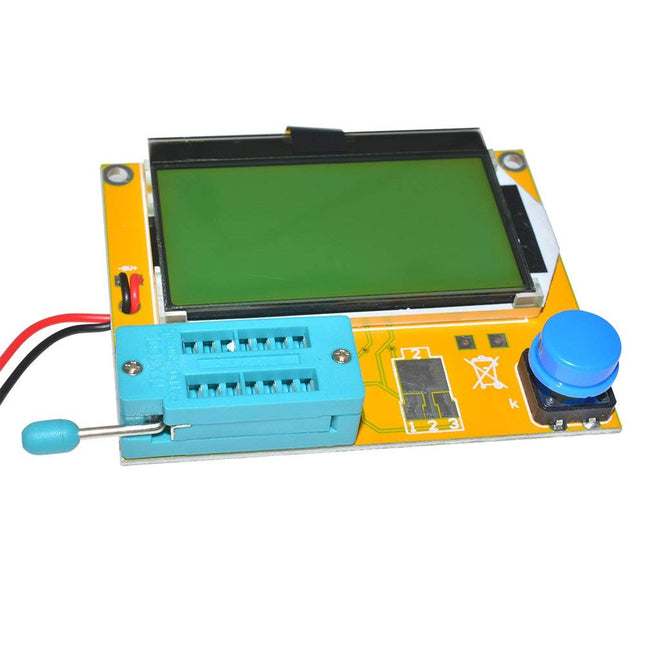

With this device, you'll be able to automatically to detect NPN and PNP transistors, n-channel and p-channel MOSFETs, diodes, thyristors, resistors, capacitors and many other components. It is also possible to measure certain characteristics of these devices as, for example, the current amplification factor of BJT or the gate threshold voltage of a MOSFET and much more.Features
Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFETs, diodes (including double diode), thyristors, resistor and capacitor and other components
Automatic testing of the pins of a component, and displaying on the LCD
Detection of the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage
Measurement of the gate threshold voltage and the gate capacitance of the MOSFET
Simultaneous measurement of the of two resistors while displaying resistor symbol
Measurement of a single diode reverse capacitance
Measurements of capacitance, resolution 1 pF
Identification of Darlington transistors via the base-emitter threshold voltage and current amplification factor
Measurement of the bipolar transistor current amplification factor and the base-emitter threshold voltage
2x16 Characters LCD-Display (12864 LCD with green backlight)
Test ranges
Resistance: Max. 50 MΩ, resolution 0.1 Ω
Capacitance: 25 pF – 100000 µF
Inductance: 0.01 mH – 20 H
Specifications
One-button operation
Automatic shutdown for improved battery life
Shutdown current less than 20 nA

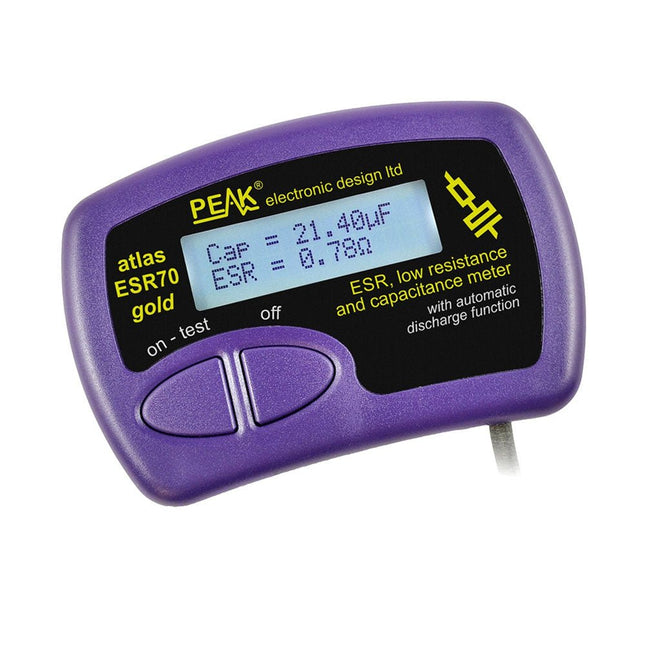

The Peak Atlas ESR70 gold is an enhanced version of the previous Peak Atlas ESR70 Plus. It does everything that the ESR70 Plus did but better.
It now measures capacitance up to 10x faster, and over a wider range, thanks to new test algorithms. The capacitance measurement is also much less influenced by parallel resistances or leakage current thanks to our new Triple-Slope measurement system.
Using the supplied gold plated probes (removable), the Atlas ESR70 gold can measure ESR down to a resolution of 0.01 ohms, up to 40 ohms. It can even measure ESR for capacitors that are in-circuit. Probes are removable, allowing 2 mm compatible probes to be fitted. Audible alerts are produced for various ESR levels allowing you to perform many tests in succession without having to look at the display. The ESR70 automatically takes capacitive reactance into account, so even low value capacitors (down to 0.3 uF) can have the ESR measured accurately.
Kenmerken
Uses a single AAA Alkaline cell (included).
Alphanumeric LCD with backlight.
Automatic analysis-start when you apply the probes.
Automatic capacitor discharge using controlled discharge function.
ESR (and low DC resistance) measurement (even in-circuit).
Capacitive reactance automatically taken into account to ensure accurate ESR.
Capacitance measurement (if testing out-of-circuit).
Audible alerts for various ESR levels.
Extended ESR measurement range up to 40 Ohms.
Optional probe alternatives easily fitted.
New gold Features
Improved LCD with better backlight.
10x faster capacitance measurement for large capacitors.
Enhanced user options system.
New triple-slope measurement system to vastly reduce the influence of parallel resistance and/or leakage current on capacitance measurements.
Much wider capacitance measurement range now 0.3 uF to 90,000 uF (was 1uF to 22,000uF).
Specificaties
Analyzer type
ESR and Capacitance
Component types
Capacitors (>0.3 uF)
ESR range
0.00 Ohms to 40.0 Ohms
ESR resolution
From 0.01 Ohms
In-circuit use
ESR only
Capacitance range
0.3 uF to 90000 uF
Battery type
1.5 V Alkaline AAA Cell (supplied). Life typically 1500 ops
Display type
Alphanumeric LCD (with backlight)
Inbegrepen
Peak Atlas ESR70 gold
Extra-long and extra-flexible test cables (450 mm of Silicone covered cable)
2 mm gold plated plugs and sockets with removeable gold plated crocodile clips
Comprehensive illustrated user guide
AAA Alkaline cell
Downloads
Datasheet (EN)
User Guide (EN)

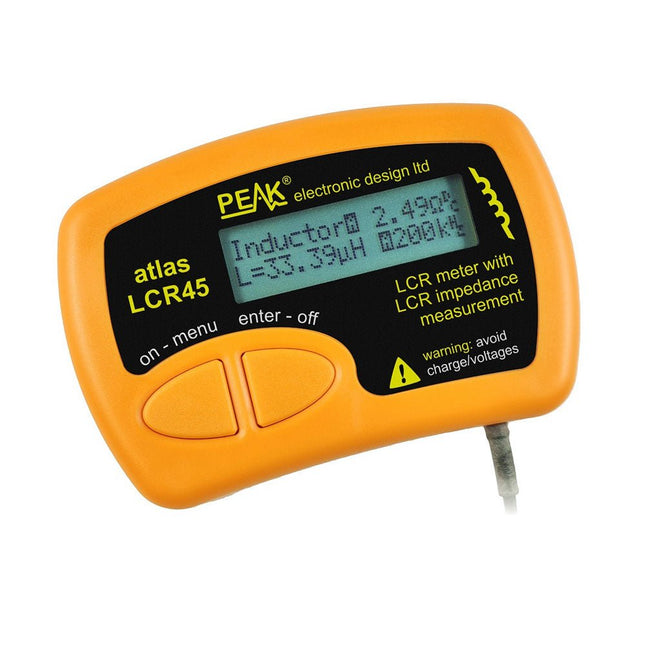

The LCR45 does everything that the popular LCR40 does, but it has some significant enhancements. The LCR45 features a new high capacity micro and high resolution ADCs.
LCR45 incorporates advanced maths, based on Complex Impedance analysis. This allows for enhanced component value measurement as well as a comprehensive and detailed impedance display.
Kenmerken
Supplied with gold plated removable hook probes.
Fluid measurements with hold function.
Automatic or manual component type.
Automatic or manual test frequency, DC, 1 kHz, 15 kHz or 200 kHz.
Enhanced measurement resolution: 0.2 µH, 0.2 pF and 0.2 Ohms.
Easy menu system for user settings.
Enhanced compensation for component parasitics and losses (such as core losses etc).
Automatic or manual power-off.
Specificaties
Analyser type
LCR and component impedance
Component types
Auto/Manual for L,C & R
Measurement types
Inductance, Capacitance and Resistance
Other measurements
Complex impedance/admittance
More measurements
Magnitude and Phase of impedance
Inductance range
0uH to 2H
Capacitance range
0 pF to 10000 uF
Resistance range
0R to 2MR
Test frequency
Auto and manual: DC, 1 kHz, 15 kHz, 200 kHz
Display type
Alphanumeric LCD (not backlit)
Measurement scheme
Continuous (with optional hold)
Battery
GP23 (12 V/55 mAH type), ~700 ops
Inbegrepen
LCR45 Passive Component Impedance Meter
2 mm plugs and sockets and removeable hook probes
Comprehensive illustrated user guide
2 Batteries, one installed and one spare. GP23 Alkaline battery. (12 V/55 mAH)
Downloads
Datasheet (EN)
User Guide (EN)

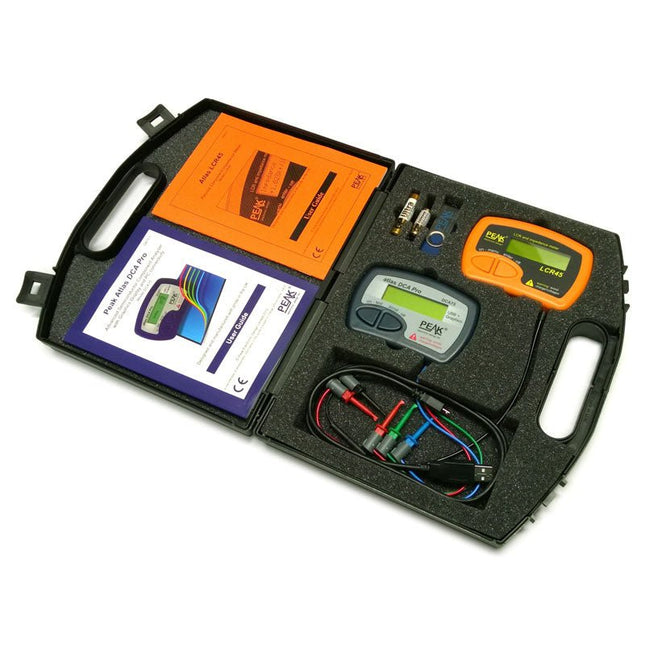

This pack contains the LCR45 Passive Component Impedance Meter, great for advanced hobbyists and professionals. It also contains the very popular DCA Pro (model DCA75), fantastic for component identification, pinout identification, detailed characteristic measurement and curve tracing on a PC. Complete with USB cable and software on a USB flash drive.
DCA75
Building on the continued success of Peak's existing component identification and analysis instruments, the DCA Pro brings an array of exciting new features for the hobbyist and professional alike.
The DCA Pro is an advanced new design that features a graphics display, USB communications, PC Software and an enhanced component identification library.
Automatic component type identification
Automatic pinout identification (connect any way round)
The DCA Pro supports all the components that the popular Peak Atlas DCA55 supports, but adds plenty more. Components supported include:
Transistors (including Darlingtons), Silicon and Germanium types. Measures gain, Vbe and leakage
MOSFETs, enhancement mode and depletion mode types. Measure on-threshold (at 5 mA) and approx transconductance (for span of 3-5 mA)
JFETs, including normally off SiC types. Measures pinch-off voltage (at 1 uA) and approx transconductance (for span of 3-5 mA)
IGBTs (insulated gate bipolar transistors). Measures on-threshold (at 5 mA)
Diodes and Diode networks
LEDs and bicolour LEDs (2 lead and 3 lead types)
Zener Diodes with measurement of zener voltage up to 9 V at 5 mA
Voltage regulators (measures regulation voltage, drop-out voltage, quiescent current)
Triacs and Thyristors that require less than 10 mA of gate current and holding current
Stand-alone or with a PC
The instrument can be used stand-alone or connected to a PC. Either way, the DCA Pro will automatically identify the component type, identify the pinout and also measure a range of component parameters such as transistor gain, leakage, MOSFET and IGBT threshold voltages, pn characteristics and much more.
Curve Tracing
When connected to a PC using the supplied USB cable, a range of low current curve-tracing functions can be performed. Various graph types are available, with more to follow:
Bipolar transistor output characteristics, IC vs VCE
Bipolar transistor gain characteristics, HFE vs VCE
Bipolar transistor gain characteristics, HFE vs IC
MOSFET and IGBT output function, ID vs VDS
MOSFET and IGBT transfer function, ID vs VGS
JFET output function, ID vs VDS
JFET transfer function, ID vs VGS
Voltage regulator, VOUT vs VIN
Voltage regulator, IQ vs VIN.
PN junction I/V curves, forward and reverse options (for Zener diodes)
Curve tracing is performed using test parameters in the range of +/-12 V or +/-12 mA. All curve-tracing data can be instantly pasted into Excel for further graphing and analysis. PC Software is included with the DCA Pro on a Peak USB memory stick. Software designed for Windows 7 and higher (all 32 or 64 bit).
LCR45
A great handheld LCR analyser that can measure the value of your passive component (inductor, capacitor or resistor) and also measure the detailed impedance in a number of modes. The LCR45 offers enhanced measurement resolution (better than 0.1 uH!) whilst also giving you continuous fluid measurements. Additionally, the test frequencies of DC, 1 kHz, 15 kHz and 200 kHz can be set to automatic or manual modes. Supplied with removable gold plated hook probes, battery and user guide. Compatible with standard 2 mm test connectors. Not designed for in-circuit use.
Automatic or manual component type selection: Inductor, Capacitor or Resistor
Automatic or manual test frequency selection: DC, 1 kHz, 15 kHz and 200 kHz
Inductance from 0.1 uH to 10 H
Capacitance from 0.1 pF to 10,000 uF
Resistance from 0.1 Ohm to 2 MOhm
Inductance measurement also shows DC winding resistance
Display of "Component type and values", "Complex Impedance", "Magnitude/Phase" and "Admittance"
Test frequency displayed for all measurements
Typical accuracy of 1.5% for inductors and capacitors (see spec table for details)
Typical accuracy of 1% for resistors
Test lead complete with gold plated 2 mm plugs and sockets
Supplied with removable gold plated hook probes
Inbegrepen
LCR45
DCA75
Extra GP23 Battery
Extra AAA cell
Dual Carry Case

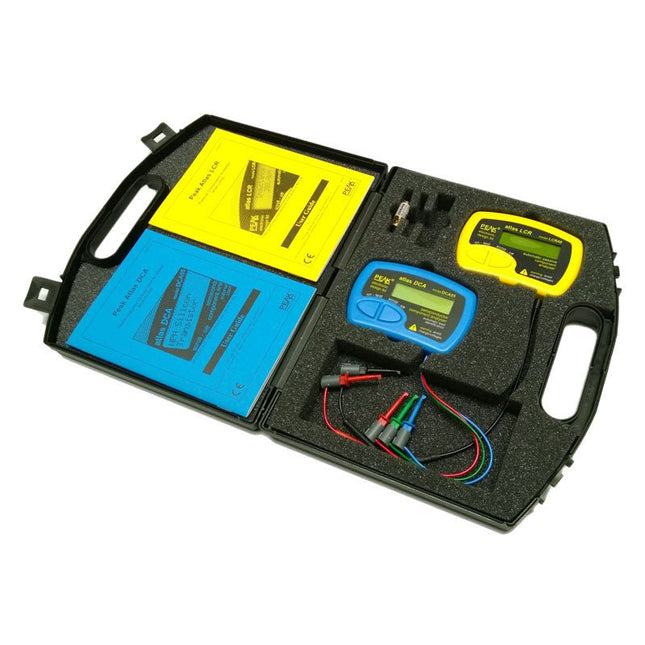

A fantastic dual instrument pack featuring the Atlas DCA Semiconductor Analyser and the Atlas LCR Passive Component Analyser. Housed in a robust padded case, complete with spare battery, user guide and space for accessories.
The LCR40 (for Inductors, Capacitors and Resistors) is ideal for the hobbyist and professional alike. The DCA55 (for most semiconductors) provides fast component identification, pinout identification and wide component support.
LCR40
Handheld LCR analyser providing measurements for inductance, capacitance and resistance. The component type is automatically detected for you, just connect and press 'test'. The test frequency is automatically selected to provide the best measurement resolution. Test frequencies include DC, 1kHz, 15kHz and 200kHz. Inductance from 1uH to 10uH, minimum resolution of 1uH, typical accuracy of ±1.5% between 100uH and 100mH. Capacitance from 1pF to 10,000uF, minimum resolution of 1pF typical accuracy of ±1.5% between 200pF and 500nF. Resistance from 1R to 2MR, typical accuracy of ±1%. Test frequency is displayed with the measurement. Inductor DC resistance also displayed when testing inductors. Supplied with removable gold plated hook probes, battery and user guide. Compatible with standard 2mm test connectors. Not designed for in-circuit use.
Automatic component type detection: Inductor, Capacitor or Resistor
Automatic test frequency selection: DC, 1kHz, 15kHz and 200kHz
Inductance from 1uH to 10H
Capacitance from 1pF to 10,000uF
Resistance from 1Ohm to 2MOhm
Inductance measurement also shows DC winding resistance
Test frequency displayed for all measurements
Typical accuracy of 1.5% for inductors and capacitors (see spec table for details)
Typical accuracy of 1% for resistors
Test lead complete with gold plated 2mm plugs and sockets
Supplied with removable gold plated hook probes
DCA55
Connect any way round to automatically identify and measure a wide range of semiconductor devices. The DCA55 will automatically identify the type of the part, pinout and many component parameters. Components supported include bipolar NPN/PNP transistors, darlingtons, diode-protected transistors, transistors with built-in resistors, enhancement mode MOSFETs, depletion mode MOSFETs, diodes, diode networks, LEDs, 2 and 3 lead bicolour LEDs, JFETs and many more. Further measurements are displayed including transistor gain, leakage current, pn voltage drops, LED voltages, MOSFET threshold voltages and much more. Even if you don't know anything about the part, just connect it in any configuration and the DCA55 will identify the type of part for you and also identify all the leads. Supplied with universal gold plated hook probes, battery and illustrated user guide. Not designed for in-circuit testing.
Automatic pinout detection and identification, connect any way round
Automatic part type identification
Supports semiconductors including transistors, MOSFETs, diodes, LEDs, JFETs and much more
Detection of special component features such as transistors with diodes or transistors with built-in resistors
Transistor gain measurement
Transistor leakage measurement
MOSFET gate threshold measurement
Semiconductor voltage drop measurement
Supplied with gold plated red/green/blue universal hook probes
Included
LCR40
DCA55
Extra GP23 Battery
Dual Carry Case
De FNIRSI LCR-ST1 is een compacte, multifunctionele en intelligente LCR-tester die automatische metingen van weerstand, capaciteit, inductantie, diodetests en continuïteit ondersteunt.
Het 1,14-inch kleurendisplay in combinatie met een handige magnetische adsorptiefunctie verbetert het gebruiksgemak, terwijl de ingebouwde lithiumbatterij van 250 mAh langdurige prestaties garandeert. Het apparaat ondersteunt drie frequentiebereiken (100 Hz, 1 kHz en 10 kHz) en biedt 0,3 V en 0,6 V RMS-testniveaus voor veelzijdige testtoepassingen.
Het unieke pincetvormige ontwerp van de LCR-ST1 is ideaal voor delicate taken in kleine ruimtes en maakt het snel en nauwkeurig testen van elektronische componenten mogelijk. Het lichte gewicht en het draagbare ontwerp maken het tot een hulpmiddel van onschatbare waarde voor zowel veld- als laboratoriumgebruik.
Of u nu een ervaren ingenieur bent of net begint in de elektronica, de LCR-ST1 levert betrouwbare en nauwkeurige meetresultaten, waardoor u uw taken efficiënter en nauwkeuriger kunt uitvoeren.
Kenmerken
Biedt 3 testfrequenties (100 Hz, 1 kHz, 10 kHz) en 2 testspanningsniveaus.
Beschikt over automatische componentidentificatie voor snellere en betrouwbaardere metingen.
1,14-inch kleurendisplay met hoge resolutie voor duidelijke aflezingen.
Ondersteunt automatische gegevensregistratie en -opslag.
De pincetpunten zijn gemaakt van verguld messing voor verbeterde duurzaamheid en geleiding.
Specificaties
Weerstandsbereik
10 mΩ – 10 MΩ
Capaciteitsbereik
1 pF – 22 mF
Inductiebereik
1 μu – 10 H
Diode
Aanspanning 0,7 V
Frequentietest
100 Hz, 1 kHz, 10 kHz
Niveautest
0,3 V, 0,6 V RMS
Parameterweergave
ESR, D-waarde, Q-waarde, Z-waarde, X-waarde
Display
1,14" HD-kleurenscherm
Oplaadinterface
USB-C, 5 V/1 A
Voeding
Ingebouwde lithiumbatterij van 250 mAh
Automatische herkenningsmeting
Ja
Vervangbare pincetkop
Ja
Automatische uitschakeling
Ja
Gegevensopslag
Ja
Geschiedenisrecord
Verbinden met pc om te bekijken en exporteren
Afmetingen
28 x 19 x 150 mm
Gewicht
41 g
Inbegrepen
1x LCR-ST1 SMD-pincet
2x Haakpunten
1x Magnetische patch
1x USB-kabel
1x Opbergtas
1x Manual
Downloads
Manual
Firmware V1.6
De LCR-P1 transistortester is een zeer nauwkeurige, multifunctionele elektronische tester die speciaal is ontworpen voor elektronica-ingenieurs, technici en enthousiastelingen om de prestaties en kenmerken van halfgeleidercomponenten zoals transistors, diodes, triodes en veld- effecttransistors (FET's).
Uitgerust met een 1,44-inch kleurenscherm, maakt het multiparametermeting van verschillende componenten mogelijk, identificeert automatisch het type en de pin-opstelling van het geteste onderdeel, vereenvoudigt het bedieningsproces en verbetert de testefficiëntie.
Specificaties
Transistorbereik
10 < β < 600
Capaciteitsbereik
25 pF-100 mF
Inductiebereik
10 μH-1000 μH
Weerstandsbereik
0,01 Ω-50 MΩ
Diode
Voorwaartse spanningsval <4,5 V
Spanningsregelaardiode
0,01-4,5 V0,01-32 V
Veldeffecttransistor
JFET / IGBT / MOSFET
Bidirectionele thyristor
Inschakelspanning <5 VGate-triggerstroom <6 mA
IR-decodering
NEC-protocol IR-code
Weergave
1,44" kleurenscherm
Voeding
Lithiumbatterij van 300 mAh
Batterij
0,1-4,5 V
Opladen
USB-C (5 V/1 A)
Bedrijfstemperatuur
0~40°C
Afmetingen
71 x 87 x 28 mm
Inbegrepen
1x FNIRSI LCR-P1 transistortester
1x Vervangbaar testbord
3x Testhaken
1x USB-kabel
1x Manual
Downloads
Manual
Firmware V1.0.7

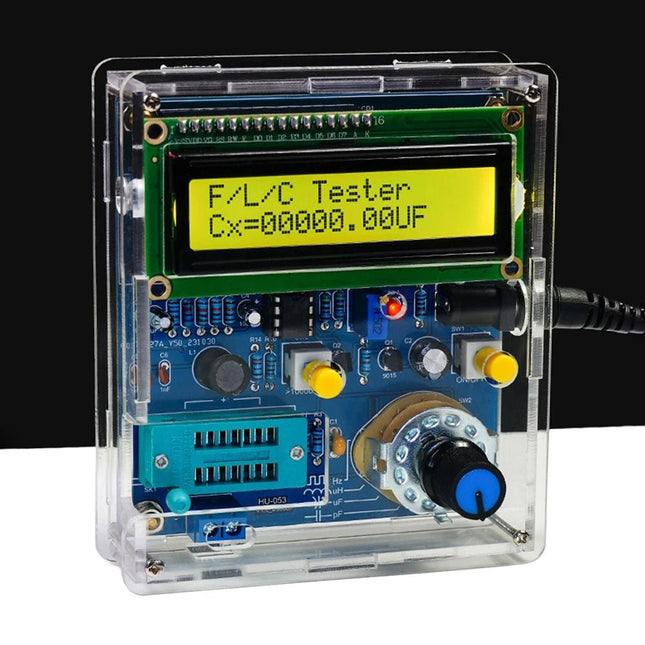

Deze LC-meter kit is een eenvoudig te bouwen, leerzaam en vermakelijk doe-het-zelf-project voor het meten van de inductie (L) van spoelen en spoelen, de capaciteit (C) van condensatoren, andere passieve componenten en de frequentie van signalen.
Specificaties
Voeding
USB DC 5 V
Capacitantiemeetbereik van kleine niet-gepolariseerde condensatoren
1 pF~2200 pF
Capacitantiemeetbereik van elektrolytische condensatoren
1 µF~12.000 µF
Inductiemeetbereik
1 µH~1 H
Frequentiemeetbereik
20 Hz~400 kHz
Afmetingen (printplaat)
91 x 80 mm
Afmetingen (behuizing)
106 x 91 x 28 mm
Inbegrepen
Dubbelzijdige printplaat
Alle benodigde componenten incl. montagemateriaal LCD-scherm
Zes voorgesneden transparante acrylplaten
Schroeven en moeren
