Raspberry Pi Displays

29 producten

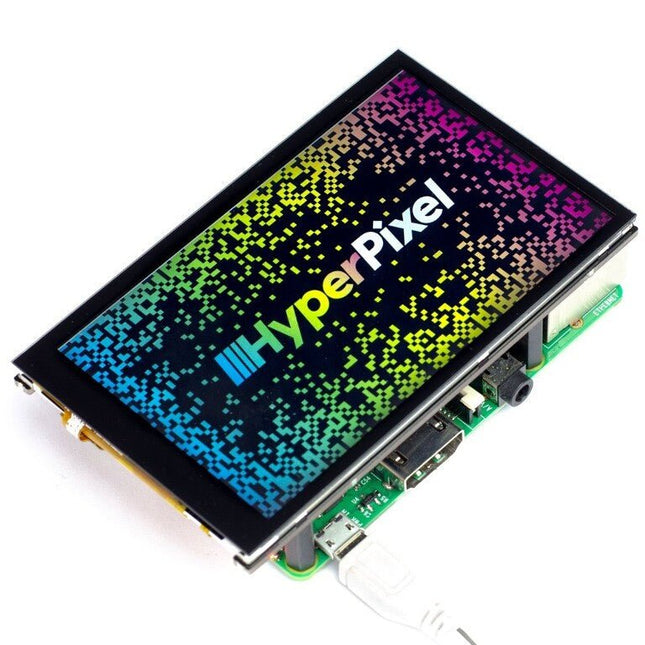

  • Bijna uitverkocht HyperPixel 4.0 - Hi - Res Display for Raspberry Pi (Touch Version) - Elektor

    Pimoroni HyperPixel 4.0 – Hi-Res Display voor Raspberry Pi (Touch-versie)

    Nog 1 op voorraad

    De HyperPixel 4.0 is een perfecte manier om je RPi te gebruiken zonder een hoop kabels of een groot scherm. Ontwerp je eigen interface om je project te besturen, gegevens weer te geven, of verander je Pi in een klein model media center. Deze versie van HyperPixel heeft een prachtig IPS-scherm, met brede kijkhoek, en op maat gemaakt beschermglas. Voor geavanceerde gebruikers is een alternatieve I²C-interface beschikbaar. Kenmerken High-speed DPI interface 4,0' IPS-scherm (brede kijkhoek, 160°) (86,4 x 51,8 mm) 800 x 480 pixels (~ 235 PPI) 18-bits kleur (262.144 kleuren) Frame rate van 60 FPS Contrast ratio: 500:1 Capacitive touch Inclusief 40-pins female header om de hoogte aan te passen voor Raspberry Pi B+, 2, 3, 3B+ en 4 Inclusief afstandhouders om veilig uw RPi te bevestigen Compatibel met alle 40-pins header Raspberry Pi modellen One-line installer Afmetingen: 58,5 x 97 x 12 mm (BxHxD, diepte inclusief header en display) HyperPixel maakt gebruik van een snelle DPI interface, waardoor hij 5x meer pixelgegevens kan verwerken dan de gebruikelijke SPI-interface die deze kleine Pi-schermen gebruiken. Hij heeft een frame rate van 60 FPS en een resolutie van ongeveer 235 pixels per inch (800x480) op het 4,0 inch scherm. Het scherm kan 18-bits aan kleuren weergeven (262.144 kleuren). Deze Touch-versie heeft een capacitive touch screen, dat gevoeliger is en sneller reageert op aanraking dan een resistive touch screen, en hij is geschikt voor multi-touch! Alles wordt volledig gemonteerd geleverd en solderen is dus niet nodig! Het scherm zit stevig vast op de HyperPixel 4.0 PCB, en is aangesloten via een nette kleine FPC kabel. Zet de HyperPixel 4.0 simpelweg op je RPi en voer ons installatieprogramma uit om alles in te stellen! Let op: als u uw HyperPixel 4.0 op de RPi installeert, zorg er dan voor dat u niet op het scherm drukt! Houd het bordje bij de randen vast en beweeg hem zodanig dat hij op de verlengde header (of GPIO header) kan worden geplugd. En zorg er ook voor dat u niet aan de randen van het glazen scherm trekt wanneer u uw HyperPixel weer verwijdert. Hij werkt met elke 40-pins versie van de RPi, inclusief RPi Zero en RPi Zero W. Als u hem gebruikt met een grotere RPi, gebruik dan de extra 40-pins header die is meegeleverd om hem aan te passen aan de gewenste hoogte. Indien u een Zero of Zero W gebruikt plaatst u hem gewoon rechtstreeks op de GPIO. Met de meegeleverde afstandhouders kunt u uw HyperPixel 4.0 veilig en stevig op uw RPi bevestigen. Schroef ze gewoon in de schroefgaten aan de onderkant van de HyperPixel 4.0 PCB om de RPi vervolgens te bevestigen met de schroeven door de montagegaten. Downloads GitHub

    Nog 1 op voorraad

    € 79,95

    Leden € 71,96

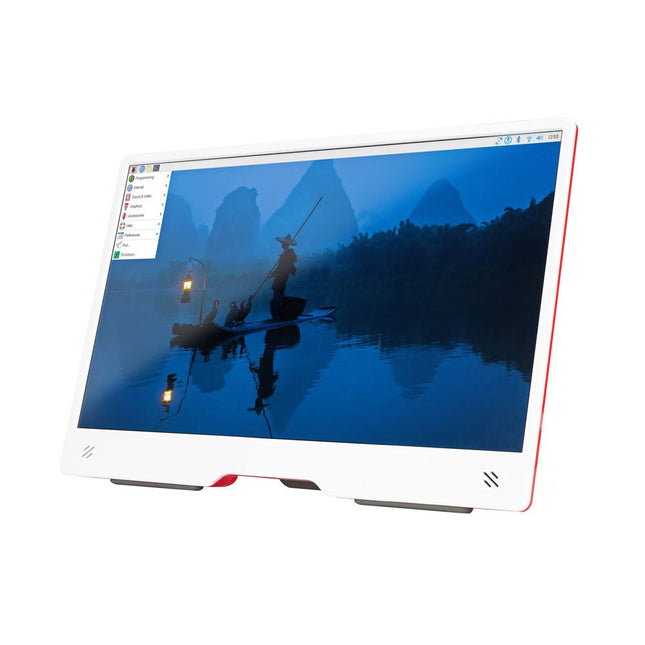

  • Raspberry Pi Monitor (white/red) - Elektor

    Raspberry Pi Foundation Raspberry Pi Monitor (wit/rood)

    De Raspberry Pi Monitor is een 15,6-inch Full HD-computerscherm. Gebruiksvriendelijk, veelzijdig, compact en betaalbaar, het is de perfecte desktop-displaygenoot voor zowel Raspberry Pi-computers als andere apparaten. Met ingebouwde audio via twee naar voren gerichte luidsprekers, VESA- en schroefmontagemogelijkheden en een geïntegreerde in hoek verstelbare standaard is de Raspberry Pi Monitor ideaal voor desktopgebruik of voor integratie in projecten en systemen. Hij kan rechtstreeks van een Raspberry Pi worden voorzien, of via een aparte voeding. Kenmerken 15,6-inch Full HD 1080p IPS-scherm Geïntegreerde in hoek verstelbare standaard Ingebouwde audio via twee naar voren gerichte luidsprekers Audio-uitgang via 3,5 mm-aansluiting HDMI-ingang op volledige grootte VESA- en schroefmontageopties Volume- en helderheidsknoppen USB-C-voedingskabel Specificaties Display Schermgrootte: 15,6 inch, verhouding 16:9 Paneeltype: IPS LCD met antireflectiecoating Weergaveresolutie: 1920 x 1080 Kleurdiepte: 16,2M Helderheid (typisch): 250 nits Kleurgamma: 45% Kijkhoek: 80° Voeding 1,5 A/5 V Kan rechtstreeks worden gevoed via een Raspberry Pi USB poort (max 60% helderheid, 50% volume) of via een aparte voeding (max 100% helderheid, 100% volume) Connectiviteit Standaard HDMI-poort (compatibel met 1.4) 3,5 mm stereohoofdtelefoonaansluiting USB-C (voeding in) Audio 2x 1,2 W geïntegreerde luidsprekers Ondersteuning voor bemonsteringsfrequenties van 44,1 kHz, 48 kHz en 96 kHz Downloads Datasheet

    € 119,95

    Leden identiek

  • Waveshare 4 - digit 8 - segment Display Module for Raspberry Pi Pico - Elektor

    Waveshare Waveshare 4-digit 8-segment Display Module for Raspberry Pi Pico

    Features SPI-compatible, easy to drive Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples) Specifications Operating voltage 5 V Digits 4 Dispaly size 0.4 inch LED color red Driver 74HC595 Display part no. FJ4401AH Dimensions 52 × 21 mm

    € 9,95

    Leden € 8,96

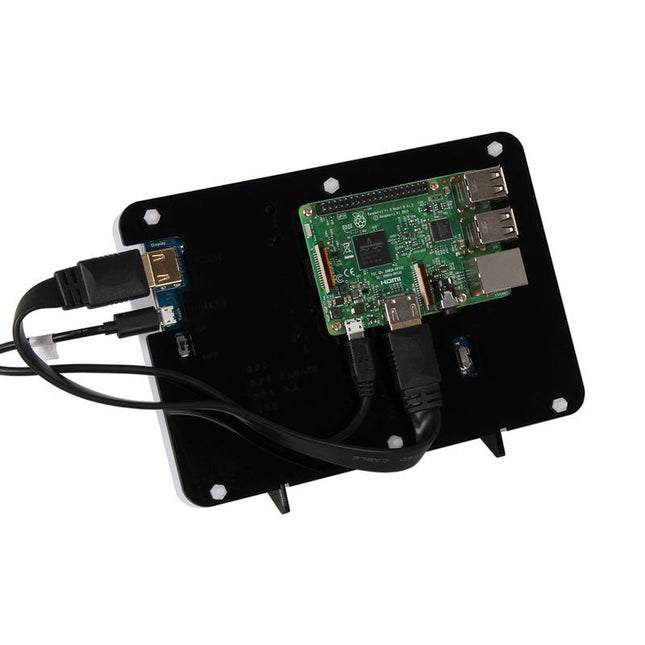

  •  -46% Case for 7" RGB - Touch - Display for Raspberry Pi - Elektor

    JOY-iT Case for 7" RGB-Touch-Display for Raspberry Pi

    Behuizing voor een 7' RGB-Touch-Display voor de Raspberry Pi

    € 12,95€ 6,95

    Leden identiek

  • Waveshare 3.5" Touch Display Module for Raspberry Pi Pico (480x320) - Elektor

    Waveshare Waveshare 3.5"Touch Display Module for Raspberry Pi Pico (480x320)

    Features 480 x 320 resolution, IPS screen, 65K colors, clear and colorful displaying effect Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions MicroSD card slot for storing images and direct displaying them easily Programmable backlight control, power saving Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples) Specifications Operating voltage 5 V Resolution 480 x 320 pixels Communication interface SPI Display size 73.44 x 48.96 mm Display panel IPS Pixel size 0.153 x 0.153 mm Driver ILI9488 Dimensions 86.00 x 57.20 mm Touch controller XPT2046 DownloadsWiki

    € 29,95

    Leden € 26,96

  • Pimoroni Raspberry Pi Pico Display Pack - Elektor

    Pimoroni Pimoroni Raspberry Pi Pico Display Pack

    Pico Display lets you turn a Pico into a compact user interface device for a bigger project, capable of giving instructions, displaying readouts and even incorporating elaborate nested menus. If you'd rather use your Pico as a standalone device you could make a little rotating slideshow of images, display beautiful graphs from sensor data or build your own Tamagotchi or matchbox sized text adventure game.Features 1.14” 240x135 pixel IPS LCD screen 4 x tactile buttons RGB LED Pre-soldered female headers for attaching to Pico Compatible with Raspberry Pi Pico. Fully assembled No soldering required (as long as your Pico has header pins attached). Dimensions: approx 53 x 25 x 9 mm (L x W x H) Screen usable area: approx 25 x 15 mm (L x W) C/C++ and MicroPython libraries

    € 19,95

    Leden € 17,96

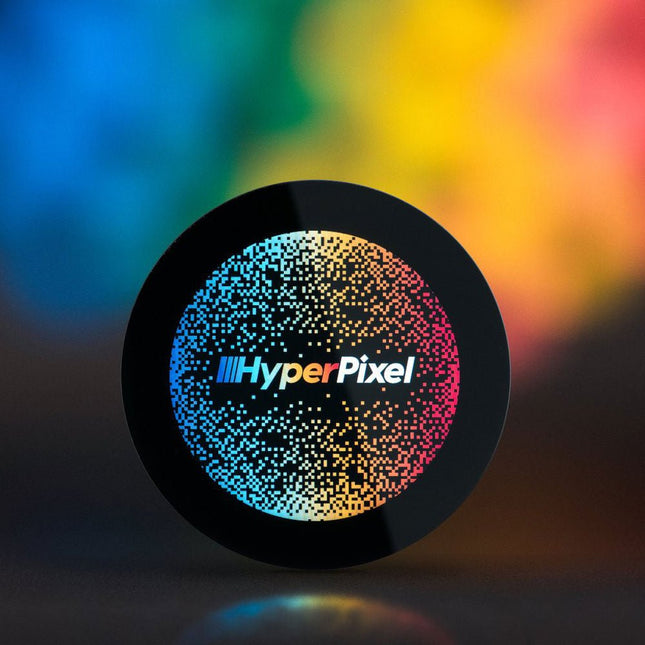

  • Bijna uitverkocht HyperPixel 2.1 Round - Hi - Res Display for Raspberry Pi - Elektor

    Pimoroni HyperPixel 2.1 Round – Hi-Res Display voor Raspberry Pi

    Nog 1 op voorraad

    HyperPixel 2.1 Round has all the great features of other HyperPixels – crisp, brilliant IPS display touchscreen, and high-speed DPI interface – it's just rounder! You can use it with any Raspberry Pi with a 40-pin header but it works particularly nicely with the RPi Zero footprint – it's designed so you can mount a Zero neatly behind it, so you can't see the RPi when you look at it from the front. This version of HyperPixel would be great for custom interfaces and control panels – mounted on a wall it would make a really neat, minimalist smart home controller or a stylish 'what's playing' display for your sound system. Everything is pre-soldered and ready to go, just pop it onto your RPi, install the software, and away you go! HyperPixel 2.1 Round uses a high-speed DPI interface, allowing it to shift 5x more pixel data than the usual SPI interface that these small Pi displays normally use. It has a 60 FPS frame rate and a resolution of approximately 229 pixels per inch (480x480px) on its 2.1' display. The display can show 18-bits of colour (262,144 colors). Kenmerken High-speed DPI interface 2.1" IPS (wide viewing angle, 175°) display 480x480 pixels, minus the corners (~229 PPI) 18-bit colour (262,144 colors) 60 FPS frame rate Active area: 53.28 x 53.28 mm Capacitive touchscreen (with Python library) Compatible with all 40-pin header Raspberry Pi models Dimensions: 71.80 x 71.80 x 10.8 mm (WxHxD, depth includes header and display). With a RPi Zero attached with short standoffs, the total depth is 17 mm. Downloads Display library for Raspberry Pi OS Python touchscreen library Dimensional drawing Pinout

    Nog 1 op voorraad

    € 79,95

    Leden € 71,96

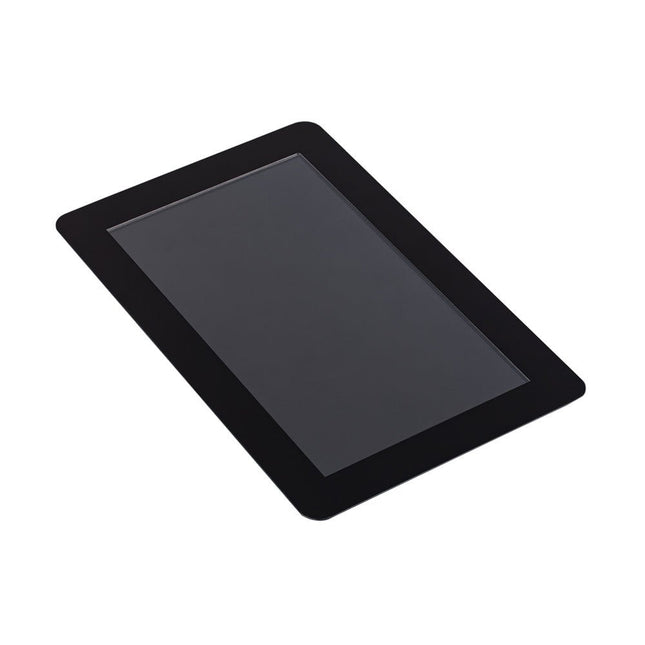

  • Raspberry Pi Touch Display 2 - Elektor

    Raspberry Pi Foundation Raspberry Pi Touch Display 2

    De Raspberry Pi Touch Display 2 is een 7-inch touchscreen ontworpen voor Raspberry Pi, perfect voor interactieve projecten zoals tablets, entertainmentsystemen en informatiedashboards. Raspberry Pi OS bevat touchscreen drivers die vijf-vinger touch en een on-screen toetsenbord ondersteunen, waardoor volledige functionaliteit zonder een fysiek toetsenbord of muis mogelijk is. Het aansluiten van het 720 x 1280 scherm op je Raspberry Pi vereist slechts twee aansluitingen: voeding via de GPIO poort en een lintkabel naar de DSI poort, compatibel met alle Raspberry Pi modellen behalve de Raspberry Pi Zero lijn. Specificaties Display 7 inch TFT (720 x 1280 pixels) Actief gebied 88 x 155 mm Aanraakpaneel Echt multi-touch capacitief aanraakscherm, dat aanraking met vijf vingers ondersteunt Oppervlaktebehandeling Antireflectie Kleurconfiguratie RGB-streep Type achtergrondverlichting LED B/L Inbegrepen 1x Raspberry Pi Touch Display 2 1x 22-pins tot 15-pins FFC voor Raspberry Pi 5 1x 15-pins naar 15-pins FFC voor Raspberry Pi 4 en ouder 1x GPIO-connectorkabel 8x M2.5-schroeven Downloads Datasheet

    € 67,95

    Leden identiek

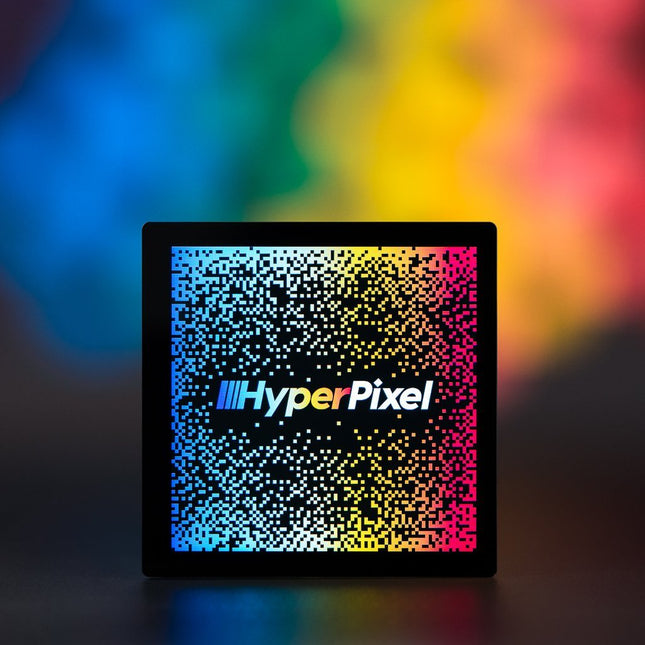

  • HyperPixel 4.0 Square Touch - Hi - Res Display for Raspberry Pi - Elektor

    Pimoroni HyperPixel 4.0 Square Touch – Hi-Res Display voor Raspberry Pi

    HyperPixel 4.0 Square has all the great features of our standard HyperPixel 4.0 – a crisp, brilliant IPS display with touchscreen, and high-speed DPI interface – it's just more square! This square version of HyperPixel 4.0 is great for custom interfaces and control panels, and works really well for Pico-8 games. Everything is pre-soldered and ready to go, just pop it onto your RPi, run our installer, and away you go! Kenmerken High-speed DPI interface 4.0' IPS (wide viewing angle, 160°) display (72x72 mm) 720x720 pixels (~254 PPI) 18-bit colour (262,144 colors) 60 FPS frame rate Optional capacitive touchscreen 40-pin female header included to boost height for Raspberry Pi B+, 2, 3, 3B+ and 4 Standoffs included to securely attach to your RPi Compatible with all 40-pin header Raspberry Pi models One-line installer HyperPixel 4.0 Square uses a high-speed DPI interface, allowing it to shift 5x more pixel data than the usual SPI interface that these small RPi displays normally use. It has a 60 FPS frame rate and a resolution of approximately 254 pixels per inch (720x720px) on its 4.0' display. The display can show 18-bits of colour (262,144 colors). This Touch version has a capacitive touch display that's more sensitive and responsive to touch than a resistive touch display, and it's capable of multi-touch! Please note: when installing HyperPixel 4.0 Square onto your RPi make sure not to press down on the screen surface! Hold the board by its edges and wiggle it to mate with the extended header (or GPIO header). Also take care not to pull on the edges of the glass display when removing your HyperPixel. It'll work with any 40-pin version of the RPi, including RPi Zero and RPi Zero W. If you're using it with a larger RPi then use the extra 40-pin header that's included to boost it up to the required height. If you're using a Zero or Zero W then just pop it straight onto the GPIO. The included standoff kit allows you to mount your HyperPixel 4.0 Square safely and securely to your RPi. Just screw them into the posts on the underside of the HyperPixel 4.0 Square PCB and then secure with screws through the mounting holes on your RPi. Downloads GitHub

    € 84,95

    Leden € 76,46

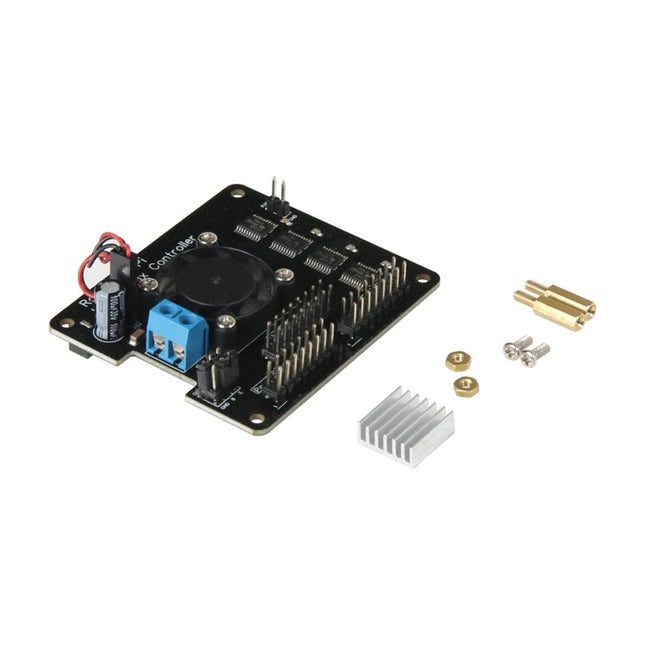

  • Bijna uitverkocht JOY - iT Raspberry Pi Controllerboard for RGB - LED Matrix - Elektor

    JOY-iT JOY-iT Raspberry Pi Controllerboard for RGB-LED Matrix

    Nog 2 op voorraad

    FUNCTION Logic level converter from 3.3 V to 5V for controlling of up to 3 LED matrix rows PASSIVE AND ACTIVE COOLING Aluminium heatsink with a 25x25mm sized fan COMPATIBLE WITH Raspberry Pi 3A/B/A+/B+, 4B INPUT VOLTAGE 5 Volt INTERFACES 3x HUB75 plugs DATA LINE E SWITCHABLE with jumpers to Pin 4 or 8 DIMENSIONS 65 x 56 x 26 mm WEIGHT 40 g ITEMS SHIPPED Controller, heatsink, fan, 2 spacers, 6 screws and nuts, 4 flat washers, 2 jumpers EAN 4250236819631 ARTICLE NO. RB-MatrixCtrl

    Nog 2 op voorraad

    € 15,95

    Leden € 14,36

  • Waveshare 2.13" Touch E - Paper E - Ink Display for Raspberry Pi Zero (incl. Case) - Elektor

    Waveshare Waveshare 2.13"Touch E-Paper E-Ink Display for Raspberry Pi Zero (incl. Case)

    Features 2.13' capacitive touch e-Paper display, 5-point touch, 250×122 pixels Supports waken up by user-defined gesture No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W Comes with development resources and manual (examples for Raspberry Pi) Included 1x 2.13inch Touch e-Paper HAT 1x ABS case 1x Screwdriver 1x Thermal tape 1x Rubber feet 4pcs 2x Screws Downloads Documentation

    € 34,95

    Leden € 31,46

  • Pimoroni Display HAT Mini for Raspberry Pi Zero - Elektor

    Pimoroni Pimoroni Display HAT Mini for Raspberry Pi Zero

    Niet op voorraad

    Display HAT Mini features a bright 18-bit capable 320x240 pixel display with vibrant colours and formidable IPS viewing angles, connected via SPI. It's got four tactile buttons for interacting with your Raspberry Pi with your digits and a RGB LED for notifications. A QwST connector (Qwiic / STEMMA QT) and a Breakout Garden header is also squeezed in so it's a doddle to connect up different kinds of breakouts.It will work with any model of Raspberry Pi with a 40 pin header, but we think it goes with the Raspberry Pi Zero particularly well - we've included a pair of standoffs so you can use to bolt HAT and Raspberry Pi together to make a sturdy little unit. To accommodate the screen Display HAT Mini is a bit bigger than a standard mini HAT or pHAT – it's around 5 mm taller than a Raspberry Pi Zero (so a Mini HAT XL or a Mini HAT Pro, if you will).Display HAT Mini lets you turn a Raspberry Pi into a convenient IoT control panel, a tiny photo frame, digital art display or gif-box, or a desktop display for news headlines, tweets, or other info from online APIs. This screen is a handy 3:2 ratio, useful for retro gaming purposes!Features 2.0” 320x240 pixel IPS LCD screen, connected via SPI (~220 PPI, 65K colours) 4x tactile buttons RGB LED Qw/ST (Qwiic/STEMMA QT) connector Breakout Garden / I²C header Pre-soldered socket header for attaching to Raspberry Pi Compatible with all models of Raspberry Pi with a 40-pin header. Fully assembled No soldering required (as long as your RPi has header pins attached). Dimensions: approx 65.5 x 35 x 9 mm (W x H x D, includes header and display). With a Raspberry Pi Zero attached with standoffs, the total depth is 17 mm. Screen usable area: 40.8 x 30.6 mm (L x W) Pinout Schematic Dimensional drawing Display HAT Mini Python library ST7789 Python library Included Display HAT Mini 2x 10 mm standoffs

    Niet op voorraad

    € 32,95

    Leden € 29,66

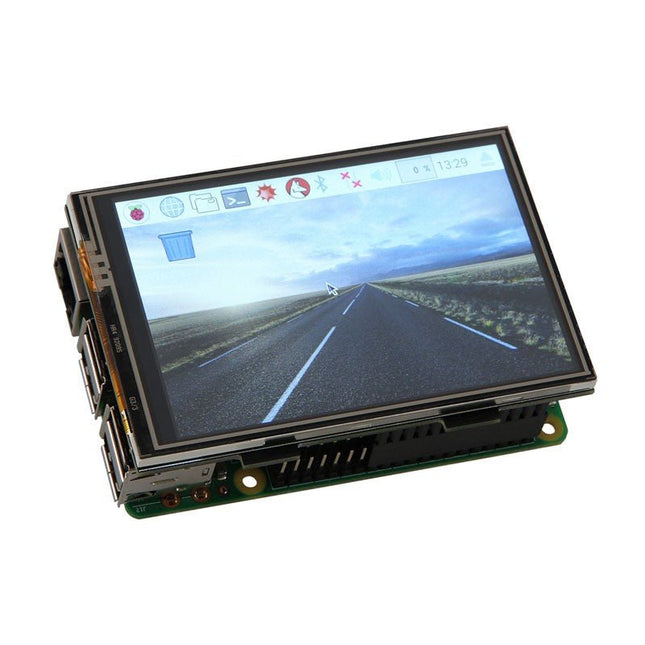

  • JOY - iT 3.5" Touchscreen for Raspberry Pi - Elektor

    JOY-iT JOY-iT 3,5" Touchscreen voor Raspberry Pi

    With the 3.5 inch large TFT touch screen display, you can build a mini tablet PC based on a Raspberry Pi. The display, with a maximum resolution of 480x320 pixels, is simply plugged into the existing GPIO connectors. Specificaties Display: 3.5" (8.89 cm) Resolution: 480x320 pixels Touchscreen Type: Resistive Touch screen controller: XPT2046 Colors: 65536 Backlight: LED Connection: GPIO header Aspect ratio: 8:5 Display Size: 85 x 56 mm

    € 34,95

    Leden € 31,46

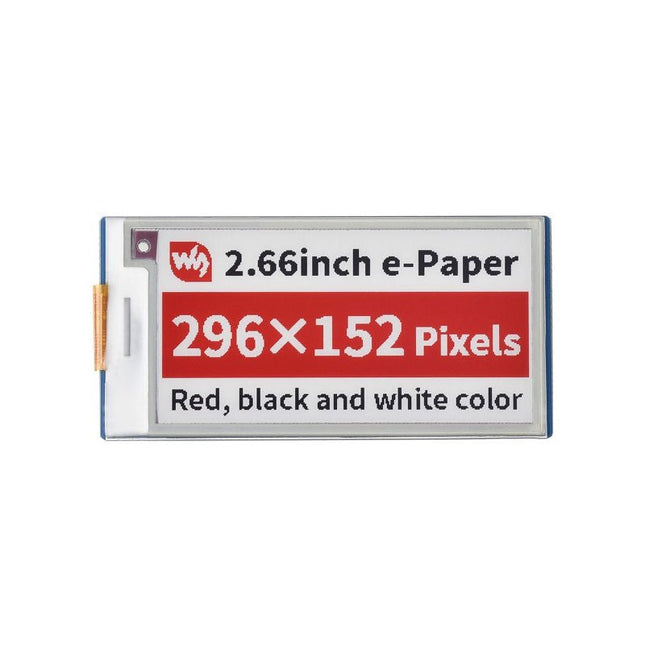

  • Waveshare 2.66" E - Paper E - Ink Display Module for Raspberry Pi Pico (296x152) - Elektor

    Waveshare Waveshare 2.66" E-Paper E-Ink Display Module for Raspberry Pi Pico (296x152)

    Features No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing SPI interface, requires minimal IO pins Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples) Specifications Operating voltage 3.3 V Display color red, black, white Interface 3-wire SPI, 4-wire SPI Grey scale 2 Outline dimensions 74.00 × 37.5 0mm Full refresh time 15s Display size 60.088 × 30.704 mm Refresh power 42.4 mW (typ.) Dot pitch 0.203 × 0.202 mm Standby current <0.01 uA (almost none) Resolution 296×152 pixels Viewing angle >170° Downloads Wiki

    € 27,95

    Leden € 25,16

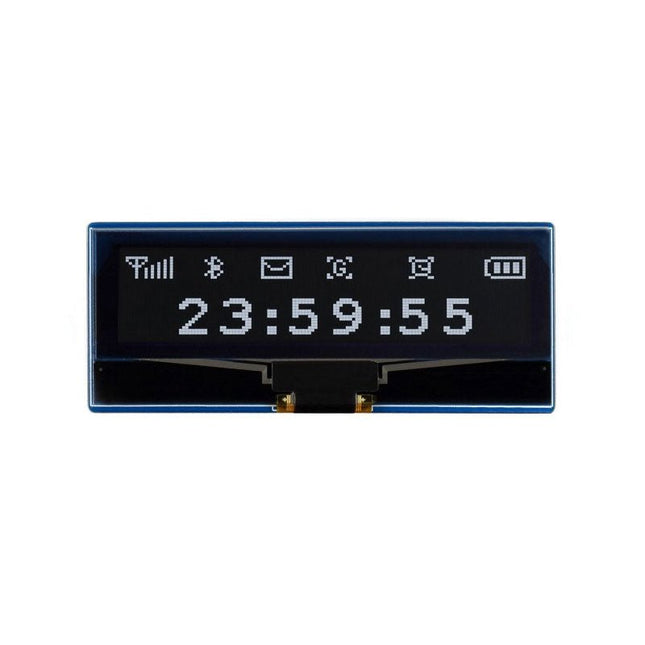

  • Waveshare 2.23" OLED Display Module for Raspberry Pi Pico (128x32) - Elektor

    Waveshare Waveshare 2.23" OLED Display Module for Raspberry Pi Pico (128x32)

    Features Adopts both 4-wire SPI and I²C interface, better compatibility, fast data rate Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples) Specifications Logical voltage 3.3 V Viewing angle >160° Operating voltage 3.3 V/5 V Resolution 128×32 pixels Communication interface 4-wire SPI, I²C Display size 55.02 × 13.10 mm Display panel OLED Pixel size 0.41 × 0.39 mm Driver SSD1305 Dimensions 63.00 × 26.00 mm

    € 19,95

    Leden € 17,96

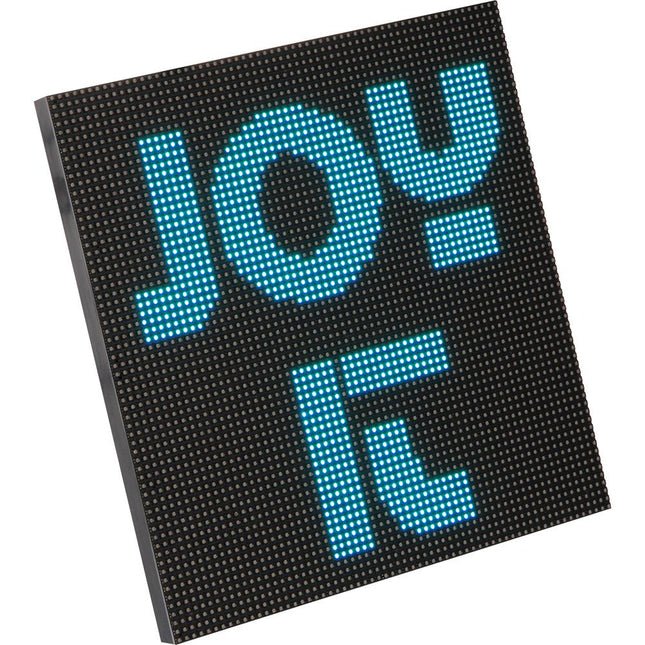

  • JOY - iT 64x64 RGB - LED Matrix Module - Elektor

    JOY-iT JOY-iT 64x64 RGB-LED Matrix Module

    The RGB matrix module is equipped with 4096 LEDs and is characterized by a particularly small grid size of only 3mm. This makes it ideal for pictorial representations. Video sequences can also be displayed. The module is supplied with the necessary cables. It is perfectly suited in combinations with single board computers like the Raspberry Pi, Arduino, BBC Microbit and many more. Specifications Display RGB-LED Resolution 64 x 64 Amount of LED 4096 LEDs LED Size 3 mm Pitch Supply Voltage 5 V Max. Power Input 40 W Control 1/32 Scan Operating Temperature -20~55°C Viewing Angle 140° Pixel Density 111111 Pixel/m² Dimensions 192 x 192 x 14 mm Weight 246 g Items Shipped LED-Matrix, Kabel Downloads Datasheet Manual

    € 59,95

    Leden € 53,96

  • JOY - iT 84x48 LCD Display - Elektor

    JOY-iT JOY-iT 84x48 LCD Display

    Dit display komt overeen met de Nokia 5110 norm waardoor het prima geschikt is om gegevens of grafieken van meetwaarden weer te geven via een microcontroller of een single-board computer. Bovendien is het display compatibel met alle Raspberry Pi, Arduino, CubieBoard, Banana Pi en microcontroller zonder extra handelingen. Specificaties Chipset Philips PCD8544 Interface SPI Resolutie 84 x 48 Pixels Voeding 2.7-3.3 V Speciale kenmerken Backlight Compatibel met Raspberry Pi, Arduino, CubieBoard, Banana Pi en microcontroller Afmetingen 45 x 45 x 14 mm Gewicht 14 g

    € 12,95

    Leden € 11,66

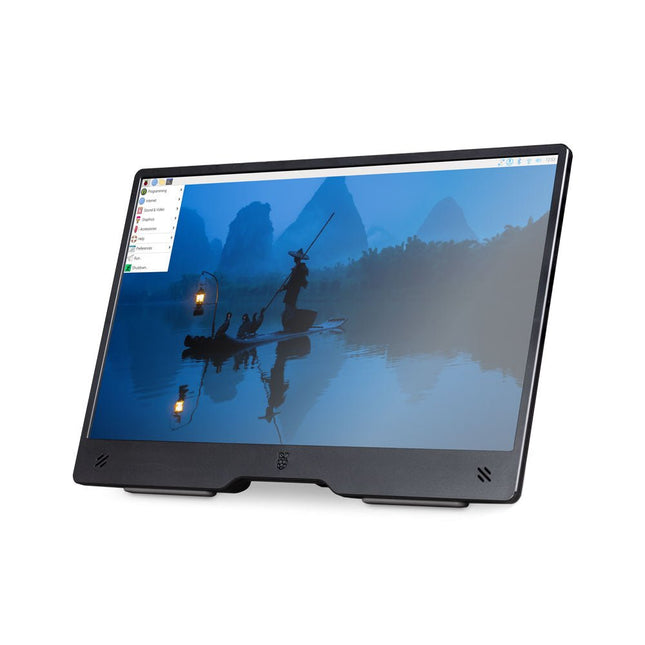

  • Raspberry Pi Monitor (black) - Elektor

    Raspberry Pi Foundation Raspberry Pi Monitor (zwart)

    De Raspberry Pi Monitor is een 15,6-inch Full HD-computerscherm. Gebruiksvriendelijk, veelzijdig, compact en betaalbaar, het is de perfecte desktop-displaygenoot voor zowel Raspberry Pi-computers als andere apparaten. Met ingebouwde audio via twee naar voren gerichte luidsprekers, VESA- en schroefmontagemogelijkheden en een geïntegreerde in hoek verstelbare standaard is de Raspberry Pi Monitor ideaal voor desktopgebruik of voor integratie in projecten en systemen. Hij kan rechtstreeks van een Raspberry Pi worden voorzien, of via een aparte voeding. Kenmerken 15,6-inch Full HD 1080p IPS-scherm Geïntegreerde in hoek verstelbare standaard Ingebouwde audio via twee naar voren gerichte luidsprekers Audio-uitgang via 3,5 mm-aansluiting HDMI-ingang op volledige grootte VESA- en schroefmontageopties Volume- en helderheidsknoppen USB-C-voedingskabel Specificaties Display Schermgrootte: 15,6 inch, verhouding 16:9 Paneeltype: IPS LCD met antireflectiecoating Weergaveresolutie: 1920 x 1080 Kleurdiepte: 16,2M Helderheid (typisch): 250 nits Kleurgamma: 45% Kijkhoek: 80° Voeding 1,5 A/5 V Kan rechtstreeks worden gevoed via een Raspberry Pi USB poort (max 60% helderheid, 50% volume) of via een aparte voeding (max 100% helderheid, 100% volume) Connectiviteit Standaard HDMI-poort (compatibel met 1.4) 3,5 mm stereohoofdtelefoonaansluiting USB-C (voeding in) Audio 2x 1,2 W geïntegreerde luidsprekers Ondersteuning voor bemonsteringsfrequenties van 44,1 kHz, 48 kHz en 96 kHz Downloads Datasheet

    € 119,95

    Leden identiek

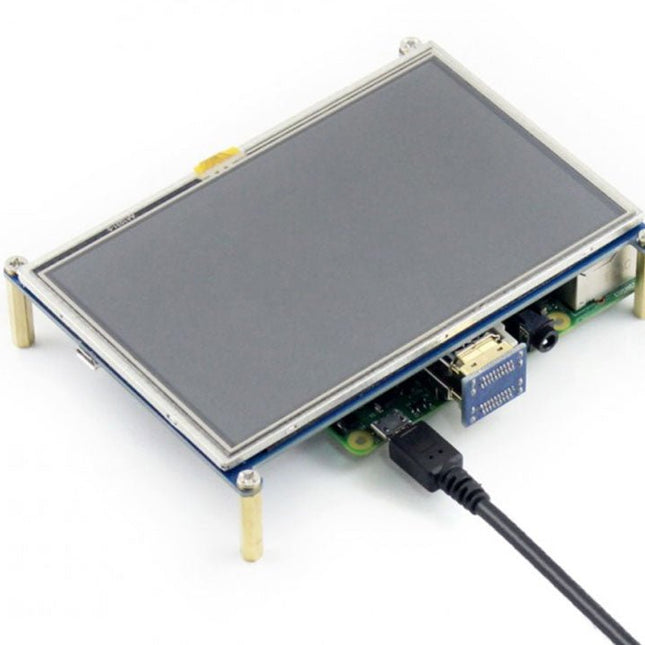

  •  -29% JOY - iT 5" Touchscreen for Raspberry Pi - Elektor

    JOY-iT JOY-iT 5" Touchscreen for Raspberry Pi

    This 12.7 (5") touchscreen display stands out through its contrasty and sharp image. It offers a maximum resolution of 800 x 480 Pixels. A particular HDMI adapter is delivered with the display, with which this can be attached directly to the Raspberry and can be fixed to an unit with the aid of openings for the screws. Features Display: 5" (12.7 cm) Weight: 159 g Resolution: 800 x 480 pixels Display Type: Touch-Control Amount HDMI-HDMI Adapter: 1x Micro USB Interface (only Power): 1x Supports Raspberry: Raspbian, Ubuntu Dimensions, without mounting: 120 x 79 x 7 mm Scope of supply: 5 inch HDMI LCD, HDMI-HDMI Adapter, Touchpen

    € 62,95€ 44,95

    Leden identiek

  • Waveshare 7" Capacitive Touch Display Kit for Raspberry Pi Zero (1024x600) - Elektor

    Waveshare Waveshare 7" Capacitive Touch Display Kit for Raspberry Pi Zero (1024x600)

    The Zero-DISP-7A is a 7? touch display kit for Raspberry Pi Zero with IPS Display Expansion Board featuring 1024x600 pixels and 5-point capacitive touch. Features 7-inch IPS touch display with a hardware resolution of 1024x600. 5-point touch control, toughened glass panel with up to 6H hardness. When working with Raspberry Pi Zero, supports Raspberry Pi OS, Ubuntu, Kali, and Retropie systems. Onboard ETH/USB HUB function, adapting RJ45 and USB port serving as an alii-in-one mini computer. Onboard 4-pin speaker header and 3.5 mm audio jack, support for HDMI audio output. Specifications Zero connectors Mini HDMI port, 2x USB Micro male port (1x HUB, 1x Power supply) Display 7-inch 1024 x 600 pixels, 5-point capacitive touch Networking 100M Ethernet RJ45 port USB 2x USB 2.0 port Audio Headphone jack, 4-pin speaker header Power input USB Type-C Interface, 5V Included 1x Zero-DISP-7A 1x Button board 1x Button board cable (9 cm) 4x White nylon spacer Downloads Wiki

    € 64,95

    Leden € 58,46

  • CrowVision 11.6" IPS Capacitive Touch Display (1366x768) - Elektor

    Elecrow CrowVision 11.6" IPS Capacitive Touch Display (1366x768)

    CrowVision 11.6-inch touch screen is designed for all-in-one machines. It features a 1366 x 768 high-resolution screen and IPS panel, providing a superior visual experience. The industrial design-style rear-fixed metal structure is compatible with various single-board computers (SBCs), with a reasonable layout and neat wiring, making it easy to power up and use with simple operations. The screen uses HDMI-compatible communication and supports capacitive multi-touch. It has reserved interfaces and buttons for speakers and other accessories, making it adaptable to different usage scenarios. It can be used with a variety of commonly available single-board computers such as Raspberry Pi, Jetson Nano, and is plug-and-play, while also being fully compatible with the operating systems of single-board computers (such as Raspbian, Ubuntu, Windows, Android, Mac OS, and Chrome OS, etc.). This screen can be widely used in automation application control system displays, personal DIY projects, secondary screen/second window displays, single-board computer audio-video display equipment, HDMI communication devices, game console expansion screens, and other scenarios. Features 11.6-inch high-resolution screen with 1366 x 768 resolution, IPS panel, and 178° wide viewing angle provides a better visual experience Unique rear fixing structure with sliding fixing pillars, compatible with most single-board computer models, easy to assemble Wide compatibility, compatible with multiple operating systems (Raspbian, Ubuntu, Windows, Android, Mac OS, and Chrome OS) Supports audio, video, and capacitive touch, plug and play Integrates a variety of peripheral interfaces (such as speakers, headphones, keypads, touchscreens) and onboard OSD adjustment keys The mainboard is equipped with power conversion function of output 5 V/3 A, not need to separately connect an external power supply for the single-board computer. Specifications Display size: 11.6 inch Touch type: 5-point Capacitive Touch Resolution: 1366 x 768 Color depth: 16M Viewing angle: 178° wide viewing angle Display type: IPS Panel Screen type: TFT-LCD External power supply: 12 V/2 A Digital input: HDMI-compatible interface Interfaces: 1x Keypad interface, 1x power supply 5 V output, 1x Mini HD interface, 1x touch interface, 1x speaker interface, 1x headphone socket, 1x power supply 12 V input Compatibility system: Raspbian, Ubuntu, Windows, Android, Mac OS, and Chrome OS, etc. Active Area: 256.13 x 144 mm Dimensions: 290.8 x 184.2 mm Included 1x 11.6-inch capacitive touch ccreen 1x USB-A to USB-C cable 1x USB-A to micro B cable 1x HD to mini HD cable 1x Micro HD to mini HD cable 1x OSD control board 1x Power adapter 1x Screwdriver 2x Ribbon 1x Manual Downloads Manual Wiki

    € 139,95

    Leden € 125,96

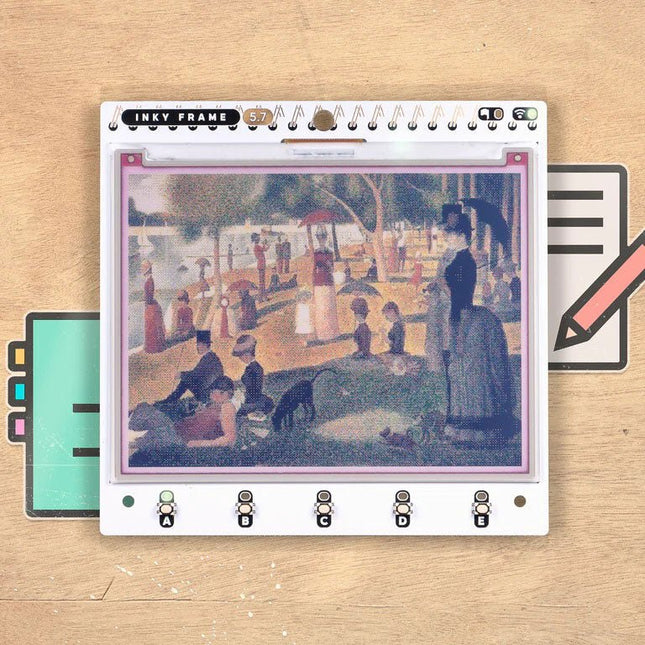

  • Pimoroni Inky Frame 5.7" (incl. Pico W) - Elektor

    Pimoroni Pimoroni Inky Frame 5.7' (incl. Pico W)

    Inky Frame 5.7' features a nice, big seven color E Ink display with loads of space for displaying images, text, graphs or interfaces. There's five buttons with LED indicators for interacting with the display, two Qw/ST connectors for plugging in breakouts and a micro SD card slot for all-important storage of cat photos.Every Inky Frame comes with a pair of sleek little metal legs so you can stand it up on your desk (and a selection of mounting holes if you'd prefer to do something else). There's also a battery connector so you can power it without annoying trailing wires, and some neato power saving features that mean you can run it from batteries for ages.Inky Frame is great for: Checking your calendar and upcoming appointments at a glance Attaching to your office door to display your availability Displaying motivational posters, quotes, or images (fungible or otherwise) Showing readouts from other wirelessly connected environmental boards Features Raspberry Pi Pico W Aboard Dual Arm Cortex M0+ running at up to 133 Mhz with 264 kB of SRAM 2 MB of QSPI flash supporting XiP Powered and programmable by USB micro-B 2.4 GHz wireless 5.7' EPD display (600 x 448 pixels) E Ink Gallery Palette 4000 ePaper ACeP (Advanced Color ePaper) 7-color with black, white, red, green, blue, yellow, orange. Ultra wide viewing angle – >170° Dot pitch – 0.1915 x 0.1915 mm 5x Tactile buttons with LED indicators Two Qw/ST connectors for attaching breakouts microSD card slot Dedicated RTC chip (PCF85063A) for deep sleep/wake Fully assembled No soldering required. C/C++ and MicroPython libraries Schematic Included 1x Inky Frame 5.7' (incl. Pico W) 2x Metal legs DownloadsMicroPython (Learn) Getting Started with Inky Frame (Readme) Installing MicroPython (Readme) MicroPython FAQs (and troubleshooting) Download pirate-brand MicroPython (you'll want the Inky Frame.uf2) MicroPython examples PicoGraphics function reference C/C++ C examples Picographics function reference

    € 109,95

    Leden € 98,96

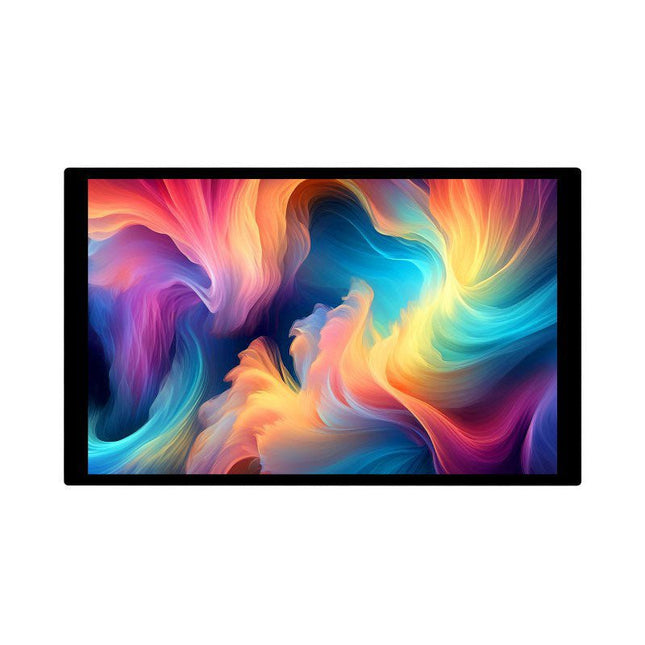

  • Waveshare 10.1" High - Res Capacitive Touch Display (1920x1200) - Elektor

    Waveshare Waveshare 10,1-inch High-Res Capacitief Touchscreen (1920x1200)

    Het Waveshare 10,1-inch capacitieve touchscreen met hoge resolutie is een universeel touchscreen met een resolutie van 1920 x 1200, compatibel met de meeste standaard HDMI-apparaten. Het beschikt over een dun en lichtgewicht ontwerp, een stevige cover van gehard glas voor duurzaamheid, uitstekende weergaveprestaties en een soepele multi-touch-ervaring. Bovendien zorgt de ingebouwde metalen achterplaat voor stabiliteit, waardoor gebruikers het scherm gemakkelijker in alles-in-één-projecten kunnen integreren. Kenmerken 10,1-inch IPS-scherm met 1920 x 1200 pixels 10-punts capacitieve aanraking met gehard glaspaneel met een hardheid tot 6H Volledig gelamineerde paneeltechnologie voor een beter weergave-effect Bij gebruik met Raspberry Pi ondersteunt het Raspberry Pi OS, Ubuntu, Kali en RetroPie Als computermonitor ondersteunt het Windows 7 en hoger. OSD-menu (kan worden gebruikt voor energiebeheer, aanpassing van helderheid/volume/beeldrotatie, enz.) HDMI-audio-uitgang, ingebouwde 3,5 mm hoofdtelefoonaansluiting en 4-pins hoogwaardige luidsprekers Specificaties Display 10,1 inch IPS Kijkhoek 178° Resolutie 1920 x 1200 pixels Touchscreengebied 217,2 x 135,6 mm Afmetingen 239 x 147 mm Kleurengamma 65% NTSC Maximale helderheid 300 cd/m² Contrast 1000:1 Achtergrondverlichting aanpassen Knop dimmen Vernieuwingssnelheid 60 Hz Displayinterface Standaard HDMI Voeding 5 V (USB-C) Maximaal energieverbruik 6 W Inbegrepen 1x 10,1 inch capacitief touchscreen met hoge resolutie (10.1EP-CAPLCD) 1x HDMI-platte kabel (1 m) 1x USB-A naar USB-C-kabel (1 m) 1x Micro HDMI-adapter 1x HDMI-adapter 1x HDMI-naar-micro-HDMI-adapter 1x PH1.25 4-pins naar Type-A-kabel 1x Capacitieve aanraakpen 1x 3-pins kabel 1x HDMI-kabel 120 mm (2 stuks) 1x Reinigingsdoekje 1x 5 V/3A voeding (EU) 1x Schroevenpakket Downloads Wiki

    € 119,95

    Leden € 107,96

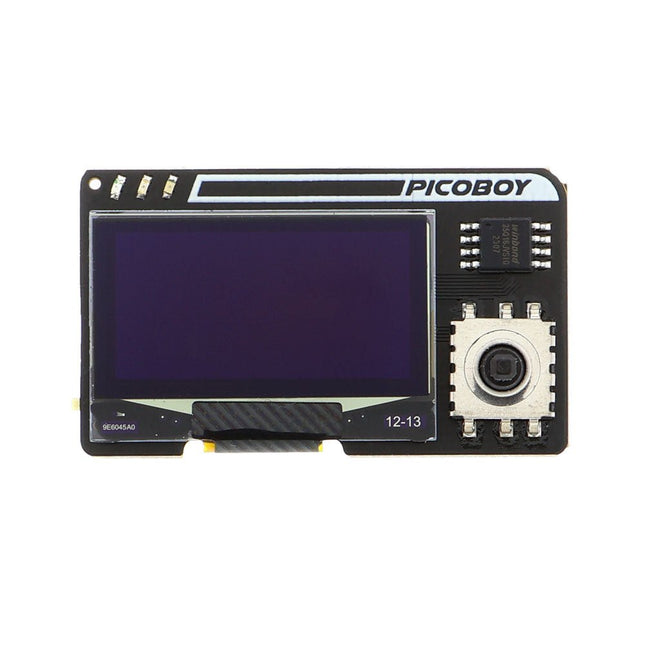

  • PicoBoy Mini Game Console - Elektor

    Picoboy PicoBoy mini spelcomputer

    De Picoboy is een krachtige mini handheld van slechts 3 x 5 cm. Hij is geschikt om te leren programmeren, je eigen games te ontwikkelen, of er gewoon mee te spelen. Ook is er een introductie tot het programmeren met de Arduino IDE en MicroPython beschikbaar. Het enige wat je nodig hebt is een PC, de PicoBoy en een USB-C kabel. Omdat de PicoBoy compatibel is met de Raspberry Pi Pico en de Arduino IDE zijn er talloze andere tutorials, voorbeelden en libraries op internet te vinden om het programmeren gemakkelijker te maken. Specificaties 1,3" OLED-display met 128 x 64 pixels (zwart/wit) RP2040 microcontroller, die hem compatibel maakt met de Raspberry Pi Pico 2x 133MHz ARM M0+ 2 MB Flash 264 KB RAM USB-C aansluiting voor programmering en gegevensoverdracht 3 vooraf geïnstalleerde games 5-voudige joystick Acceleration sensor (nu ook te gebruiken in Python!) Voeding via USB-C of een CR2032 knoopcel Afmetingen: 49,2 x 29,1 x 14,5 mm Downloads GitHub

    € 29,95

    Leden € 26,96

Ben je op zoek naar een manier om je elektronicaprojecten naar een hoger niveau te tillen, dan is een Raspberry Pi display precies wat je nodig hebt. Elektor biedt een breed scala aan hoogwaardige displays waarmee je de mogelijkheden van je Raspberry Pi makkelijk uitbreidt.

Uitbreidingsopties met Raspberry Pi displays

Als je je Raspberry Pi wilt verbeteren en krachtiger wilt maken door het toevoegen van ingenieuze accessoires, dan zijn de displays van Elektor de perfecte oplossing. Deze displays zijn speciaal ontworpen om de prestaties van je mini-computer te verbeteren.

Ze zijn compatibel met de meeste Raspberry Pi-modellen. Door het toevoegen van een display, transformeer je je Raspberry Pi tot een volwaardig computerstation én zijn er allerlei extra toepassingen mogelijk.

Welk display past bij jouw project?

De meeste Raspberry Pi displays zijn sets met een LCD-scherm en een printplaat van hoge kwaliteit. De afmetingen en specificaties variëren per display. Zo biedt Elektor verschillende display-opties qua kleuren, grootte, pixels en een eventuele touchscreen-optie.

Welk display het beste bij jouw project past, hangt dus erg af van je specifieke voorkeur op het gebied van onder meer de grootte en het aantal pixels. Maar of je nu een kleiner of groter display nodig hebt, Elektor heeft altijd een passende optie in het uitgebreide assortiment!

Compacte mogelijkheden

Wij bieden ook compacte displays die ideaal zijn voor draagbare projecten, zoals digitale camera's, robots en andere mobiele apparaten. Deze displays zijn klein en licht van gewicht, waardoor je ze makkelijk in je project integreert. De displays hebben dezelfde hoge kwaliteit als de grotere opties, zodat je altijd kunt rekenen op de beste prestaties.

Aan de slag met je display

Om je Raspberry Pi display te kunnen gebruiken, heb je alleen een aantal basisvaardigheden nodig. De meeste displays worden geleverd met een handleiding waarin stap voor stap wordt uitgelegd hoe je het product installeert. Met wat geduld en een nauwkeurige opvolging van de instructies kan er niks misgaan!

Bestel je Raspberry Pi display direct!

Als je op zoek bent naar een manier om je Raspberry Pi te verbeteren, dan is het toevoegen van een display de perfecte keuze. Elektor biedt een breed scala aan hoogwaardige displays in verschillende maten en pixels. Door het volgen van de juiste instructies ga je gemakkelijk met je display aan de slag en til je al jouw projecten naar een hoger niveau.
