Zero

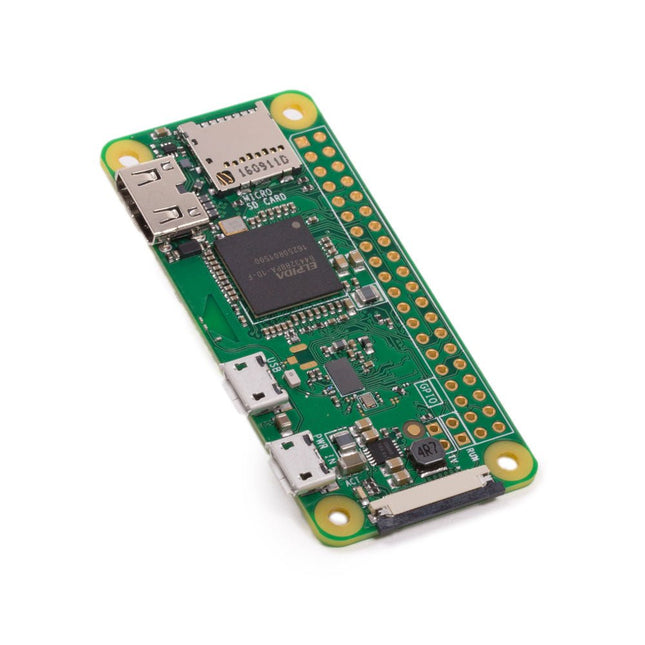

The Raspberry Pi Zero W extends the Raspberry Pi Zero family. The Raspberry Pi Zero W has all the functionality of the original Raspberry Pi Zero, but comes with added connectivity consisting of: 802.11 b/g/n wireless LAN Bluetooth 4.1 Bluetooth Low Energy (BLE) Other Features 1 GHz, single-core CPU 512 MB RAM Mini HDMI and USB On-The-Go ports Micro-USB power HAT-compatible 40-pin header Composite video and reset headers CSI camera connector Included 1x Raspberry Pi Zero W 1x 40-pin GPIO Header for Raspberry Pi (color-coded) Downloads Mechanical Drawing Schematics

Lees meer minder

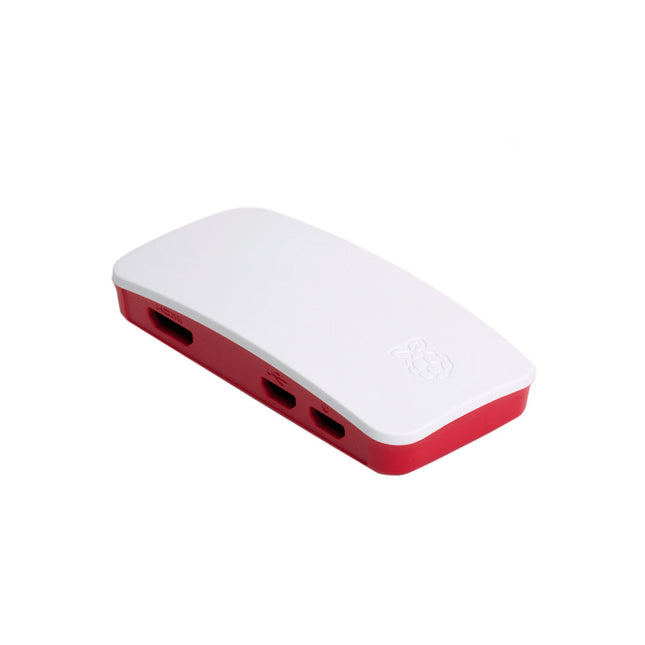

The case consists of two parts. It has a standard base featuring a cut-out to allow access to the GPIO, and a choice of three lids: a plain lid, a GPIO lid (allowing access to the GPIO from above), and a camera lid (which, when used with the short camera cable supplied, allows the Raspberry Pi Camera or Camera Noir to be fitted neatly inside it). Included 1x base 3x lids (plain, GPIO, camera) 1x short camera cable 4x rubber feet

Lees meer minder

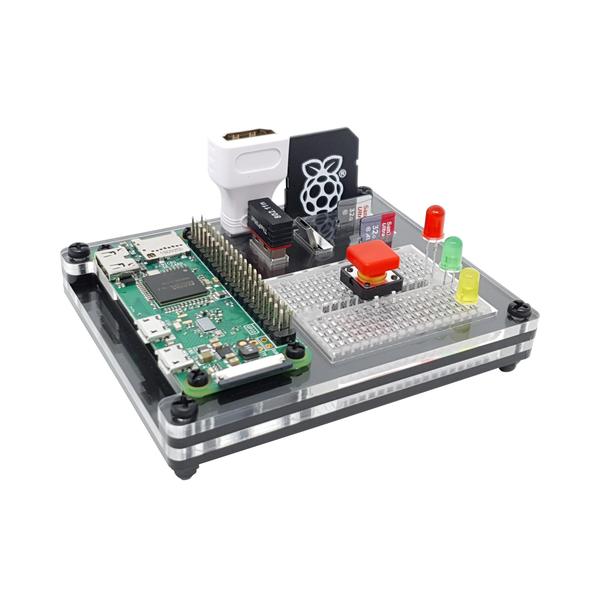

The default configuration holds a mini breadboard (included), an SD card adapter, 2x micro SD cards, 2x USB devices, a micro-USB shim and of course the Raspberry Pi Zero itself.Users can decide to use the micro-USB shim slot to hold a micro-HDMI adapter, or you may want to hold a Portsplus or similar GPIO reference card in the SD adapter slot. You can choose to store your USB micro-SD card reader or even other larger USB devices such as the USBDoctor. Use it in whatever way works best for you.All of the Raspberry Pi Zero ports are accessible from the ZeroDock, including the camera port and reset/composite pin header. pHATs are also not obstructed, so you’re free to prototype with your favourite add-on boards.The case is a stylish mix of clear and black acrylic layers, black fixings and a clear breadboard, fitting in well alongside most desktop PCs/monitors.Assembly guide available here.Kit includes 4 layer laser-cut acrylic case Case and Raspberry Pi fixings Mini breadboard

Lees meer minder

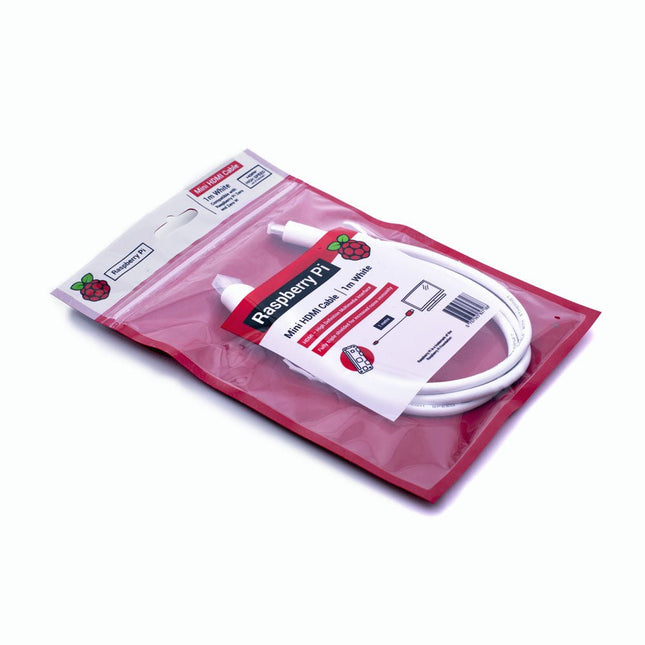

The official Raspberry Pi mini-HDMI to HDMI (A/M) cable designed for all Raspberry Pi Zero models. 19-pin HDMI Type D(M) to 19-pin HDMI Type A(M) 1 m cable (white) Nickel-plated plugs 4Kp60 compliant RoHS compliant 3 Mohm 300 VDC insulation, withstands 300 VDC for 0.1s

Lees meer minder

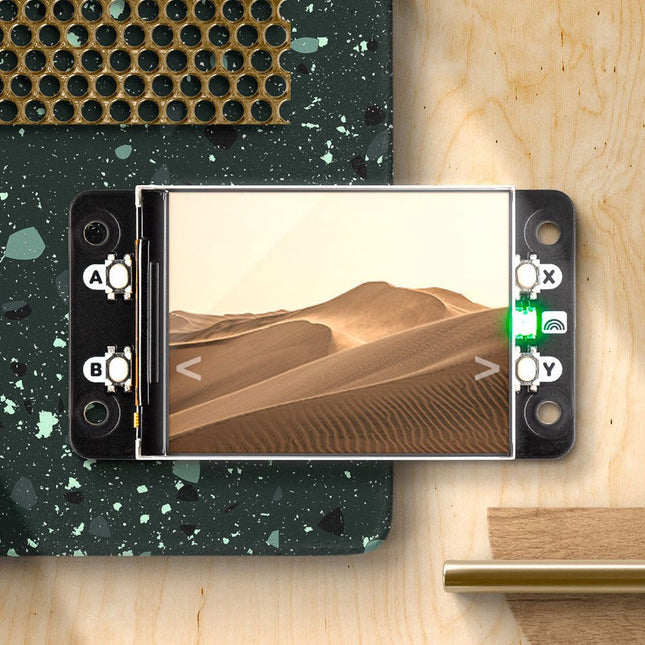

Display HAT Mini features a bright 18-bit capable 320x240 pixel display with vibrant colours and formidable IPS viewing angles, connected via SPI. It's got four tactile buttons for interacting with your Raspberry Pi with your digits and a RGB LED for notifications. A QwST connector (Qwiic / STEMMA QT) and a Breakout Garden header is also squeezed in so it's a doddle to connect up different kinds of breakouts.It will work with any model of Raspberry Pi with a 40 pin header, but we think it goes with the Raspberry Pi Zero particularly well - we've included a pair of standoffs so you can use to bolt HAT and Raspberry Pi together to make a sturdy little unit. To accommodate the screen Display HAT Mini is a bit bigger than a standard mini HAT or pHAT – it's around 5 mm taller than a Raspberry Pi Zero (so a Mini HAT XL or a Mini HAT Pro, if you will).Display HAT Mini lets you turn a Raspberry Pi into a convenient IoT control panel, a tiny photo frame, digital art display or gif-box, or a desktop display for news headlines, tweets, or other info from online APIs. This screen is a handy 3:2 ratio, useful for retro gaming purposes!Features 2.0” 320x240 pixel IPS LCD screen, connected via SPI (~220 PPI, 65K colours) 4x tactile buttons RGB LED Qw/ST (Qwiic/STEMMA QT) connector Breakout Garden / I²C header Pre-soldered socket header for attaching to Raspberry Pi Compatible with all models of Raspberry Pi with a 40-pin header. Fully assembled No soldering required (as long as your RPi has header pins attached). Dimensions: approx 65.5 x 35 x 9 mm (W x H x D, includes header and display). With a Raspberry Pi Zero attached with standoffs, the total depth is 17 mm. Screen usable area: 40.8 x 30.6 mm (L x W) Pinout Schematic Dimensional drawing Display HAT Mini Python library ST7789 Python library Included Display HAT Mini 2x 10 mm standoffs

Lees meer minder

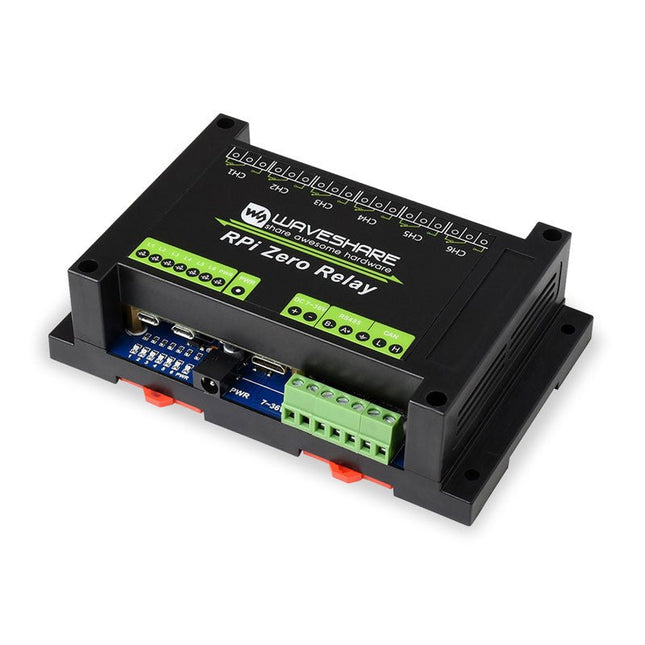

This Industrial 6-Channel Relay Module is suitable for Raspberry Pi Zero with pre-soldered pinheader. It provides RS485/CAN Bus, Power Supply Isolation, and Photocoupler Isolation.Features RS485 half-duplex communication: using SP3485, UART control, auto RX/TX switch CAN half-duplex communication: using MCP2515 + SN65HVD230 solution, SPI control Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic Onboard resettable fuses and protection diodes, ensuring current/voltage stable output, preventing over current/voltage, better shock-resistance performance High quality relay, contact rating: ≤10A 250V AC or ≤10A 30V DC ABS protection enclosure with rail-mount support, easy to install, safe to use Comes with development resources and manual (wiringPi and python examples) Specifications Operating voltage: 7~36 V (industrial input voltage compatible) Relay channel: 6ch Communication Protocol: RS485, CAN Contact form: 1NO 1NC Included 1x ABS protection enclosure (top and bottom) 1x RPi Zero Relay 1x Screwdriver 1x OPTIONS 12 V, 1 A power adapter 1x Screws pack DownloadsDocumentation

Lees meer minder

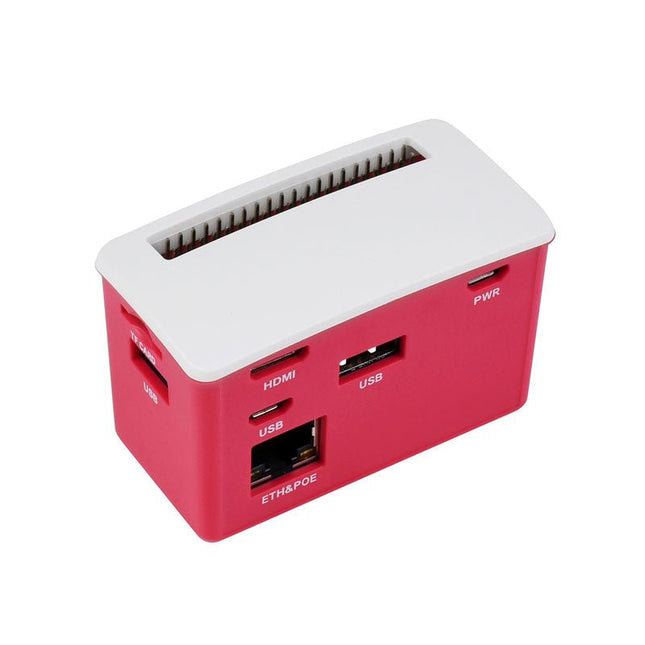

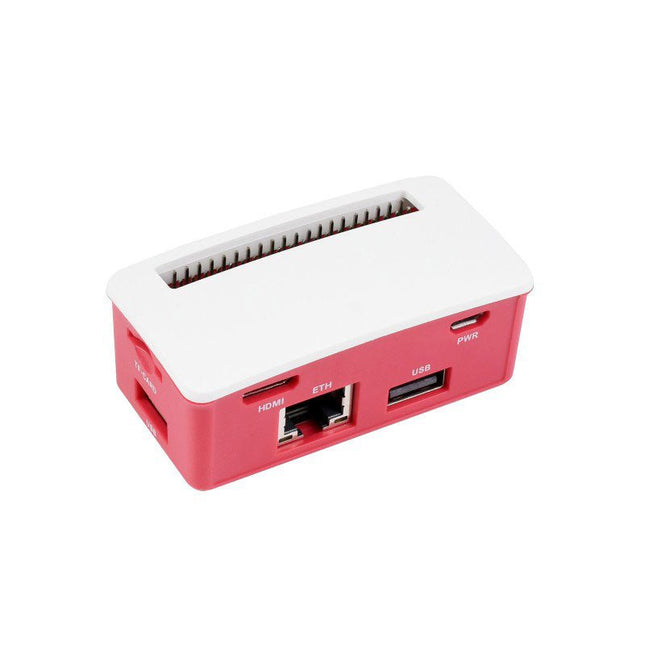

The PoE-ETH-USB-Hub-Box is a Hub kit with PoE/ETH/USB Hub HAT inside. It is tailored for Raspberry Pi Zero series, small in size, each cut-out of the case is exactly aligned with the connector. The case adopts classic Raspberry Pi red/white color combination, with quality dull polish surface, effectively keeping the Zero away from dust. By using this small Hub Box and some proper 802.3af-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi Zero in only one Ethernet cable, along with 3x extended USB ports. Features Designed for Raspberry Pi Zero, compatible with Zero series boards Incorporates RTL8152B Ethernet chip, with 10M / 100M auto-negotiation RJ45 port PoE (Power over Ethernet) feature, 802.3af-compliant Fully isolated SMPS (Switch Mode Power Supply) 3x extended USB ports, compatible with USB 2.0 / 1.1 Angle rounded design, smooth hand feeling, 'simple snap' case lid Quality ABS material, dull polish surface, anti-fingerprint Comes with two different lids, changing as you like Included 1x PoE/ETH/USB Hub HAT kit 1x ABS case 1x Rubber feet 4pcs 1x Screws pack Downloads Documentation

Lees meer minder

IQaudio Codec Zero is a Raspberry Pi Zero-sized audio I/O HAT. It delivers bi-directional digital audio signals (I²S) between Raspberry Pi Zero and its onboard Dialog Semiconductor DA7212 codec. Codec Zero supports a range of input and output devices, from the built-in MEMS microphone to external mono electret microphones and 1.2 W, 8 Ω mono speakers.

Lees meer minder

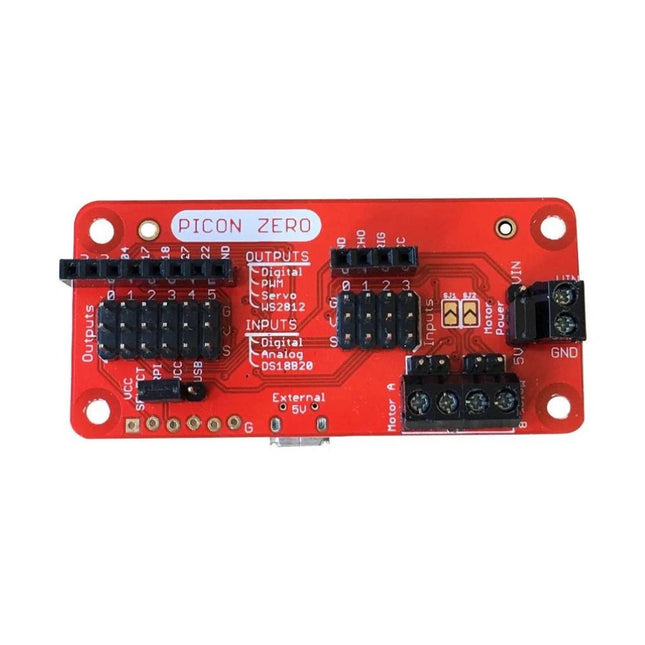

The Picon Zero is an add-on for the Raspberry Pi. It has the same size as a Raspberry Pi Zero, making it ideal to function as a pHat. Of course, it can be used on any other Raspberry Pi via a 40-pin GPIO connector.As well as two full H-Bridge motor drivers, the Picon Zero has several Input/Output pins giving you multiple configuration options. That allows you to easily add outputs or analog inputs to your Raspberry Pi without any complicated software or kernel-specific drivers. At the same time, it opens up 5 GPIO pins from the Raspberry Pi, and it provides the interface for an HC-SR04 ultrasonic distance sensor.The Picon Zero comes with all components, including the headers and screw terminals, fully soldered. Soldering isn't required. You can use it right out of the box.Features pHat format PCB: 65 mm x 30 mm Two full H-Bridge motor drivers. Drive up to 1.5 A continuously per channel, at 3 V - 11 V. Each motor output has both a 2-pin male header and a 2-pin screw terminal. The motors can be powered from the Picon Zero's 5 V or an external power source (3 V - 11 V). The Picon Zero's 5 V can be selected to be from the Raspberry Pi's 5 V line, or a USB connector on the Picon Zero. That means that you can effectively have 2 USB battery banks: one to power the servos and motors on the Picon Zero and the other to power the Pi. 4 Inputs that can accept up to 5 V. These inputs can be configured as follows: Digital inputs Analog inputs DS18B20 DHT11 6 Outputs that can drive 5 V and be configured as: Digital Output PWM Output Servo NeoPixel WS2812 All Inputs and Outputs use GVS 3-pin male headers. 4-pin female header that connects directly to an HC-SR04 ultrasonic distance sensor. 8-pin female header for Ground, 3.3 V, 5 V, and 5 GPIO signals allowing you to add their additional features. Hardware ConfigurationPicon Zero has two jumpers for setting the hardware configuration. Ensure that you have placed them in the correct position. JP1 – Board 5 V Selector. This jumper selects where to get the 5 V power from for the Picon Zero Outputs. The options are: Jumper at the top between RPI and 5 V. The 5 V power for the board is taken from the Raspberry Pi pins on the GPIO connector. Because of the low power output devices and the 5 V motors, all devices can be powered with a single 5 V power input. Jumper at the bottom between USB and 5 V. The 5 V power is taken from the microUSB connector on the Picon Zero. Useful for higher power output devices, since you can provide extra power through the micro-USB connector on the board JP2 – Motor Power Selector. This jumper selects where the motors get the power. The two options here are the following: Jumper at the top between MotorPower and Vin. The motors are driven via the 2-pin screw terminal. The voltage can be between 3 V and 11 V. Useful for motors that require a voltage different from 5 V, or that require more current than is available on either of the USB input connectors Jumper at the bottom between 5 V and MotorPower. The motors are driven from the board's 5 V. Raspberry Pi ConfigurationThe Picon Zero is an I²C device. Make sure your Raspberry Pi is set up correctly to use I²C and SMBus: sudo apt-get install python-smbus python3-smbus python-dev python3-dev sudo nano /boot/config.txt Add the following lines at the end of the file dtparam=i2c1=on dtparam=i2c_arm=on Press Ctrl-X and use the default prompts to save sudo reboot Plugin the Picon Zero onto the Pi and run i2cdetect -y 1If everything goes well, you will see the Picon Zero showing up as address 22 as shown below:

Lees meer minder

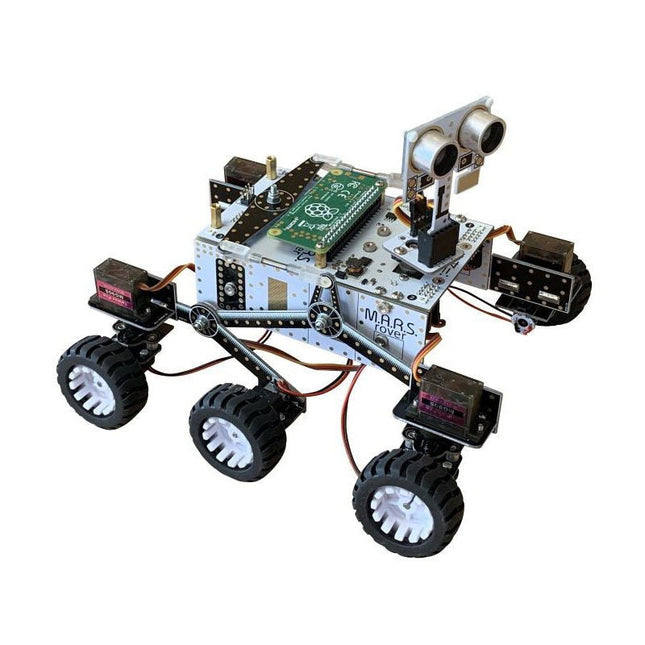

Geïnspireerd door NASA's Mars rovers Curiosity en Perseverance is de M.A.R.S. Rover van 4tronix een autonoom voertuig dat ontworpen is om op ruw terrein rond te rijden, maar dan op Aarde. Hij heeft dezelfde differentiele arm, tuimelarmen en draaistellen. M.A.R.S. is een acroniem voor 'Mobile Autonomous Robotic System'.Kenmerken 6 Motoren: 80 rpm 6 V, N20 micro-aandrijfmotoren 4 Servo's: MG90S analoge micro-aandrijf servo's met metalen tandwielen 4 FireLEDs Ultrasone afstandssensor op bestuurbare mast Totaal aantal speciale printplaten: 30 Aantal verschillende PCB-ontwerpen: 11 Lengte: 200 mm Breedte: 185 mm Hoogte met mast: 170 mm Gewicht exclusief Raspberry Pi Zero en batterijen: 460 gram Er is een Python-bibliotheekmodule beschikbaar voor de Raspberry Pi Zero waarmee het apparaat gemakkelijk kan worden bediend.Benodigdheden Raspberry Pi Zero 4 oplaadbare AA batterijen Downloads Montage van de 4tronix M.A.R.S. Rover kit Programmeren M.A.R.S. Rover op de Raspberry Pi Zero Codering met behulp van Microsoft Makecode op GitHub

Lees meer minder
