ESP32

57 producten

Bestsellers

Positie Bestsellers Alfabetisch (A-Z) Alfabetisch (Z-A) Prijs (laag naar hoog) Prijs (hoog naar laag) Datum (oud naar nieuw) Datum (nieuw naar oud)

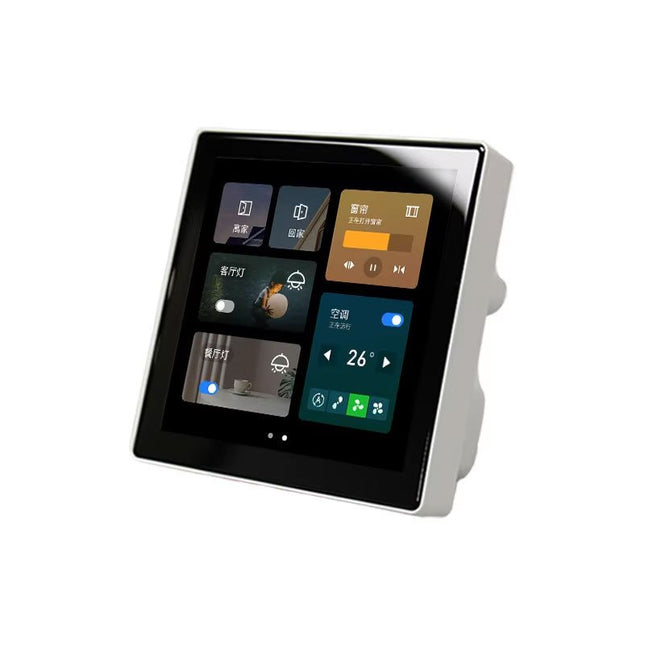

  • ESP32 - S3 4" Touchscreen Control Panel with Temp & Humidity Sensor - Elektor

    Espressif ESP32-S3 4" Touchscreen Bedieningspaneel met Temperatuur- en Vochtigheidssensor

    Neem de controle over uw slimme omgeving met het compacte en krachtige 4-inch ESP32-S3 IPS touchscreen bedieningspaneel. Ontworpen voor hoge prestaties en veelzijdigheid, integreert dit slanke paneel met 86-box geavanceerde connectiviteit, intuïtieve touchbediening en realtime omgevingssensoren. Kenmerken Krachtige kernmodule WT32-S3-WROVER-N16R8 4" IPS full-screen display Resolutie: 480 x 480 pixels (RGB565-formaat) Schermdriver IC: GC9503V Touchcontroller IC: FT6336U Uitgerust met een SHT20 temperatuur- en vochtigheidssensor voor realtime monitoring van omgevingsomstandigheden. RS485-interface met een automatisch transceivercircuit Ingebouwde wifi en Bluetooth Toepassingen Smart Home-bedieningspanelen Industriële automatiseringsinterfaces Milieubewakingssystemen IoT-projecten en slimme oplossingen op maat

    € 64,95

    Leden € 58,46

  • LILYGO T - Deck ESP32 - S3 LoRa Development Board - Elektor

    LILYGO LILYGO T-Deck ESP32-S3 LoRa Development Board

    De T-Deck is een gadget in zakformaat met een 2,8" IPS LCD-scherm (320 x 240), een minitoetsenbord en een ESP32 dual-coreprocessor. Hoewel het niet echt een smartphone is, biedt het volop mogelijkheden voor technologieliefhebbers. Met wat programmeerkennis kun je het omzetten in een zelfstandig berichtenapparaat of een draagbaar codeerplatform. Specificaties Microcontroller ESP32-S3FN16R8 Dual-core LX7-microprocessor Draadloze connectiviteit 2,4 GHz Wi-Fi & Bluetooth 5 (LE) Ontwikkeling Arduino, PlatformlO, MicroPython Flash 16 MB PSRAM 8 MB Accu-ADC-pin IO04 Ingebouwde functies Trackball, microfoon, luidspreker Display 2,8" ST7789 SPI-interface IPS Resolutie 320 x 240 (volledige kijkhoek) Verzendvermogen +22 dBm SX1262 LoRa-zendontvanger (frequentie) 868 MHz Afmetingen 100 x 68 x 11 mm Inbegrepen 1x T-Deck ESP32-S3 LoRa 1x FPC-antenne (868 MHz) 1x Male pin (6-pins) 1x Voedingskabel Downloads GitHub

    € 84,95

    Leden € 76,46

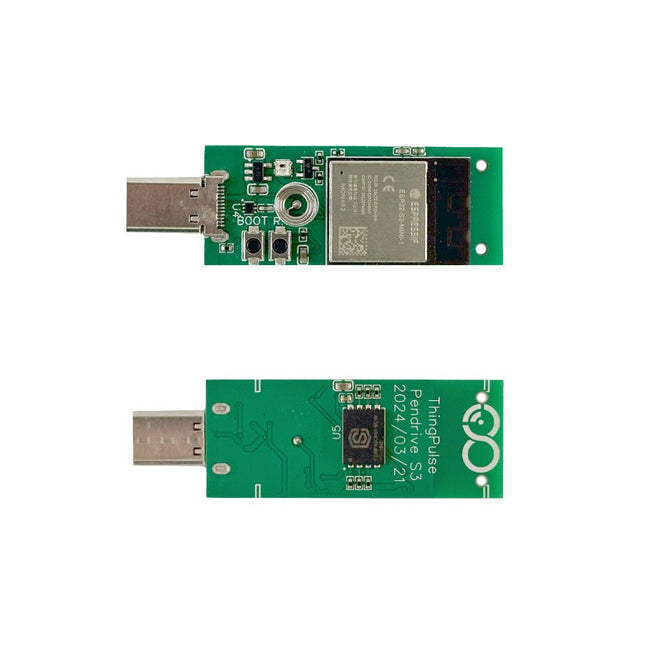

  • ThingPulse Pendrive S3 - Elektor

    ThingPulse ThingPulse Pendrive S3

    De ThingPulse Pendrive S3 is een ESP32-S3-apparaat met USB-C-stekker, WS2812B RGB-LED en 128 MB Flash. Met behulp van TinyUSB kan de ESP32-S3 zich voordoen als vele USB-apparaten, zoals: USB-geheugenstick USB-toetsenbord USB-muis Audioapparaat Videoapparaat Netwerkapparaat Toepassingen Als BadUSB-apparaat met SuperWiFiDuck kan het KeyStroke-injecties uitvoeren Als WiFiDisk kan hij door elke gewone computer worden aangekoppeld, zoals een geheugenstick, en kan hij de bestanden op de schijf synchroniseren met de cloud Als WiFiDongle kan het een extra WiFi-netwerkapparaat aan elke computer/telefoon toevoegen Inbegrepen ESP32-S3 printplaat met WS2812B RGB-LED Capacitieve aanraakknop (veer) Plastic behuizing van USB-drive Downloads CircuitPython

    € 47,95

    Leden € 43,16

  • Soldered CONNECT Programmer - Elektor

    Soldered Soldered CONNECT Programmer

    De Soldered CONNECT Programmer is ontworpen om programmeerborden gebaseerd op ESP8266 en ESP32 microcontrollers extreem eenvoudig te maken. Hij bevat alle benodigde elektronica en logica, waardoor programmeren eenvoudig is door simpelweg een USB-kabel in de CONNECT Programmer te steken en deze aan te sluiten op de programmeerheader. De ingebouwde schakeling regelt automatisch de timing en signaalsequentie, waardoor de ESP-microcontroller in de bootloadermodus wordt gezet zonder handmatige tussenkomst. Kenmerken IC: CH340 Pin-indeling: GPIO0, RESET, RX, TX, 3V3, GND LED's: RX, TX, voeding Interface: USB-C Afmetingen: 38 x 22 mm Downloads Datasheet GitHub

    € 5,95

    Leden € 5,36

  • LILYGO T - Display S3 Long Development Board (with Shell) - Elektor

    LILYGO LILYGO T-Display S3 Long Development Board (met behuizing)

    De LILYGO T-Display-S3 Long is een veelzijdig ontwikkelbord, aangedreven door de ESP32-S3R8 dual-core LX7-microprocessor. Het beschikt over een 3,4-inch capacitief TFT-LCD-aanraakscherm met een resolutie van 180 x 640 pixels, wat een responsieve interface biedt voor verschillende toepassingen. Dit bord is ideaal voor ontwikkelaars die op zoek zijn naar een compacte maar krachtige oplossing voor projecten die aanraakinvoer en draadloze communicatie vereisen. De compatibiliteit met populaire programmeeromgevingen zorgt voor een soepele ontwikkelervaring. Specificaties MCU ESP32-S3R8 Dual-core LX7-microprocessor Draadloze connectiviteit Wi-Fi 802.11, BLE 5 + BT Mesh Programmeerplatform Arduino IDE, VS-code Flash 16 MB PSRAM 8 MB Detectie van batspanning IO02 Ingebouwde functies Opstart- en resetknop, batterijschakelaar Weergave 3,4" capacitief TFT-touchscreen Kleurdiepte 565, 666 Resolutie 180 x 640 (RGB) Werkende voeding 3,3 V Interface QSPI Inbegrepen 1x T-Display S3 Long 1x Voedingskabel 2x STEMMA QT/Qwiic-interfacekabel (P352) 1x Female pin (dubbele rij) Downloads GitHub

    € 54,95

    Leden € 49,46

  • Lo - Fi - ESP32 based LoRa Wireless Communication Device (EU868) - Elektor

    SB Components Lo-Fi ESP32 based LoRa Wireless Communication Device (EU868)

    Lo-Fi (ESP32 + LoRa combination) is the perfect solution for anyone looking to establish long-range wireless communication in a variety of applications with WiFi capabilities. LoRa offers exceptional range and easy connectivity, it allows you to seamlessly communicate with devices up to 5 km away. Devices provide an efficient and trustworthy choice for long-range wireless communication in addition to WiFi access to link internet clouds best suited for Internet of Things applications, enabling connectivity in remote and challenging settings. Features Device powered by powerful ESP32 S3 WROOM-1 which is having Xtensa dual-core 32-bit LX7 microprocessor, up to 240 MHz Inbuilt Wi-Fi & Bluetooth LE for wireless connectivity Type C interface for Programming/Power 1.14" TFT display for visual interactions GPIO breakouts for interfacing additional peripherals Breadboard compatible for easy DIY breadboarding projects 2 separate user programmable buttons along with Reset and Boot buttons 3.7 V Lithium Battery connector for a portable use case with an onboard charging option Use new generation LoRa spread spectrum to ensure stable communication For LoRa, faster speed and a longer data transmission range of up to 5 km Applications Internet of Things (IoT) Smart Home Automation Agricultural Automation Emergency Services Environmental Monitoring Industrial Automation Specifications Microcontroller: ESP32 S3 WROOM-1 Wireless Interface: WiFi, BLE, LoRa Protocol: 802.11b/g/n, Bluetooth 5.0 Memory Size: 16 MB Flash, 384 kB ROM, 8 MB SRAM Supply Voltage: 5 V Operating Voltage: 3.3 V Display Size: 1.14” Display Type: TFT Display resolution: 135 x 240 pixels Display driver: ST7789V Display Appearance: RGB Display color: 4k/65k/252k Display Luminance: 400 Cd/m² Operating Temperature: -20 to 70°C Storage Temperature: -30 to 80°C LoRa Module Specs: Carrier Frequency (License Free ISM): 868 MHz Chip: Based on SX1262 RF chip Range: 5Km Transmitting Power: 22 dBm Receiving Sensitivity: -147 dbm Data Rate: Up to 62.5 kbps Communication Port: UART serial Downloads Getting started guide Hardware design files Included 1x Lo-Fi Board 1x Antenna (868 MHz)

    € 49,95

    Leden € 44,96

  • Heltec HT - M00 Dual - Channel LoRa Gateway (EU868) - Elektor

    Heltec Automation Heltec HT-M00 2-kanaals LoRa Gateway (EU868)

    De HT-M00 is een tweekanaals gateway die speciaal is ontworpen voor LoRa-toepassingen voor slimme gezinnen die werken met minder dan 30 LoRa-nodes. De gateway is gebouwd rond twee SX1276-chips die worden aangestuurd door ESP32. Om monitoring van de 125 kHz SF7~SF12-spreidingsfactor mogelijk te maken, is een softwaremixer ontwikkeld, die gewoonlijk een basisbandsimulatieprogramma wordt genoemd. De softwaremixer is een cruciaal onderdeel waardoor de HT-M00-gateway met hoge efficiëntie kan werken. Het is ontworpen om basisbandsignalen te simuleren, die vervolgens worden gemengd met de radiofrequentiesignalen om de gewenste uitvoer te produceren. De softwaremixer is met grote zorg en precisie ontwikkeld en heeft strenge tests ondergaan om ervoor te zorgen dat hij nauwkeurige en betrouwbare resultaten kan leveren. Kenmerken ESP32 + SX1276 Emuleert LoRa-demodulatoren Automatische adaptieve spreadspectrumfactor, SF7 tot SF12 voor elk kanaal is optioneel Maximale output: 18 ±1dBm Ondersteuning voor LoRaWAN klasse A, klasse C-protocol Specificaties MCU ESP32-D0WDQ6 LoRa-chipset SX1276 LoRa-band 863~870 MHz Voedingsspanning 5 V Ontvangstgevoeligheid -110 dBm bij 300 bps Interface USB-C Max. TX-vermogen 17dB ±1dB Bedrijfstemperatuur −20~70°C Afmetingen 30 x 76 x 14 mm Inbegrepen 1x HT-M00 2-kanaals LoRa Gateway 1x Muurbeugel 1x USB-C-kabel Downloads Manual Software Documentation

    € 74,95

    Leden € 67,46

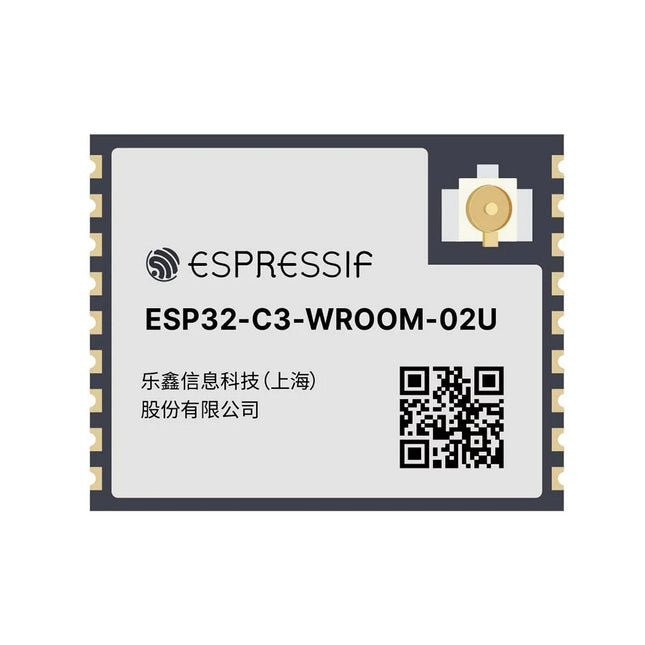

  • ESP32 - C3 - WROOM - 02U - N4 - Elektor

    Espressif ESP32-C3-WROOM-02U-N4

    De ESP32-C3-WROOM-02U is een Wi-Fi- en Bluetooth LE module voor algemeen gebruik. Het brede scala aan randapparatuur en de hoge prestaties maken deze module tot een ideale keuze voor smart homes, industriële automatisering, zorgtoepassingen, consumentenelektronica, en meer. De ESP32-C3-WROOM-02U is voorzien van een externe SPI flash en wordt geleverd met een aansluiting voor een externe antenne. De ESP32-C3-WROOM-02U werkt in een omgevingstemperatuur van –40 ? 85°C en is ingebouwd in de ESP32-C3 chip. De ESP32-C3 heeft een 32-bits RISC-V single-core processor. Hij bevat een ruime selectie aan randapparatuur, variërend van een UART, I²C, I²S, randapparatuur voor afstandsbediening, een LED PWM controller, een algemene DMA-controller, een TWAI-controller, een USB seriële/JTAG controller, een temperatuursensor, een ADC, enzovoort. Hij bevat ook SPI, Dual SPI en Quad SPI interfaces. Kenmerken Flash: 4 MB (Quad SPI) Afmetingen: 18,0 x 20,0 x 3,2 mm Downloads Datasheet

    € 7,95

    Leden € 7,16

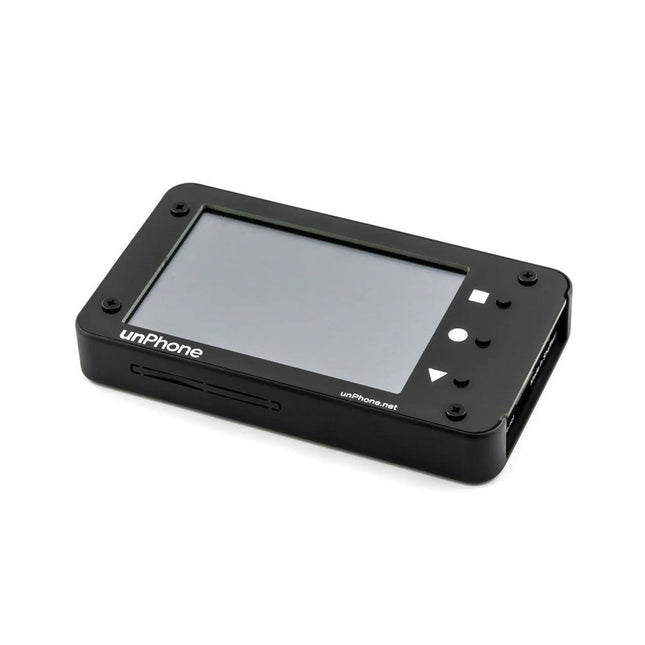

  • unPhone IoT Development Platform - Elektor

    Pimoroni unPhone IoT-ontwikkelplatform

    De unPhone is een open-source IoT-ontwikkelplatform dat wordt aangedreven door de ESP32S3 microcontroller. Het beschikt over geïntegreerde LoRa, Wi-Fi en Bluetooth connectiviteit, een touchscreen en een LiPo batterij en biedt een robuuste en veelzijdige oplossing voor IoT-ontwikkeling. De compatibiliteit met Adafruit's FeatherWing standaard maakt eenvoudige uitbreiding mogelijk, waardoor het een ideale keuze is voor opvoeders, makers en ontwikkelaars die op zoek zijn naar een flexibel en gebruiksvriendelijk platform. Kenmerken ESP32S3-microcontroller (met 8 MB flash en 8 MB PSRAM) LoRaWAN licentievrije radiocommunicatie (plus de uitstekende wifi- en Bluetooth-ondersteuning van de ESP32) Capacitief LCD-touchscreen van 3,5 inch (320 x 480) voor eenvoudige foutopsporing en het maken van een gebruikersinterface IR-LED's voor het heimelijk uitschakelen van de café-tv LiPo-batterij van 1200 mAh met opladen via USB-C Trilmotor voor meldingen Kompas/versnellingsmeter Een robuuste behuizing SD-kaartsleuf Aan/uit- en resetknoppen Programmeerbaar in C++ of CircuitPython Uitbreidingsbord dat twee Featherwing-sockets en een ruimte voor prototypen ondersteunt Open source firmware compatibel met de Arduino IDE, PlatformIO en Espressif's IDF ontwikkelingsframework Inbegrepen unPhone (gemonteerd) Uitbreidingsbord FPC-kabel (om de uitbreidingskaart aan de unPhone te koppelen) Zelfklevende bevestigingen voor de uitbreidingskaart Code-voorbeelden C++ library Kick the tyres on everything in the box The main LVGL demo CircuitPython Support forum Textbook (especially chapter 11)

    € 219,00

    Leden € 197,10

The ESP32 is a chip designed for mobile, wearable electronics and Internet-of-Things (IoT) applications. It's packed with all the state-of-the-art low-power features you need, including clock gating, multiple power modes and dynamic power scaling.

Microcontroller with Wi-Fi and Bluetooth

The ESP32 is a highly integrated chip that combines Wi-Fi and Bluetooth capabilities with a powerful CPU and memory. It is ideal for applications that require low power consumption, such as sensors and wearable devices.

ESP32 offers two CPU cores that can be controlled separately, clocked up to 240 MHz, and each equipped with its own set of peripherals. In addition to the CPU cores, the ESP32 has a special Tensilica LX6 microprocessor for ultra-low power co-processing.

ESP32 module and applications

The ESP32 module can be used in different ways. The most popular ways to use the ESP32 in a project is:

ESP32 as Arduino compatible board

The ESP32 can be used as an Arduino compatible board. This means you can use the Arduino IDE to develop applications for the ESP32. The ESP offers users the ability to make WiFi and Bluetooth connections.

ESP32 as a standalone microcontroller

The ESP32 can also be used as a standalone microcontroller. This means you can develop applications for the ESP32 without using the Arduino IDE. The ESP32 is a good choice for many Internet of Things applications. The built-in WiFi and Bluetooth make it perfect for wireless applications.

Internet of Things projects with ESP32

The ESP32 is a great choice for many Internet of Things applications. The built-in WiFi and Bluetooth make it perfect for wireless applications. The ESP32 is also a very popular microcontroller for hobbyists. Some popular applications for the ESP32 are:

  • Home automation
  • IoT devices
  • Wearable electronics

Manual and books about ESP32

When you work with ESP modules for the first time, it is nice to receive an explanation so that you become familiar with the possibilities and projects with ESP32 technology. The Official ESP32 Book is a book that takes you step by step as a beginner. The Elektor ESP32 Smart Kit offers beginners everything they need to follow the projects in the book.
