Inbegrepen 1x Standard Nozzles (pack of 4) 1x Burnishing Pads (pack of 3) 1x 2'x3' Substrates (pack of 10) 1x 3'x4' Substrates (pack of 6) 1x 'Hello World' Kit

Lees meer minder

Soldeerpasta doseren en reflowen in één De Voltera V-One maakt dubbellaags prototype printplaten op uw eigen bureau. Gerber-bestanden gaan erin, geprinte printplaten komen eruit. De dispenser legt een zilver-gebaseerde geleidende inkt om uw schakeling ter plekke te printen. Het assembleren van printplaten is eenvoudig met de V-One's soldeerpasta verdeler en reflow functies. Plaats uw printplaat op het printbed en importeer uw Gerber-bestand in Voltera's software. Geen stencils meer nodig Voltera's software is ontworpen om gemakkelijk mee uit de voeten te kunnen. Vanaf het importeren van uw Gerber-bestanden tot het moment dat u op print drukt, leidt de software u veilig door elke stap. Compatibel met EAGLE, Altium, KiCad, Mentor Graphics, Cadence, DipTrace, Upverter. De V-One Desktop PCB Printer wordt geleverd met alle accessoires en benodigdheden die nodig zijn om aan de slag te gaan: In de verpakking 1 Conductor 2 cartridge 1 Solder Paste cartridge 10 2"x3" FR4 substrates 6 3"x4" FR4 substrates 10 2"x3" FR1 substrates 6 3"x4" FR1 substrates 25 disposable 230 micron nozzles 1 Burnishing pad 1 Solder wire spool 1 Drill bit set 200 0.4 mm rivets 200 1.0 mm rivets 2 Rivet tools 1 Sacrificial layer 1 Hello World starter kit 1 Punk Console starter kit Accessories 2 Substrate clamps and thumbscrews 2 Dispensers with caps 1 Probe 1 Drill 1 Set of safety glasses 1 Voltera anti-static tweezers Downloads Specifications V-One Software User manuals Safety datasheets Technical datasheets Voltera CAM file for EAGLE Substrates and templates Meer Info Frequently Asked Questions More from the Voltera community Technische Specificaties Printspecificaties Minimum trace width 0.2 mm Minimum passive size 1005 Minimum pin-to-pin pitch (conductive ink) 0.8 mml Minimum pin-to-pin pitch (solder paste) 0.5 mml Resistivity 12 mΩ/sq @ 70 um height Substrate material FR4 Maximum board thickness 3 mm Soldeerspecificaties Solder paste alloy Sn42/Bi57.6/Ag0.4 Solder wire alloy SnBiAg1 Soldering iron temperature 180-210°C Drukbed Print area 135 x 113.5 mm Max. heated bed temperature 240°C Heated bed ramp rate ~2°C/s Footprint Dimensions 390 x 257 x 207 mm (L x W x H) Weight 7 kg Computervereisten Compatible operating systems Windows 7 or higher, MacOS 10.11 or higher Compatible file format Gerber Connection type Wired USB Certificatie EN 61326-1:2013 EMC requirements IEC 61010-1 Safety requirements CE Marking Affixed to the Voltera V-One printers delivered to European customers Ontworpen en geassembleerd in Canada. Meer technische informatie Quickstart Explore Flexible Printed Electronics on the V-One Voltera V-One Capabilities Reel Voltera V-One PCB Printer Walkthrough Unpacking the V-One V-One: Solder Paste Dispensing and Reflow All-in-One Voltera @ Stanford University's Bao Research Group: Robotic Skin and Stretchable Sensors Voltera @ Princeton: The Future of Aerospace Innovation

Lees meer minder

The Pico-10DOF-IMU is an IMU sensor expansion module specialized for Raspberry Pi Pico. It incorporates sensors including gyroscope, accelerometer, magnetometer, baroceptor, and uses I²C bus for communication. Combined with the Raspberry Pi Pico, it can be used to collect environment sensing data like temperature and barometric pressure, or to easily DIY a robot that detects motion gesture and orientation. Features Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series Onboard ICM20948 (3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer) for detecting motion gesture, orientation, and magnetic field Onboard LPS22HB barometric pressure sensor, for sensing the atmospheric pressure of the environment Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples) Specifications Operating voltage 5 V Accelerometer Resolution: 16-bitMeasuring range (configurable): ±2, ±4, ±8, ±16gOperating current: 68.9uA Gyroscope Resolution: 16-bitMeasuring range (configurable): ±250, ±500, ±1000, ±2000°/secOperating current: 1.23mA Magnetometer Resolution: 16-bitMeasuring range: ±4900µTOperating current: 90uA Baroceptor Measuring range: 260 ~ 1260hPaMeasuring accuracy (ordinary temperature): ±0.025hPaMeasuring speed: 1Hz - 75Hz

Lees meer minder

Features Adopts both 4-wire SPI and I²C interface, better compatibility, fast data rate Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples) Specifications Logical voltage 3.3 V Viewing angle >160° Operating voltage 3.3 V/5 V Resolution 128×32 pixels Communication interface 4-wire SPI, I²C Display size 55.02 × 13.10 mm Display panel OLED Pixel size 0.41 × 0.39 mm Driver SSD1305 Dimensions 63.00 × 26.00 mm

Lees meer minder

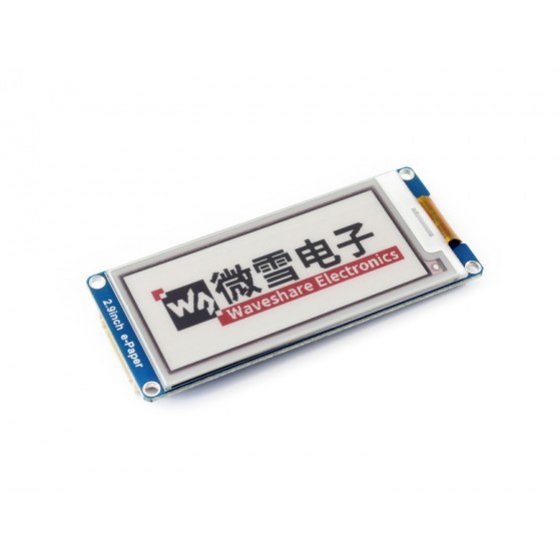

Features No backlight Displays last images even when powered down Ultra low power consumption SPI interface Compatible with 3.3 V and 5 V Specifications Operating voltage 3.3 V / 5 V Interface 3-wire SPI, 4-wire SPI Outline dimension 89.5 x 38 mm Display size 66.89 x 29.05 mm Dot pitch 0.138 x 0.138 Resolution 296 x 128 Display color red, black, white Grey level 2 Full refresh time 15 s Refresh power 26.4 mW Standby power <0.017 mW Viewing angle >170° For more information check out the waveshare wiki here.

Lees meer minder

Features 480 x 320 resolution, IPS screen, 65K colors, clear and colorful displaying effect Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions MicroSD card slot for storing images and direct displaying them easily Programmable backlight control, power saving Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples) Specifications Operating voltage 5 V Resolution 480 x 320 pixels Communication interface SPI Display size 73.44 x 48.96 mm Display panel IPS Pixel size 0.153 x 0.153 mm Driver ILI9488 Dimensions 86.00 x 57.20 mm Touch controller XPT2046 DownloadsWiki

Lees meer minder

Features SPI-compatible, easy to drive Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples) Specifications Operating voltage 5 V Digits 4 Dispaly size 0.4 inch LED color red Driver 74HC595 Display part no. FJ4401AH Dimensions 52 × 21 mm

Lees meer minder

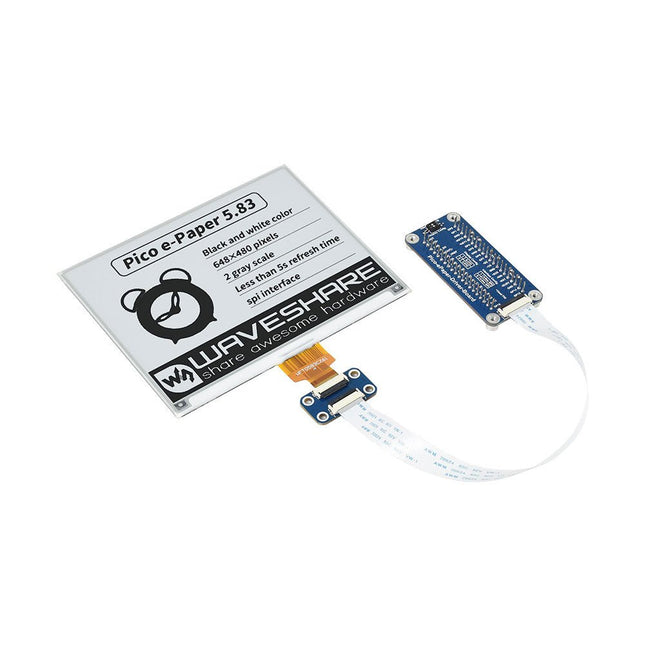

This 5.83-inch black/white e-paper e-ink display module for Raspberry Pi Pico offers a resolution of 648 × 480 pixels, an SPI interface, low power consumption, wide viewing angle and a paper-like effect without electricity. Features No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing SPI interface, requires minimal I/O pins 2x user buttons and 1x reset button for easy interacting Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples) Specifications Operating voltage 3.3 V Display color Black, white Resolution 648 × 480 pixels Gray scale 2 Interface 3-wire SPI, 4-wire SPI Viewing angle >170° Partial refresh time N/A Full refresh time 5s Outline dimensions 125.4 × 99.5 mm Display size 119.232 × 88.320 mm Refresh power 26.4 mW (typ.) Standby current <0.01 uA (almost none) Dot pitch 0.184 × 0.184 mm Applications Suitable For Price Tags Asset/Equipment Tags Shelf Labels Conference Name Tag Included 1x 5.83-inch e-Paper 1x Pico-ePaper-Driver-Board 1x Standoff pack Downloads Wiki

Lees meer minder

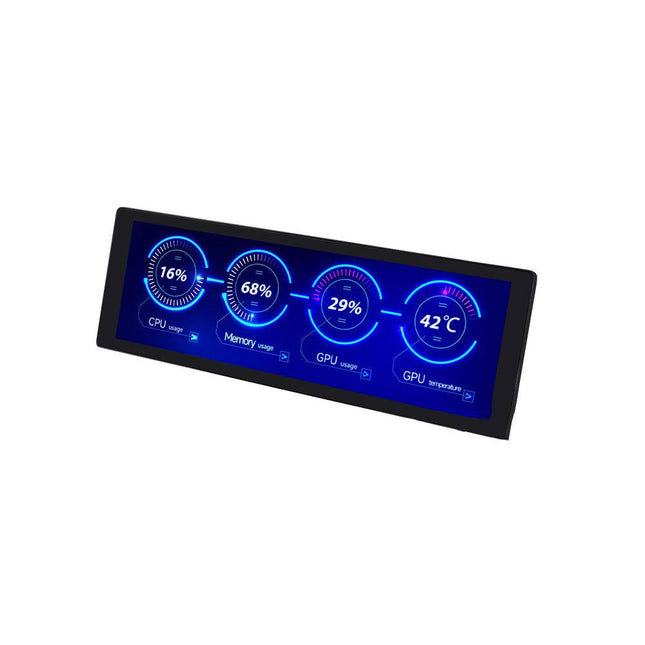

This IPS 7.9-inch HDMI touch display with 400 x 1280 resolution, 170° wide viewing angle and built-in ferrite Hi-Fi speaker can be used as a secondary screen for chassis and also supports Raspberry Pi and Jetson Nano. Features 7.9-inch IPS display with a hardware resolution of 400 x 1280. Zinc alloy case, toughened glass panel with up to 6H hardness. When working as a computer monitor, it supports Windows without a driver. When working with Raspberry Pi, it supports Raspberry Pi OS / Ubuntu / Kali and Retropie, driver-free. When working with Jetson Nano, it supports Ubuntu, driver-free. Support backlight control for power saving. Support 5-point capacitive touch control. Specifications Display size 7.9" Viewing angle 170° Resolution 400 x 1280 pixels Display area 191.08 x 60.40 mm IPS version solor gamut 62% NTSC Max brightness 550 cd/m² Backlight adjustment Adjusted by the key/HID software Contrast 900:1 Color depth 16.7M Refresh rate 60 Hz Power port USB-C Display port HDMI interface Dimensions 211 x 73 x 20 mm Included 1x 7.9-inch Side Monitor 1x HDMI to Micro HDMI adapter 1x USB Type-A to Type-C cable (1 m) 1x HDMI flat cable (1 m) 2x Nonskid rubber feet Downloads Wiki

Lees meer minder

Waveshare Core3S500E is an FPGA core board that features an XC3S500E device onboard supporting further expansion. Features Onboard 1x XCF04S Integrated FPGA basic circuit, such as clock circuit Onboard nCONFIG button, RESET button, 4x LEDs All the I/O ports are accessible on the pin headers Onboard JTAG debugging/programming interface 2.0 mm header pitch design, suitable for being plugged-in your application system Downloads Wiki

Lees meer minder

Waveshare CoreEP4CE10 is an FPGA core board that features an EP4CE10F17C8N device onboard supporting further expansion. Features Onboard Serial Configuration Device EPCS16SI8N Integrated FPGA basic circuit, such as clock circuit Onboard nCONFIG button, RESET button, 4x LEDs All the I/O ports are accessible on the pin headers Onboard JTAG debugging/programming interface 2.00 mm header pitch design, suitable for being plugged-in your application system Downloads Wiki

Lees meer minder

Features Standard Raspberry Pi Pico female header for direct attaching Raspberry Pi Pico (if male header soldered), or just through jumper wires Two sets of 2x20 male header, allows connecting more Raspberry Pi Pico expansion modules Clear pinout labels on the front side, easy to use Immersion gold process, beautiful & practical, stunning aesthetic looking

Lees meer minder

Waveshare DVK600 is an FPGA CPLD mother board that features expansion connectors for connecting FPGA CPLD core board and accessory boards. DVK600 provides an easy way to set up FPGA CPLD development system. Features FPGA CPLD core board connector: for easily connecting core boards which integrate an FPGA CPLD chip onboard 8I/Os_1 interface, for connecting accessory boards/modules 8I/Os_2 interface, for connecting accessory boards/modules 16I/Os_1 interface, for connecting accessory boards/modules 16I/Os_2 interface, for connecting accessory boards/modules 32I/Os_1 interface, for connecting accessory boards/modules 32I/Os_2 interface, for connecting accessory boards/modules 32I/Os_3 interface, for connecting accessory boards/modules SDRAM interface for connecting SDRAM accessory board also works as FPGA CPLD pins expansion connectors LCD interface, for connecting LCD22, LCD12864, LCD1602 ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc. 5 V DC jack Joystick: five positions Buzzer Potentiometer: for LCD22 backlight adjustment, or LCD12864, LCD1602 contrast adjustment Power switch Buzzer jumper ONE-WIRE jumper Joystick jumper Downloads Schematics
