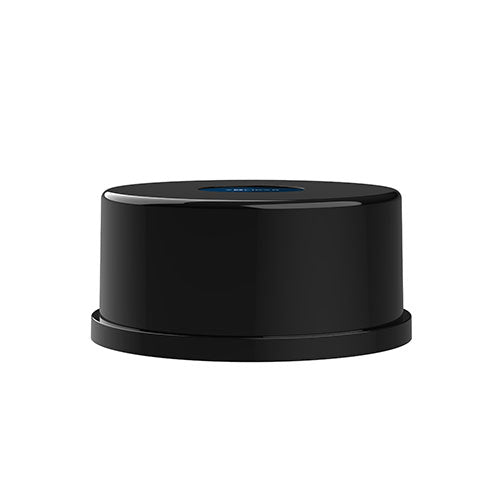

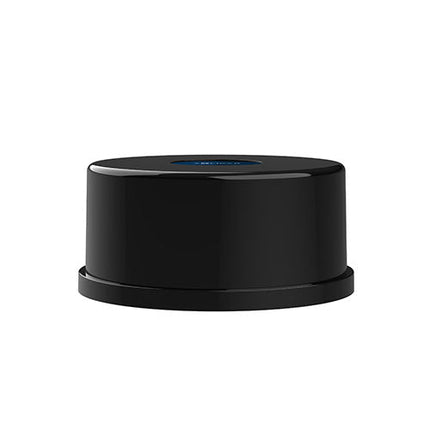

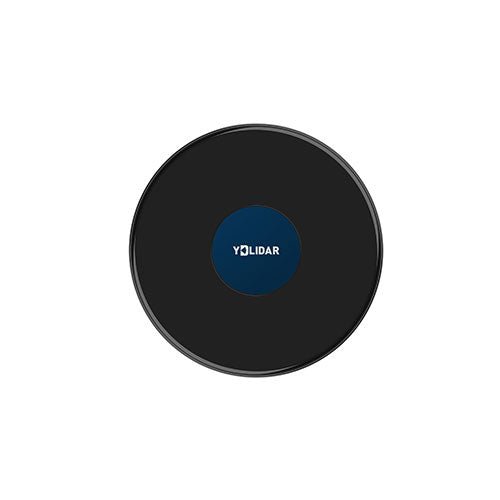

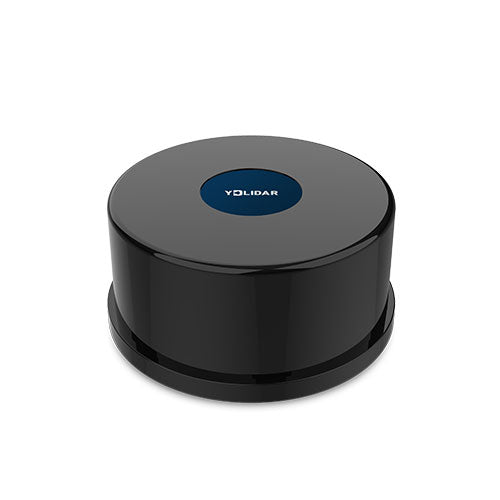

YDLIDAR TG30 Lidar 360-degree Laser Range Scanner (30 m)

  • FabrikantYDLIDAR

Omschrijving

YDLIDAR TG30 is a 360 degrees 2D LiDAR. Based on the principle of ToF, it is equipped with related optics, electricity, and algorithm design to achieve high-frequency and high-precision distance measurement. The mechanical structure rotates 360 degrees to continuously obtain the angle information and output the point cloud data of the scanning environment while ranging.

Features

  • IP65 protection level
  • 360 degrees omnidirectional scanning and 5-12 Hz frequency
  • Ranging frequency up to 20 kHz
  • High accuracy, stable performance
  • Strong resistance to ambient light interference
  • Class I eye safety

Specifications

Range Frequency 20000 Hz
Scan Frequency 5-12 Hz
Range Distance 0.05-30 m
Scan Angle 360°
Angle resolution 0.09°-0.22°
Size ? 75.8 x 34.7 mm

Applications

  • Robot navigation and obstacle avoidance
  • Industrial automation
  • Regional security
  • Smart transportation
  • Environmental scanning and 3D reconstruction
  • Digital multimedia interaction
  • Robot ROS teaching and research

Downloads


Productformulier

YDLIDAR TG30 is a 360 degrees 2D LiDAR. Based on the principle of ToF, it is equipped with related optics,... Lees meer

€ 449,00 incl. BTW
Leden € 404,10

    • Vandaag verstuurd? Je hebt nog May 10, 2025 16:00:00 +0200

    Details

    SKU: 20211
    EAN: 020211

    Omschrijving

    YDLIDAR TG30 is a 360 degrees 2D LiDAR. Based on the principle of ToF, it is equipped with related optics, electricity, and algorithm design to achieve high-frequency and high-precision distance measurement. The mechanical structure rotates 360 degrees to continuously obtain the angle information and output the point cloud data of the scanning environment while ranging.

    Features

    • IP65 protection level
    • 360 degrees omnidirectional scanning and 5-12 Hz frequency
    • Ranging frequency up to 20 kHz
    • High accuracy, stable performance
    • Strong resistance to ambient light interference
    • Class I eye safety

    Specifications

    Range Frequency 20000 Hz
    Scan Frequency 5-12 Hz
    Range Distance 0.05-30 m
    Scan Angle 360°
    Angle resolution 0.09°-0.22°
    Size ? 75.8 x 34.7 mm

    Applications

    • Robot navigation and obstacle avoidance
    • Industrial automation
    • Regional security
    • Smart transportation
    • Environmental scanning and 3D reconstruction
    • Digital multimedia interaction
    • Robot ROS teaching and research
