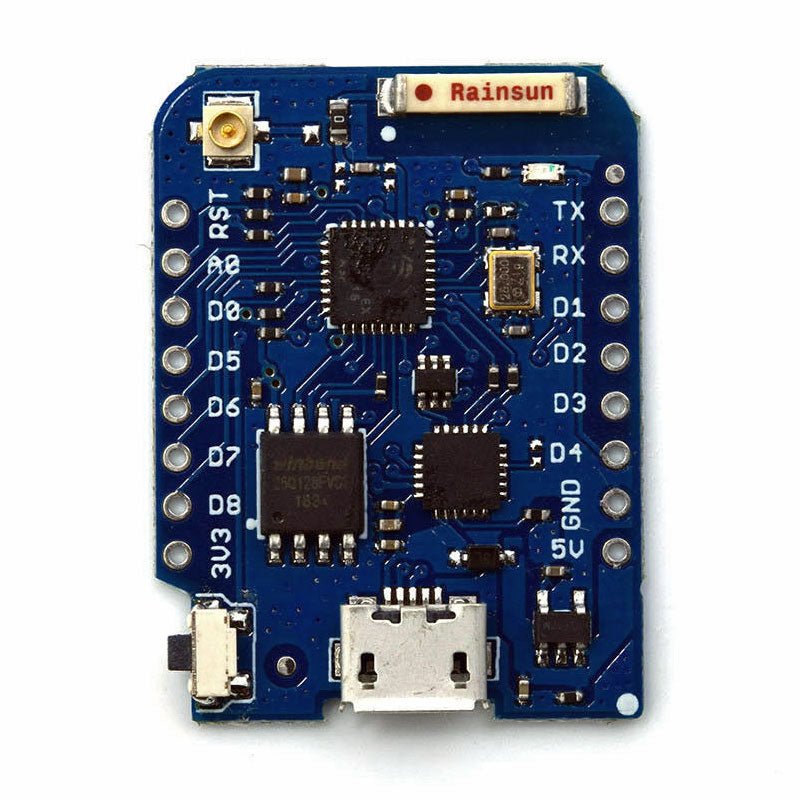

WeMos D1 mini Pro ESP8266 based WiFi Module

Omschrijving

This mini WiFi board has 16 MB flash, external antenna connector and built-in ceramic antenna based on ESP8266EX.

Features

  • 11 digital input/output pins
  • Interrupt/pwm/I²C/one-wire
  • 1 analog input (3.2 V max input)
  • 16 MB Flash
  • External antenna connector
  • Built-in ceramic antenna
  • CP2104 USB-TO-UART IC

Specifications

Operating Voltage 3.3 V
Digital I/O Pins 11
Analog Input Pins 1 (3.2 V max)
Clock Speed 80/160 MHz
Flash 16 MB
Size 34.2 x 25.6 mm
Weight 3 g

Pin Configuration

Pin Function ESP8266 Pin
RX RXD RXD
A0 Analog input, max 3.2 V A0
D0 IO GPIO16
D1 IO, SCL GPIO5
D2 IO, SDA GPIO4
D3 IO, 10k Pull-up GPIO0
D4 IO, 10k Pull-up, BUILTIN_LED GPIO2
D5 IO, SCK GPIO14
D6 IO, MISO GPIO12
D7 IO, MOSI GPIO13
D8 IO, 10k Pull-down, SS GPIO15
G Ground GND
5V 5 V -
3V3 3.3 V 3.3 V
RST Reset RST

Included

  • 1x WeMos D1 mini Pro (based on ESP8266EX)
  • 2x Pin header (short)
  • 2x Female connector strip (short)
  • 2x Female connector strip (long)
