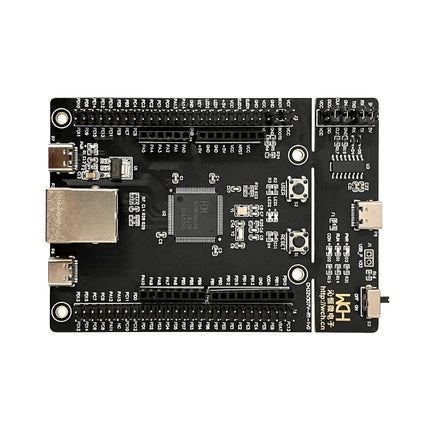

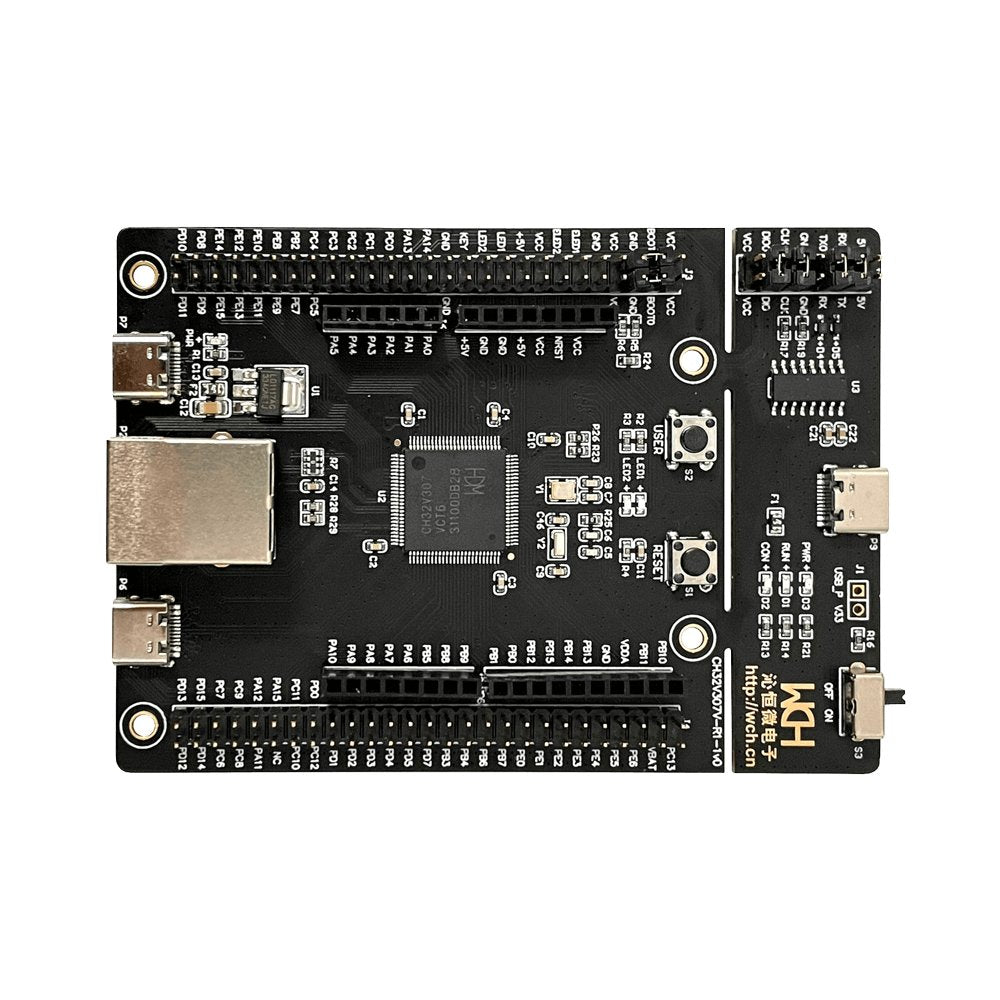

WCH CH32V307V-EVT-R1 RISC-V Development Board

Omschrijving

WCH CH32V307 RISC-V development board features 8 UART ports controlled over Ethernet

The CH32V307 is an interconnected microcontroller, based on 32-bit RISC-V core, with hardware stack area and fast interrupt entry. Compared with standard RISC-V, the interrupt response speed is greatly improved. With single-precision float point instruction sets added and stack area extended, the CH32V307 has higher performance, the number of U(S)ART is extended to 8, and the number of motor timer is extended to 4.

The CH32V307 provides USB2.0 high-speed interface (480 Mbps) and has built-in PHY transceiver. Ethernet MAC is upgraded to GbE and integrates 10M PHY module.

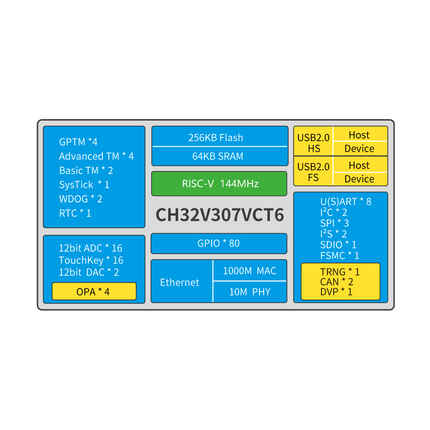

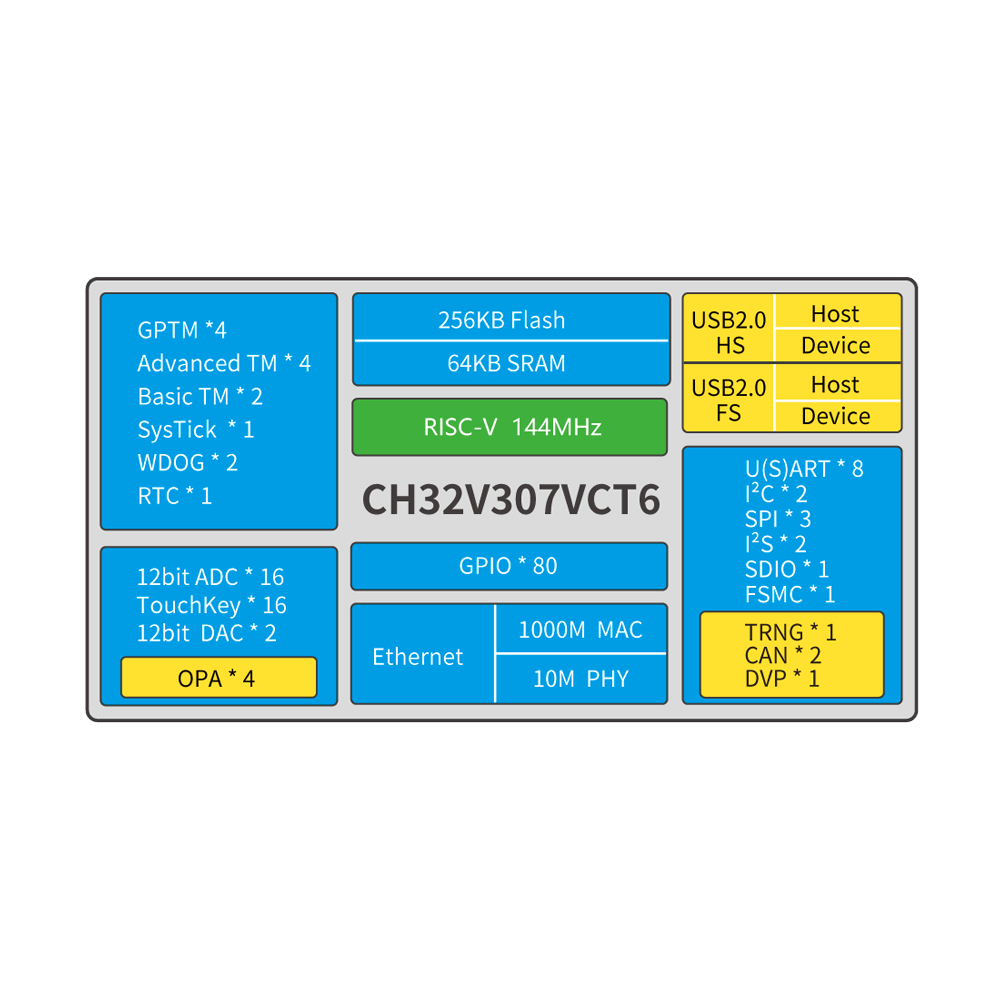

Features

  • RISC-V4F processor, max 144 MHz system clock frequency
  • Single-cycle multiplication and hardware division, hardware float point unit (FPU)
  • 64KB SRAM, 256 KB Flash
  • Supply voltage: 2.5 V/3.3 V, GPIO unit is supplied independently
  • Multiple low-power modes: sleep/stop/standby
  • Power-on/power-down reset (POR/PDR), programmable voltage detector (PVD)
  • 2 general DMA controllers, 18 channels in total
  • 4 amplifiers
  • Single true random number generator (TRNG)
  • 2x 12-bit DAC
  • 2-unit 16-channel 12-bit ADC, 16-channel TouchKey
  • 10 timers
  • USB2.0 full-speed OTG interface
  • USB2.0 high-speed host/device interface (built-in 480 Mbps PHY)
  • 3 USARTs, 5 UARTs
  • 2 CAN interfaces (2.0B active)
  • SDIO interface, FSMC interface, DVP
  • 2x I²C, 3x SPI, 2x I²S
  • 80 I/O ports, can be mapped to 16 external interrupts
  • CRC calculation unit, 96-bit unique chip ID
  • Serial 2-wire debug interface
  • Packages: LQFP64M, LQFP100

Downloads

Productformulier

WCH CH32V307 RISC-V development board features 8 UART ports controlled over Ethernet The CH32V307 is an interconnected microcontroller, based on... Lees meer

€ 19,95€ 11,95 incl. BTW
Leden identiek

    • Vandaag verstuurd? Je hebt nog May 28, 2024 17:00:00 +0200

    Details

    SKU: 20448
    EAN: 020448

    Omschrijving

    WCH CH32V307 RISC-V development board features 8 UART ports controlled over Ethernet

    The CH32V307 is an interconnected microcontroller, based on 32-bit RISC-V core, with hardware stack area and fast interrupt entry. Compared with standard RISC-V, the interrupt response speed is greatly improved. With single-precision float point instruction sets added and stack area extended, the CH32V307 has higher performance, the number of U(S)ART is extended to 8, and the number of motor timer is extended to 4.

    The CH32V307 provides USB2.0 high-speed interface (480 Mbps) and has built-in PHY transceiver. Ethernet MAC is upgraded to GbE and integrates 10M PHY module.

    Features

    • RISC-V4F processor, max 144 MHz system clock frequency
    • Single-cycle multiplication and hardware division, hardware float point unit (FPU)
    • 64KB SRAM, 256 KB Flash
    • Supply voltage: 2.5 V/3.3 V, GPIO unit is supplied independently
    • Multiple low-power modes: sleep/stop/standby
    • Power-on/power-down reset (POR/PDR), programmable voltage detector (PVD)
    • 2 general DMA controllers, 18 channels in total
    • 4 amplifiers
    • Single true random number generator (TRNG)
    • 2x 12-bit DAC
    • 2-unit 16-channel 12-bit ADC, 16-channel TouchKey
    • 10 timers
    • USB2.0 full-speed OTG interface
    • USB2.0 high-speed host/device interface (built-in 480 Mbps PHY)
    • 3 USARTs, 5 UARTs
    • 2 CAN interfaces (2.0B active)
    • SDIO interface, FSMC interface, DVP
    • 2x I²C, 3x SPI, 2x I²S
    • 80 I/O ports, can be mapped to 16 external interrupts
    • CRC calculation unit, 96-bit unique chip ID
    • Serial 2-wire debug interface
    • Packages: LQFP64M, LQFP100
