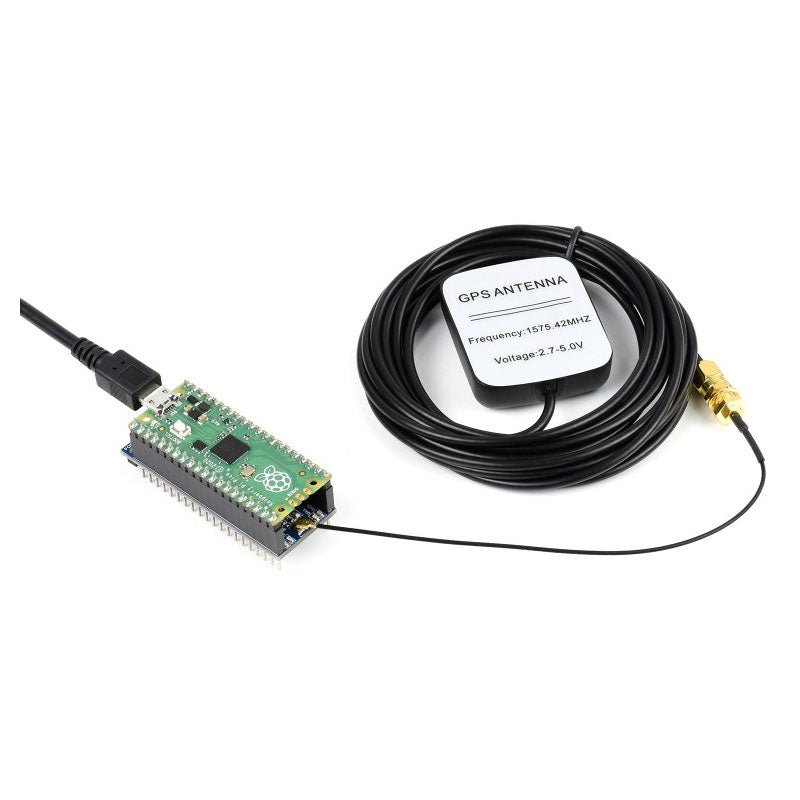

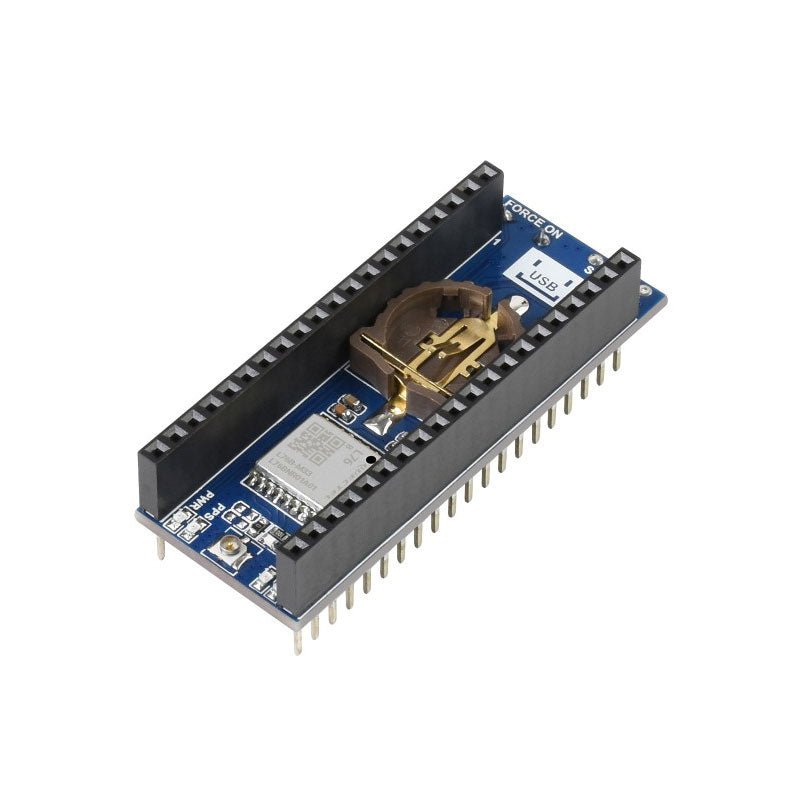

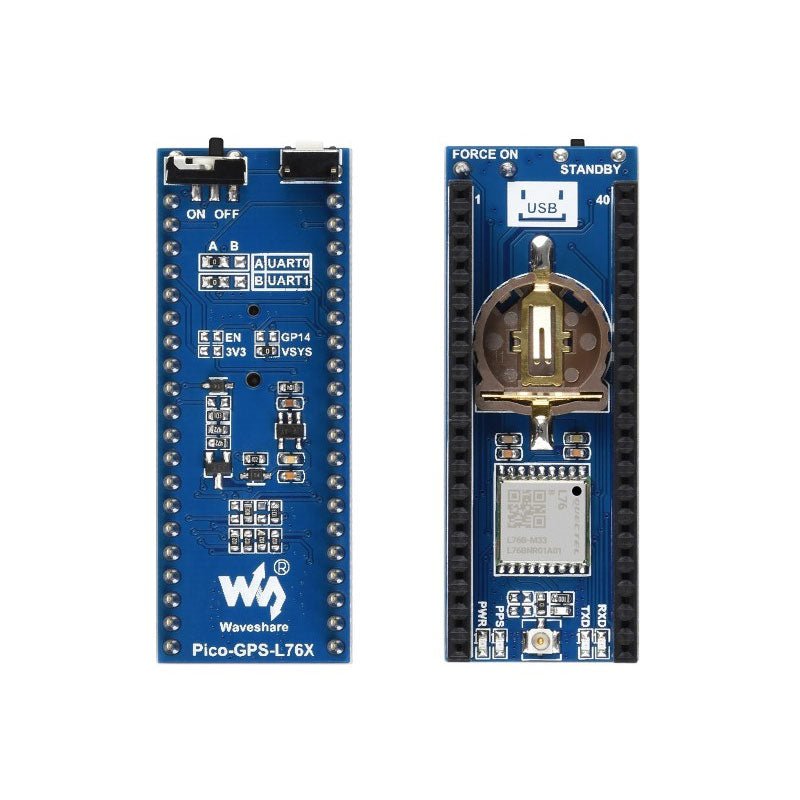

Waveshare L76B GNSS Module for Raspberry Pi Pico

  • FabrikantWaveshare

Omschrijving

The Pico-GPS-L76B is a GNSS module designed for Raspberry Pi Pico, with multi satellite systems support including GPS, BDS, and QZSS. It has advantages such as fast positioning, high accuracy, and low power consumption, etc. Combined with the Raspberry Pi Pico, it's easy to use global navigating function.

Features

  • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
  • Multi satellite systems support: GPS, BDS, and QZSS
  • EASY, self track prediction technology, help quick positioning
  • AlwaysLocate, intelligent controller of periodic mode for power saving
  • Supports D-GPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)
  • UART communication baudrate: 4800~115200bps (9600bps by default)
  • Onboard battery holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
  • 4x LEDs for indicating the module operating status
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

GNSS
Frequency band:
GPS L1 (1575.42 Mhz)
BD2 B1 (1561.098 MHz)
Channels: 33 tracking ch, 99 acquisition ch, 210 PRN ch
C/A code
SBAS: WAAS, EGNOS, MSAS, GAGAN
Horizontal position accuracy
(autonomous positioning)
<2.5 m CEP
Time-To-First-Fix @ -130 dBm
(EASY enabled)
Cold starts: <15s
Warm starts: <5s
Hot starts: <1s
Sensitivity Acquisition: -148 dBm
Tracking: -163 dBm
Re-acquisition: -160 dBm
Dynamic performance Altitude (max): 18000 m
Velocity (max): 515 m/s
Acceleration (max): 4 g
Others
Communication interface UART
Baudrate 4800~115200bps (9600bps by default)
Update rate 1 Hz (default), 10 Hz (max)
Protocols NMEA 0183, PMTK
Power supply voltage 5 V
Operating current 13 mA
Overall current consumption < 40 mA@5 V (Continue mode)
Operating temperature -40? ~ 85?
Dimensions 52 × 21 mm

Included

  • 1x Pico-GPS-L76B
  • 1x GPS Antenna
Productformulier

The Pico-GPS-L76B is a GNSS module designed for Raspberry Pi Pico, with multi satellite systems support including GPS, BDS, and... Lees meer

€ 21,95 incl. BTW
Leden € 19,76

    • Vandaag verstuurd? Je hebt nog May 28, 2024 17:00:00 +0200

    Details

    SKU: 19843
    EAN: 019843

    Omschrijving

    The Pico-GPS-L76B is a GNSS module designed for Raspberry Pi Pico, with multi satellite systems support including GPS, BDS, and QZSS. It has advantages such as fast positioning, high accuracy, and low power consumption, etc. Combined with the Raspberry Pi Pico, it's easy to use global navigating function.

    Features

    • Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
    • Multi satellite systems support: GPS, BDS, and QZSS
    • EASY, self track prediction technology, help quick positioning
    • AlwaysLocate, intelligent controller of periodic mode for power saving
    • Supports D-GPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)
    • UART communication baudrate: 4800~115200bps (9600bps by default)
    • Onboard battery holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
    • 4x LEDs for indicating the module operating status
    • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

    Specifications

    GNSS
    Frequency band:
    GPS L1 (1575.42 Mhz)
    BD2 B1 (1561.098 MHz)
    Channels: 33 tracking ch, 99 acquisition ch, 210 PRN ch
    C/A code
    SBAS: WAAS, EGNOS, MSAS, GAGAN
    Horizontal position accuracy
    (autonomous positioning)
    <2.5 m CEP
    Time-To-First-Fix @ -130 dBm
    (EASY enabled)
    Cold starts: <15s
    Warm starts: <5s
    Hot starts: <1s
    Sensitivity Acquisition: -148 dBm
    Tracking: -163 dBm
    Re-acquisition: -160 dBm
    Dynamic performance Altitude (max): 18000 m
    Velocity (max): 515 m/s
    Acceleration (max): 4 g
    Others
    Communication interface UART
    Baudrate 4800~115200bps (9600bps by default)
    Update rate 1 Hz (default), 10 Hz (max)
    Protocols NMEA 0183, PMTK
    Power supply voltage 5 V
    Operating current 13 mA
    Overall current consumption < 40 mA@5 V (Continue mode)
    Operating temperature -40? ~ 85?
    Dimensions 52 × 21 mm

    Included

    • 1x Pico-GPS-L76B
    • 1x GPS Antenna
