Waveshare DVK600 FGPA CPLD Core Board

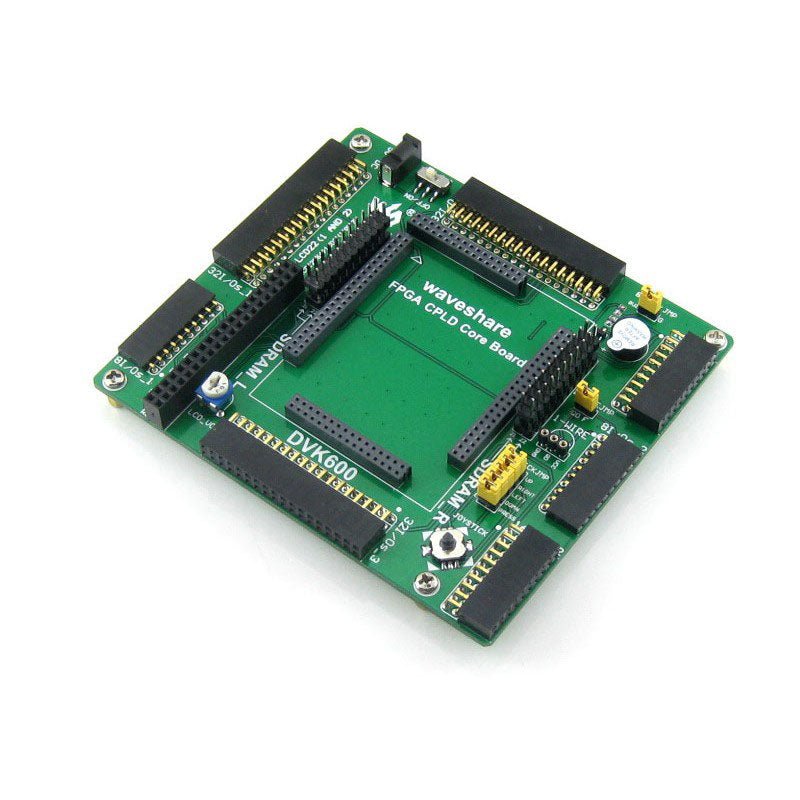

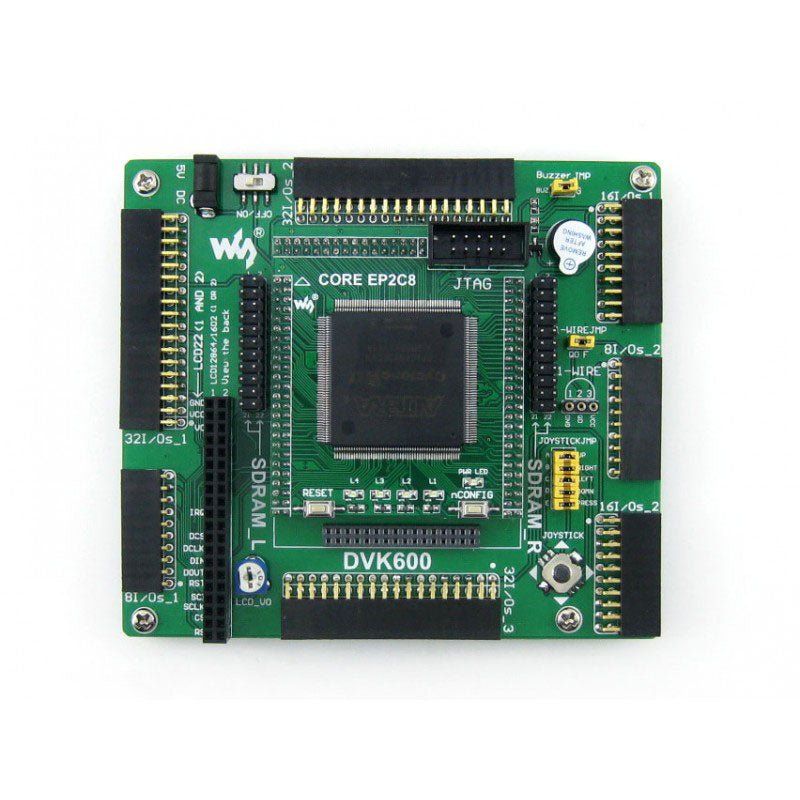

Waveshare DVK600 is an FPGA CPLD mother board that features expansion connectors for connecting FPGA CPLD core board and accessory boards. DVK600 provides an easy way to set up FPGA CPLD development system.

Features

  • FPGA CPLD core board connector: for easily connecting core boards which integrate an FPGA CPLD chip onboard
  • 8I/Os_1 interface, for connecting accessory boards/modules
  • 8I/Os_2 interface, for connecting accessory boards/modules
  • 16I/Os_1 interface, for connecting accessory boards/modules
  • 16I/Os_2 interface, for connecting accessory boards/modules
  • 32I/Os_1 interface, for connecting accessory boards/modules
  • 32I/Os_2 interface, for connecting accessory boards/modules
  • 32I/Os_3 interface, for connecting accessory boards/modules
  • SDRAM interface
    • for connecting SDRAM accessory board
    • also works as FPGA CPLD pins expansion connectors
  • LCD interface, for connecting LCD22, LCD12864, LCD1602
  • ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
  • 5 V DC jack
  • Joystick: five positions
  • Buzzer
  • Potentiometer: for LCD22 backlight adjustment, or LCD12864, LCD1602 contrast adjustment
  • Power switch
  • Buzzer jumper
  • ONE-WIRE jumper
  • Joystick jumper
