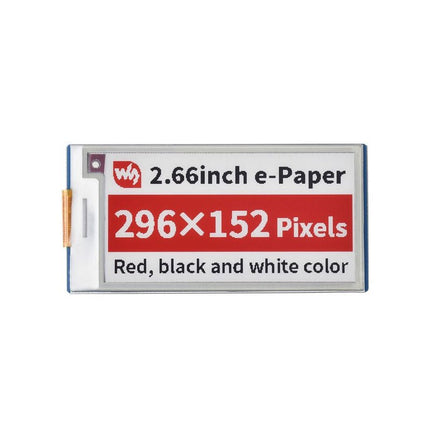

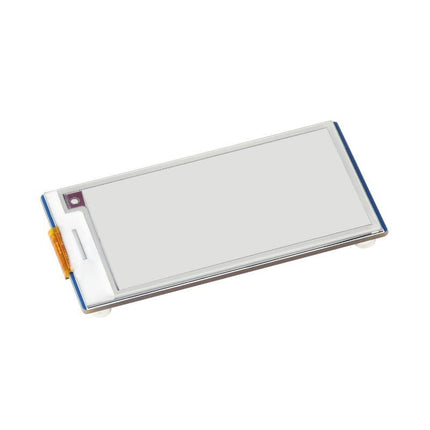

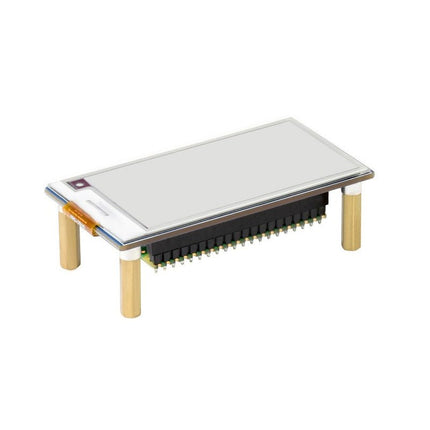

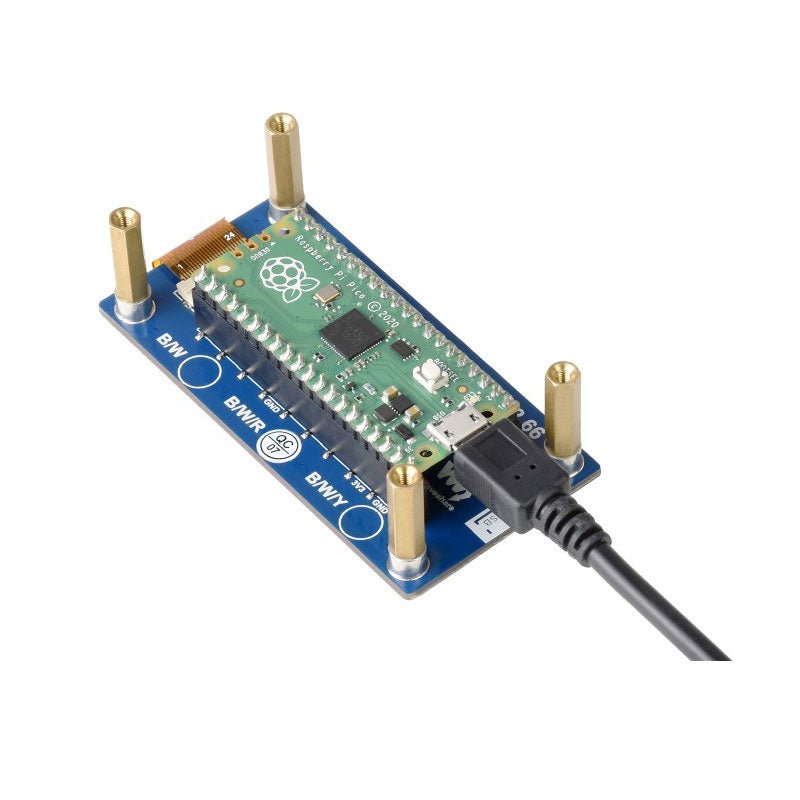

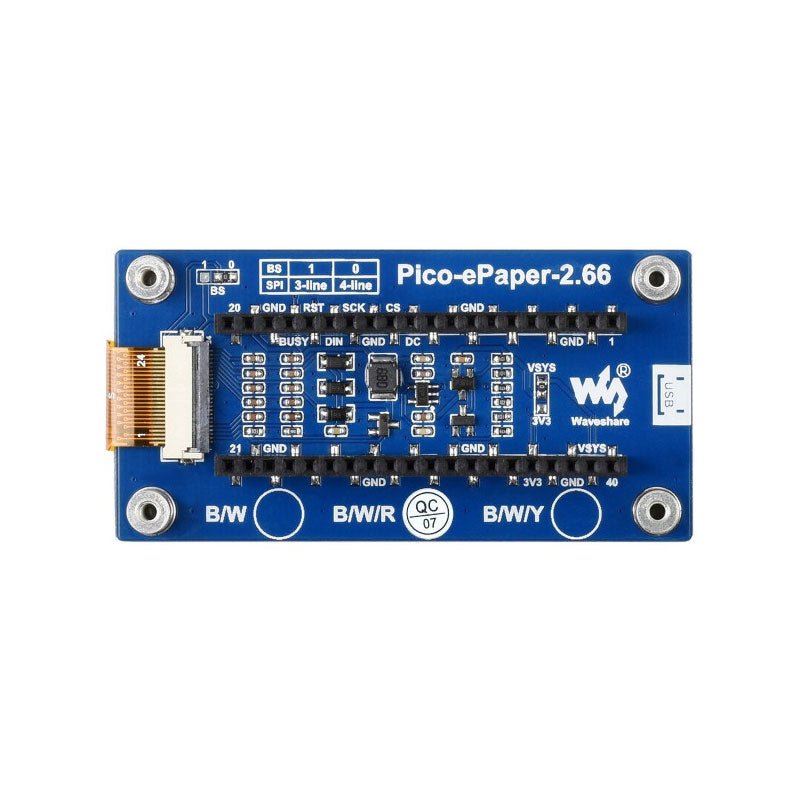

Waveshare 2.66" E-Paper E-Ink Display Module for Raspberry Pi Pico (296x152)

  • FabrikantWaveshare

Omschrijving

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • SPI interface, requires minimal IO pins
  • Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Operating voltage 3.3 V Display color red, black, white
Interface 3-wire SPI, 4-wire SPI Grey scale 2
Outline dimensions 74.00 × 37.5 0mm Full refresh time 15s
Display size 60.088 × 30.704 mm Refresh power 42.4 mW (typ.)
Dot pitch 0.203 × 0.202 mm Standby current <0.01 uA (almost none)
Resolution 296×152 pixels Viewing angle >170°

Downloads
