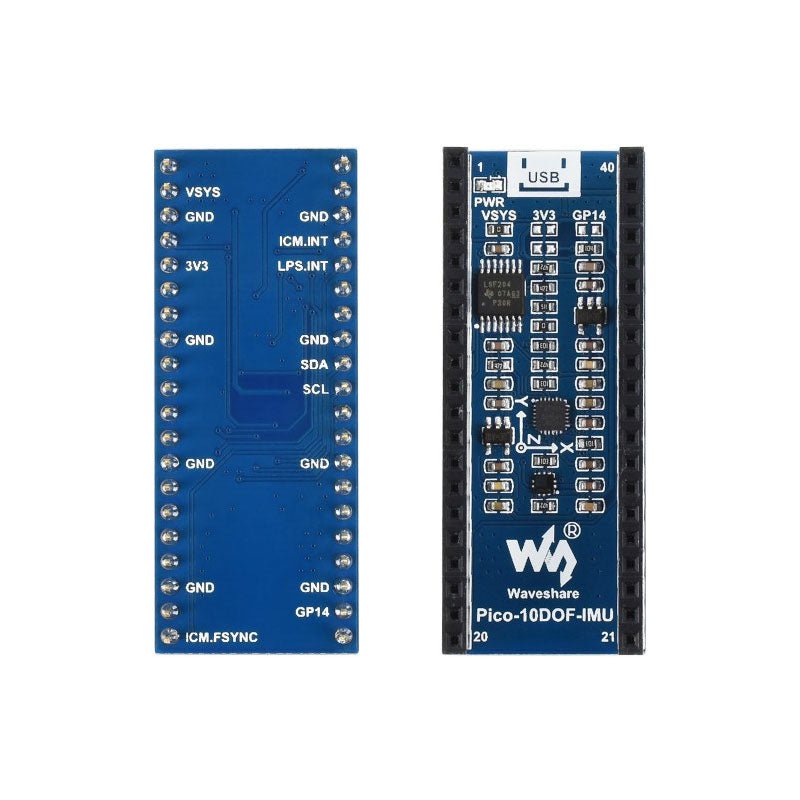

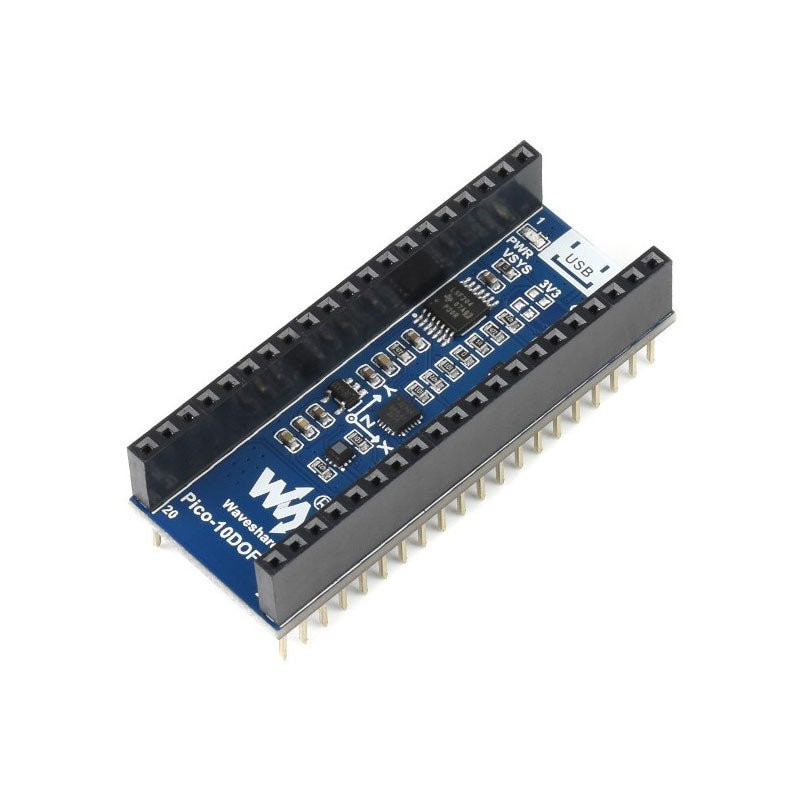

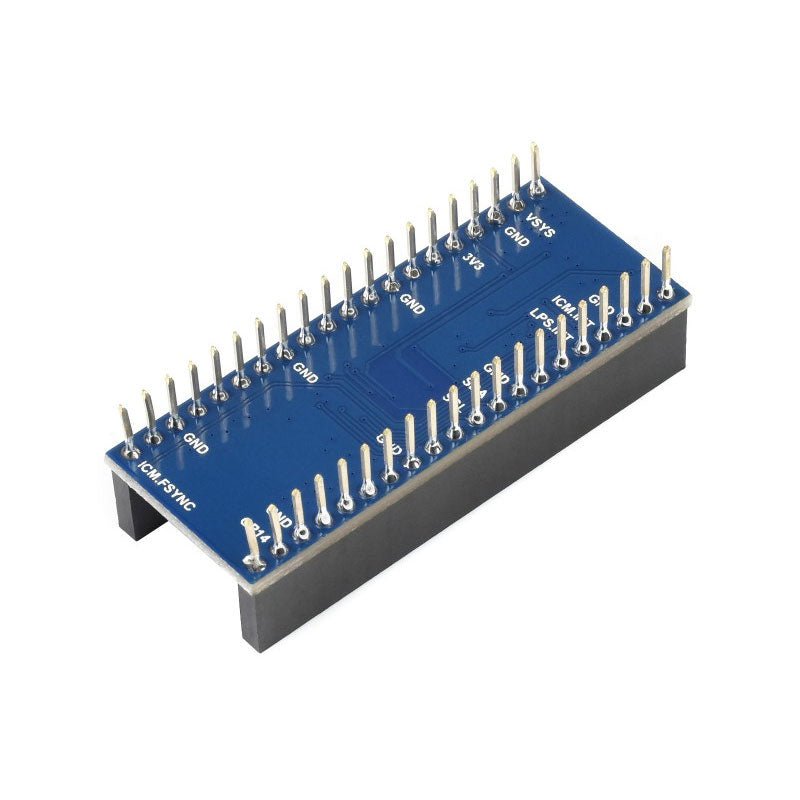

Waveshare 10-DOF IMU Sensor Module for Raspberry Pi Pico

FabrikantWaveshare

Omschrijving

The Pico-10DOF-IMU is an IMU sensor expansion module specialized for Raspberry Pi Pico. It incorporates sensors including gyroscope, accelerometer, magnetometer, baroceptor, and uses I²C bus for communication.

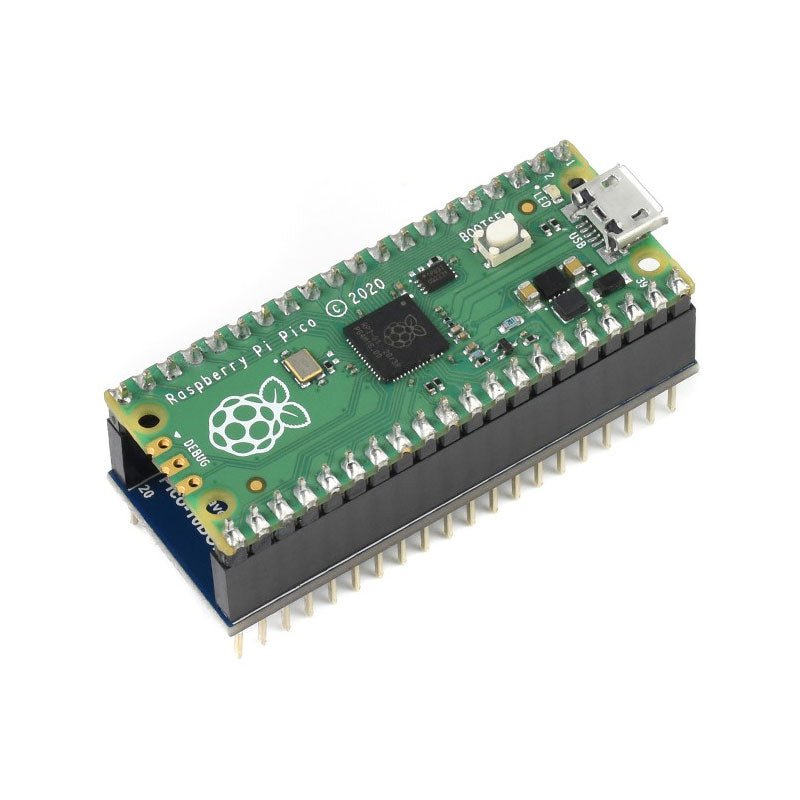

Combined with the Raspberry Pi Pico, it can be used to collect environment sensing data like temperature and barometric pressure, or to easily DIY a robot that detects motion gesture and orientation.

Features

Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
Onboard ICM20948 (3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer) for detecting motion gesture, orientation, and magnetic field
Onboard LPS22HB barometric pressure sensor, for sensing the atmospheric pressure of the environment
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Operating voltage	5 V
Accelerometer	Resolution: 16-bit Measuring range (configurable): ±2, ±4, ±8, ±16g Operating current: 68.9uA
Gyroscope	Resolution: 16-bit Measuring range (configurable): ±250, ±500, ±1000, ±2000°/sec Operating current: 1.23mA
Magnetometer	Resolution: 16-bit Measuring range: ±4900µT Operating current: 90uA
Baroceptor	Measuring range: 260 ~ 1260hPa Measuring accuracy (ordinary temperature): ±0.025hPa Measuring speed: 1Hz - 75Hz

Productformulier

The Pico-10DOF-IMU is an IMU sensor expansion module specialized for Raspberry Pi Pico. It incorporates sensors including gyroscope, accelerometer, magnetometer,... Lees meer

Nog 2 op voorraad

€ 19,95 (incl. BTW)

Leden € 17,96

Details

SKU: 19842

EAN: 019842

Omschrijving

Combined with the Raspberry Pi Pico, it can be used to collect environment sensing data like temperature and barometric pressure, or to easily DIY a robot that detects motion gesture and orientation.

Features

Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
Onboard ICM20948 (3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer) for detecting motion gesture, orientation, and magnetic field
Onboard LPS22HB barometric pressure sensor, for sensing the atmospheric pressure of the environment
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

Operating voltage	5 V
Accelerometer	Resolution: 16-bit Measuring range (configurable): ±2, ±4, ±8, ±16g Operating current: 68.9uA
Gyroscope	Resolution: 16-bit Measuring range (configurable): ±250, ±500, ±1000, ±2000°/sec Operating current: 1.23mA
Magnetometer	Resolution: 16-bit Measuring range: ±4900µT Operating current: 90uA
Baroceptor	Measuring range: 260 ~ 1260hPa Measuring accuracy (ordinary temperature): ±0.025hPa Measuring speed: 1Hz - 75Hz
