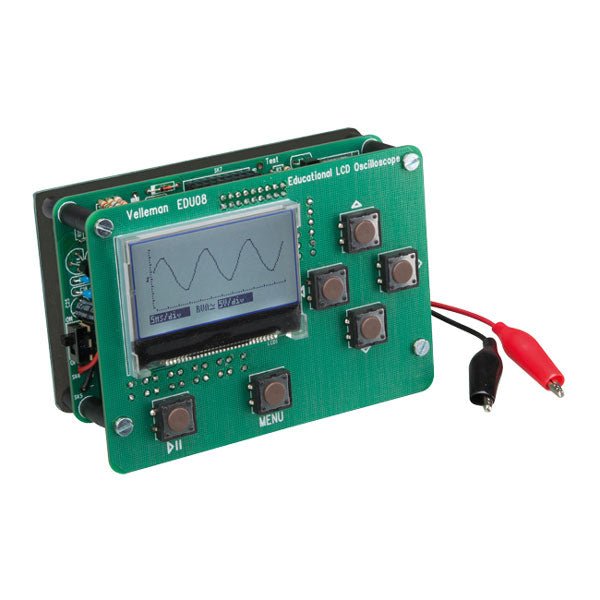

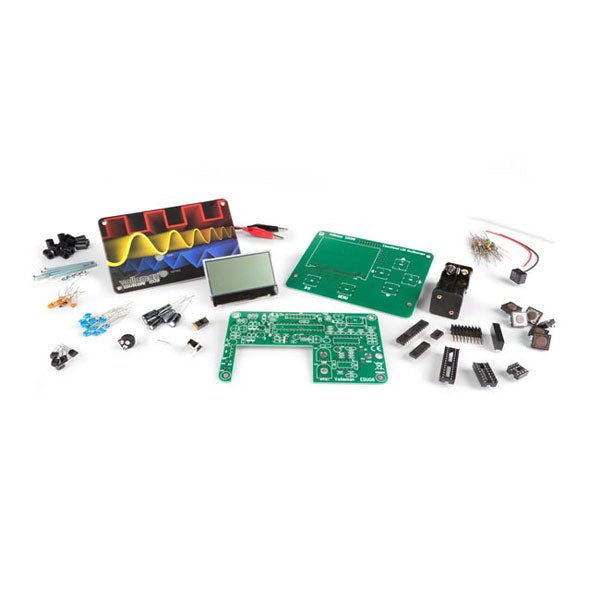

Velleman EDU08 Educational LCD Oscilloscope

Specifications

  • High contrast LCD: 64 x 128 pixels with white LED backlight
  • Maximum sample rate: 1MS/s for repetitive signals, 100kS/s in real time
  • Input amplifier bandwidth: 200kHz (-3 dB)
  • Measurements can be performed up to: 100kHz
  • Input impedance: 100kohm // 20pF
  • Maximum input voltage: 30Vpeak (AC + DC)
  • Input coupling: DC and AC
  • AD resolution: 8 bits
  • Run modes: run, single
  • Trigger level adjustable: in 16 steps
  • Timebase range: in 15 steps, 10µs/division to 500ms/division
  • Input sensitivity range: in 6 steps, 100mV/division to 5V/division
  • Test output: 1.95kHz / 3.3Vpp
  • Full auto set up for: Volt/div and time/div (or manual)
  • Sensitivity down to 10mV
  • Readouts: DC, AC+DC, true RMS, dBm, Vpp, min. & max.
  • Time and voltage markers readout
  • Frequency readout (through markers)
  • Battery operated: 4 x AAA batteries (max. 100mA)
  • Power save mode
  • Dimensions: 80 x 115 x 40 mm (3.14 x 4.52 x 1.57')
  • Weight: 190g (6.70 oz) with batteries
Productformulier

Specifications High contrast LCD: 64 x 128 pixels with white LED backlight Maximum sample rate: 1MS/s for repetitive signals, 100kS/s... Lees meer

No reviews

SKU: 19330
EAN: 5410329570736

Nog 2 op voorraad

€ 59,95 Incl. BTW
Leden € 53,96

    • Vandaag verstuurd? Je hebt nog: Feb 21, 2024 17:00:00 +0100
