Omschrijving

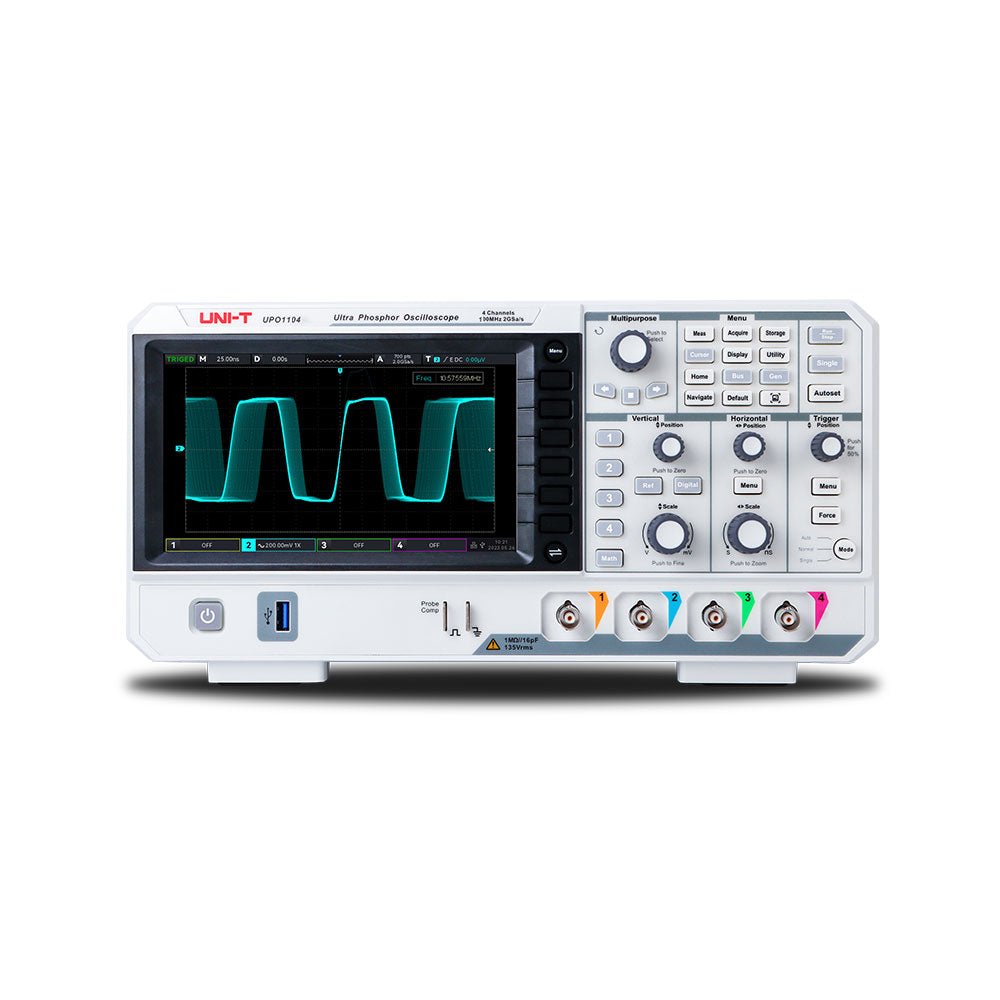

The UPO1104 4-channel digital oscilloscope utilizes Ultra Phosphor 2.0 technology. It features a bandwidth of 100 MHz and a real-time sampling rate of up to 2 GSa/s. It supports an independent DVM module, offers extensive trigger and bus decoding functions, and supports full-memory hardware real-time decoding.
The UPO1104 can be widely used in embedded system design, instrumentation, consumer electronics, automotive electronics, field maintenance, education, and many other fields.
Features
- Bandwidth: 100 MHz
- Channels: 4
- Sampling rate: 2 GSa/s
- Vertical scale: 500μV/div-20 V/div
- Low-base noise: <100μVrms
- Maximum storage depth up to 56 Mpts
- Waveform capture rate of up to 500,000 wfms/s
- The hardware can be continuous waveform recording 120,000 frames in real time
- Automatic measurement of 36 waveform parameters, the measurement range divides into screen and cursor area
- Supports 7 digits hardware frequency meter measurement
- DVM supports AC/DC TRMS (true virtual value) measurement
- Waveform calculation function (FFT, add, subtract, multiply, divide, digital filter, logical operation and advanced operation)
- 1M sampling points to enhance FFT function, it supports frequency setting, waterfall curve, demodulation mode and marker measurement
- Multiple trigger functions (edge, pulse width, video, slope, runt pulse, over-amplitude pulse, delay, timeout, duration, setup hold, Nth edge and code pattern)
- Supporting RS232, I²C, SPI trigger
- Innovative RS232, I²C, SPI full memory hardware for real-time decoding
- Ultra phosphor display effect, 256 grayscale display
- 7-inch WVGA (800x480) TFT LCD

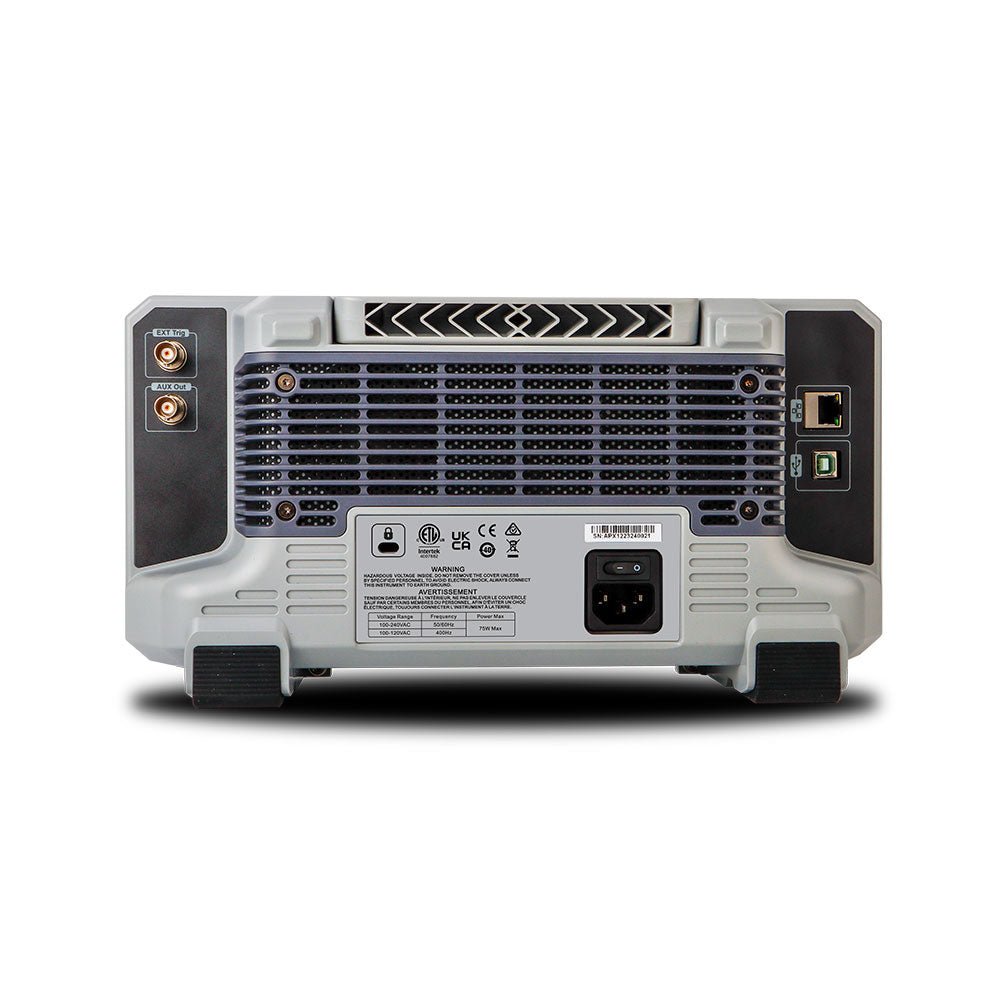

- Multiple interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail, DVM)
- Supporting waveform navigation, marker and segment
- Supporting SCPI programmable standard command
- Support WEB access and control
- Dimensions: 306 x 138 x 107 mm
- Weight: 2.45 kg
Specificaties
| Model |
UPO1104 |
UPO1204 |
| Bandwidth |
100 MHz |
200 Mhz |
| Analog channels |
4 |
4 |
| Real-time sampling rate |
2 GSa/s |
2 GSa/s |
| Rise time |
≤3.5 ns |
≤1.8 ns |
| Storage depth |
56 Mpts |
56 Mpts |
| Waveform capture rate |
500,000 Wfms/s |
500,000 Wfms/s |
Inbegrepen
- 1x UNI-T UPO1104 4-ch Phosphor Oscilloscope (100 MHz)
- 1x Passive probe (100 MHz)
- 1x Power cord
- 1x USB cable
- 1x Manual
