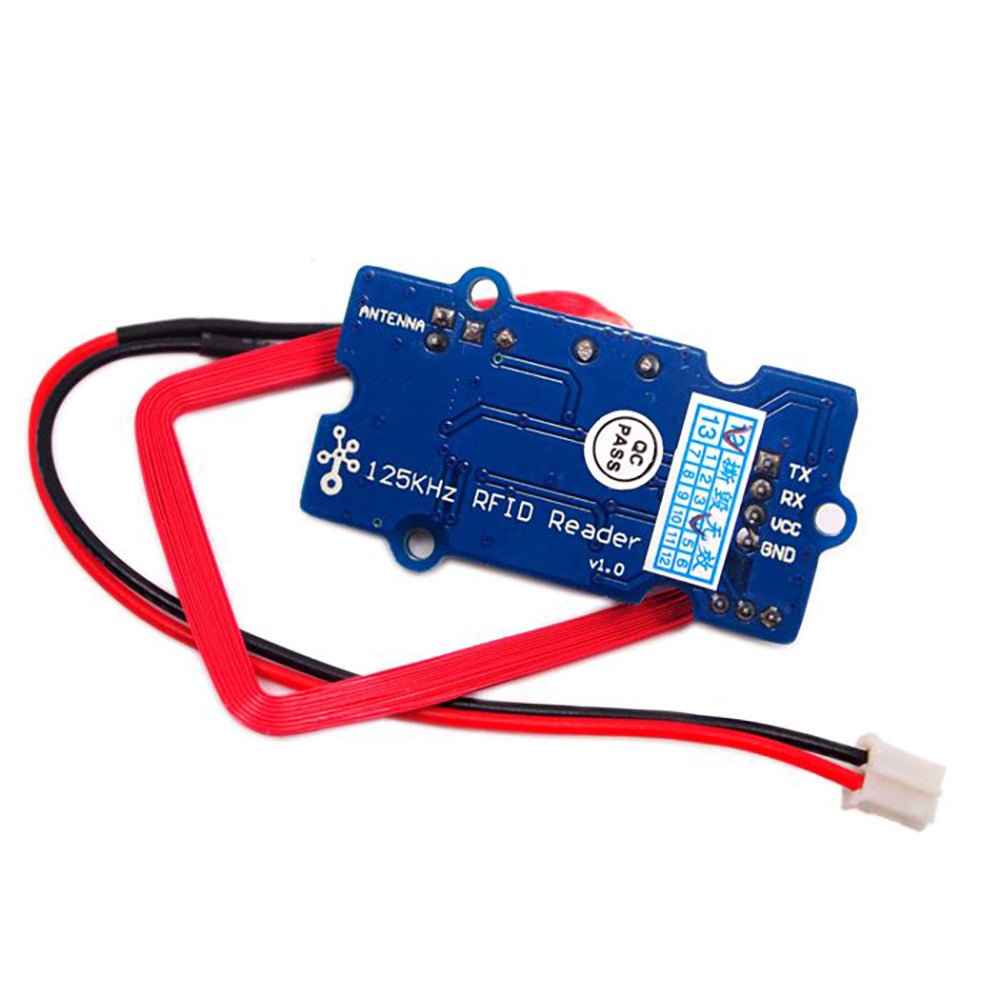

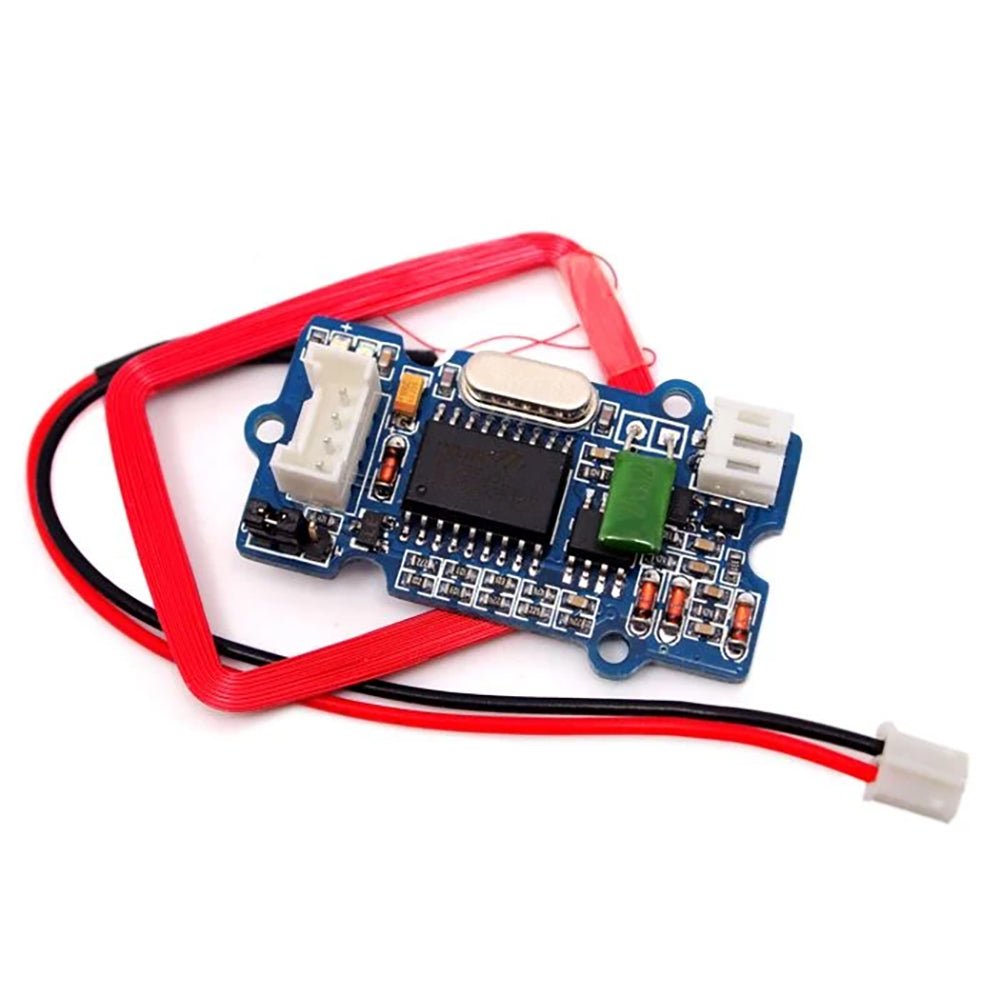

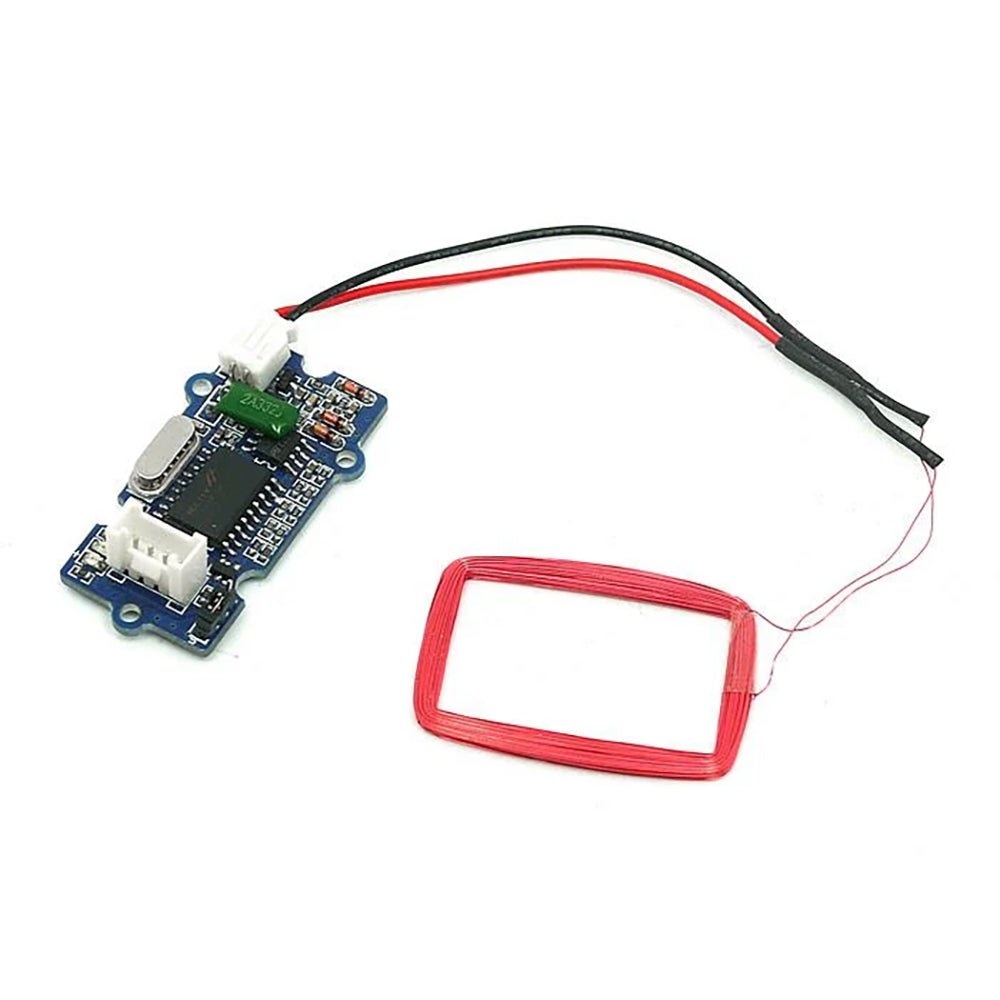

Seeed Studio Grove 125 kHz RFID Reader

  • FabrikantSeeed Studio

Omschrijving

Features

  • Selectable output format: Uart or Wiegand.
  • 4Pins Electronic Brick Interface
  • High Sensitivity

Specifications

  • Dimensions: 44 mm x 24 mm x9.6 mm
  • Weight: 15 g
  • Battery: Exclude
  • Voltage: 4.75 V - 5.25 V
  • Working Frequency: 125 kHz
  • Sensing Distance(Max): 70 mm
  • TTL Output: 9600 baud rate, 8 data bits, 1 stop bit, and no verify bit
  • Wiegand Output: 26 bits Wiegand format, 1 even verify bit, 24 data bits, and 1 odd verify bit
Productformulier

Features Selectable output format: Uart or Wiegand. 4Pins Electronic Brick Interface High Sensitivity Specifications Dimensions: 44 mm x 24 mm... Lees meer

€ 17,95 incl. BTW
Leden € 16,16

    • Vandaag verstuurd? Je hebt nog Jul 13, 2024 17:00:00 +0200

    Details

    SKU: 20019
    EAN: 113020002

    Omschrijving

    Features

    • Selectable output format: Uart or Wiegand.
    • 4Pins Electronic Brick Interface
    • High Sensitivity

    Specifications

    • Dimensions: 44 mm x 24 mm x9.6 mm
    • Weight: 15 g
    • Battery: Exclude
    • Voltage: 4.75 V - 5.25 V
    • Working Frequency: 125 kHz
    • Sensing Distance(Max): 70 mm
    • TTL Output: 9600 baud rate, 8 data bits, 1 stop bit, and no verify bit
    • Wiegand Output: 26 bits Wiegand format, 1 even verify bit, 24 data bits, and 1 odd verify bit
