Rigid End Effector for AxiDraw

This rigid end effector plate is designed to be in place of the standard AxiDraw pen-lift Z stage, and provides an alternative mounting scheme for mounting various things to the end of the AxiDraw's arm, for applications where greater rigidity is important but the lifting ability of the standard Z stage is not required.

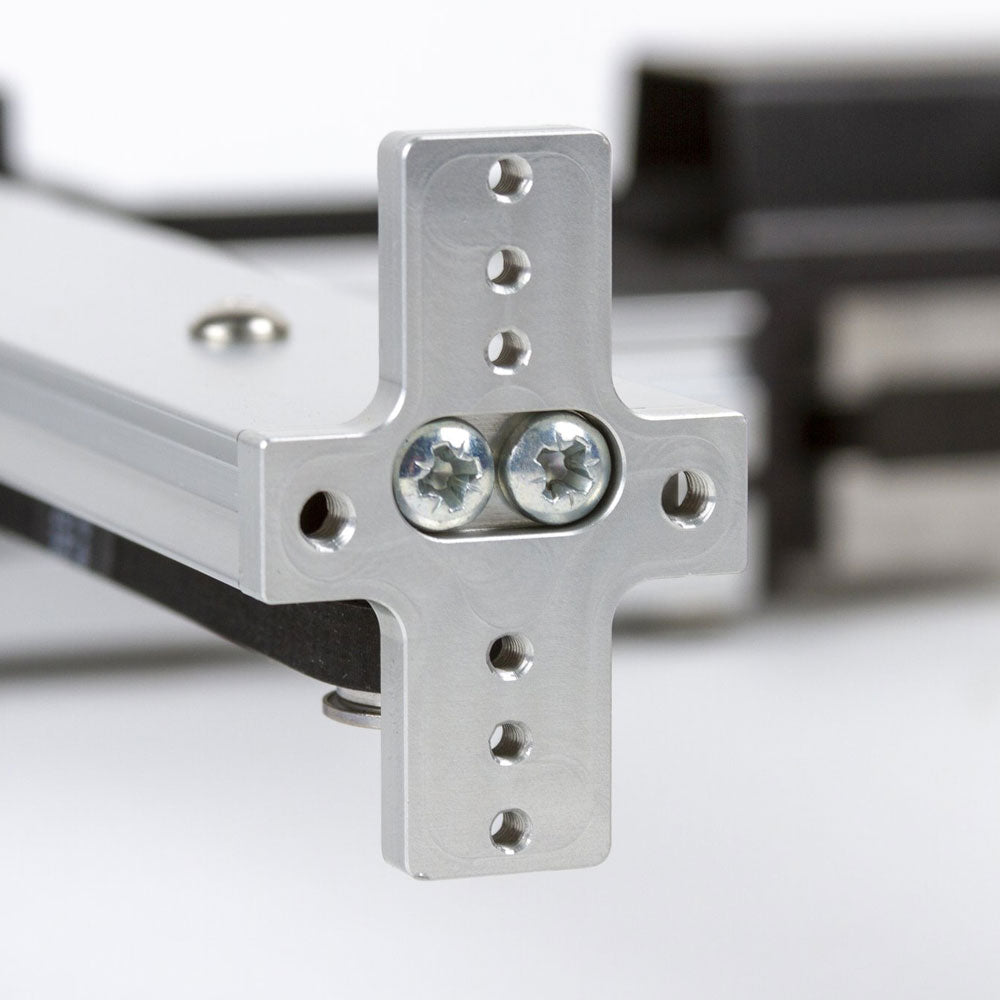

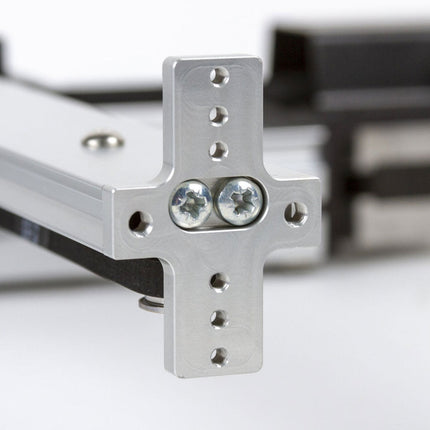

The rigid end effector is custom machined from aluminum, and provides six M3 tapped holes and two M4 tapped holes for mounting what ever it is that you would like to mount to the end of the AxiDraw, to use it as a 2D robot arm. The hole pattern is compatible with the AxiDraw pen clip, so you can, if you like, mount the AxiDraw's pen clip to this end effector.

Installation is straightforward, but requires a Pozidrive PZ2 screwdriver, not included*. Remove the AxiDraw's pen clip, and then remove the pen-lift Z stage by removing two screws with the PZ2 screwdriver. Install the rigid end effector plate in its place, using the two included mounting screws and the PZ2 screwdriver. You may wish to also tie back or fully remove the AxiDraw's cable guides, which normally extend to power the pen-lift stage.

Specifications

  • Material: Anodized 6061-T6 aluminum
  • Size: 1.97 x 1.38 x 0.19 inches (50 x 35 x 4.8 mm)
  • Weight: Approximately 11 g

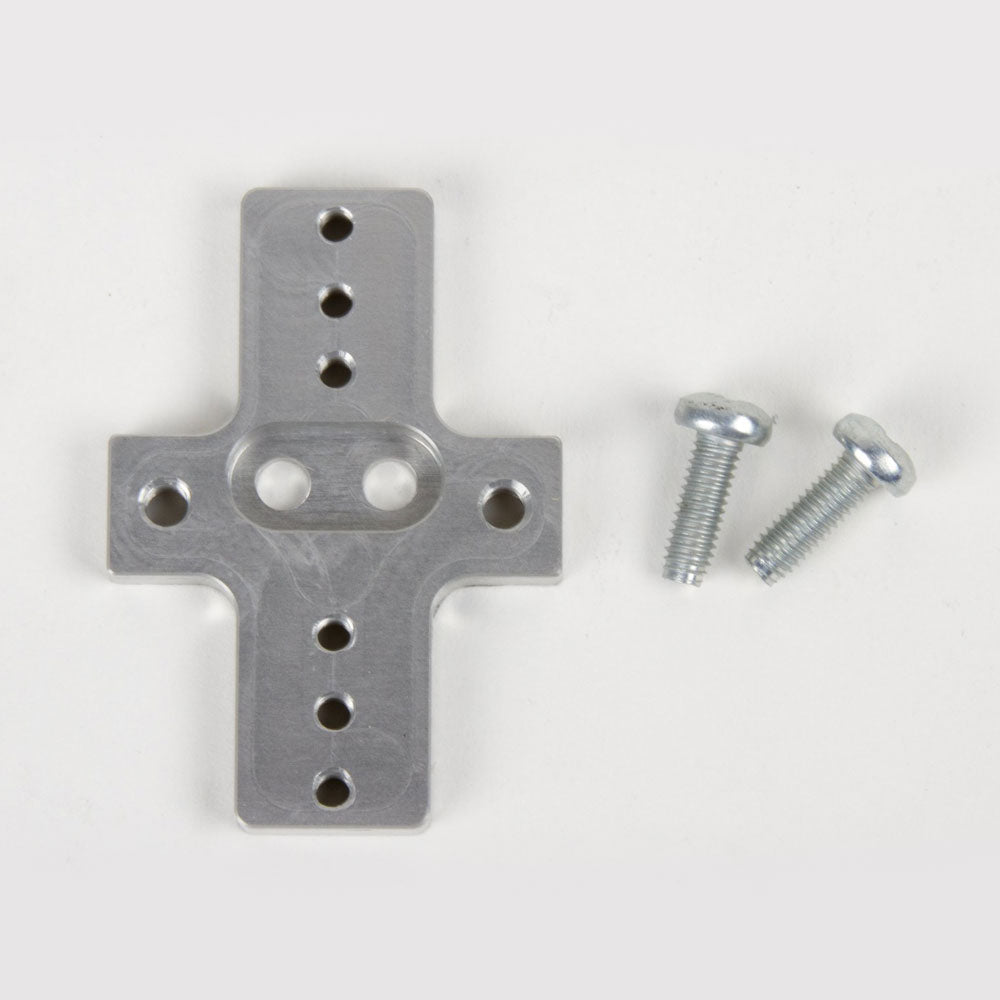

  • Mounting hardware: included (Two M4x12 pozidrive-head self-tapping screws)

Compatibility

  • All AxiDraw V3 family pen plotters
  • AxiDraw V3/A3
  • AxiDraw SE/A3
  • AxiDraw MiniKit models
Productformulier

This rigid end effector plate is designed to be in place of the standard AxiDraw pen-lift Z stage, and provides... Lees meer

No reviews

SKU: 20125
EAN: 020125

€ 19,95 Incl. BTW
Leden € 17,96

    • Vandaag verstuurd? Je hebt nog: Feb 25, 2024 17:00:00 +0100

    This rigid end effector plate is designed to be in place of the standard AxiDraw pen-lift Z stage, and provides an alternative mounting scheme for mounting various things to the end of the AxiDraw's arm, for applications where greater rigidity is important but the lifting ability of the standard Z stage is not required.

    The rigid end effector is custom machined from aluminum, and provides six M3 tapped holes and two M4 tapped holes for mounting what ever it is that you would like to mount to the end of the AxiDraw, to use it as a 2D robot arm. The hole pattern is compatible with the AxiDraw pen clip, so you can, if you like, mount the AxiDraw's pen clip to this end effector.

    Installation is straightforward, but requires a Pozidrive PZ2 screwdriver, not included*. Remove the AxiDraw's pen clip, and then remove the pen-lift Z stage by removing two screws with the PZ2 screwdriver. Install the rigid end effector plate in its place, using the two included mounting screws and the PZ2 screwdriver. You may wish to also tie back or fully remove the AxiDraw's cable guides, which normally extend to power the pen-lift stage.

    Specifications

    • Material: Anodized 6061-T6 aluminum
    • Size: 1.97 x 1.38 x 0.19 inches (50 x 35 x 4.8 mm)
    • Weight: Approximately 11 g
    • Mounting hardware: included (Two M4x12 pozidrive-head self-tapping screws)

    Compatibility

    • All AxiDraw V3 family pen plotters
    • AxiDraw V3/A3
    • AxiDraw SE/A3
    • AxiDraw MiniKit models
