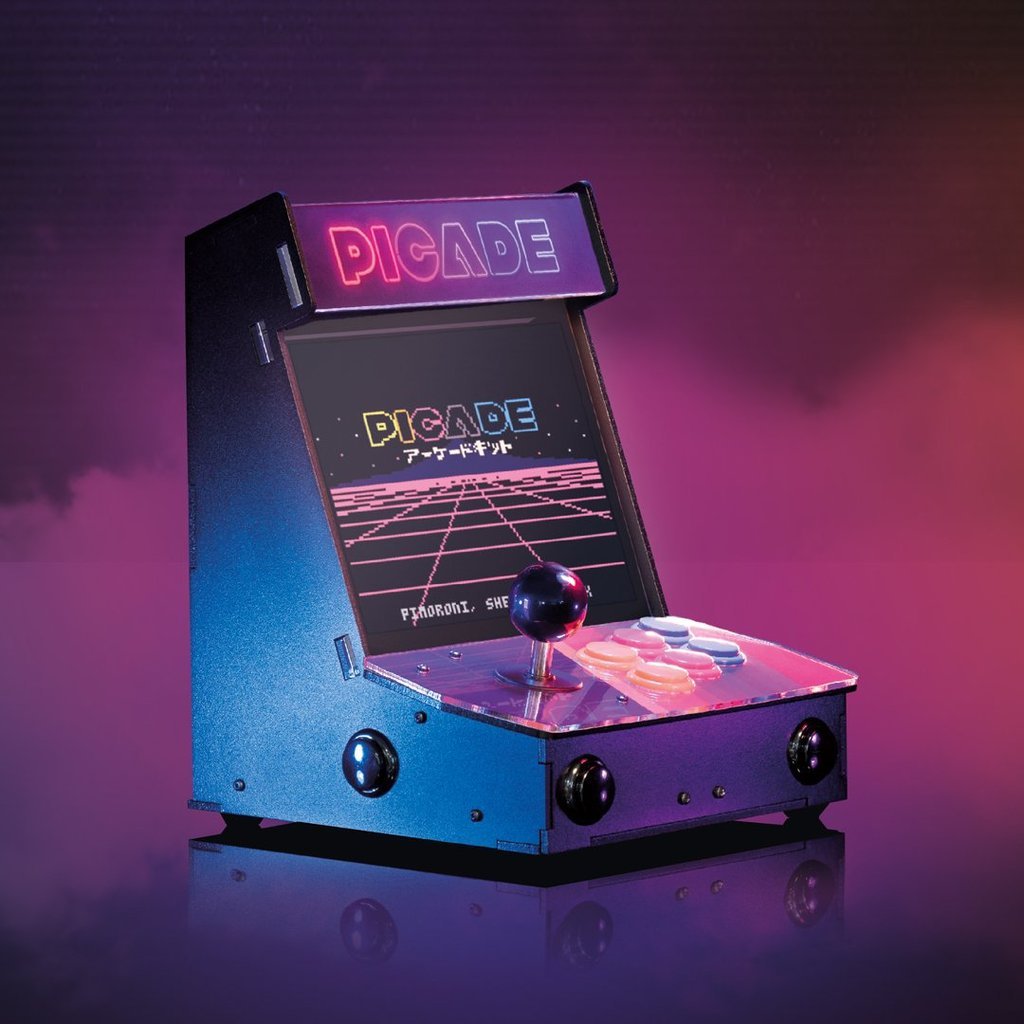

Omschrijving With the Picade Desktop Retro Arcade Machine (10-inch Display) you can build your very own arcade machine.
Cabinet Features

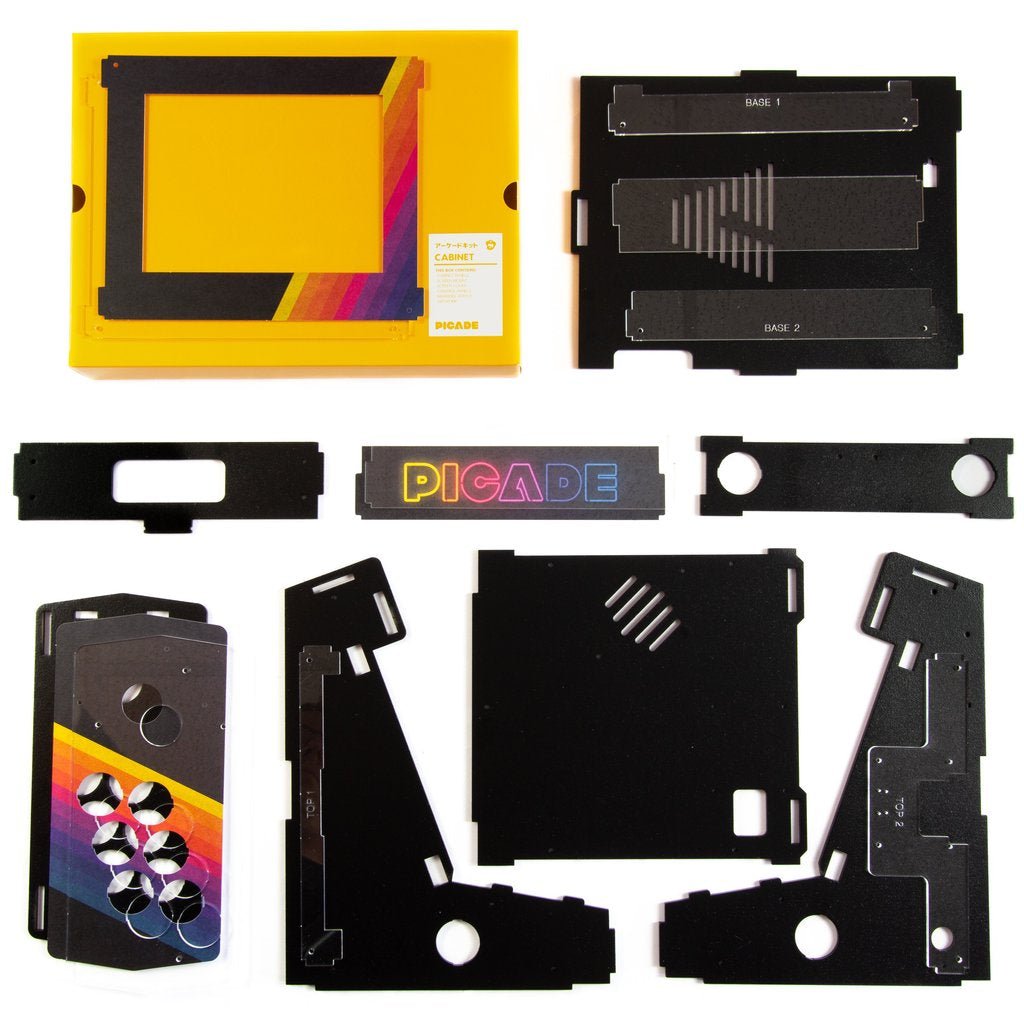

Black, powder-coated panels

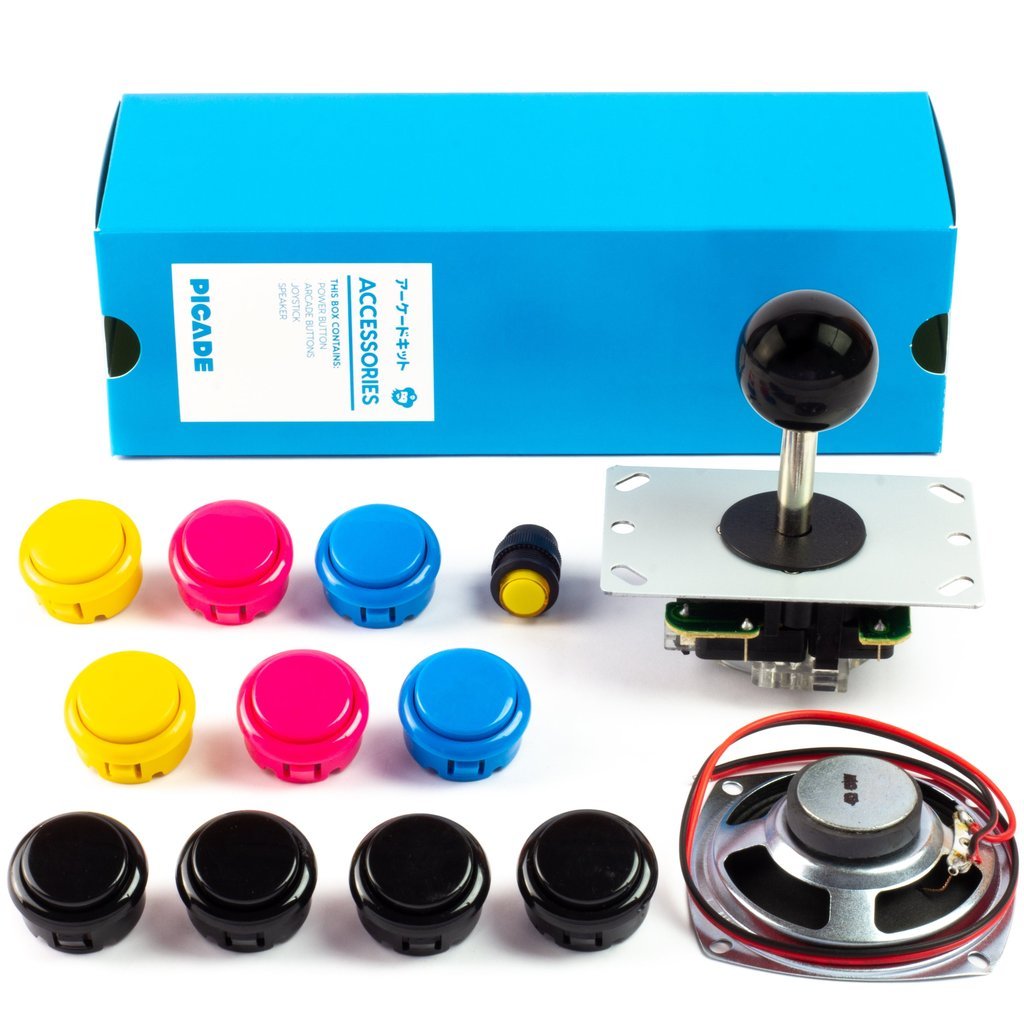

Joystick with black ball top
Acrylic marquee and console with authentic artwork
Dedicated illuminated power button
Push-fit arcade buttons
Easy access with removable back panel
3' speaker (5 W, 4 Ω)
Grippy rubber feet
Dimensions: 350 x 230 x 210 mm
1024x768 (4:3 ratio) IPS (wide viewing angle) display
Pimoroni-designed and manufactured HDMI display driver board and keypad controls
Powered by micro-USB cable (included) from your Pi

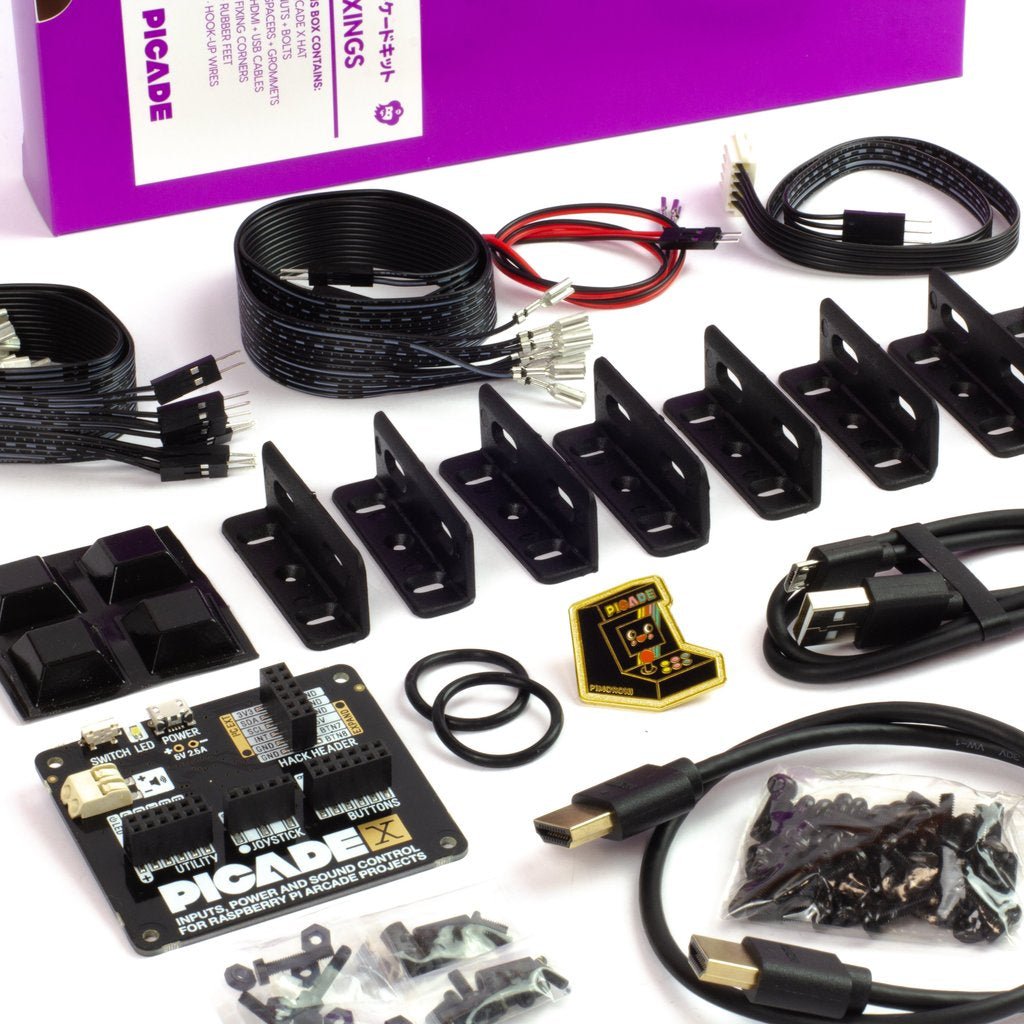

Picade X HAT Features
Easy DuPont connectors for buttons and joystick
Push-fit speaker terminals
USB-C power management, power switch pins, and power button
I²S audio DAC with 3 W amplifier (mono)
4-way joystick inputs
4 utility buttons
6 player buttons
Metal standoffs to hold your Picade X HAT securely
Included
Picade enamel pin badge
Pimoroni Super Sticker Selection
Picade poster/assembly instructions
Please note: You will need to add a Raspberry Pi, USB-C power supply, and a MicroSD Card.
