Pen Clip Rotation Stage for AxiDraw

  • FabrikantEvil Mad Science

Omschrijving

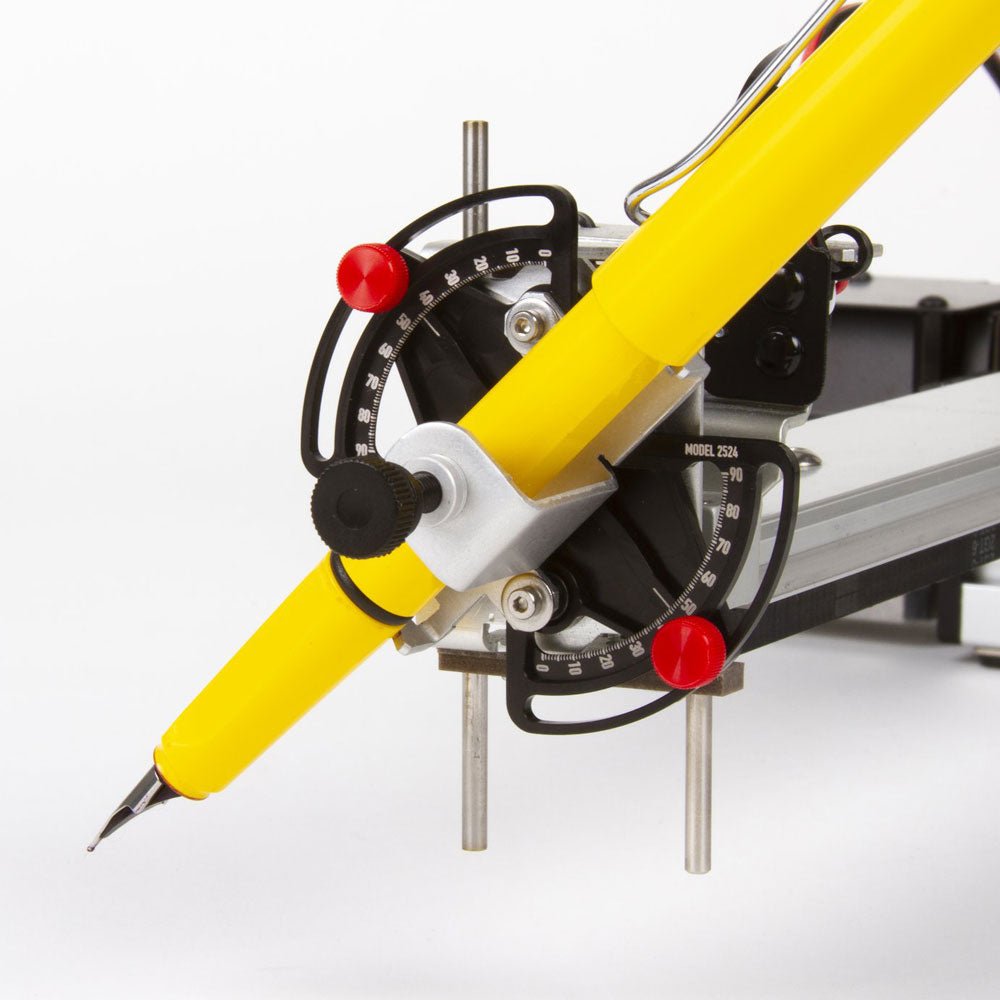

The AxiDraw's pen holder normally holds a pen (or other instrument) either vertically or at 45° from vertical. The Pen clip rotation stage is a lightweight adapter allows you to mount the instrument at arbitrary angles, and fine-tune that angle over a range of 90 degrees with a precision of 1 degree.

This adapter is not normally needed in general writing and drawing usage. However certain precision applications of the AxiDraw – particularly those using the AxiDraw as a general purpose XY motion control stage – may find this to be helpful. Some users have also found it useful for fine-tuning the angle that a pen is mounted at when using italic or chisel-tip pens in combination with the Italic pen adapter.

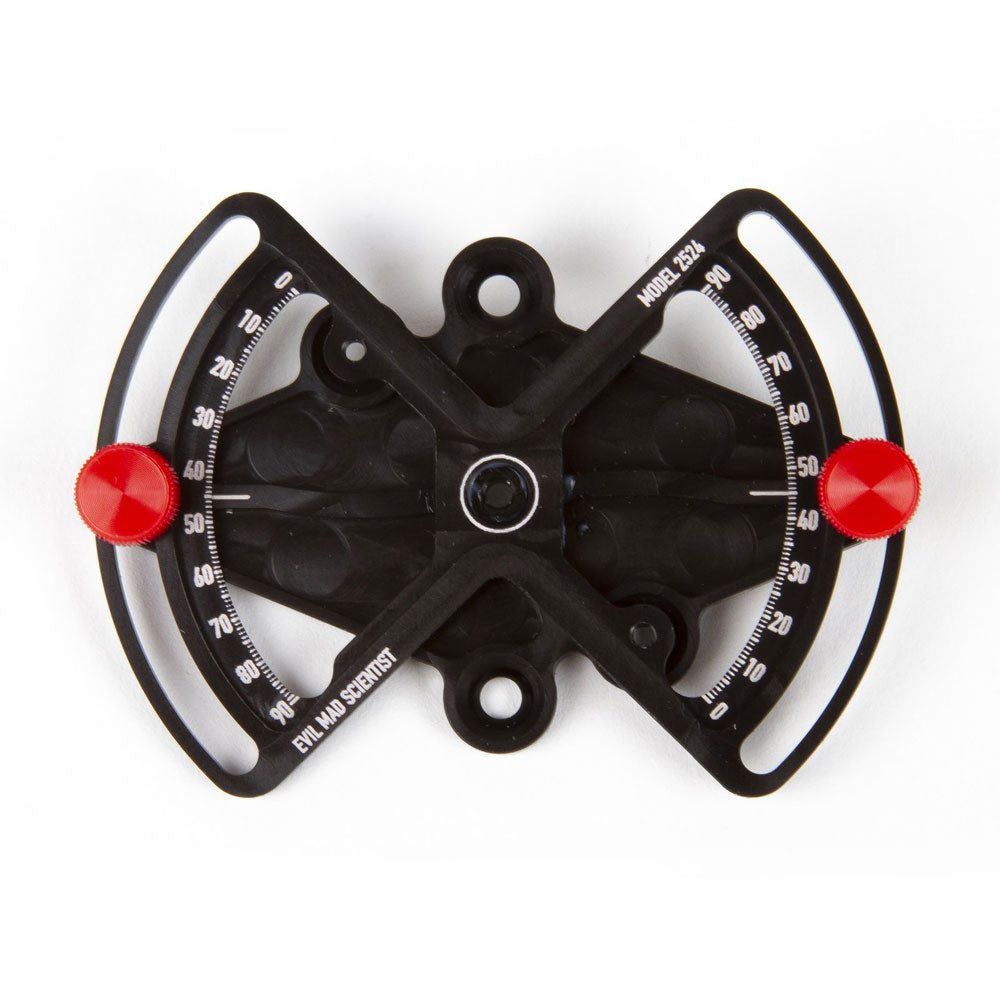

You can attach the rotation stage to the front face of the AxiDraw in two orientations, vertical or at 45° from vertical. These orientations, along with the 90°adjustment range, allow you to either adjust between vertical and horizontal, or between vertical and ±45° from vertical. Two small thumbscrews and an engraved bezel allow you to make adjustments and set the angle.

Specifications

  • Material: Anodized 6061-T6 aluminum
  • Size: Outer radius 64 mm, height 48 mm, thickness 4.6 mm (excluding mounting hardware)
  • Weight: Approximately 11 g
  • Mounting hardware: included (2 each M3 flat head cap screws, M2 socket cap screws w/washers, 1.5 mm hex wrench)

Compatibility

This adapter is compatible only with AxiDraw V3 family pen plotters that mount the pen on a 2-hole vertical slide. This includes all AxiDraw SE/A3, AxiDraw V3/A3 and AxiDraw V3 XLX units, and all AxiDraw V3 units manufactured after February 2017.

Productformulier

The AxiDraw's pen holder normally holds a pen (or other instrument) either vertically or at 45° from vertical. The Pen... Lees meer

€ 69,95 incl. BTW
Leden € 62,96

    • Vandaag verstuurd? Je hebt nog Dec 03, 2024 17:00:00 +0100

    Details

    SKU: 20118
    EAN: 020118

    Omschrijving

    The AxiDraw's pen holder normally holds a pen (or other instrument) either vertically or at 45° from vertical. The Pen clip rotation stage is a lightweight adapter allows you to mount the instrument at arbitrary angles, and fine-tune that angle over a range of 90 degrees with a precision of 1 degree.

    This adapter is not normally needed in general writing and drawing usage. However certain precision applications of the AxiDraw – particularly those using the AxiDraw as a general purpose XY motion control stage – may find this to be helpful. Some users have also found it useful for fine-tuning the angle that a pen is mounted at when using italic or chisel-tip pens in combination with the Italic pen adapter.

    You can attach the rotation stage to the front face of the AxiDraw in two orientations, vertical or at 45° from vertical. These orientations, along with the 90°adjustment range, allow you to either adjust between vertical and horizontal, or between vertical and ±45° from vertical. Two small thumbscrews and an engraved bezel allow you to make adjustments and set the angle.

    Specifications

    • Material: Anodized 6061-T6 aluminum
    • Size: Outer radius 64 mm, height 48 mm, thickness 4.6 mm (excluding mounting hardware)
    • Weight: Approximately 11 g
    • Mounting hardware: included (2 each M3 flat head cap screws, M2 socket cap screws w/washers, 1.5 mm hex wrench)

    Compatibility

    This adapter is compatible only with AxiDraw V3 family pen plotters that mount the pen on a 2-hole vertical slide. This includes all AxiDraw SE/A3, AxiDraw V3/A3 and AxiDraw V3 XLX units, and all AxiDraw V3 units manufactured after February 2017.
