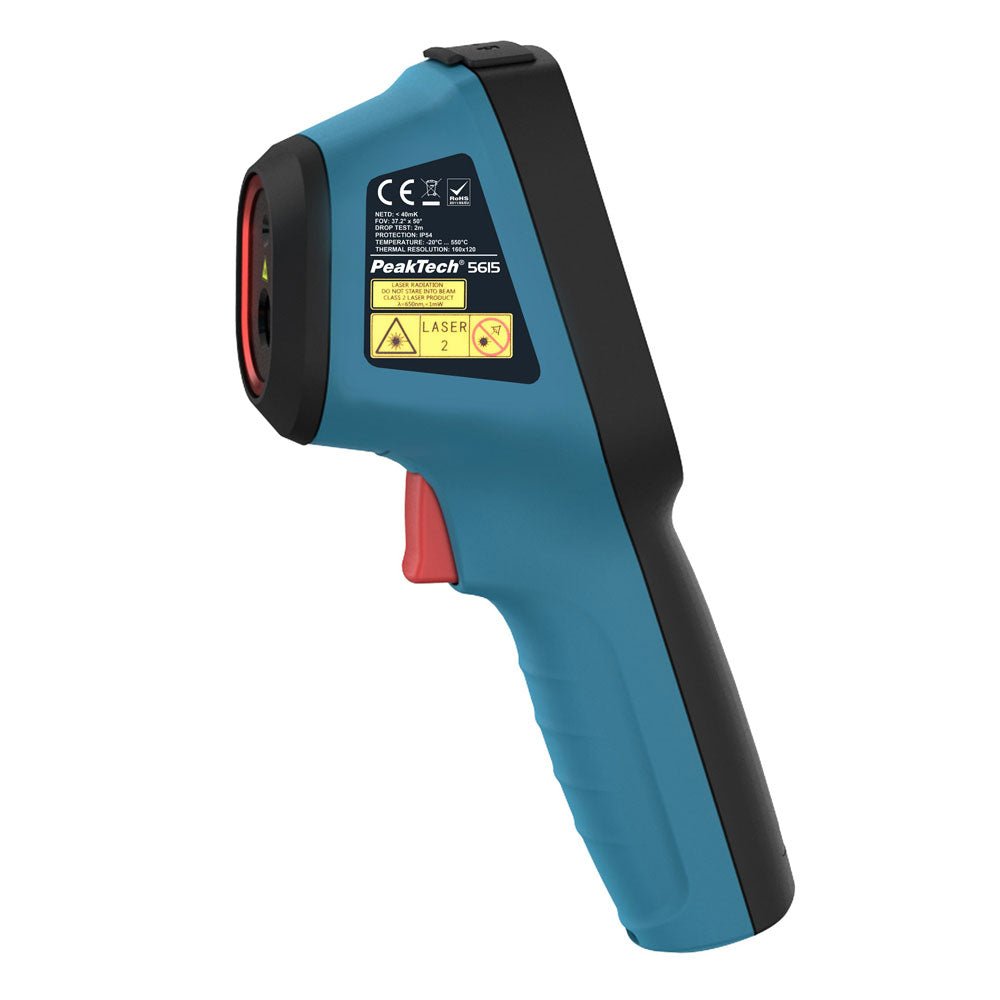

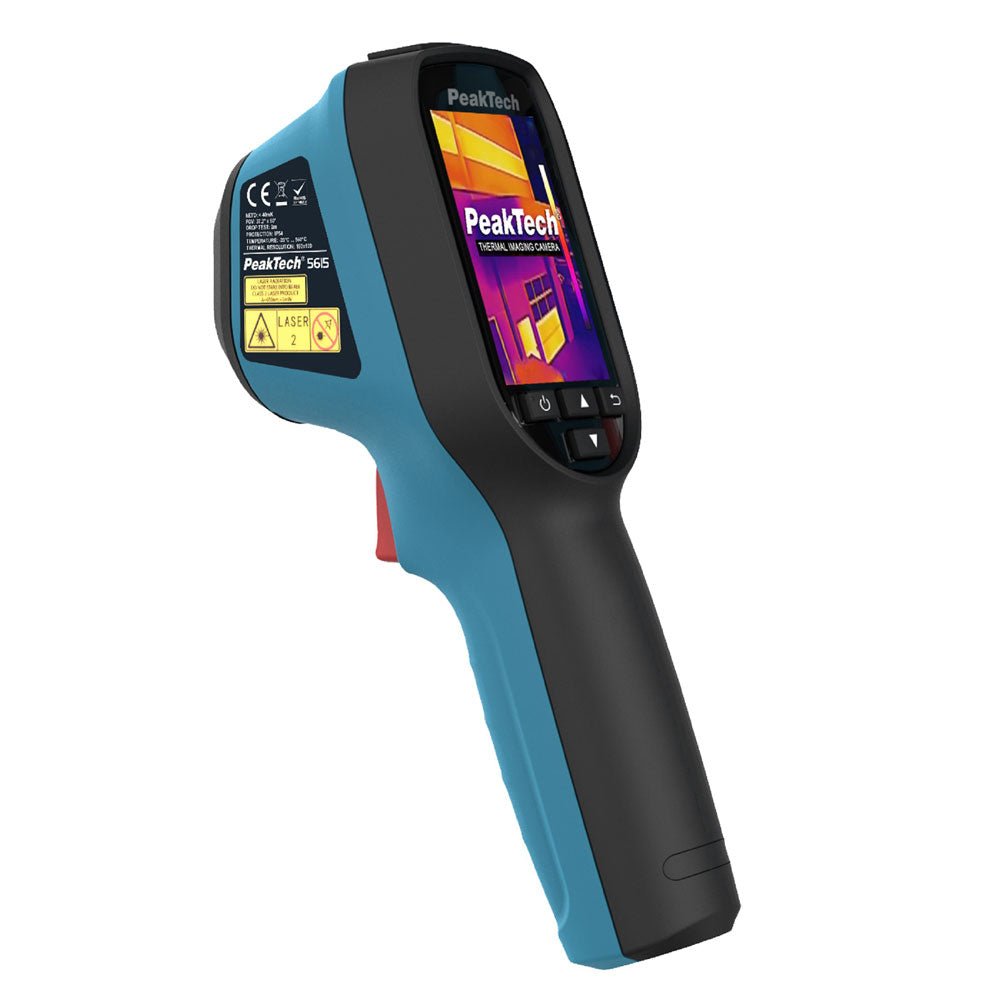

The PeakTech 5615 is a full-fledged thermal imaging camera with a thermal resolution of 160x120 thermal image points and a high-quality sensor, which makes even the smallest temperature differences visible.

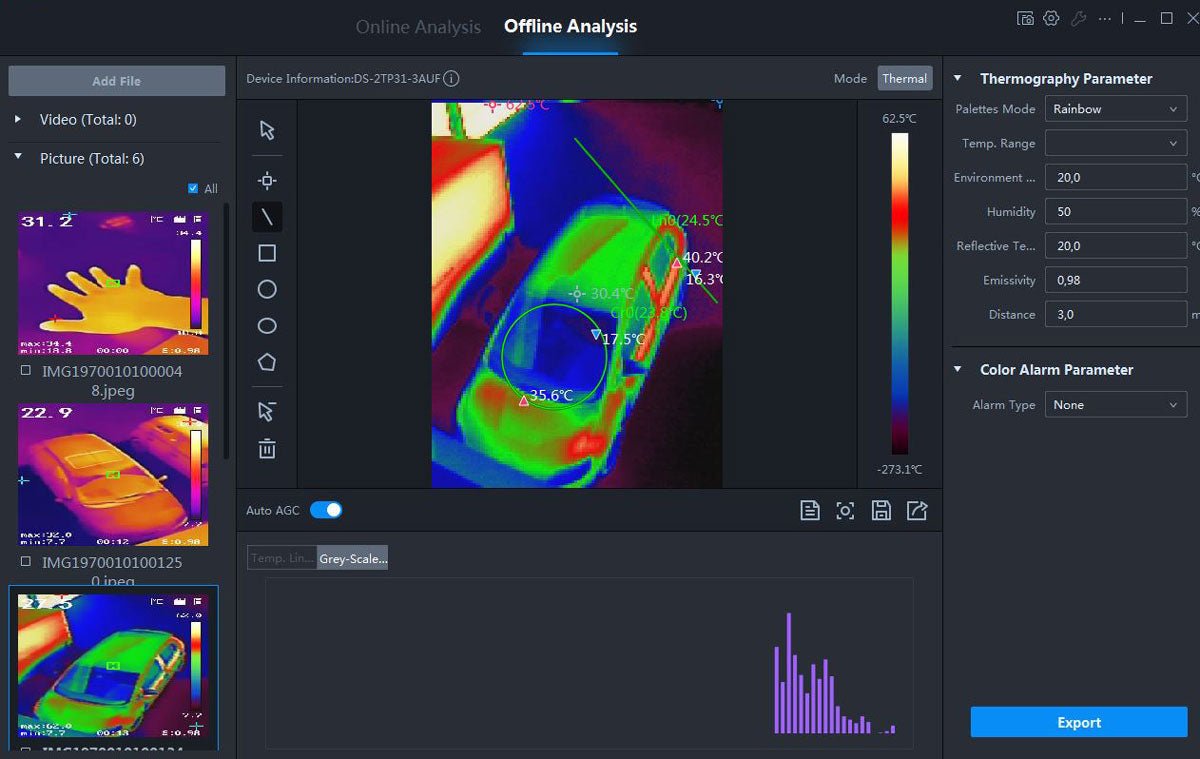

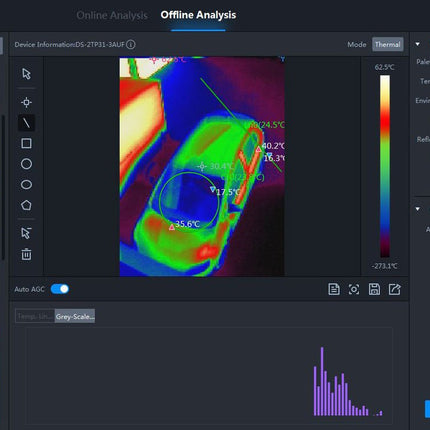

All thermal images can be opened and evaluated using the enclosed software, with subsequent changes, e.g. can be done on the pallet selection.
Use this new development e.g. to find thermal bridges in thermography, leaks in systems and pipe systems or track heating pipes in walls and floors.
In electrical engineering, this thermal imager offers the possibility of contact problems and contact resistances e.g. to be found in sub-distributions and thus to prevent a fire risk in good time.
- Modern IR thermal imaging technology

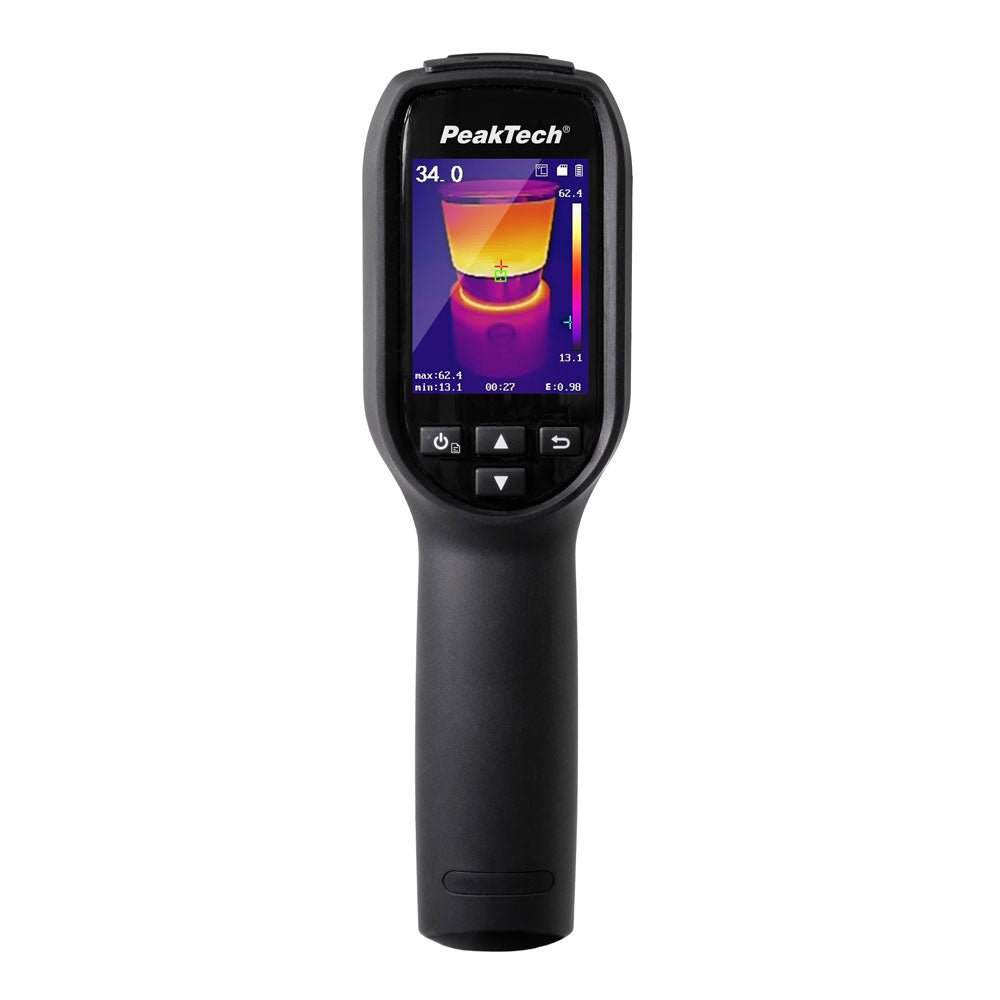

- 2.4 'LCD color display and graphic menu navigation
- Thermal image resolution of 160 x 120 pixels
- High temperature measuring range up to + 550 °C
- High quality thermal image sensor with high temperature sensitivity
- Fast thermal imaging with 25 Hz
- Four color palettes (Iron, Rainbow, White, Black)
- Crosshairs, as well as cold and hot spot display
- Minimum and maximum value display
- Photo record with internal memory
- Records with time and date documentation
- USB interface for data transfer
- Also suitable for longer ranges (e.g. building thermography)
- IP 54 protected against dust and splash water
- Accessories: USB cable, software, charger and user manual
| Thermal Resolution |
160 x 120 Pixel |
| Temperature Range |
-20°C … 550°C / -4°F … 1022°F; 0,1° Resolution |
| Accuracy |
+/- 2% +/- 2°C |
| Display |
2,4“ Color TFT |
| Thermal Sensivity |
< 40 mK |
| Field of View (FOV) |
37,2° x 50° |
| Wave Length |
8 ... 14 µm |
| Emissivity |
0.01 ~ 1.0 |
| Image Frequency |
25 Hz |
| Storage |
Micro SD - 8 GByte |
| Data Interface |
USB |
| Operation voltage |
3350 mAh / 3.6 V Li-Ion |
| Dimensions (WxHxD) |
59 x 196 x 78 mm |
| Weight |
approx. 350 g |
