Omschrijving
With this comprehensive complete set, you can now enter the fascinating world of electronics. In addition to an Oxocard Connect and a breadboard cartridge, it contains 96 electronic components with which you can build a variety of electronic circuits.
Features
- Free and unlimited access to the nanopy.io editor with a variety of scripts that you can transfer to your Oxocard Connect at the touch of a button.
- Electronics course with 15 experiments that show you step by step how to switch LEDs, connect a servo, generate acoustic signals with a piezo and much more.

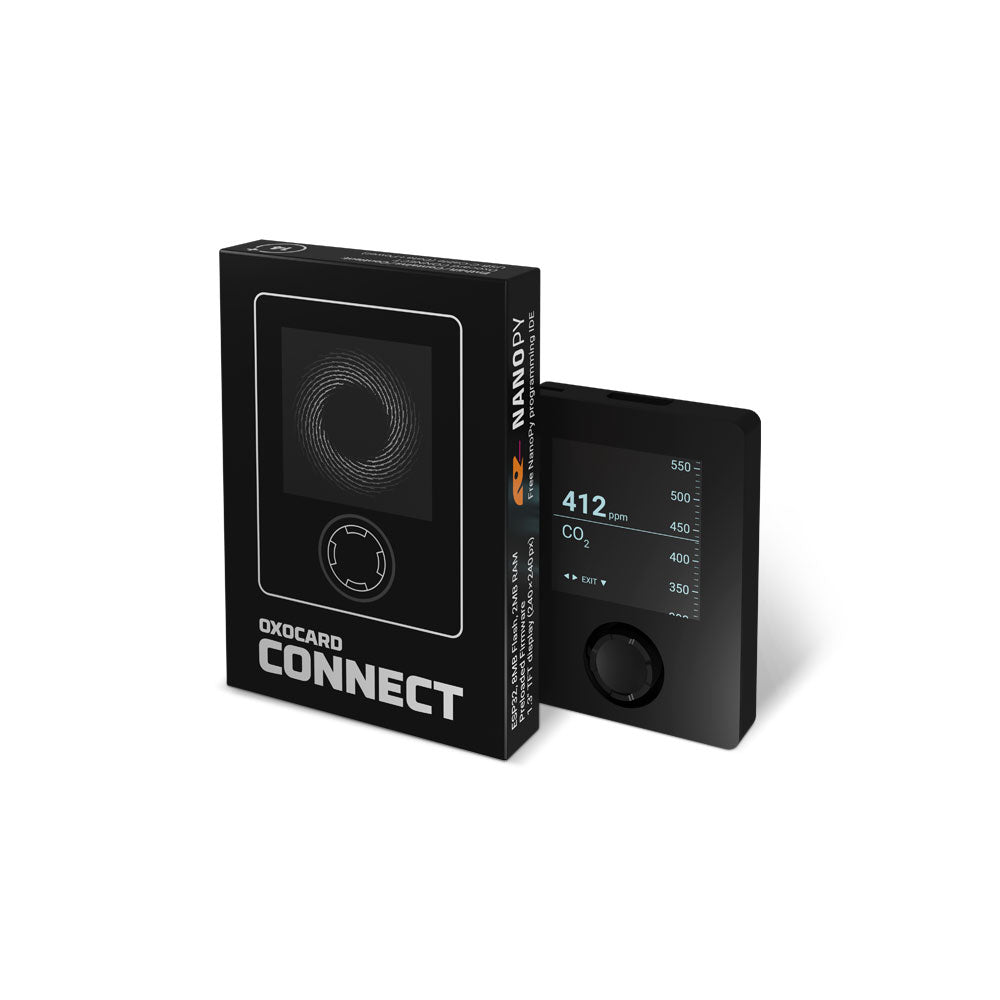

Oxocard Connect
High quality microcontroller device with TFT screen, glass cover, joystick, USB-C, as well as revolutionary 16-pin cartridge slot.
The Oxocard Connect represents the next generation of small experimental computers. The universal cartridge slot allows ready-made or self-developed boards to be brought to life instantly by simply plugging them in. Each card comes with drivers and demo programs installed and automatically loaded and started when plugged in.

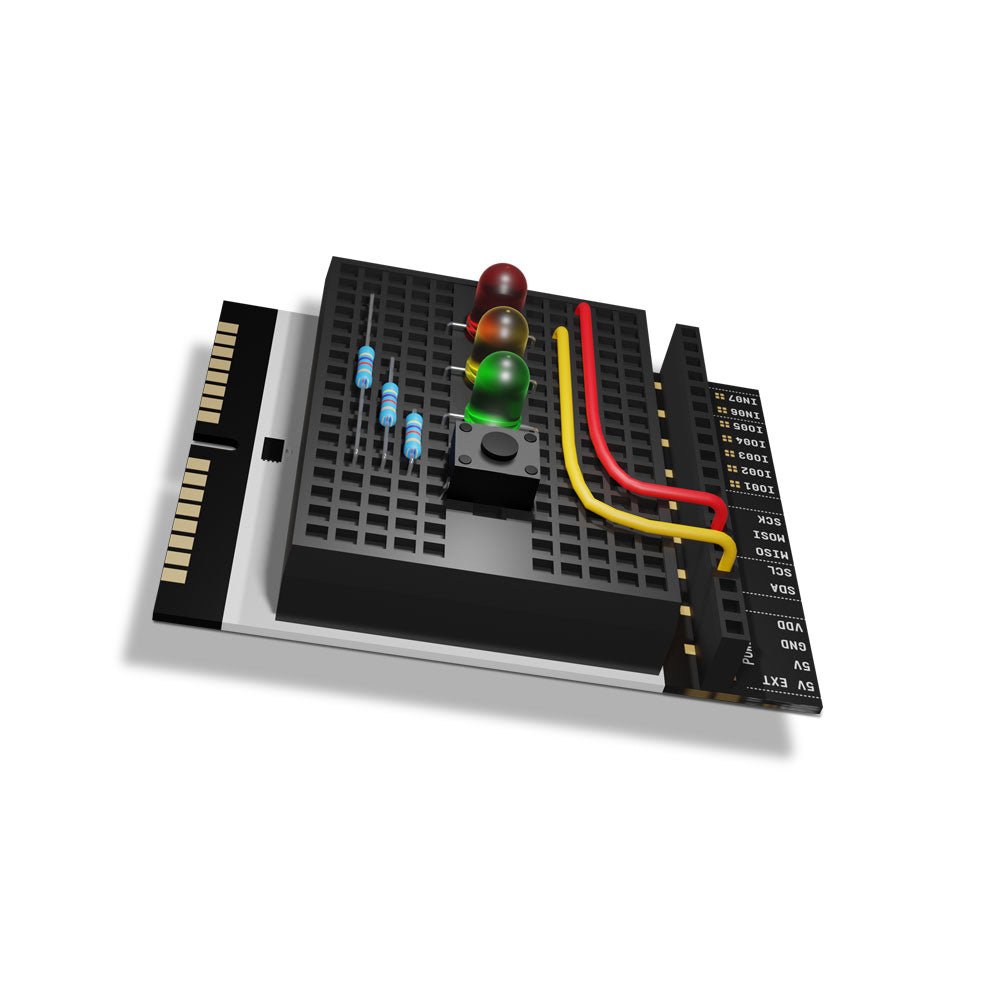

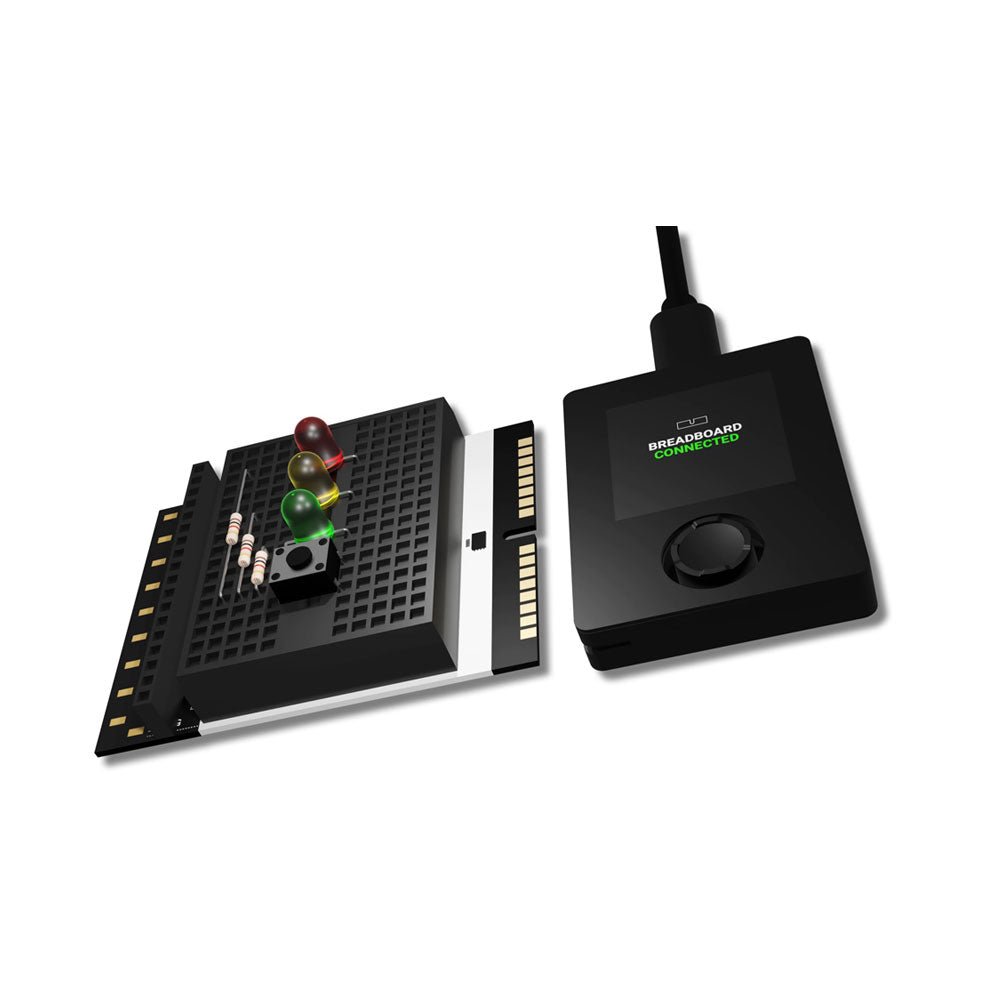

Breadboard Cartridge
With the Breadboard you can quickly plug in your own circuits. A plug-in board with 17 rows is available for this purpose. Connections: two analog inputs, five digital ports, I²C, SPI, GND/V3.3. access to the 5 V power source of the port. Red LEDs are attached to the digital pins. 5 V can also be injected to power the Oxocard Connect without USB.

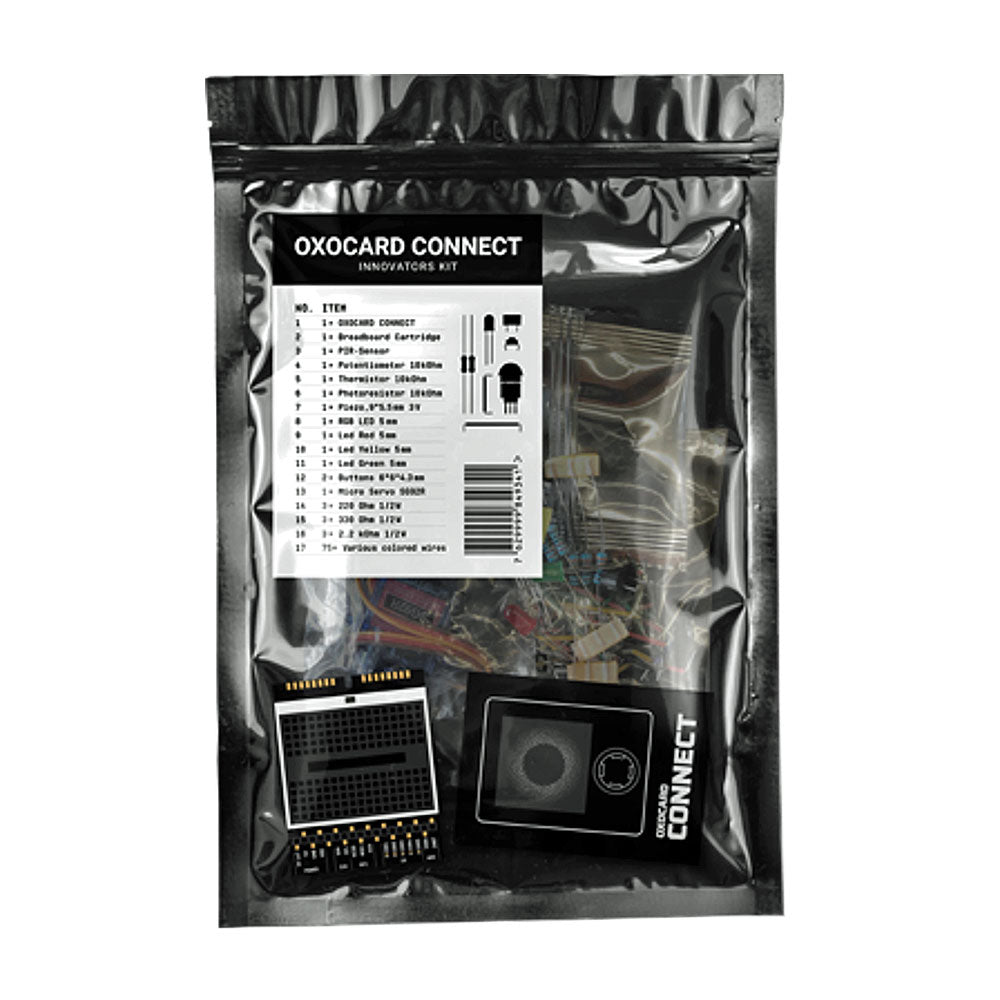

Included
- 1x Oxocard Connect
- 1x Breadboard Cartridge
- Electronic components
- 1x PIR-Sensor (Motion detector)
- 1x Thermistor 10 k? (Temperature sensor)
- 1x Photoresistor 10 k? (Light sensor)
- 1x Potentiometer
- 1x Mikroservo SG92R
- 1x Piezo (Acoustic signals)
- 3x LED (green, yellow, red)
- 2x Buttons
- 9x Resistances
- 75x Cables (angled) – various colors and lengths
