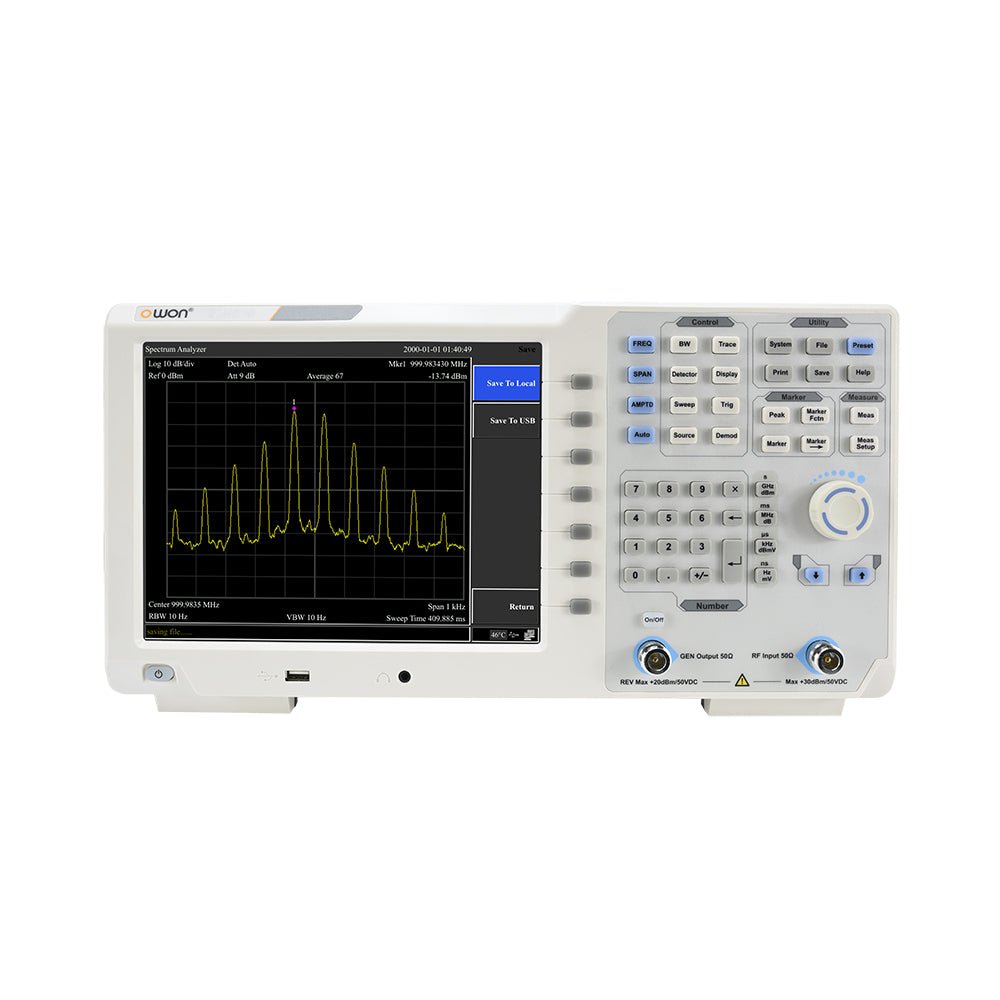

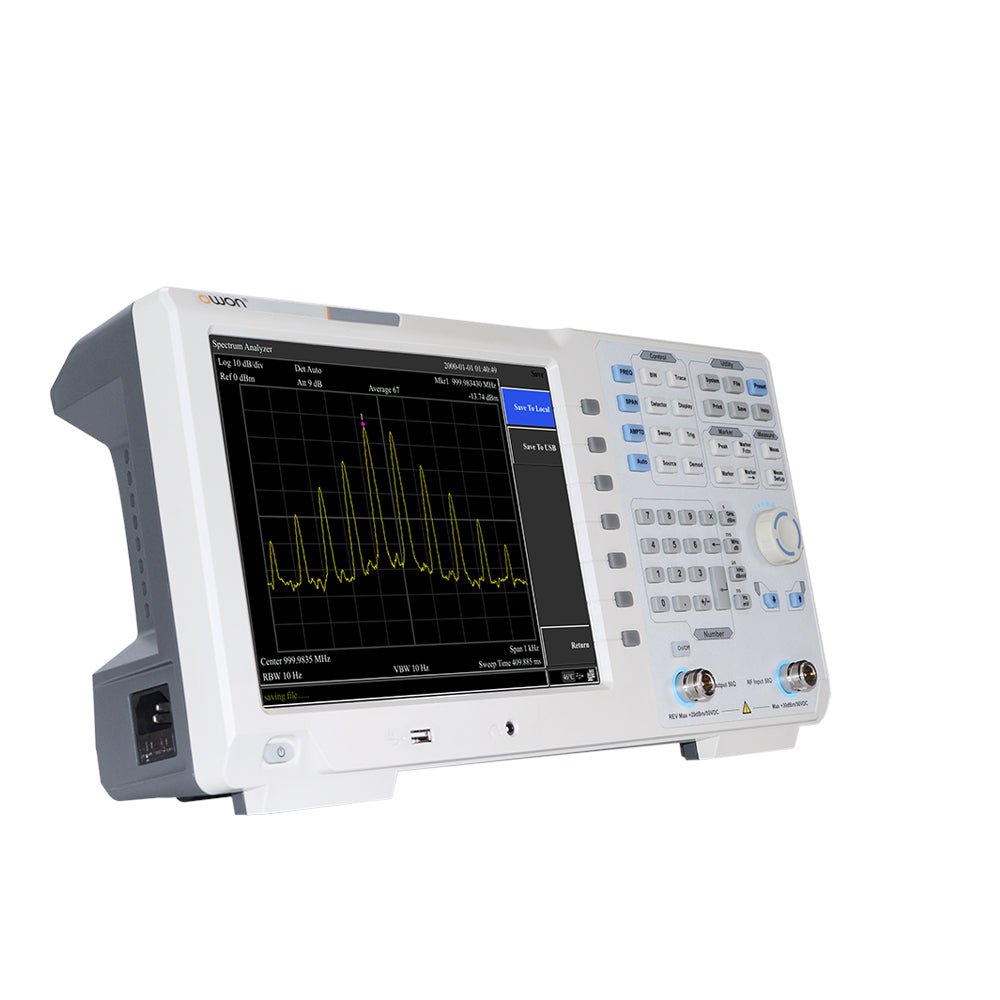

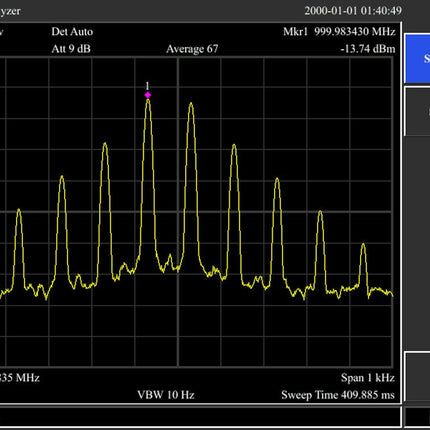

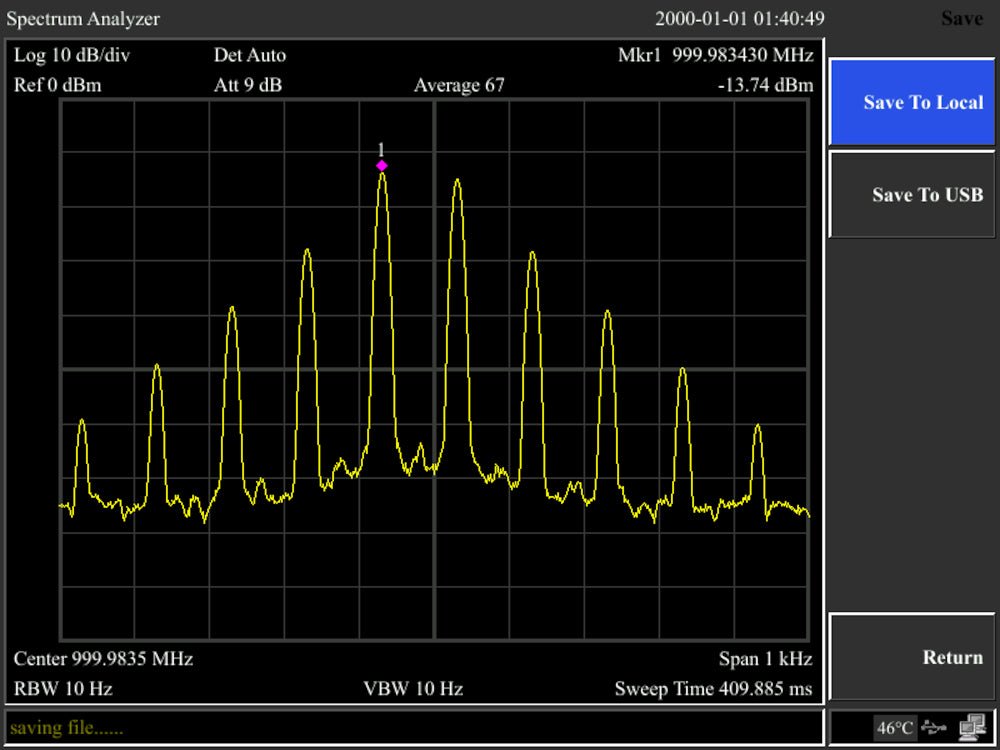

OWON XSA1015-TG Spectrum Analyzer (9 kHz - 1.5 GHz)

  • FabrikantOWON

Omschrijving

The OWON XSA1015-TG Spectrum Analyzer offers a variety of features that will make it an indispensable part of your lab.

Features

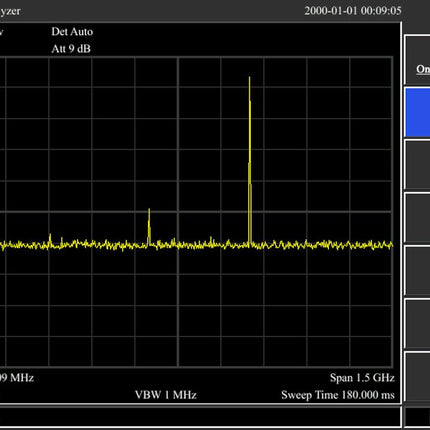

  • Frequency Range from 9 kHz up to 1.5 GHz

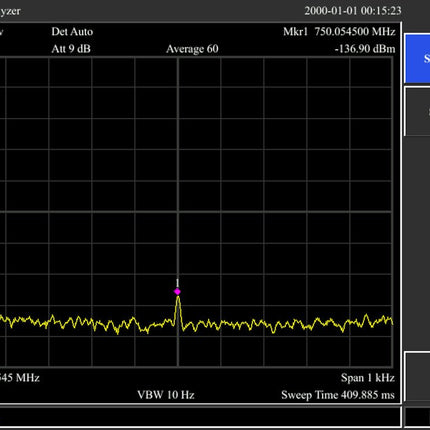

  • 150 dBm Displayed Average Noise Level

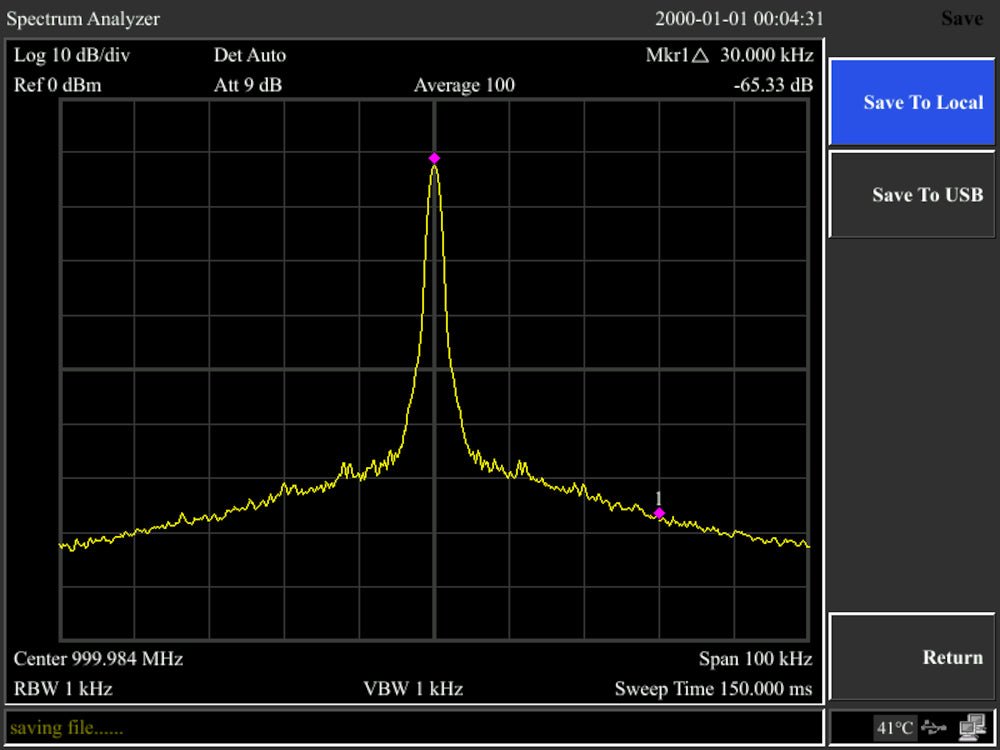

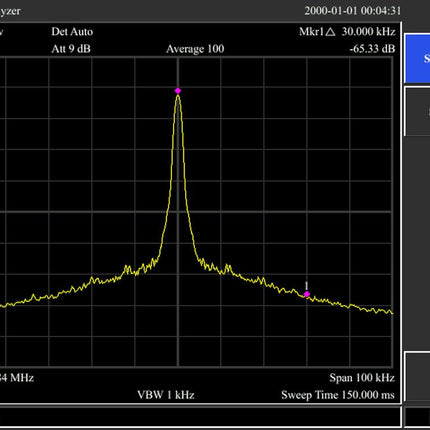

  • Phase Noise -82dBc/Hz @1 Gz and offset at 10 KHz
  • Total Amplitude Accuracy <1.5dB
  • 10 Hz Minimum Resolution Bandwidth (RBW)

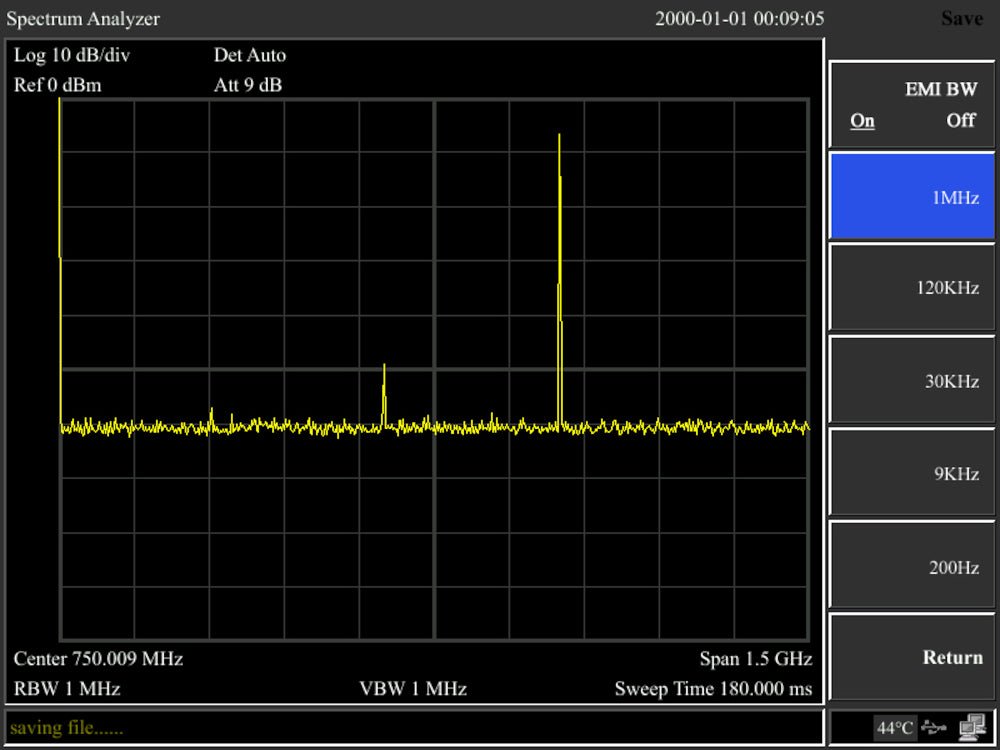

  • EMI Pre-compliance Test Kit
  • 1.5 GHz Tracking Generator Kit
  • 10.4 inches display

Specifications

Frequency Specification
Frequency
Range 9kHz - 1.5 GHz
Resolution 1Hz
Frequency span
Range 0 Hz, 100 Hz to maximum frequency of device
Accuracy ± span /?swept points -1?
Internal reference
Reference frequency 10.000000 MHz
Temperature stability < 2.5 ppm (15 ? to 35 ??
Aging rate < 1 ppm / year
Bandwidth
Resolution bandwidth (-3 dB) 10 Hz to 500 kHz (in 1 to 10 sequence), 1 MHz, 3 MHz
Video bandwidth (-3 dB) 10 Hz to 3 MHz
Amplitude Specification

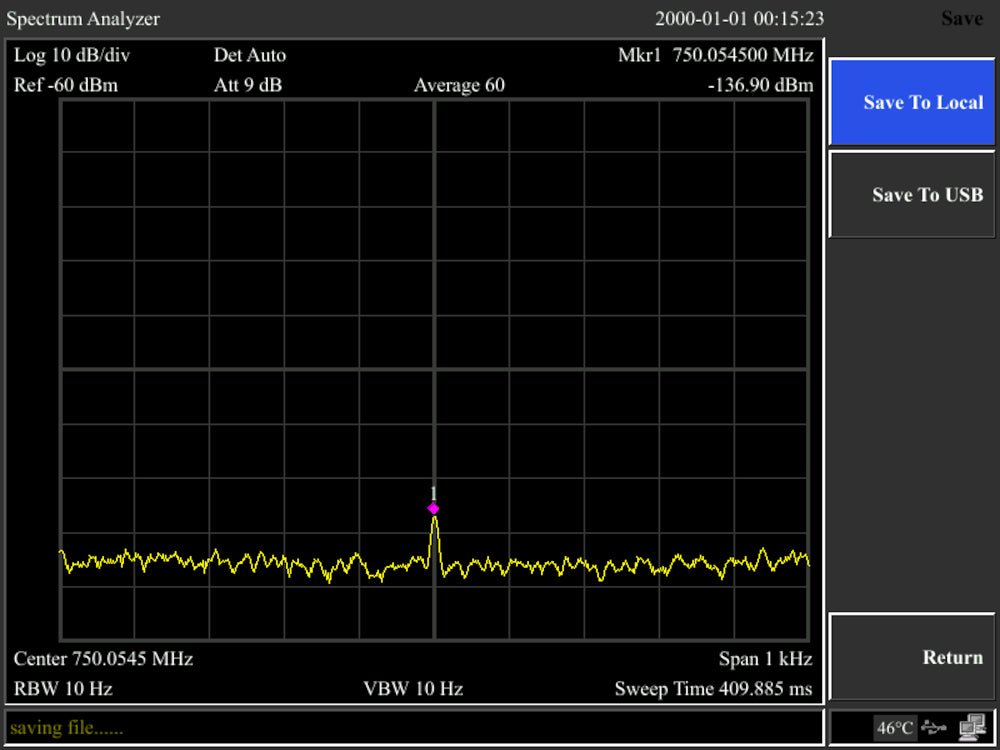

Displayed average noise level?DANL?
Input attenuation 0 dB?1Hz resolution bandwidth
Preamp off 1 MHz ~ 10 MHz - 140 dBm?nominated?
10 MHz ~ 1GHz - 140 dBm?nominated?
1 GHz ~ 1.5 GHz - 138 dBm (nominated)
Preamp on <-82 dBc / Hz @ 10 kHz offset
<-100 dBc / Hz @ 100 kHz offset
<-110 dBc / Hz @ 1 MHz offset
Level display range
Log scale coordinate 1 dB ~ 255 dB
Linear scale coordinate 0 to reference level
level unit dBm, dBuW, dBpW, dBmV, dBuV, W, V
Points 201 ~ 1001
Number of traces 5
Detectors Positive-peak, negative-peak, sample, normal, RMS
Trace functions Clear write, Max Hold, Min Hold, View, Blank, Average
Accuracy
Input Attenuation Switching Uncertainty 20? ~ 30?, fc=50 MHz, Preamplifier Off, 20dB RF attenuation, input signal 0~39 dB
±0.5 dB
Absolute Amplitude Uncertainty 20? ~ 30?, fc=50 MHz, RBW=1 kHz, VBW=1 kHz, peak detector, 20 dB RF attenuation
Preamplifier Off ±0.4 dB, input signal= -20 dBm
Preamplifier On ±0.5 dB, input signal= -40 dBm
Uncertainty input signal range 0 dbm ~ -50 dbm
±1.5 dB
VSWR input 10 dB RF attenuation?1 MHz ~ 1.5GHz
<1.5, nominal
Tracking generator
Output frequency range 100 kHz ~ 1.5 GHz
Output power level range -30 dBm ~ 0 dBm
Output power level resolution 1dB
Output flatness +/-3 dB
Maximum safe reverse level Average total power: 30 dBm, DC: ±50 VDC
Inputs and Outputs
Front panel RF input connector 50 ??N-type female
Front panel track generator output 50 ??N-type female
10 M reference input 50 ??N-type female

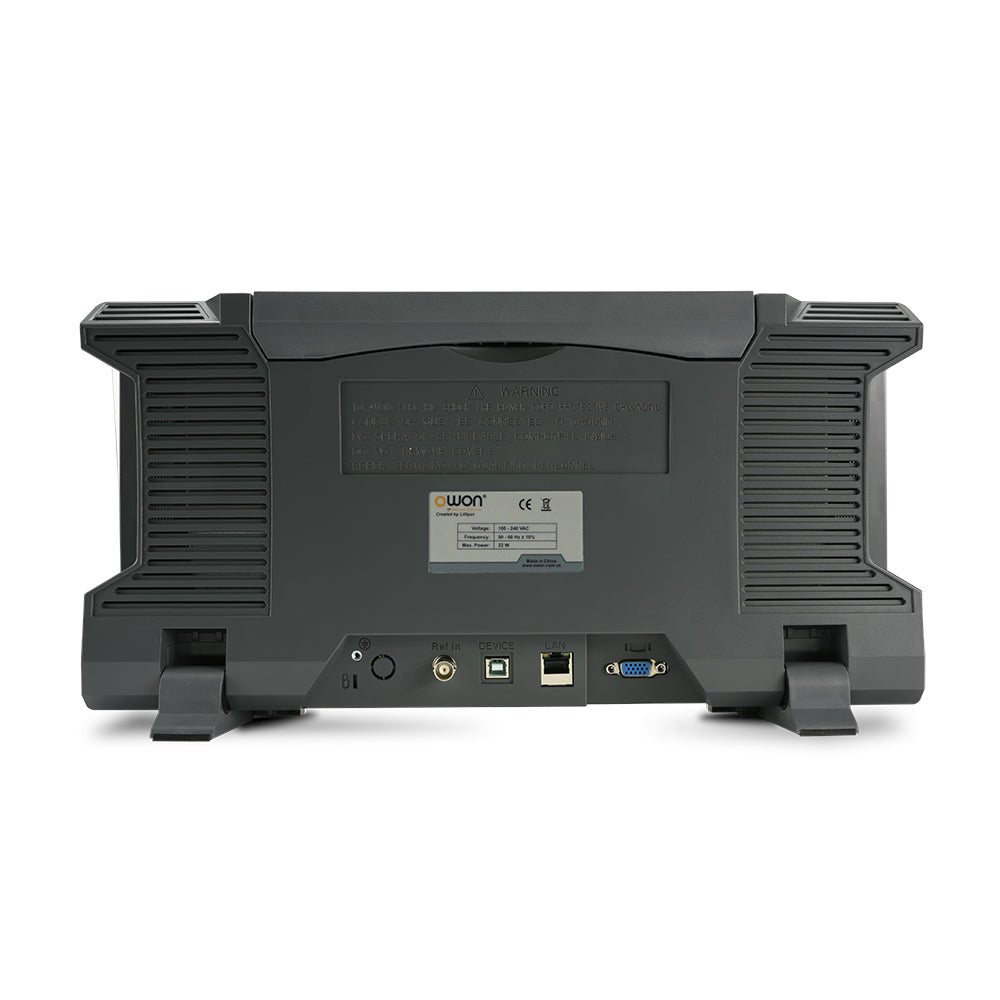

Communication port USB Host, USB Device, LAN, earphone port, and VGA
General technical specification
Display TFT LCD, 10.4 inches
Weight 5.0 kg
Dimension (W x H x D) 421 x 221 x 115 mm

Downloads

Productformulier

The OWON XSA1015-TG Spectrum Analyzer offers a variety of features that will make it an indispensable part of your lab.... Lees meer

Nog 1 op voorraad

€ 1.349,00 incl. BTW
Leden € 1.214,10
