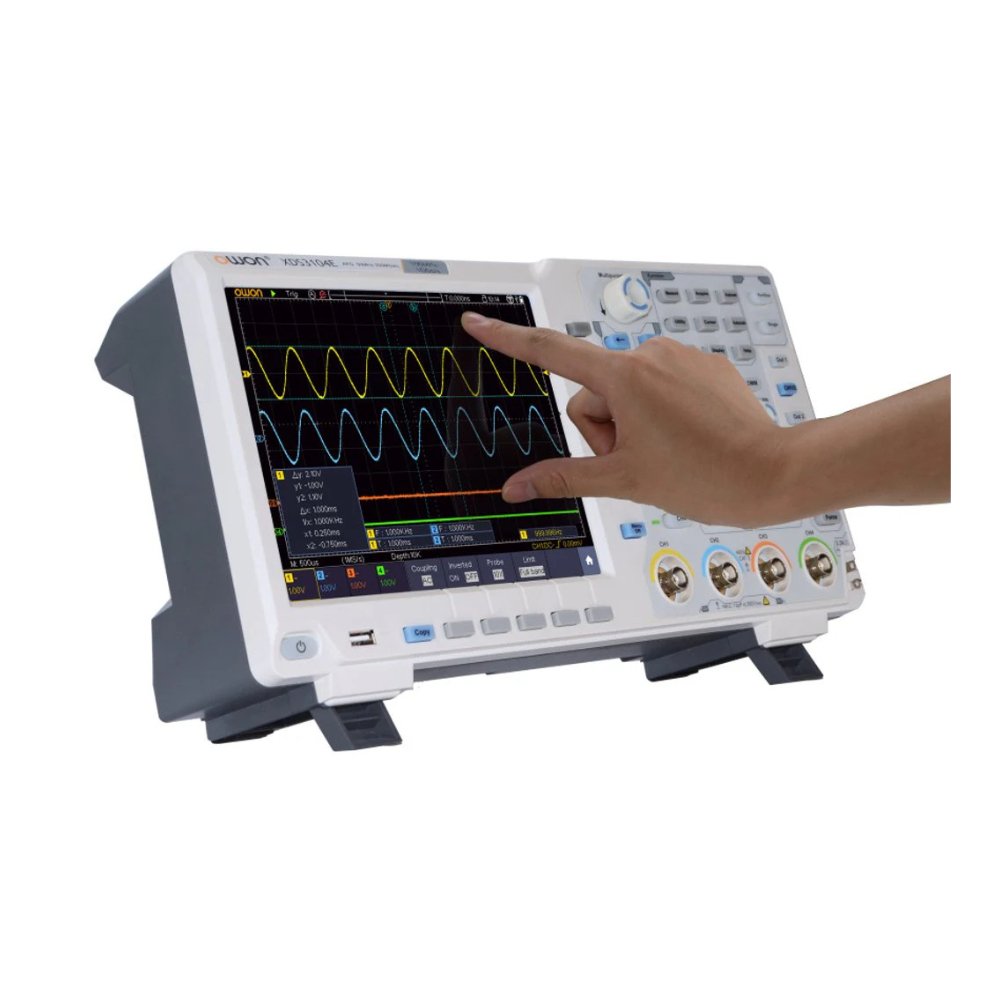

OWON XDS3064E 4-ch Oscilloscope (60 MHz)

  • FabrikantOWON

Omschrijving

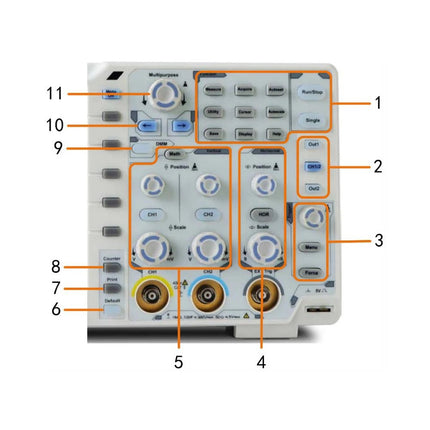

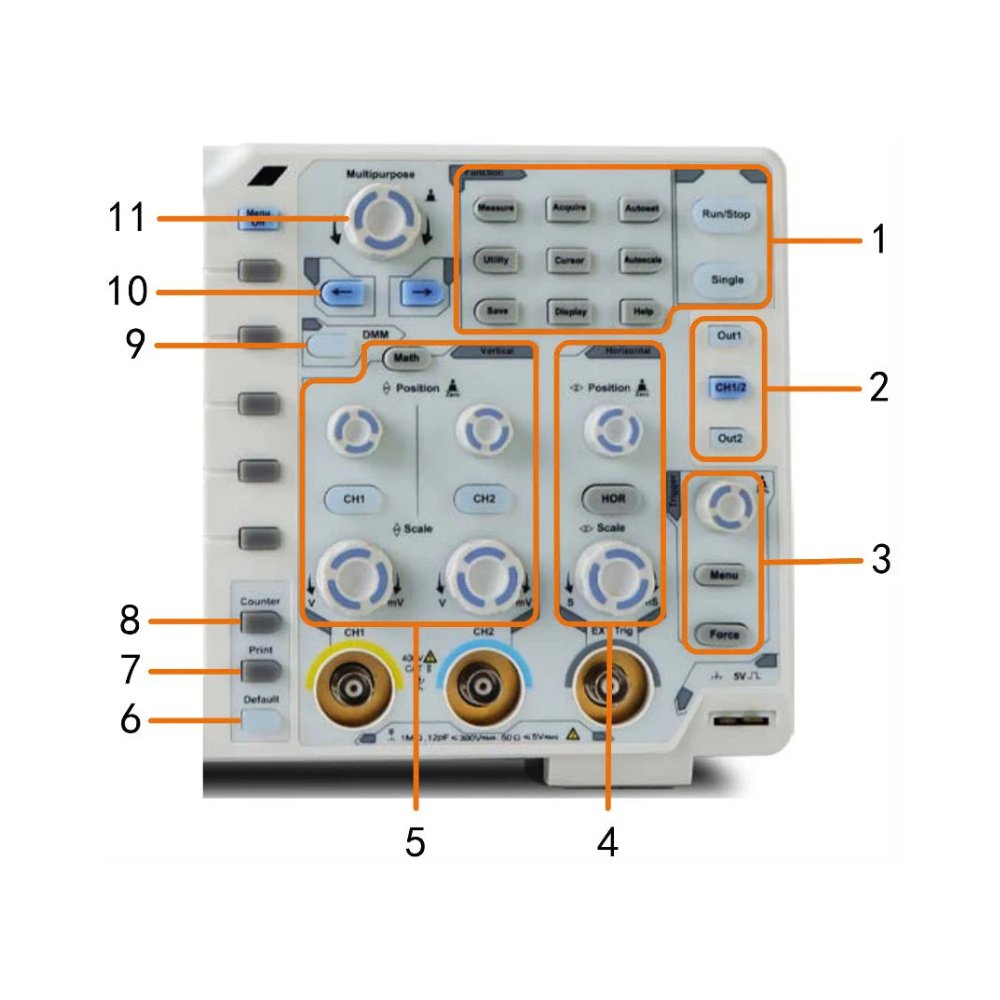

Control Area

  1. Function button area
  2. DAQ, P/F, W. R E C
  3. Trigger control area
  4. Horizontal control area
  5. Vertical control area
  6. Default
  7. Print
  8. Turn on/offthe Counter
  9. Snapshot
  10. Direction key
  11. Multipurpose knob
XDS3064E
Bandwidth 60MHz
Sample Rate 1 GS/s
Vertical Resolution (A/D)) 8 bits
Record length 40M
Waveform Refresh Rate 45,000 wfms/s
Horizontal Scale (s/div)) 2ns/div - 1000s/div, step by 1 - 2 - 5
Channel 4
Display 8' color LCD, 800 x 600 pixels display
Sample Rate / Relay Time Accuracy ±2.5 ppm
Input Coupling DC, AC, GND
Vertical Sensitivity 1mV/div - 10V/div (at input)
Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge and Logic
Trigger Mode Auto, Normal, and Single
Vertical Range ±2V(1mV/div?50mV/div)?±20V(100mV/div?1V/div)?±200V(2V/div?10V/div)
Waveform Math +, -, *, /, FFT, Intg, Diff, Sqrt, and user-defined function
Communication Interface USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
Frequency Counter available
Power Supply 100 V - 240 V AC, 50/60 Hz, CAT II
Fuse 2A, T class, 250 V
Dimensions 340 x 177 x 90 mm

Click here for the USB Driver, the user manual or the quick guide provided by OWON

.
Productformulier

Function button area DAQ, P/F, W. R E C Trigger control area Horizontal control area Vertical control area Default Print... Lees meer

Nog 2 op voorraad

€ 399,00 incl. BTW
Leden € 359,10

    • Vandaag verstuurd? Je hebt nog Oct 15, 2024 17:00:00 +0200

    Details

    SKU: 18775
    EAN: 6955344400686

    Omschrijving

    Control Area

    1. Function button area
    2. DAQ, P/F, W. R E C
    3. Trigger control area
    4. Horizontal control area
    5. Vertical control area
    6. Default
    7. Print
    8. Turn on/offthe Counter
    9. Snapshot
    10. Direction key
    11. Multipurpose knob
    XDS3064E
    Bandwidth 60MHz
    Sample Rate 1 GS/s
    Vertical Resolution (A/D)) 8 bits
    Record length 40M
    Waveform Refresh Rate 45,000 wfms/s
    Horizontal Scale (s/div)) 2ns/div - 1000s/div, step by 1 - 2 - 5
    Channel 4
    Display 8' color LCD, 800 x 600 pixels display
    Sample Rate / Relay Time Accuracy ±2.5 ppm
    Input Coupling DC, AC, GND
    Vertical Sensitivity 1mV/div - 10V/div (at input)
    Trigger Type Edge, Video, Pulse, Slope, Runt, Windows, Timeout, Nth Edge and Logic
    Trigger Mode Auto, Normal, and Single
    Vertical Range ±2V(1mV/div?50mV/div)?±20V(100mV/div?1V/div)?±200V(2V/div?10V/div)
    Waveform Math +, -, *, /, FFT, Intg, Diff, Sqrt, and user-defined function
    Communication Interface USB host, USB device, USB port for PictBridge, Trig Out (P/F), LAN, and VGA (optional)
    Frequency Counter available
    Power Supply 100 V - 240 V AC, 50/60 Hz, CAT II
    Fuse 2A, T class, 250 V
    Dimensions 340 x 177 x 90 mm

    Click here for the USB Driver, the user manual or the quick guide provided by OWON

    .
