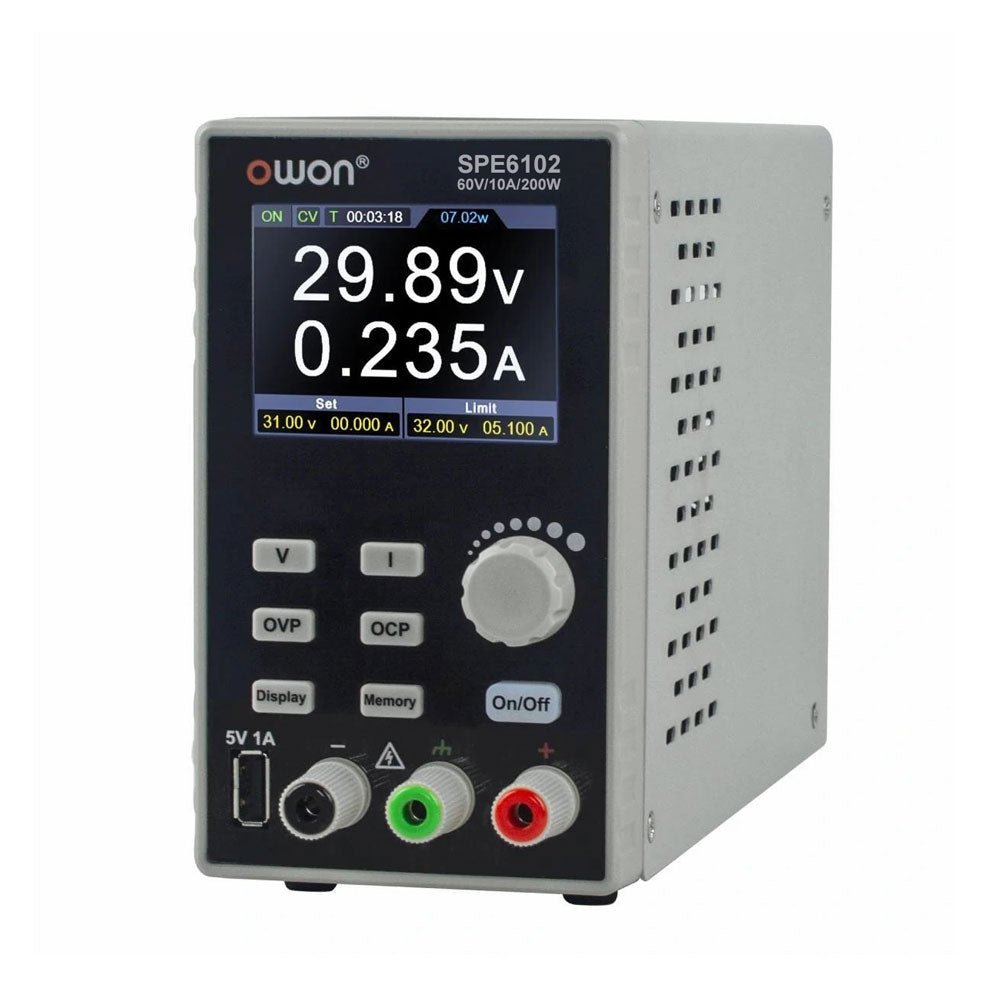

OWON SPE6102 DC Power Supply (200 W)

The OWON SPE6102 is a 1-channel DC power supply (200 W) in a small body with features like over voltage and over current protection. It has a high resolution of 10 mV/1 mA. The 2.8' LCD displays the following information (constant voltage output, constant current output, cumulative running time, actual output power, channel output status, actual voltage output, actual current output).

Features

  • Small body for easy carry
  • High resolution: 10 mV/1 mA
  • List waveform editing output, editable 10 groups of timing output function
  • Low ripple/noise
  • Over voltage / over current protection
  • Output voltage and current curve monitoring function
  • Intelligent temperature control fan cooling
  • 2.8-inch TFT LCD display
  • USB communication interface, support SCPI

Specifications

Model SPE6102 SPE6103
Rated Output (0-40°C) Voltage 0-60 V 0-60 V
Current 10 A 10 A
Output Power 200 W 300 W
USB Output 5 V/1 A (SPE Series) or suppout QC2.0, QC3.0, BC1.2, Apple, Huawei, Samsung fast charging protocols (optional)
Load Regulation Voltage ≤30 mV
Current ≤20 mA
Power Regulation Voltage ≤30 mV
Current ≤20 mA
Setting Resolution Voltage 10 mV
Current 1 mA
Readback Resolution Voltage 10 mV
Current 1 mA
Value Resolution (within 12 months) (25 ±5°C) Voltage ≤0.1% ±30 mV ≤0.1% ±30 mV
Current ≤0.05% ±10 mA
Readback Value Resolution (25 ±5°C) Voltage ≤0.1% ±30 mV ≤0.1% ±30 mV
Current
Ripple/Noise Voltage (Vp-p) ≤50mVp-p ≤50mVp-p
Voltage (rms) ≤5mVrms ≤5mVrms
Current (rms) ≤30mAp-p
Output temperature coefficient (0-40°C) Voltage 100ppm/°C
Current 200ppm/°C
Readback temperature coefficient Voltage 100ppm/°C
Current 200ppm/°C
Response Time (50-100% rated load) ≤1.0ms
Storage 4 groups of data
Working Temperature 0-40°C

Included

  • 1x OWON SPE6102
  • 1x Power Cord
  • 1x Quick Guide
  • 1x USB Cable
  • 1x Fuse

Downloads

Productformulier

The OWON SPE6102 is a 1-channel DC power supply (200 W) in a small body with features like over voltage and... Lees meer

No reviews

SKU: 20501
EAN: 020501

€ 109,95 Incl. BTW
Leden € 98,96
