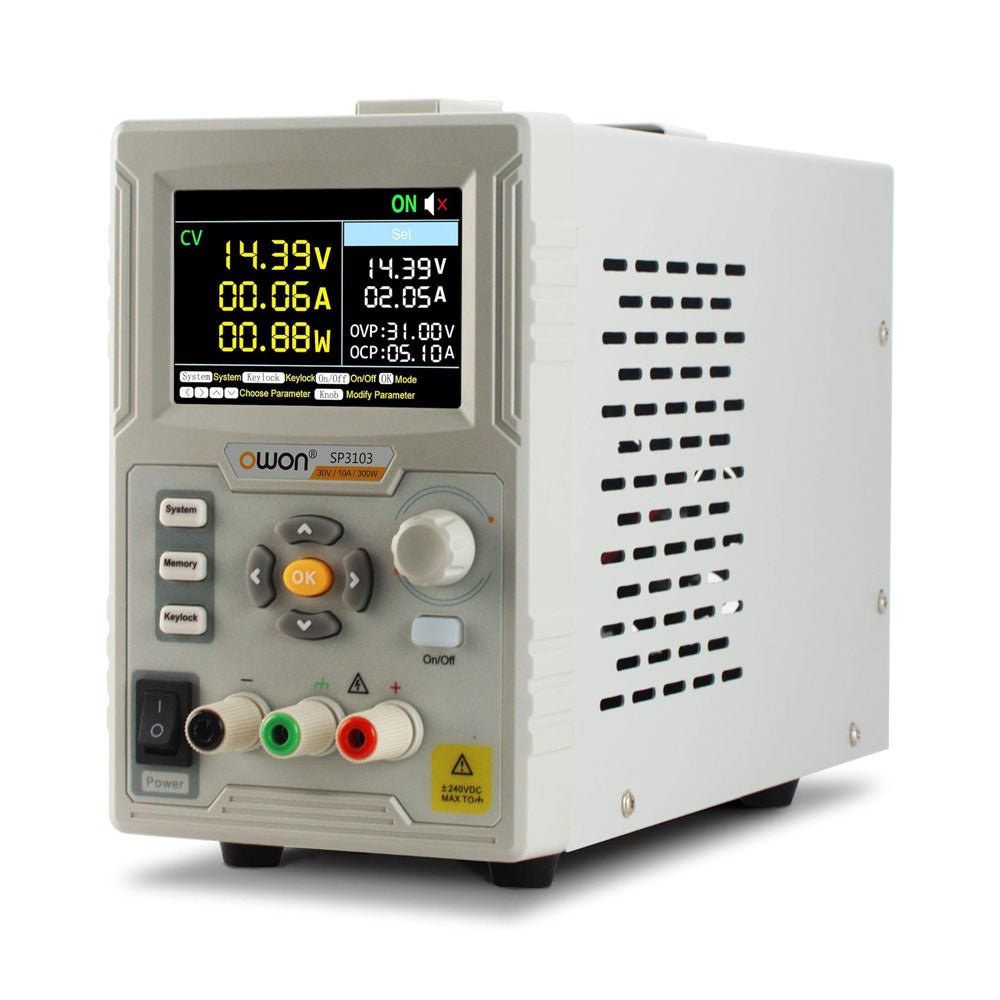

OWON SP3103 DC Power Supply (300 W)

Productformulier

OWON SP3103 is a compact 300 W power supply with various combinations of voltages and currents for accurate measurements for... Lees meer

Niet op voorraad

€ 129,95 incl. BTW

Leden € 116,96

Details

SKU: 19716

EAN: 019716

Rated Output	Voltage	0-30 V
	Current	10 A
	Output Power	300 W
Load Regulation	Voltage	?30 mV
Load Regulation	Current	?30 mA
Power Regulation	Voltage	?20 mV
Power Regulation	Current	?20 mA
Setting Resolution	Voltage	10 mV
Setting Resolution	Current	1 mA
Readback Resolution	Voltage	10 mV
Readback Resolution	Current	1 mA
Value Resolution (within 12 months) (25?±5?)	Voltage	?0.1% ± 20 mV
Value Resolution (within 12 months) (25?±5?)	Current	?0.05% ± 10 mA
Readback Value Resolution (25?±5?)	Voltage	?0.1% ± 20 mV
Readback Value Resolution (25?±5?)	Current	?0.1% ± 10 mA
Ripple/Noise (20Hz-20MHz)	Voltage (Vp-p)	?30 mVp-p
	Voltage (rms)	?3 mVrms
	Current (rms)	?30 mAp-p
Output temperature coefficient (0?-40?)	Voltage	?0.3% ± 10 mV
Output temperature coefficient (0?-40?)	Current	?0.3% ± 20 mA
Readback temperature coefficient	Voltage	?0.3% ± 10 mV
Readback temperature coefficient	Current	?0.3% ± 10 mA
Response Time	?1.0 ms
Storage	5 groups of data
Working Temperature	0-40?
