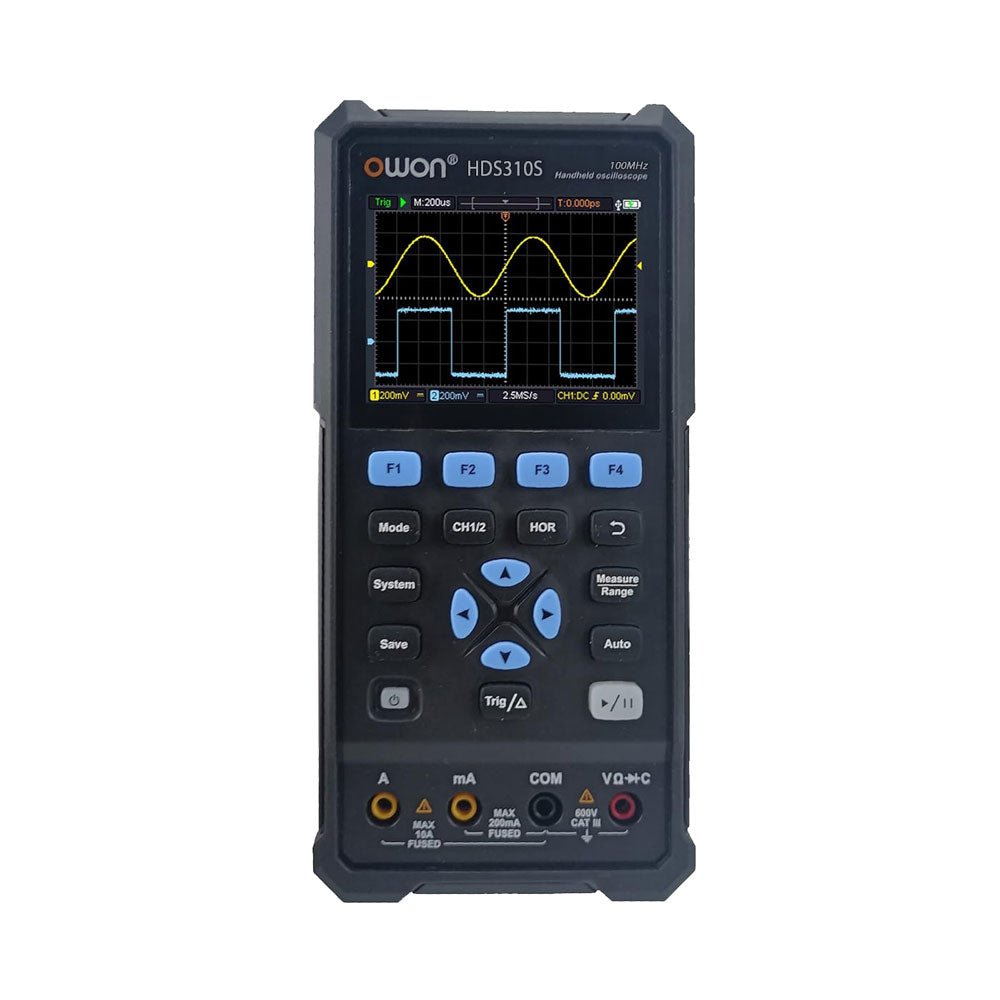

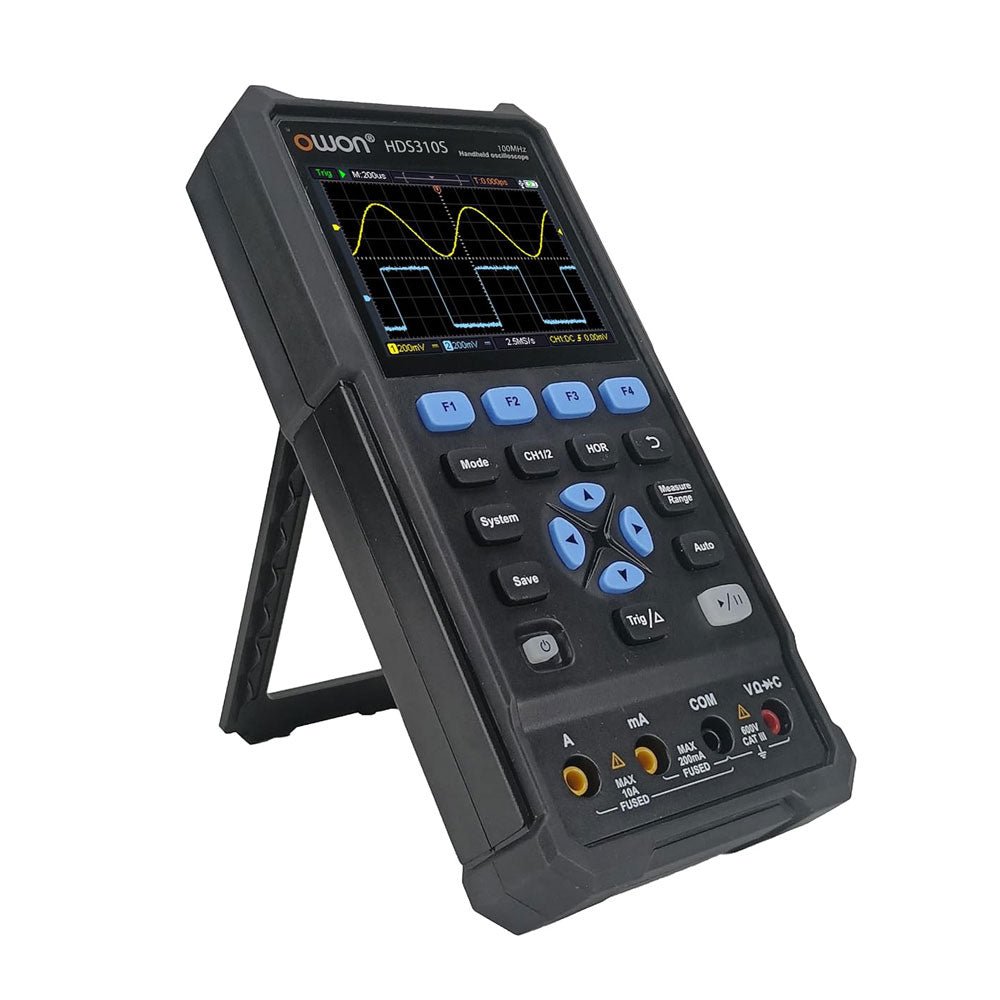

OWON HDS310S (3-in-1) 2-kanaals oscilloscoop (100 MHz) + multimeter + signaalgenerator

  • FabrikantOWON

Omschrijving

This multifunction device combines a dual-channel oscilloscope, multimeter, and waveform generator into one unit. It features a 3.5-inch high-resolution, high-contrast color LCD display, making it suitable for outdoor use.

The device is powered by an integrated 18650 lithium battery and includes a USB-C interface, supporting power bank charging and PC software connection.

Additionally, it has a self-calibration function and supports SCPI (Standard Commands for Programmable Instruments), facilitating secondary development.

Specificaties (oscilloscoop)

Model HDS307S HDS310S
Bandwidth 70 MHz 100 MHz
Channels 2+1 (Signal Generator)
Sample rate 250 MSa/s 500 MSa/s
Acquisition model Sample, Peak detect
Record length 8K
Display 3.5 inch LCD
Waveform refresh rate 10000 wfrms/s
Input coupling DC, AC, Ground
Input impedance 1 MΩ ±2%, in parallel with 16 pF ±10 pF
Probe attenuation 1X, 10X, 100X, 1000X, 10000X
Max. input voltage 400 V (DC+AC, PK - PK)
Bandwidth limit (typical) 20 MHz / Full bandwidth
Sampling rate range 5ns/div ~ 1000s/div, step by 1 – 2 - 5
Sensitivity Resolution 10mV/div~10V/div
Low Frequency(-3db) ≥10 Hz (at input, AC coupling)
Rise time (at input, Typical) ≤5ns ≤3.5ns
Trigger type Edge
Trigger model Auto, Normal, Single
Trigger level range ±4 div from the screen center
Automatic measurement Period, Frequency, Mean, PK-PK, Max, Min, RMS, Rise Time, Fall Time, +Width, -Width
Cursor measurement ΔV, ΔT
Communication interface USB-C

Specificaties (multimeter)

Full scale reading 4 1/2 digitals(max 20000 Counts)
Testing Modes Voltage, Current, Resistance, Capacitance, Diode, Continuity
Maximum Input Voltage AC 750 V
DC 1000 V
Maximum Input Current DC: 10 A
AC: 10 A
Diodes Test 0-2 V

Specificaties (signaalgenerator)

Frequency Output Sine 0.1 Hz~30 MHz
Square 0.1 Hz~6 MHz
Ramp 0.1 Hz~1 MHz
Pulse 0.1 Hz~5 MHz
Arbitrary Waveform 0.1 Hz~5 MHz
Sample Rate 125 MSa/s
Channel 1
Amplitude 20 mVpp-5 Vpp (high impedance)
10 mVpp-2.5 Vpp (50 Ω)
Waveform length 8K
Vertical resolution 14 bits
Load impedance 1 MΩ/50 Ω

Inbegrepen

  • 1x OWON HDS310S
  • 2x Passive probes
  • 1x Crocodile clip cable
  • 2x Multimeter probes (1x red and 1x black)
  • 1x Probe correction adjustment knife
  • 1x USB cable
  • 1x Manual

Downloads

Productformulier

This multifunction device combines a dual-channel oscilloscope, multimeter, and waveform generator into one unit. It features a 3.5-inch high-resolution, high-contrast... Lees meer

Nog 2 op voorraad

€ 249,00 incl. BTW
Leden € 224,10

      Details

      SKU: 20881
      EAN: 020881

      Omschrijving

      This multifunction device combines a dual-channel oscilloscope, multimeter, and waveform generator into one unit. It features a 3.5-inch high-resolution, high-contrast color LCD display, making it suitable for outdoor use.

      The device is powered by an integrated 18650 lithium battery and includes a USB-C interface, supporting power bank charging and PC software connection.

      Additionally, it has a self-calibration function and supports SCPI (Standard Commands for Programmable Instruments), facilitating secondary development.

      Specificaties (oscilloscoop)

      Model HDS307S HDS310S
      Bandwidth 70 MHz 100 MHz
      Channels 2+1 (Signal Generator)
      Sample rate 250 MSa/s 500 MSa/s
      Acquisition model Sample, Peak detect
      Record length 8K
      Display 3.5 inch LCD
      Waveform refresh rate 10000 wfrms/s
      Input coupling DC, AC, Ground
      Input impedance 1 MΩ ±2%, in parallel with 16 pF ±10 pF
      Probe attenuation 1X, 10X, 100X, 1000X, 10000X
      Max. input voltage 400 V (DC+AC, PK - PK)
      Bandwidth limit (typical) 20 MHz / Full bandwidth
      Sampling rate range 5ns/div ~ 1000s/div, step by 1 – 2 - 5
      Sensitivity Resolution 10mV/div~10V/div
      Low Frequency(-3db) ≥10 Hz (at input, AC coupling)
      Rise time (at input, Typical) ≤5ns ≤3.5ns
      Trigger type Edge
      Trigger model Auto, Normal, Single
      Trigger level range ±4 div from the screen center
      Automatic measurement Period, Frequency, Mean, PK-PK, Max, Min, RMS, Rise Time, Fall Time, +Width, -Width
      Cursor measurement ΔV, ΔT
      Communication interface USB-C

      Specificaties (multimeter)

      Full scale reading 4 1/2 digitals(max 20000 Counts)
      Testing Modes Voltage, Current, Resistance, Capacitance, Diode, Continuity
      Maximum Input Voltage AC 750 V
      DC 1000 V
      Maximum Input Current DC: 10 A
      AC: 10 A
      Diodes Test 0-2 V

      Specificaties (signaalgenerator)

      Frequency Output Sine 0.1 Hz~30 MHz
      Square 0.1 Hz~6 MHz
      Ramp 0.1 Hz~1 MHz
      Pulse 0.1 Hz~5 MHz
      Arbitrary Waveform 0.1 Hz~5 MHz
      Sample Rate 125 MSa/s
      Channel 1
      Amplitude 20 mVpp-5 Vpp (high impedance)
      10 mVpp-2.5 Vpp (50 Ω)
      Waveform length 8K
      Vertical resolution 14 bits
      Load impedance 1 MΩ/50 Ω

      Inbegrepen

      • 1x OWON HDS310S
      • 2x Passive probes
      • 1x Crocodile clip cable
      • 2x Multimeter probes (1x red and 1x black)
      • 1x Probe correction adjustment knife
      • 1x USB cable
      • 1x Manual

      Downloads
