Makerfabs LoRa Soil Monitoring & Irrigation Kit (EU868)

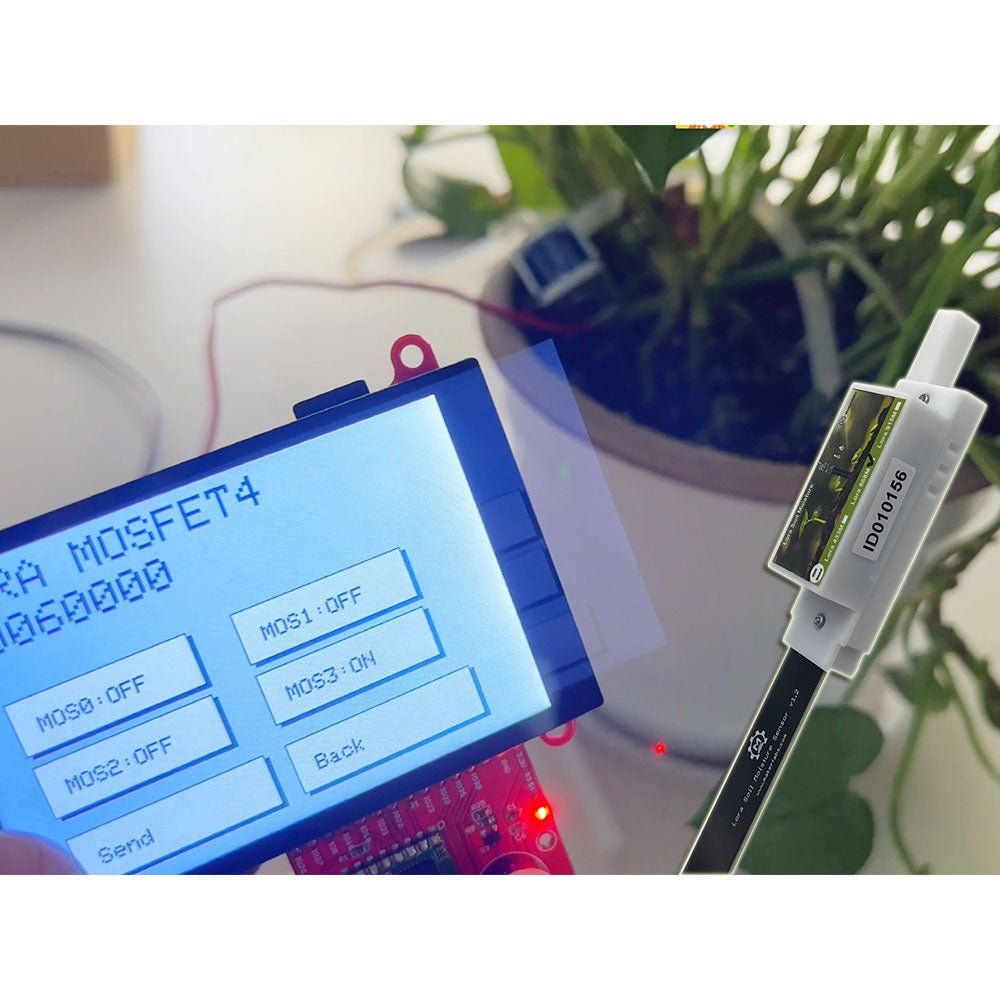

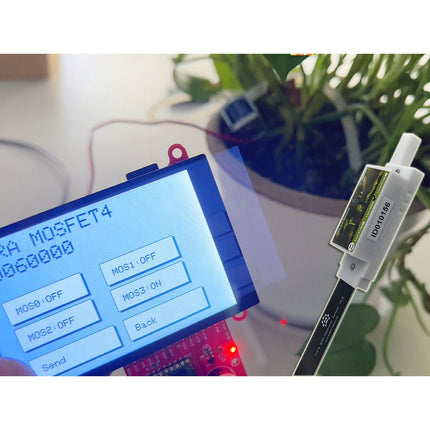

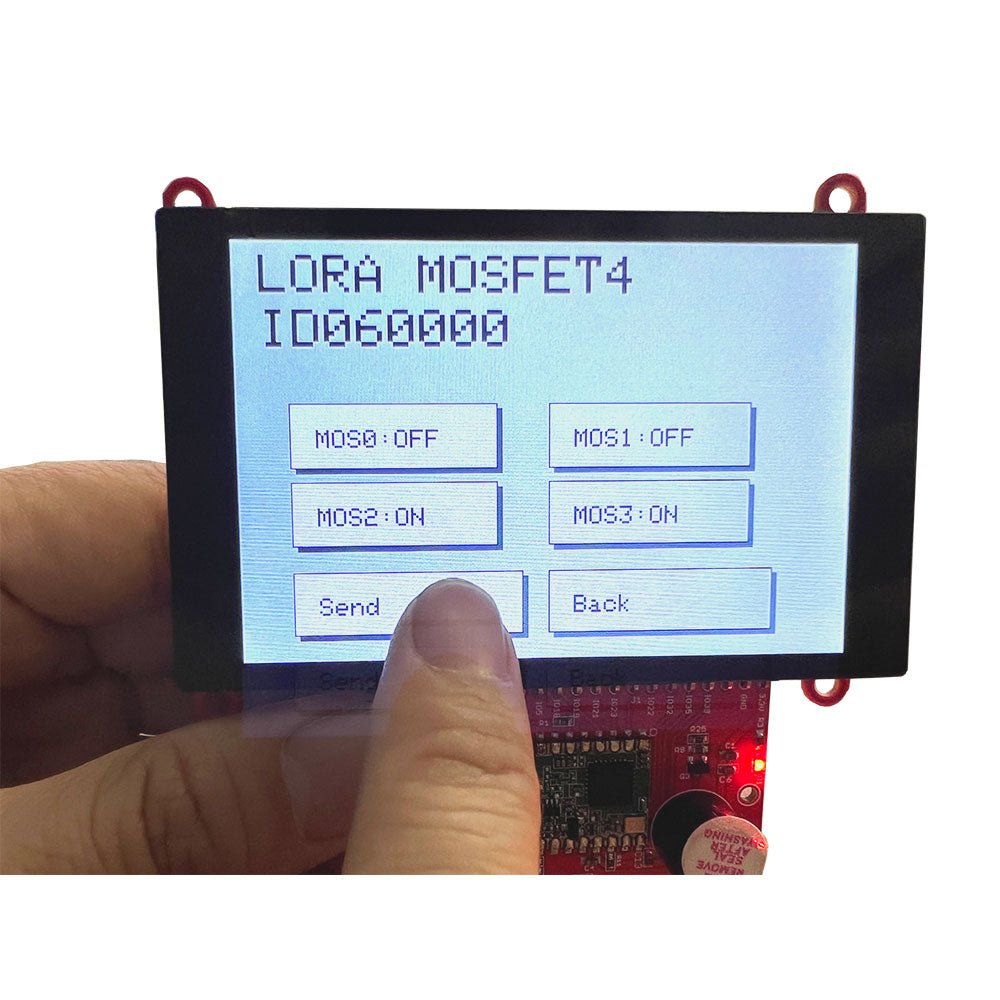

This kit is based on ESP32 and LoRa. The ESP32 3.5' display is the console for the system, it receives the LoRa message from LoRa moisture sensors (support up to 8 sensors in the default firmware) , and send control commands to LoRa 4-channel MOSFET (2 4-channel MOSFET supported, with totally 8 channels), to control the connected valves open/close, and thus to control the irrigation for multiple points.

Features

  • Ready to use: Firmware are pre-programmed for all the modules before shipping, the user can only power them up and set the ID to the console, and start to use. Suitable for none-programmers, in 3 minutes to create filed application.
  • With Lora wireless connection: The monitor & control range can be up to few kilometer, suitable for garden/small farm.

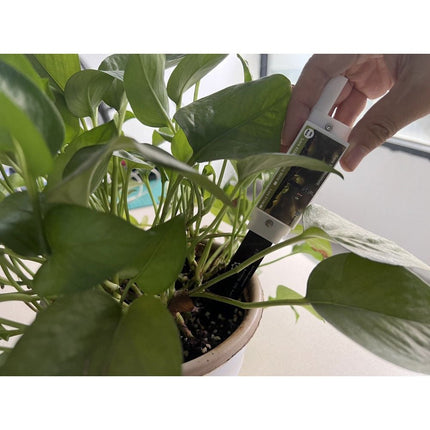

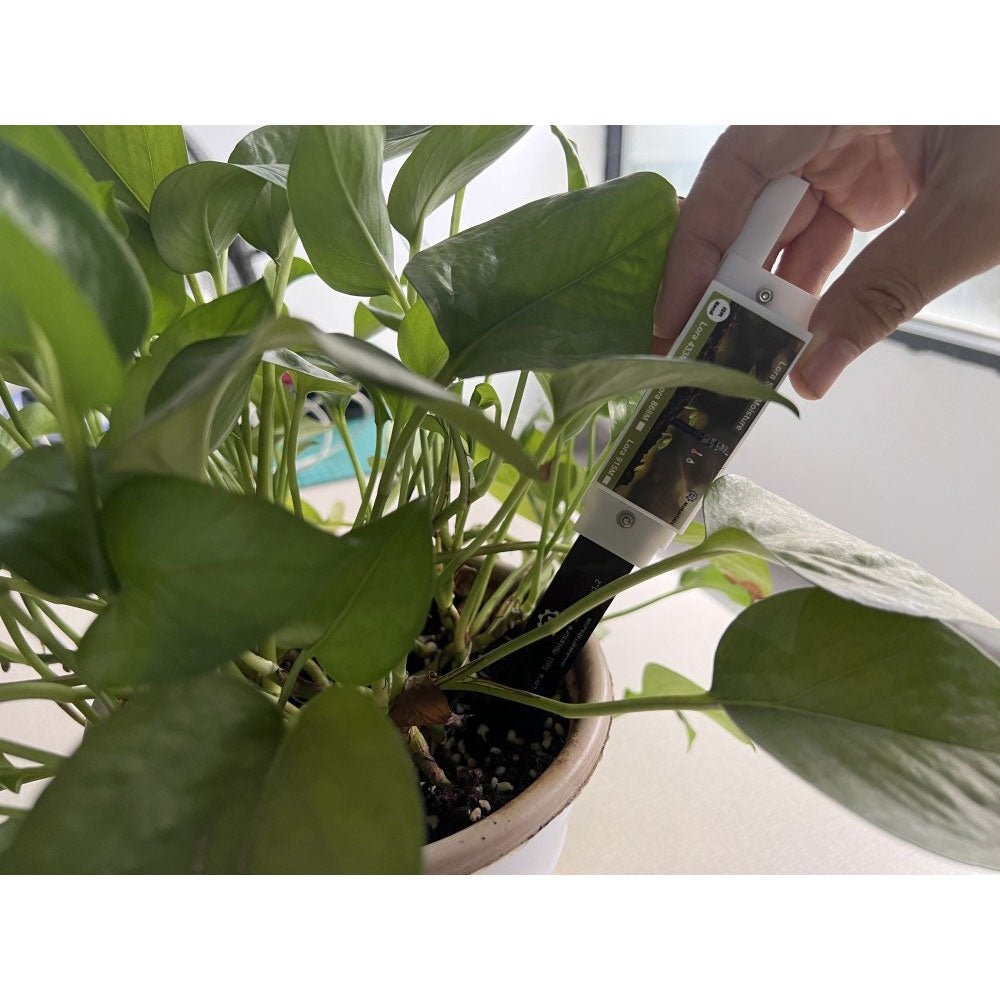

  • Soil moisture sensor with good corrosion resistance, can be used at least half an year with 2 AAA battery.
  • Easy to install: Compares to cheap solution with wires, which is hard to implement in files application, there the connection wires do not needed, the whole installation clean and easy; The valves can be connected Lora MOSFET easily.
  • Hardware & Software Open: To study Lora & FreeRTOS. The ESP32 display console/Lora Soil Moisture Sensor/LoRa MOSFE are all programmed with Arduino. For programmers/engineers, can development further more specialized application.

Based on ESP32, with WiFi connection, the console can also access to internet, the create much more applications including the moisture data updating to internet for remote monitor, and remote control with MQTT.

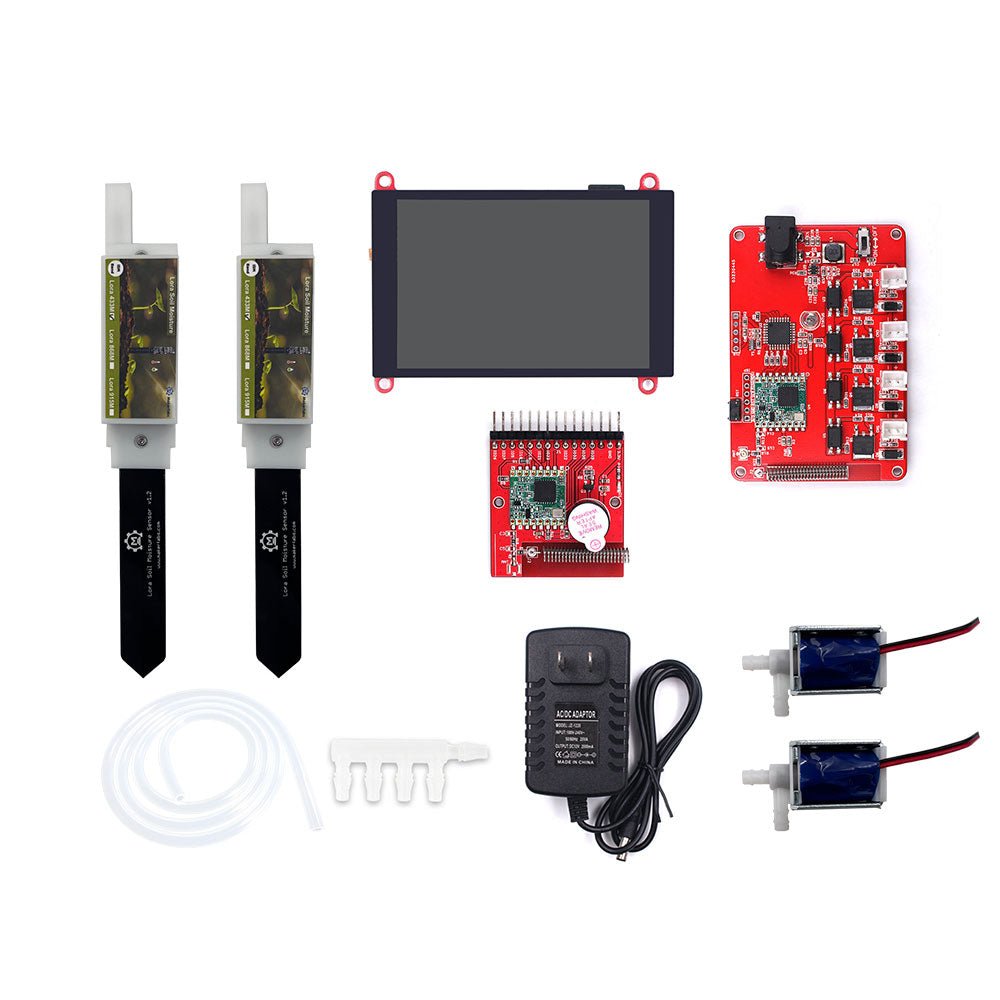

Included

  • 1x ESP32 3.5' Display (without camera)
  • 1x Lora Expansion for ESP32 Display
  • 2x Lora Moisture Sensor
  • 1x Lora 4-channel MOSFET
  • 1x 12 V Power Supply
  • Water Pipe (5 m)
  • 1x 1-input & 4-output Pipe Joint

Downloads


Productformulier

This kit is based on ESP32 and LoRa. The ESP32 3.5' display is the console for the system, it receives... Lees meer

No reviews

SKU: 20237
EAN: 020237

€ 149,95 Incl. BTW
Leden € 134,96

    • Vandaag verstuurd? Je hebt nog: Mar 01, 2024 17:00:00 +0100

    This kit is based on ESP32 and LoRa. The ESP32 3.5' display is the console for the system, it receives the LoRa message from LoRa moisture sensors (support up to 8 sensors in the default firmware) , and send control commands to LoRa 4-channel MOSFET (2 4-channel MOSFET supported, with totally 8 channels), to control the connected valves open/close, and thus to control the irrigation for multiple points.

    Features

    • Ready to use: Firmware are pre-programmed for all the modules before shipping, the user can only power them up and set the ID to the console, and start to use. Suitable for none-programmers, in 3 minutes to create filed application.
    • With Lora wireless connection: The monitor & control range can be up to few kilometer, suitable for garden/small farm.
    • Soil moisture sensor with good corrosion resistance, can be used at least half an year with 2 AAA battery.
    • Easy to install: Compares to cheap solution with wires, which is hard to implement in files application, there the connection wires do not needed, the whole installation clean and easy; The valves can be connected Lora MOSFET easily.
    • Hardware & Software Open: To study Lora & FreeRTOS. The ESP32 display console/Lora Soil Moisture Sensor/LoRa MOSFE are all programmed with Arduino. For programmers/engineers, can development further more specialized application.

    Based on ESP32, with WiFi connection, the console can also access to internet, the create much more applications including the moisture data updating to internet for remote monitor, and remote control with MQTT.

    Included

    • 1x ESP32 3.5' Display (without camera)
    • 1x Lora Expansion for ESP32 Display
    • 2x Lora Moisture Sensor
    • 1x Lora 4-channel MOSFET
    • 1x 12 V Power Supply
    • Water Pipe (5 m)
    • 1x 1-input & 4-output Pipe Joint

    Downloads
