Omschrijving
The extension set adds 5 more sensors and modules to your experiment case. The required connections are provided by the Port-Doubler board.
The set includes an ADC, a linear potentiometer, a joystick module, a magnetic sensor, a pressure and temperature sensor, the Port-Doubler board, a breadboard and a cable set.

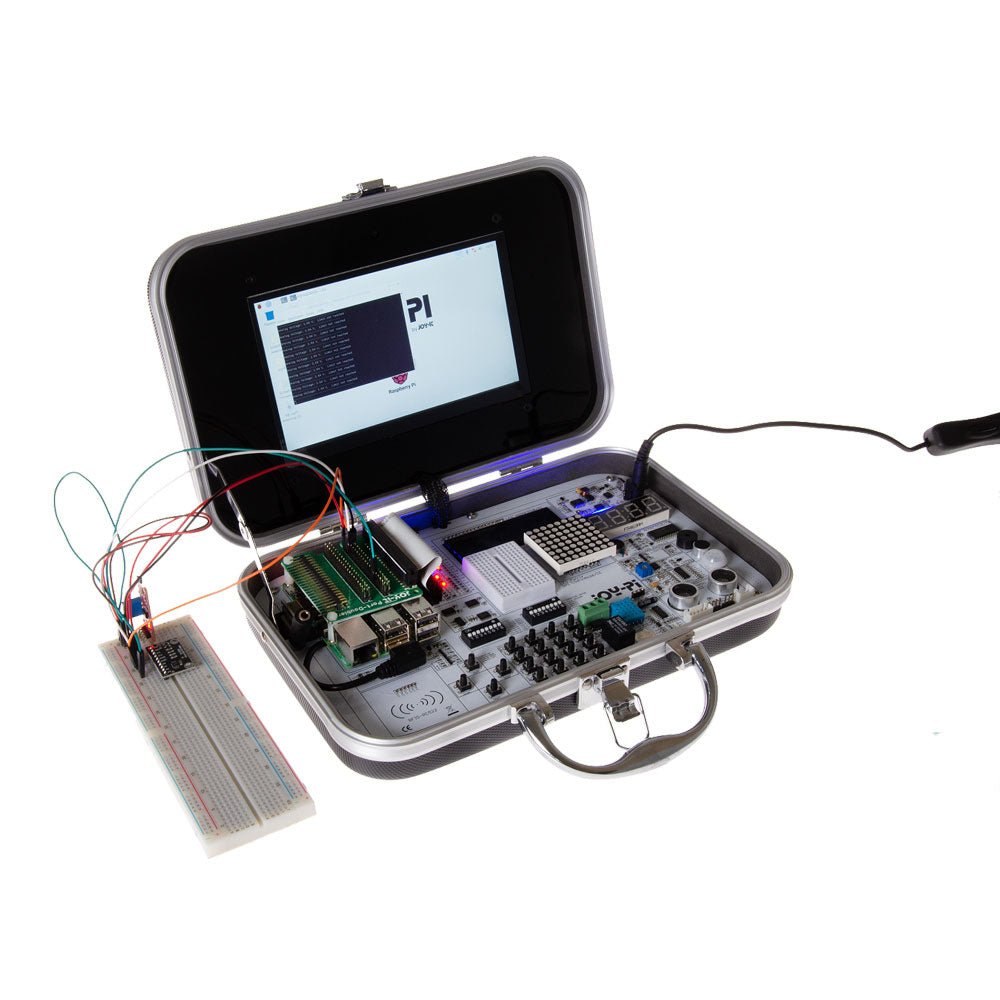

With the Port-Doubler board, you can now also connect your own projects with the Raspberry Pi and the Joy-Pi, thus extending the range of applications considerably.
Specifications
- ADC (for connecting analog sensors): 4-channel 12-bit accuracy (ADS1115)
- Linear potentiometer: 10 k?
- Magnetic sensor: Linear magnetic Hall sensor (49E)
- Pressure and temperature sensor: BMP280
- Joystick: Analog 2-axis joystick module with button

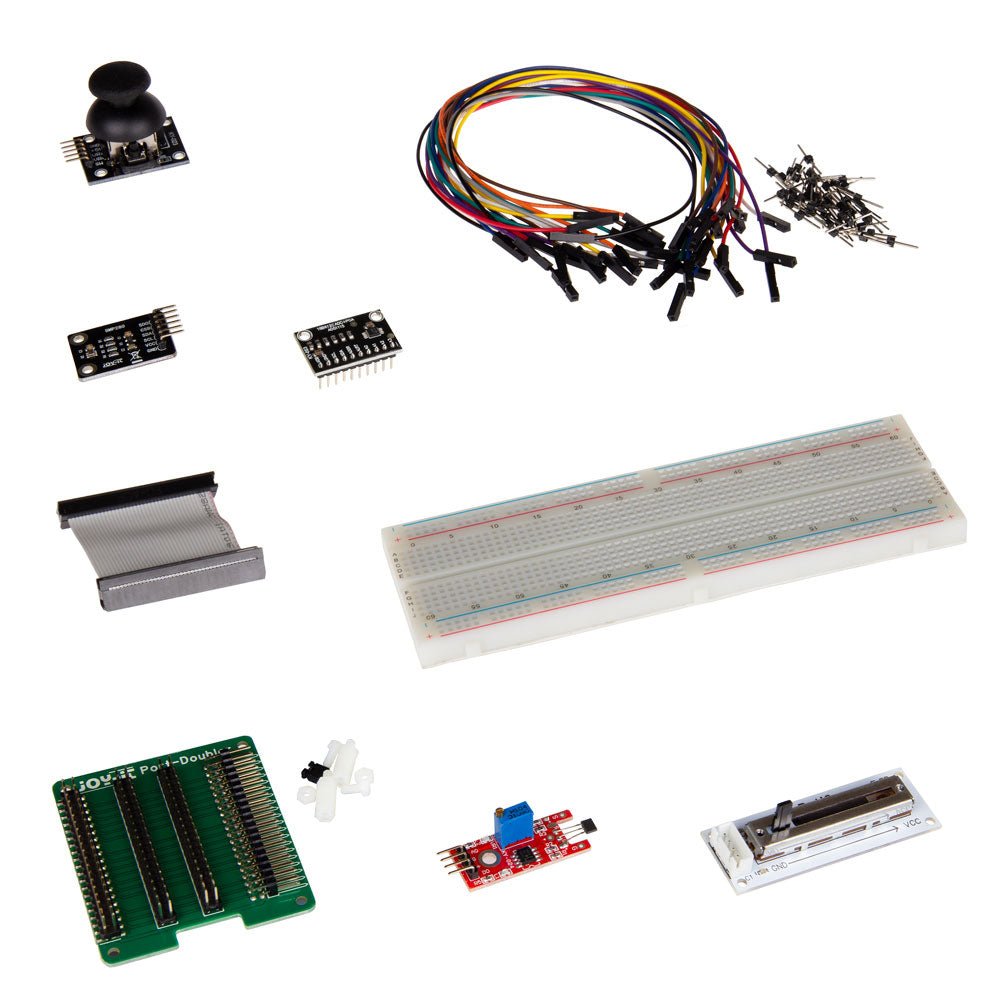

Included
- Port-Doubler board
- Joystick module
- ADC
- Pressure and temperature sensor
- Linear potentiometer
- Magnetic sensor
- Cable set
- Breadboard
