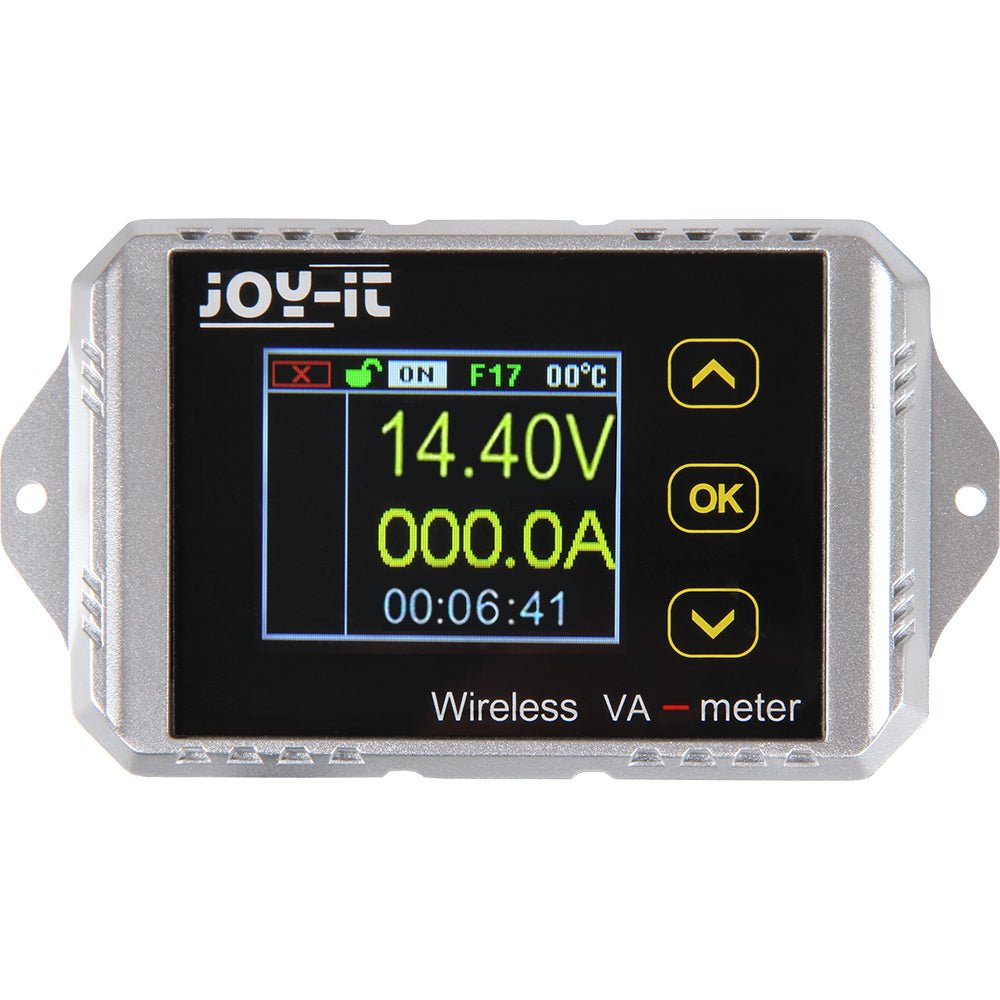

JOY-iT VAX-1030 Wireless Multifunction Meter

  • FabrikantJOY-iT

Omschrijving

Voltage Range 0 V - 100 V
Voltage Resolution 0.01 V
Voltage Accuracy ± 2% - 3 Digit
Current Range 1 A - 30 A
Current Resolution 0.01 A
Power Range 0 W - 200 kW
Power Resolution 0.001 W
Working Measuring Range 0 W - 4000 kWh
Working Measuring Resolution 0.001 Wh
Load Display Range 0 Ah - 2000 kWh
Load Display Resolution 0.001 Ah
Temperature Range -20 °C - 120 °C
Time Range 0 - 99 days
Time Resolution 1 sec
Negative Overcurrent Protection 0 A - -300 A
Positive Overcurrent Protection 0 A - 300 A
Overvoltage Protection (OVP) 0 V - 100 V
Undervoltage Protection (LVP) 0 V - 100 V
Protection Delay Time 0 - 10 sec
Relays Internal
Communication Channels A - Z (26 channels)
Address Range 01 - 99
Communication Range Up to 10 m
Dimensions 113.2 mm x 57.2 mm x 48.8 mm
Weight 315 g
Productformulier

Voltage Range 0 V - 100 V Voltage Resolution 0.01 V Voltage Accuracy ± 2% - 3 Digit Current Range... Lees meer

€ 42,95 incl. BTW
Leden € 38,66

    • Vandaag verstuurd? Je hebt nog Jul 13, 2024 17:00:00 +0200

    Details

    SKU: 19199
    EAN: 019199

    Omschrijving

    Voltage Range 0 V - 100 V
    Voltage Resolution 0.01 V
    Voltage Accuracy ± 2% - 3 Digit
    Current Range 1 A - 30 A
    Current Resolution 0.01 A
    Power Range 0 W - 200 kW
    Power Resolution 0.001 W
    Working Measuring Range 0 W - 4000 kWh
    Working Measuring Resolution 0.001 Wh
    Load Display Range 0 Ah - 2000 kWh
    Load Display Resolution 0.001 Ah
    Temperature Range -20 °C - 120 °C
    Time Range 0 - 99 days
    Time Resolution 1 sec
    Negative Overcurrent Protection 0 A - -300 A
    Positive Overcurrent Protection 0 A - 300 A
    Overvoltage Protection (OVP) 0 V - 100 V
    Undervoltage Protection (LVP) 0 V - 100 V
    Protection Delay Time 0 - 10 sec
    Relays Internal
    Communication Channels A - Z (26 channels)
    Address Range 01 - 99
    Communication Range Up to 10 m
    Dimensions 113.2 mm x 57.2 mm x 48.8 mm
    Weight 315 g
