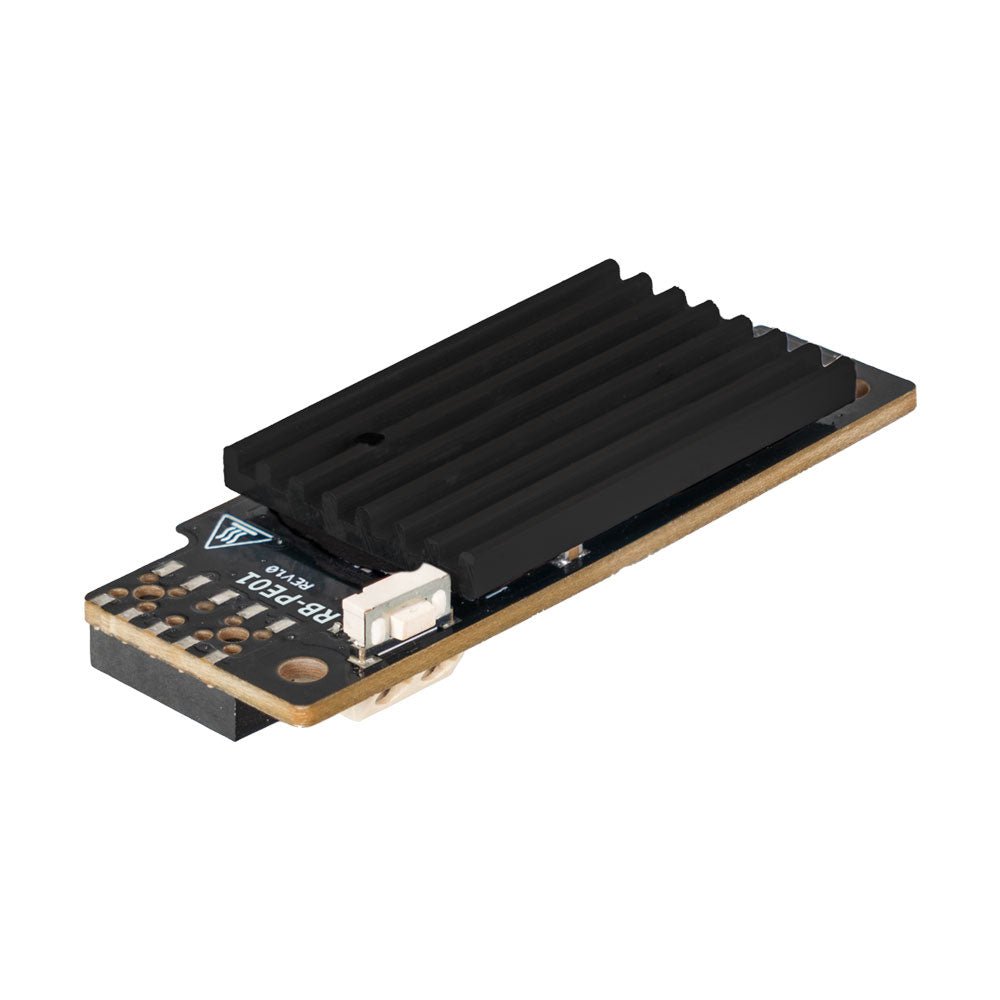

Wide Range Power Supply for Raspberry Pi

With the PiEnergy Mini, you can operate your Raspberry Pi with a voltage of 6 to 36 V DC. You can use the button integrated on the board to both power up and power down your Raspberry Pi.

Communication with the Raspberry Pi is via GPIO4, but this connection can also be cut by removing a resistor to use the pin freely. Thanks to the ultra-flat design, it can also be used in many housings. The pin header is included and not soldered on to keep the design even flatter.

Specifications

Input voltage	6 to 36 V DC
Output voltage	5.1 V
Output current	Up to 3 A (active ventilation recommended for additionally connected loads)
Cable cross-section at the power input	0.2-0.75 mm²
Interface to the Raspberry Pi	GPIO4
Microcontroller	ATtiny5
Further connections	5 V fan connector (2-pin/2.54 mm) Solder pads for external on/off switch
Compatible with	Raspberry Pi 3, 4, 5
Dimensions	23 x 56 x 11 mm

Included

Board with mounted heat sink
Pin header (2x5)
Spacer, screw, nut
