Omschrijving

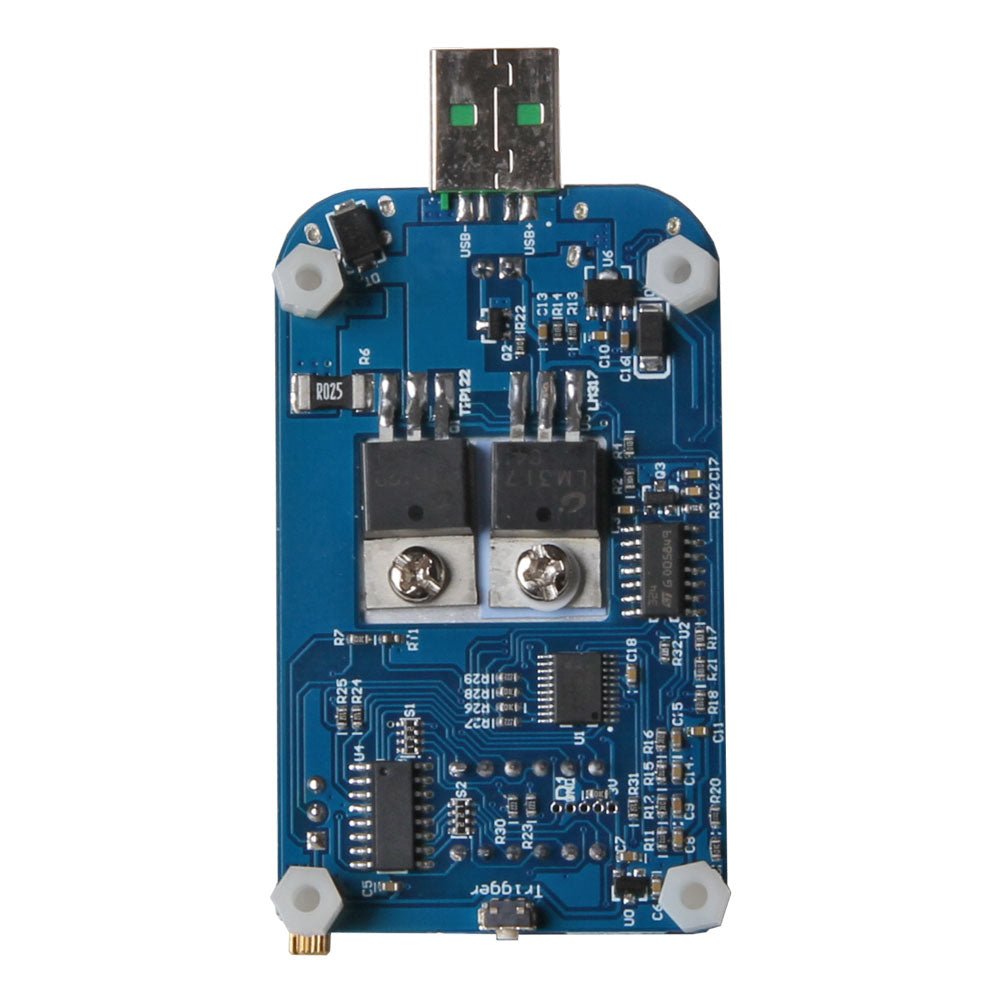

The HD35 offers you a compact electronic USB-load-resistor with a performance capability up to 35 Watt.
The present current can be easily read on the LCD-Display. Moreover, the device has an adjustable trimmer and is because of this capable of simulating different charging electronics like QC2.0, QC3.0, FCP and AFC 9V.
The maximal voltage is up tp 25 V and the maximal current is up to 5 A. This is the reason that it is suitable for nearly every area of application.
The built-in cooling component in connection with the temperature controlled fan unit is very effective in cooling down the complete device.
With the help of the integrated button it is possible to activate or deactivate the configurated load very fast.
Features
- USB Load Resistor up to 35 W
- Adjustable via built-in trimmer
- LCD display of actual current strength
- Buttons for switching the load on/off
- Simulation of different charging electronics: QC2.0 (5 V, 9 V, 20 V), QC3.0, FCP, AFC 9V
Technical Details
Operating Voltage | 4 V - 25 V |
Operating Current | 0.25 A - 5 A |
Power | 35 W |
Measuring Temperature Range | -10 °C - 40 °C |
Display | 4 Digit Segment Display |
Display Color | Red |
Fan Speed | 8000 RPM ± 10% | Temperature-controlled |
Connections | USB 2.0, MicroUSB, USB Type-C |
Dimensions | 84 mm x 41 mm x 28 mm |
Weight | 52 g |
