Omschrijving

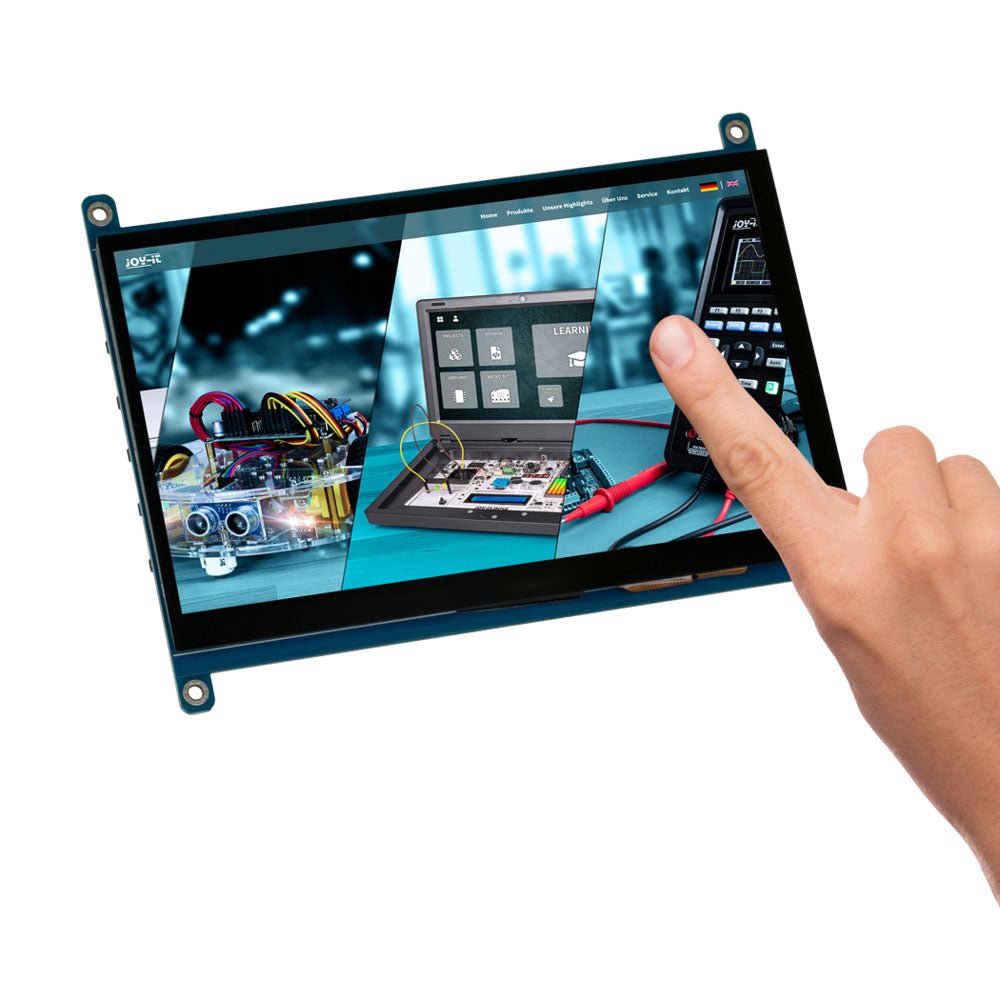

This 7' touch display convinces with its variety of different application possibilities. The display can be connected via HDMI as well as via VGA. It has a 3.5 mm audio connector and a 4-pin JST-connector, to which headphones or two 2 W / 5 ? speakers can be connected. The integrated software allows you to configure settings such as contrast and brightness using the buttons on the side.
Specifications
| LCD type |
IPS |
| Resolution |
1024 x 600 |
| Contrast |
800:1 |
| Brightness |
350 CD/m² |
| Multitouch |
Capacitive, 5 Points |
| Connections |
Connections HDMI, VGA, Audio 3.5 mm, JST connector for two 2 W / 5 ? speaker |
| Power supply |
5 V/2 A |
| Viewing angle |
175° |
| Colors |
16,7 M |
| Further special features |
Additional solder pads to lead the buttons to the |
| Dimensions |
165 x 124 x 13 mm |
Included
- 1x 7' Display
- 1x microUSB-cable
- 1x VGA-cable
- 1x HDMI-cable
- 1x HDMI-microHDMI-cable
