iLabs Challenger RP2040 NFC

  • FabrikantiLabs

Omschrijving

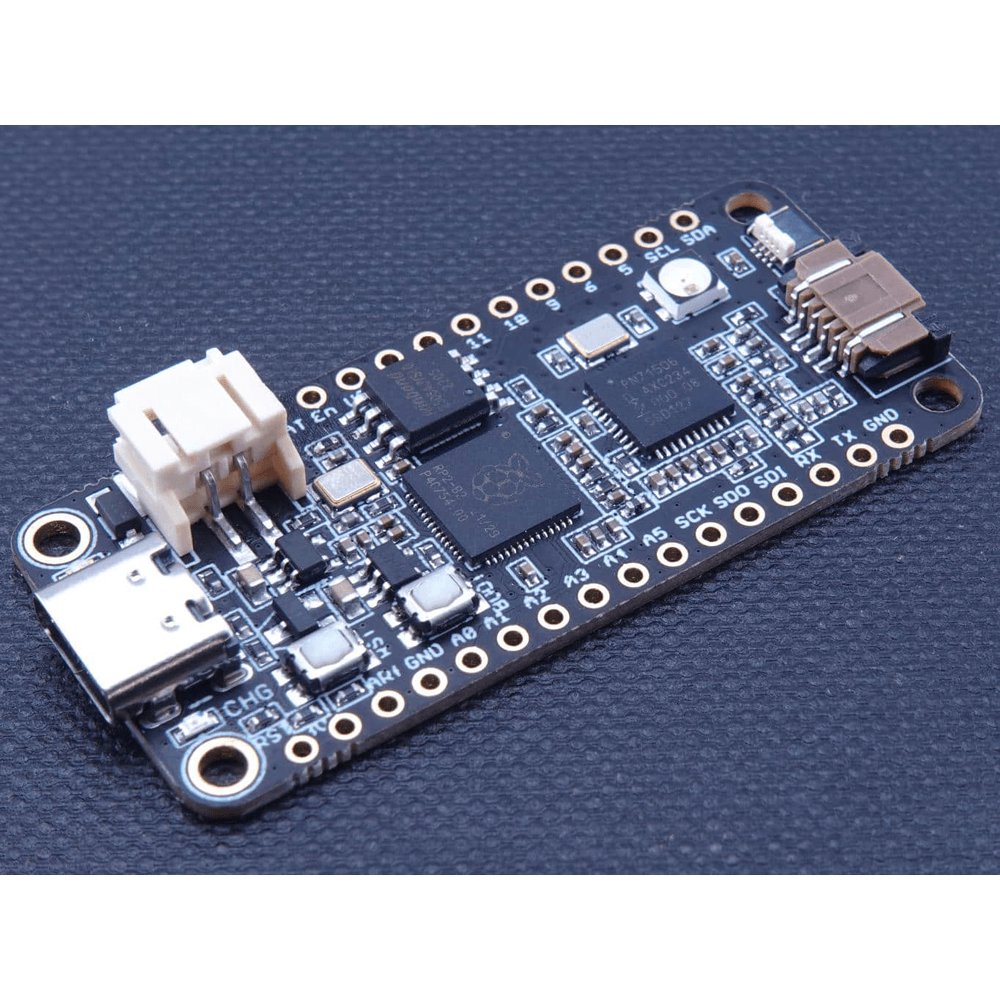

The Challenger RP2040 NFC is a small embedded computer, equipped with an advanced on-board NFC controller (NXP PN7150), in the popular Adafruit Feather form factor. It is based on an RP2040 microcontroller chip from the Raspberry Pi Foundation which is a dual-core Cortex-M0 that can run on a clock up to 133 MHz.

NFC

The PN7150 is a full featured NFC controller solution with integrated firmware and NCI interface designed for contactless communication at 13.56 MHz. It is fully compatible with NFC forum requirements and is greatly designed based on learnings from previous NXP NFC device generation. It is the ideal solution for rapidly integrating NFC technology in any application, especially small embedded systems reducing Bill of Material (BOM).

The integrated design with full NFC forum compliancy gives the user all the following features:

  • Embedded NFC firmware providing all NFC protocols as pre-integrated feature.
  • Direct connection to the main host or microcontroller, by I²C-bus physical and NCI protocol.
  • Ultra-low power consumption in polling loop mode.
  • Highly efficient integrated power management unit (PMU) allowing direct supply from a battery.

Specifications

Microcontroller RP2040 from Raspberry Pi (133 MHz dual-core Cortex-M0)
SPI One SPI channels configured
I²C Two I²C channel configured (dedicated I²C for the PN7150)
UART One UART channel configured
Analog inputs 4 analog input channels
NFC module PN7150 from NXP
Flash memory 8 MB, 133 MHz
SRAM memory 264 KB (divided into 6 banks)
USB 2.0 controller Up to 12 MBit/s full speed (integrated USB 1.1 PHY)
JST Battery connector 2.0 mm pitch
On board LiPo charger 450 mA standard charge current
Dimensions 51 x 23 x 3,2 mm
Weight 9 g

Note: Antenna is not included.

Downloads

Productformulier

The Challenger RP2040 NFC is a small embedded computer, equipped with an advanced on-board NFC controller (NXP PN7150), in the... Lees meer

€ 22,95 incl. BTW
Leden identiek

    • Vandaag verstuurd? Je hebt nog Nov 13, 2024 17:00:00 +0100

    Details

    SKU: 20493
    EAN: 020493

    Omschrijving

    The Challenger RP2040 NFC is a small embedded computer, equipped with an advanced on-board NFC controller (NXP PN7150), in the popular Adafruit Feather form factor. It is based on an RP2040 microcontroller chip from the Raspberry Pi Foundation which is a dual-core Cortex-M0 that can run on a clock up to 133 MHz.

    NFC

    The PN7150 is a full featured NFC controller solution with integrated firmware and NCI interface designed for contactless communication at 13.56 MHz. It is fully compatible with NFC forum requirements and is greatly designed based on learnings from previous NXP NFC device generation. It is the ideal solution for rapidly integrating NFC technology in any application, especially small embedded systems reducing Bill of Material (BOM).

    The integrated design with full NFC forum compliancy gives the user all the following features:

    • Embedded NFC firmware providing all NFC protocols as pre-integrated feature.
    • Direct connection to the main host or microcontroller, by I²C-bus physical and NCI protocol.
    • Ultra-low power consumption in polling loop mode.
    • Highly efficient integrated power management unit (PMU) allowing direct supply from a battery.

    Specifications

    Microcontroller RP2040 from Raspberry Pi (133 MHz dual-core Cortex-M0)
    SPI One SPI channels configured
    I²C Two I²C channel configured (dedicated I²C for the PN7150)
    UART One UART channel configured
    Analog inputs 4 analog input channels
    NFC module PN7150 from NXP
    Flash memory 8 MB, 133 MHz
    SRAM memory 264 KB (divided into 6 banks)
    USB 2.0 controller Up to 12 MBit/s full speed (integrated USB 1.1 PHY)
    JST Battery connector 2.0 mm pitch
    On board LiPo charger 450 mA standard charge current
    Dimensions 51 x 23 x 3,2 mm
    Weight 9 g

    Note: Antenna is not included.
