Omschrijving
The X500 V2 ARF Kit is an affordable, lightweight, and robust carbon fiber professional drone kit that is easy to assemble (less than 15 minutes). It comes with the X500 V2 Frame Kit and motors, ESCs, power distribution boards and propellers preinstalled. It is perfectly compatible with various flight controllers such as the Holybro Pixhawk series, Durandal, Pix32 V5, etc. There are numerous improvements compared the previous model.
Specifications

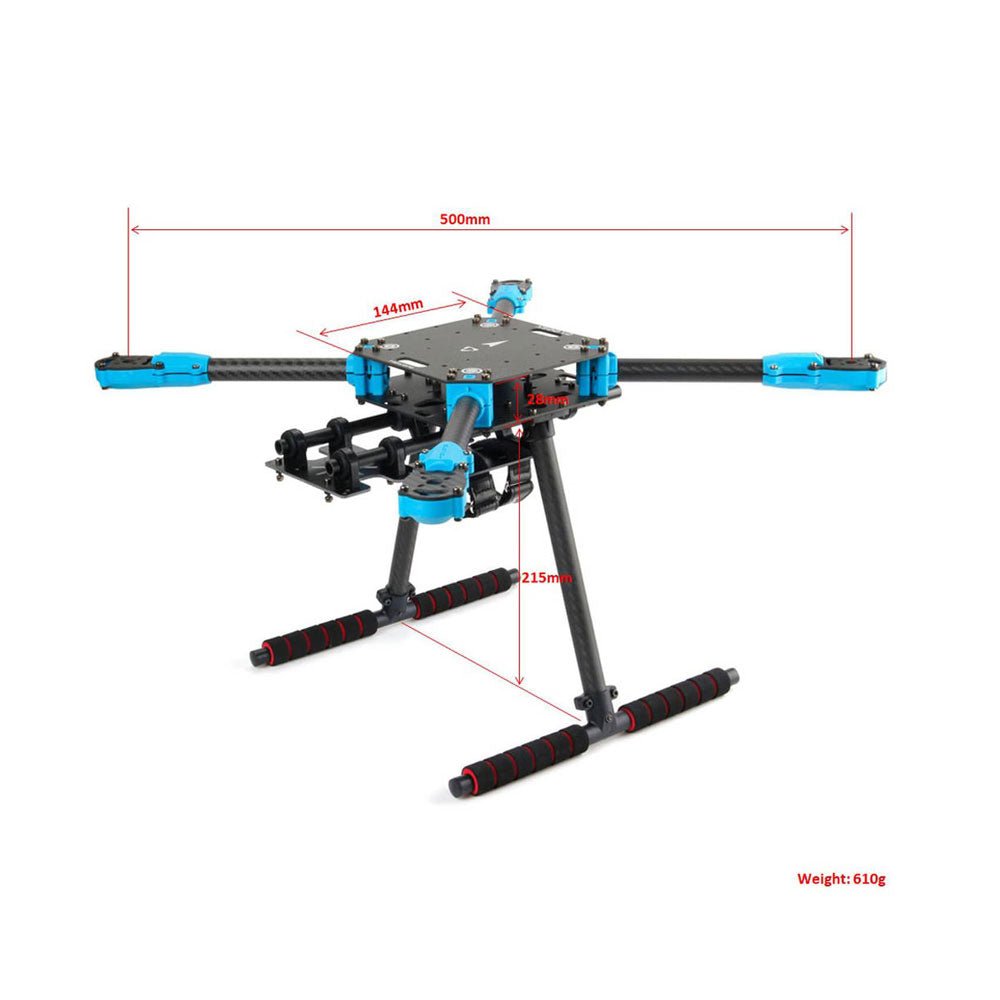

- Wheelbase: 500 mm
- Motor mount pattern: 16x16 mm
- Frame body: 144x144 mm, 2 mm thick
- Landing gear height: 215 mm
- Space between top and bottom plates: 28 mm
- Weight: 610 g
- Flight time: ~18 minutes hover with no additional payload. Tested with 5000 mAh battery.
- Payload: 1500 g (without battery, 70% throttle)
- Battery recommendation: 4S 3000-5000 mAh 20C+ with XT60 Lipo battery (not Included)
Included
- X500 V2 Frame Kit
- With Preinstalled Items:
- 4x Motors: Holybro 2216 KV920 Motor (4 pcs) with XT30 Plug
- 4x ESCs (BLHeli S ESC 20A)
- 6x 1045 Propellers
- Power Distribution Board – XT60 plug for battery & XT30 plug for ESCs & peripherals
- Note: Depth camera mount is sold separately.
