Elektor CheatKard (Electrical Engineering Reference Cards)

Omschrijving

Electrical Engineering Tools in your Pocket

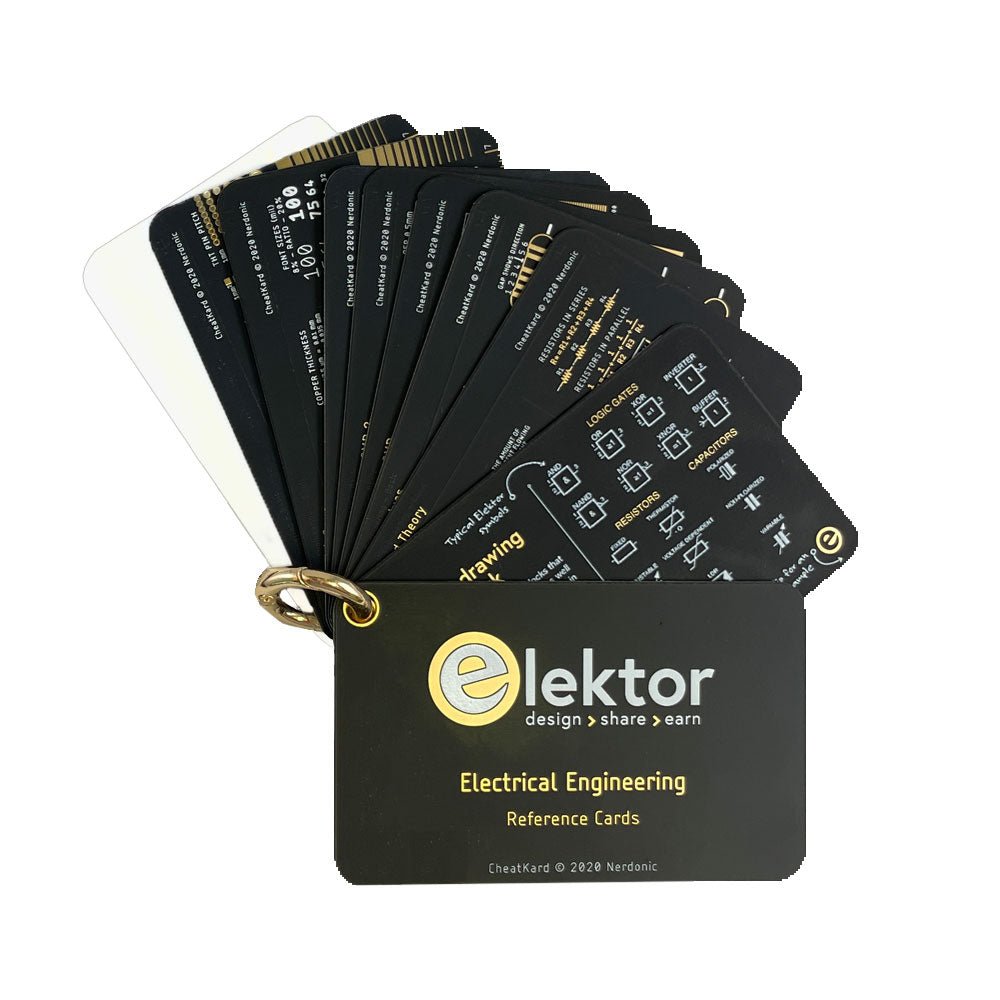

A set of 8 credit card-size, flexible cards packed with reference data all electronics designers need easy and instant access to. Whether you reverse-engineer an SMD board, figure out component values, or decide your best way to have a PCB manufactured, these gold plated cards provide instant technical guidance at real-life size for all aspects of PCB design state and electronics in general.

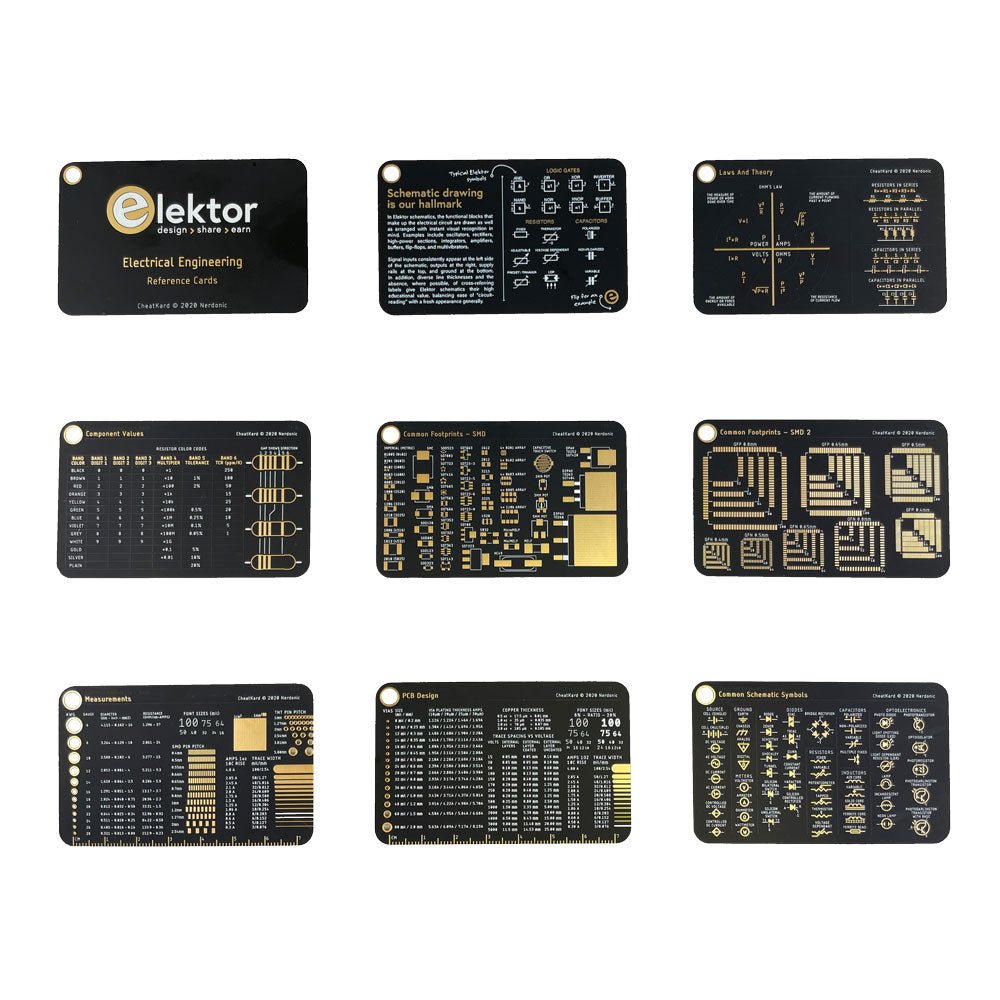

There are 7 cards covering over 16 measurement techniques, over 100 schematic symbols, 2 value calculators (C, R), over 132 SMD footprints, 8 electronics laws & theory, and a powerful PCB design aid showing actual copper thickness, plating and finishing methods, track widths, and more. Plus, there’s an Elektor card showing their distinctive and legacy schematic drawing style and component symbols. To complete the set, there’s an Elektor cover card magnifying card for close inspection of PCB traces and SMD parts.

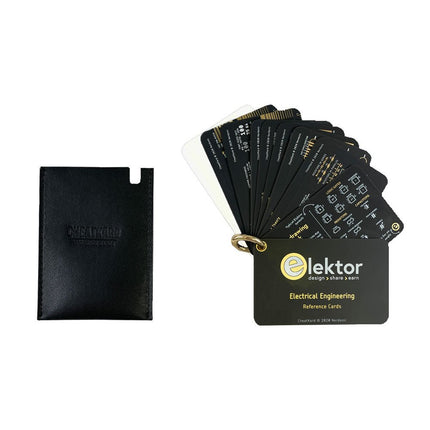

Set comprises:

  • 9 cards (flexible, 80 x 50 x 0.6 mm, 18K gold-plating)
  • 1 Magnifying card
  • 1 Carabiner key ring
  • 1 Leather sleeve / pouch

Productformulier

Electrical Engineering Tools in your PocketA set of 8 credit card-size, flexible cards packed with reference data all electronics designers... Lees meer

€ 34,95 incl. BTW
Leden € 31,46

    • Vandaag verstuurd? Je hebt nog Dec 03, 2024 17:00:00 +0100

    Details

    SKU: 20080
    EAN: 020080

    Omschrijving

    Electrical Engineering Tools in your Pocket

    A set of 8 credit card-size, flexible cards packed with reference data all electronics designers need easy and instant access to. Whether you reverse-engineer an SMD board, figure out component values, or decide your best way to have a PCB manufactured, these gold plated cards provide instant technical guidance at real-life size for all aspects of PCB design state and electronics in general.

    There are 7 cards covering over 16 measurement techniques, over 100 schematic symbols, 2 value calculators (C, R), over 132 SMD footprints, 8 electronics laws & theory, and a powerful PCB design aid showing actual copper thickness, plating and finishing methods, track widths, and more. Plus, there’s an Elektor card showing their distinctive and legacy schematic drawing style and component symbols. To complete the set, there’s an Elektor cover card magnifying card for close inspection of PCB traces and SMD parts.

    Set comprises:

    • 9 cards (flexible, 80 x 50 x 0.6 mm, 18K gold-plating)
    • 1 Magnifying card
    • 1 Carabiner key ring
    • 1 Leather sleeve / pouch
