Omschrijving

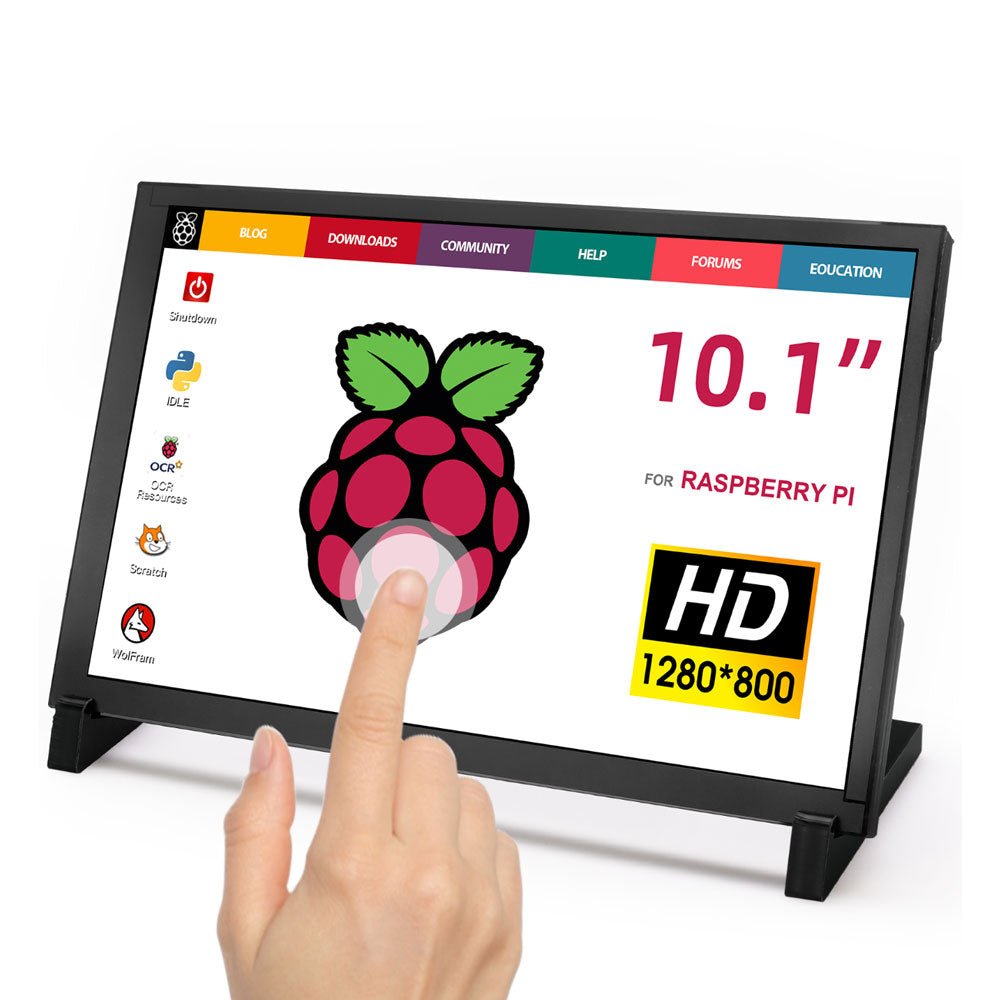

This 10.1-inch HDMI touch screen has a high-definition resolution of 1280x800 and supports a viewing angle of 178°, providing an excellent visual experience. It supports Raspberry Pi, Windows, Linux, Ubuntu and other systems, and is also compatible with Raspberry Pi 3/3B+/4B/5, Jetson Nano, Beaglebone, Banana Pi and other mainstream development boards. You can easily adjust the desired brightness by adjusting the backlight button.

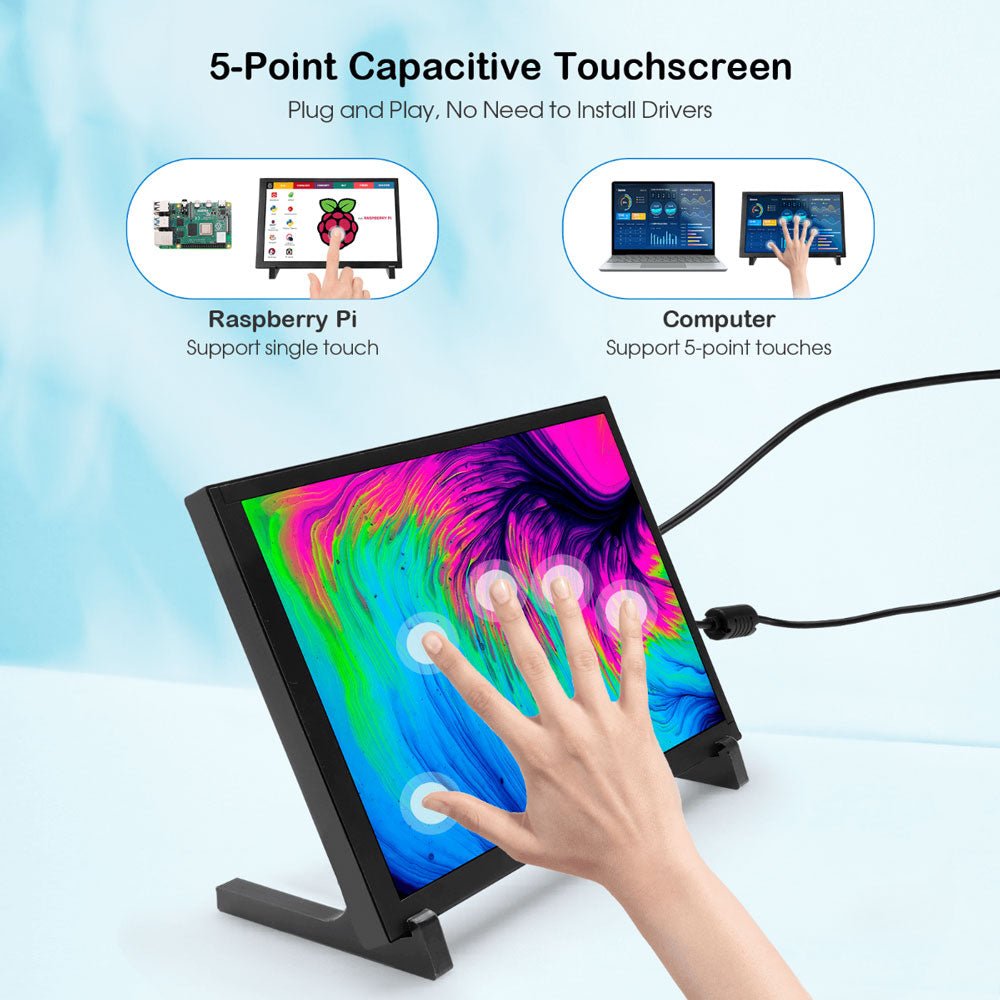

This Raspberry Pi capacitive touch screen supports 5-point touch, has fast response speed, and high-definition communication supports plug-and-play.It comes with a stand for easy desktop placement, and mounting holes on the back allow you to securely mount it on a wall or integrate it with a small form factor SBC (single board computer).
To protect the screen and enhance its visual appeal, the monitor comes with a durable and stylish acrylic cover.
Whether you need a high-quality monitor for gaming, multimedia entertainment, or industrial applications, our 10-inch monitors offer superior visuals, responsive touch controls, seamless connectivity, and versatile mounting options.
Features

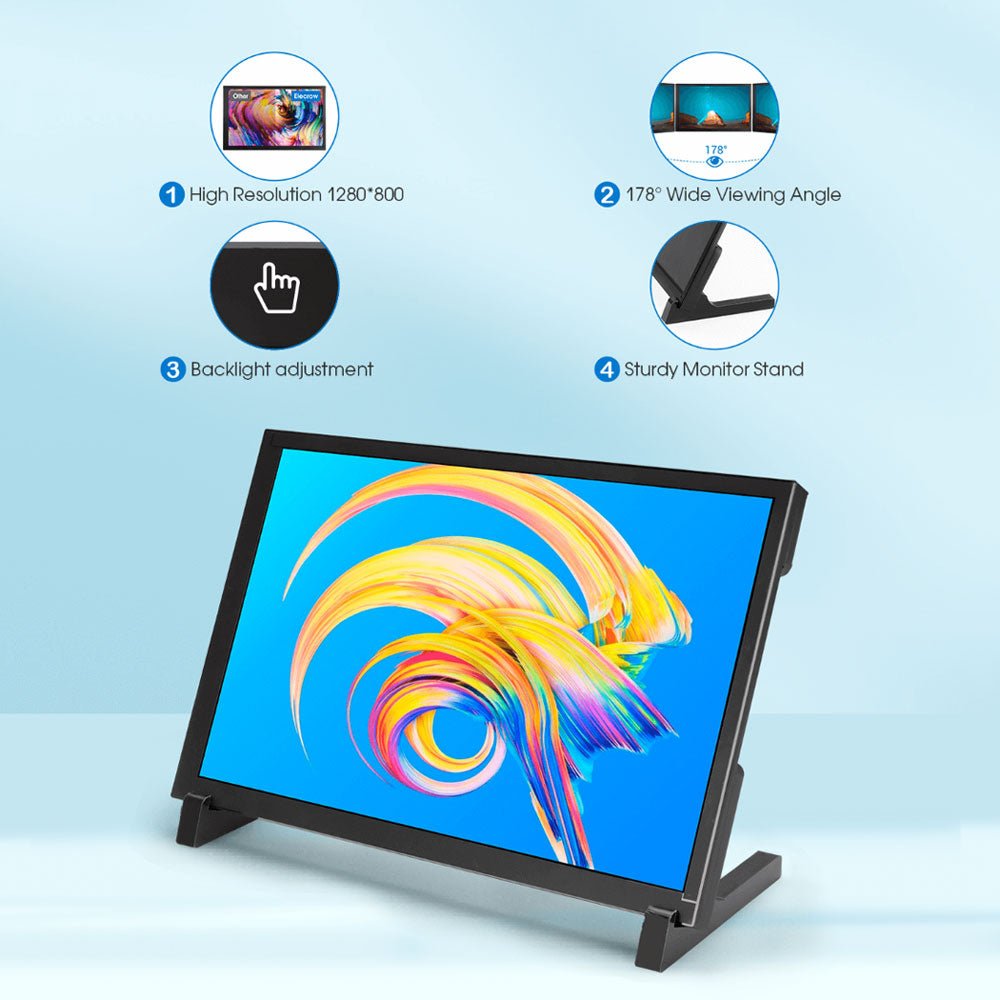

- IPS HD 1280x800 resolution and 178° full viewing angle offers crystal clear visuals and vivid colors for high-quality visual experience
- Support backlight control, itcan be adjusted by button
- Support capacitive 5-point touch, enable smooth, accurate and fast response

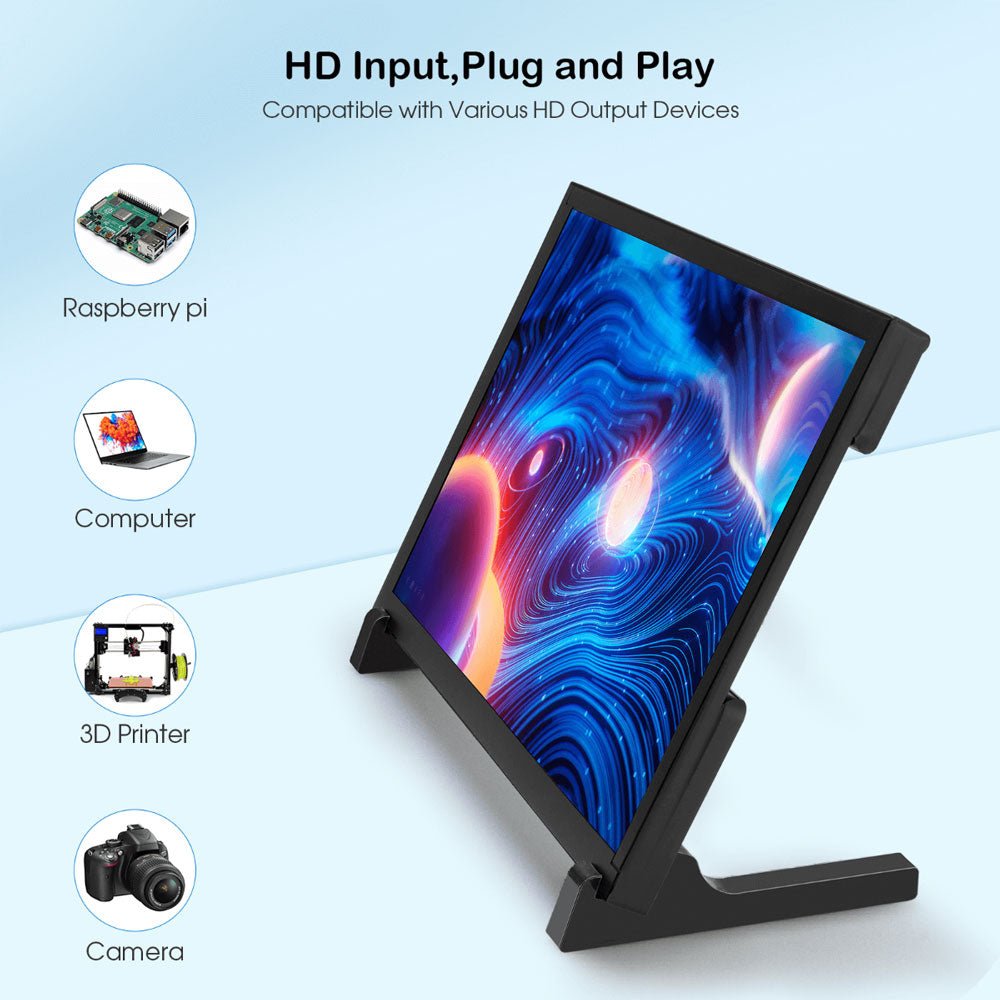

- Use HD communication, plug and play, and easy to use
- Support Windows, Linux, Ubuntu, Kodi, etc.
- Compatible with Raspberry Pi 3/3B+/4B/5, Jetson Nano, Beaglebone
Specifications
| Screen Size |
10.1 inch |
| Screen Type |
IPS screen |
| Resolution |
1280 x 800 |
| Backlight adjustment |
Key switch adjustment |
| Touch Screen Type |
Capacitive Touch Screen |
| Touch IC |
SIS9200 |
| Power |
Micro-USB (5 V) |
| Overall power |
5.2942 W (100% brightness) |
| Video Input Interface |
HDMI-Compatible (up to 1080p) |
| Active Area |
216.6 x 135.4 mm |
| Dimensions (L x W x H) |
239.4 x 157.4 x 12.3 ±0.2 mm |

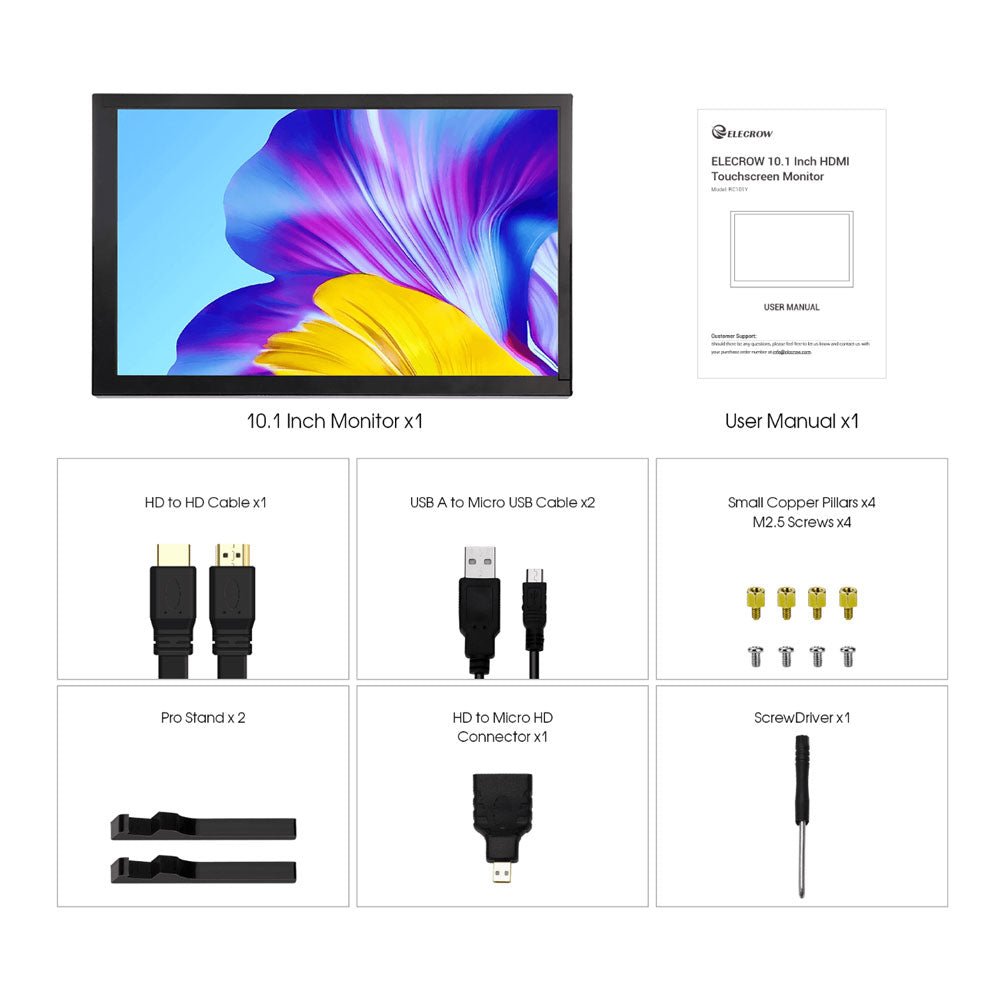

Included
- 1x 10.1 inch Touch Display
- 1x HD to HD Cable
- 2x USB cable
- 1x HD to Mini HD Adapter
- 1x Screw Pack
- 2x Bracket
- 1x Screwdriver
- 1x Manual
Downloads
