Omschrijving

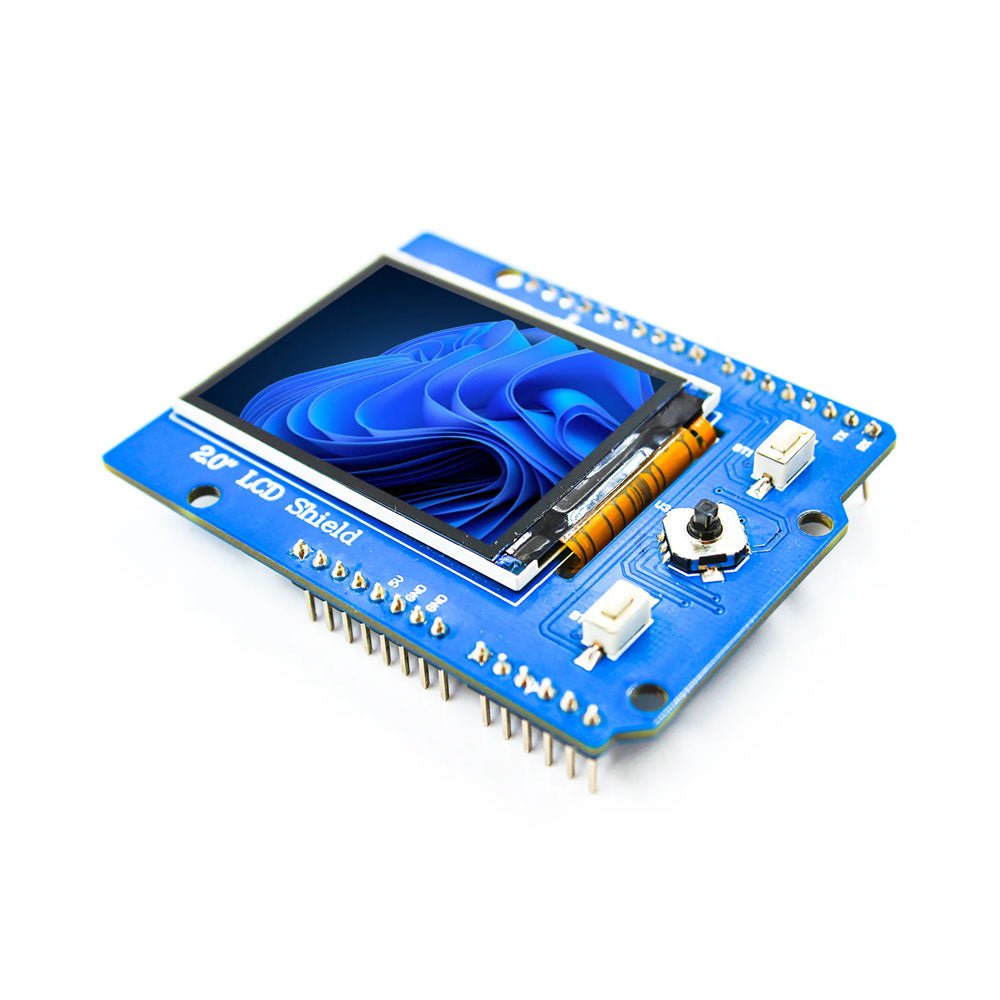

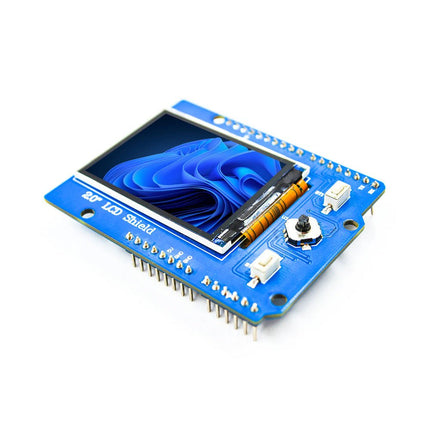

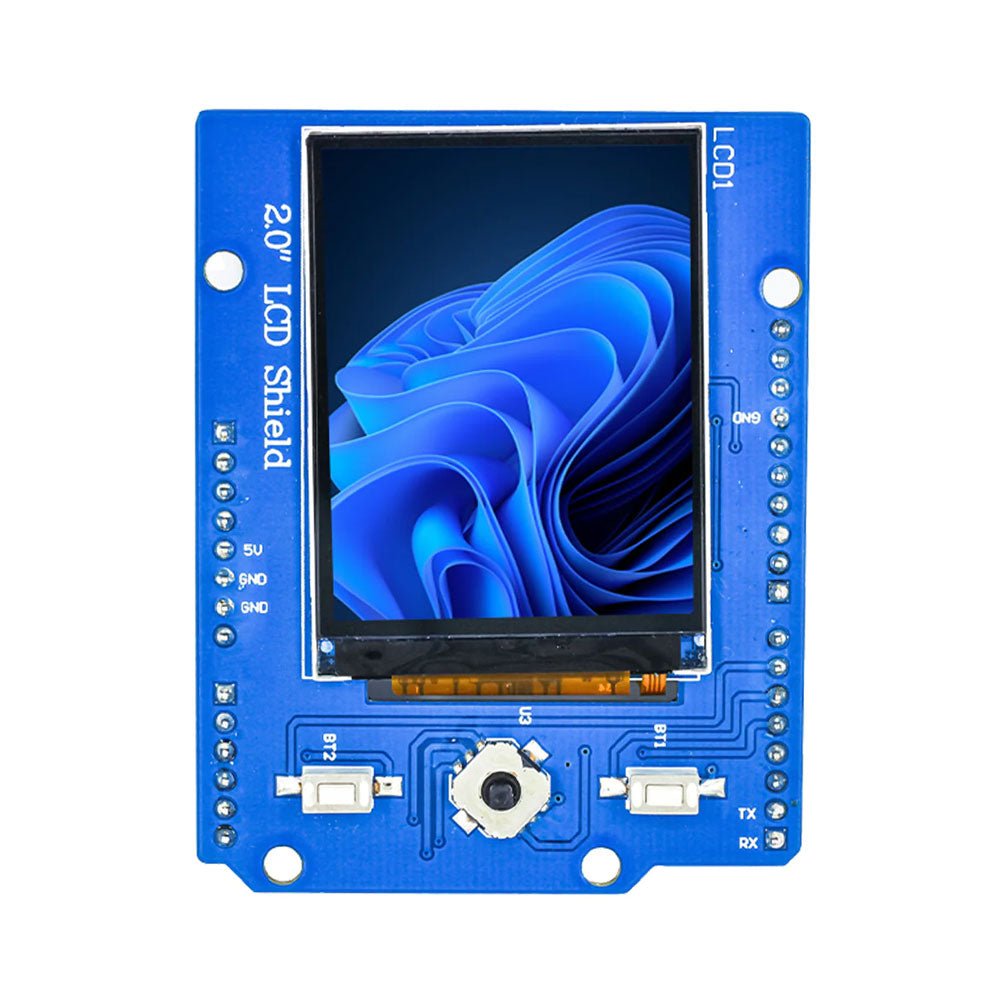

The Ardi Display Shield features a vibrant 2" IPS screen with a resolution of 240 x 320 pixels, providing sharp and crisp visuals for your projects. Whether you're working on a small-scale project or a complex prototype, this display shield ensures clear and vibrant display output.
With 2 programmable buttons, you have the flexibility to create interactive experiences and user-friendly interfaces. Customize the buttons to trigger specific actions or navigate through menus effortlessly.
The possibilities are endless, limited only by your imagination. In addition to the programmable buttons, the Ardi Display Shield also includes a 5-way joystick for intuitive control. With the joystick's SPI interface, you can easily navigate menus, scroll through options, and control various aspects of your Arduino project with precision and ease.
Designed with compatibility and ease of use in mind, the Ardi Display Shield seamlessly integrates with the Arduino Uno board. Simply connect it to your Arduino Uno and unlock a world of possibilities for visual feedback, user interaction, and data visualization.
Features
- Onboard 2.0" TFT Display
- Compatible with 3.3 V/5 V MCU, Selection provided
- Onboard 5-Way Joystick allows better control-related projects
- Two programmable Buttons to add additional functionality to project
- Mounts directly onto ArdiPi, Ardi32 or other Arduino compatible boards
Specifications
- Display resolution: 240x320 pixels
- Pixel Pitch: 0.1275 x 0.1275 mm
- Active Area: 30.6 x 40.8 mm
- Module Size: 34.6 x 47.8 x 2.05 mm
- SPI Interface
- Display Colors: 65K colors
- Drive IC: ST7789V2
- Viewing Direction: All-view the best image
