Andonstar A1 USB Digital Microscope

  • FabrikantAndonstar

Omschrijving

Specifications

  • DSP: High power Digital Image Monarch Processor
  • Sensor: high-quality CMOS sensor, 2M pixel (hardware, no Interpolation)
  • Resolution: 640x480,1600x1200
  • Interface: USB 1.1 / USB 2.0
  • Frame rate: 30 frames/sec (When resolution at 640x480), 1600x1200 5 frames/sec
  • Focal distance: 5-30 mm (when Focal distance infinity, the microscope as a webcam, can not magnify)

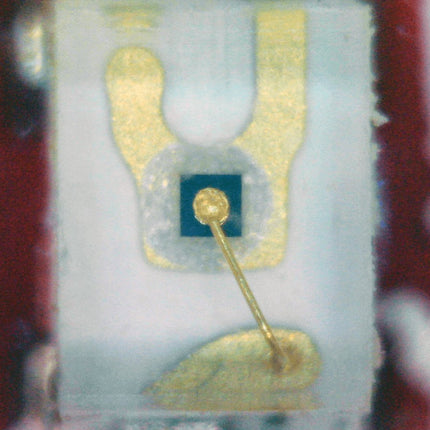

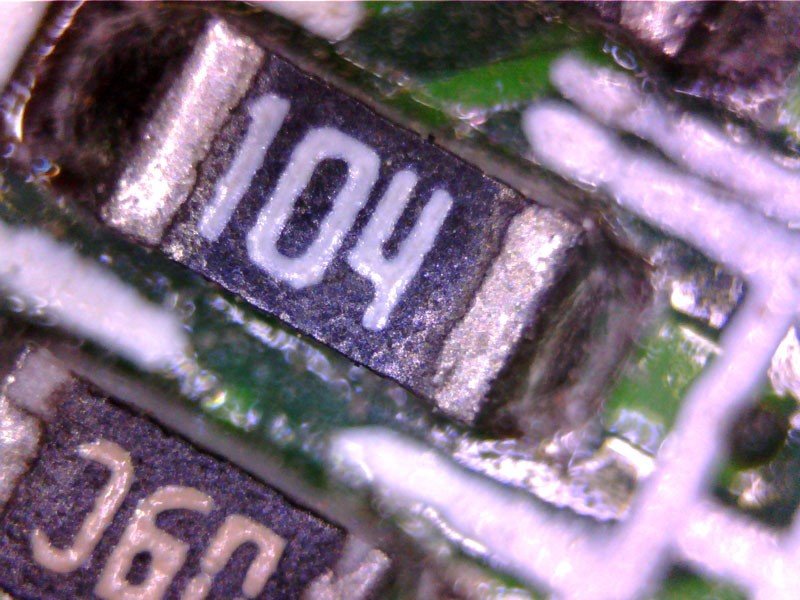

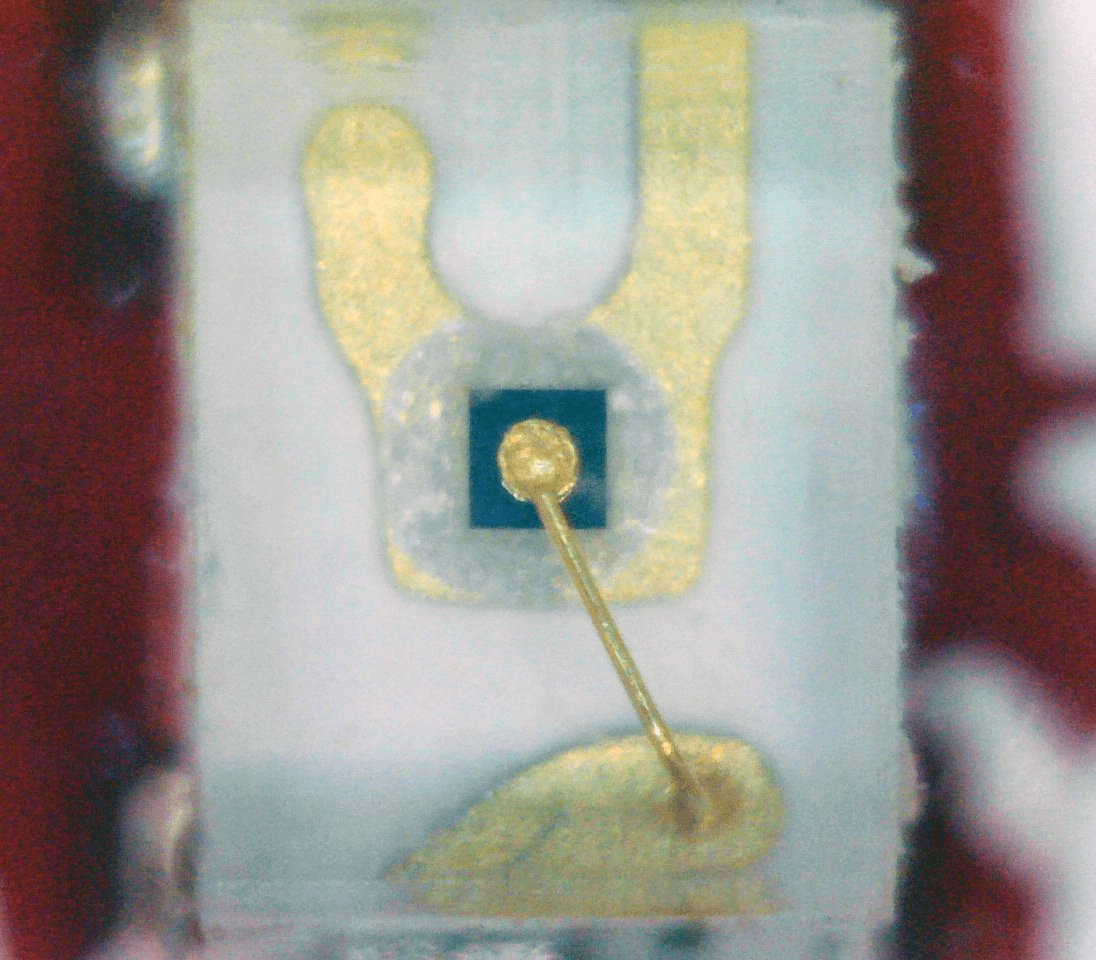

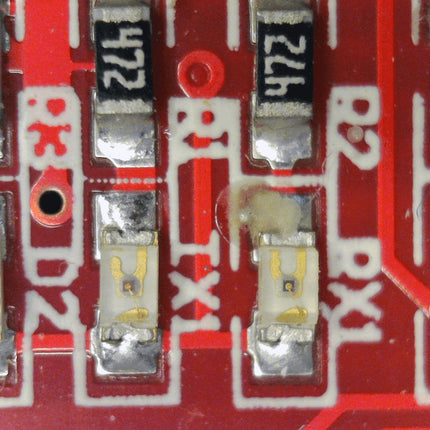

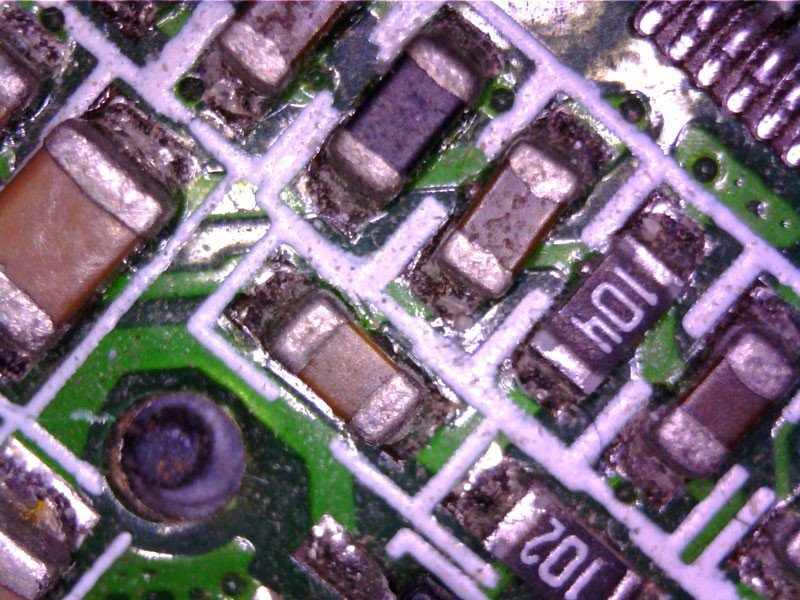

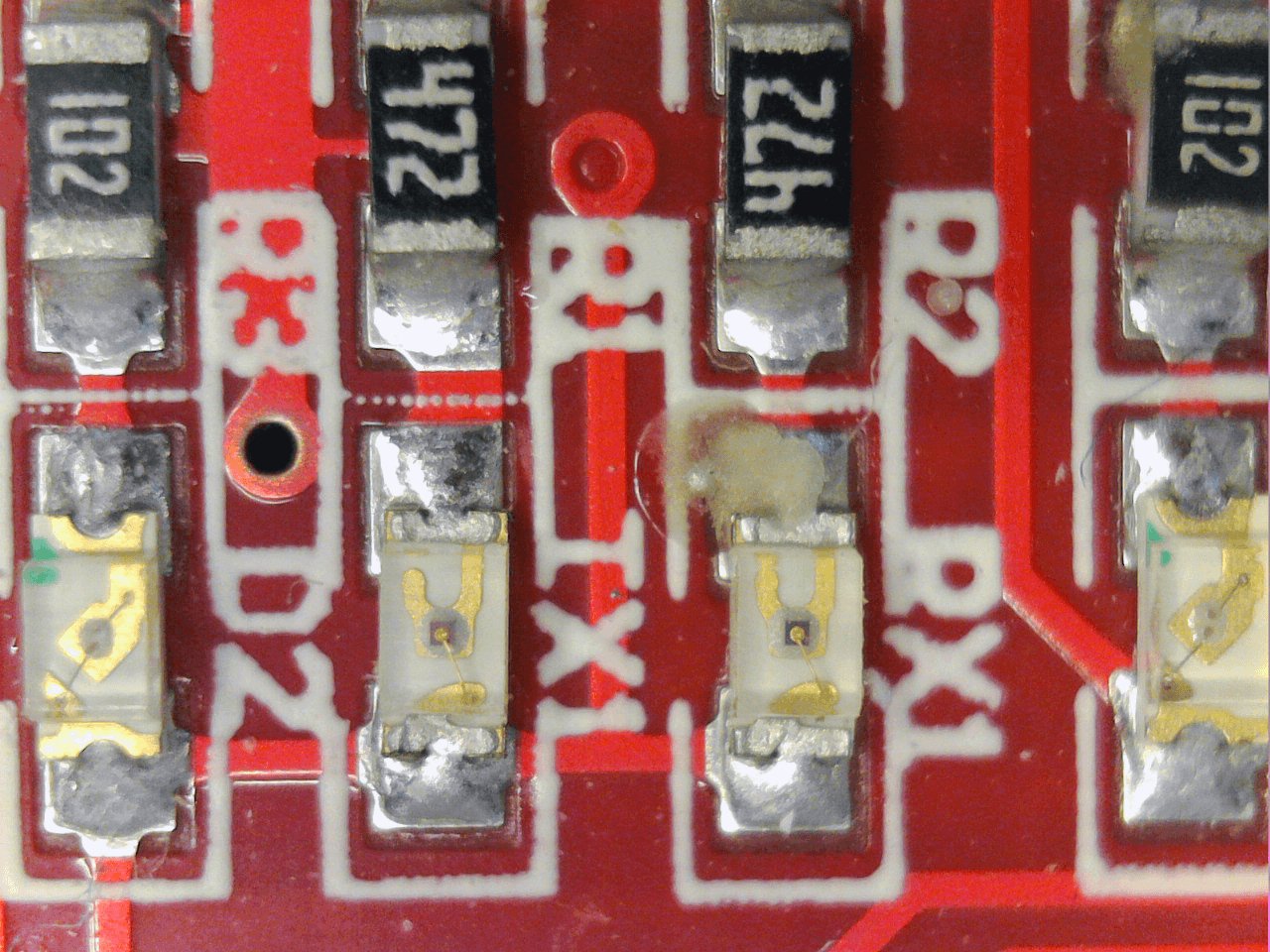

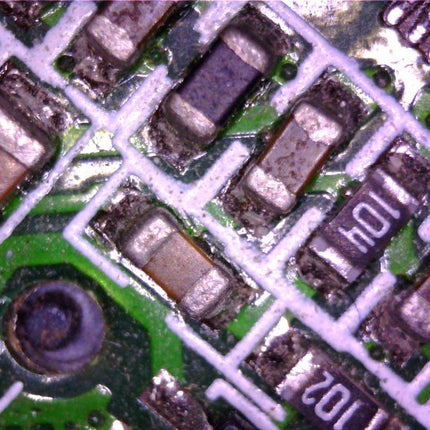

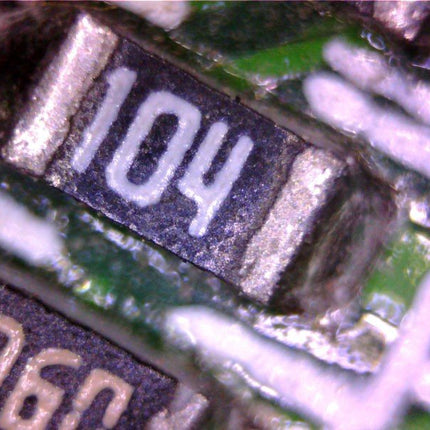

  • Magnification: Please refer to the sample photos and video

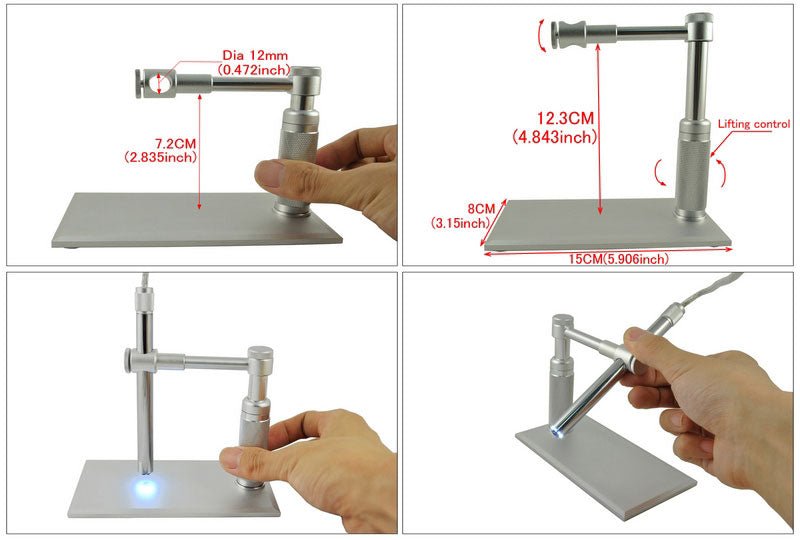

  • Diameter: 12 mm
  • USB cable length: about 165 cm
  • USB cable color: black or transparent color (random)
  • Lighting: 8x LED around the camera lens

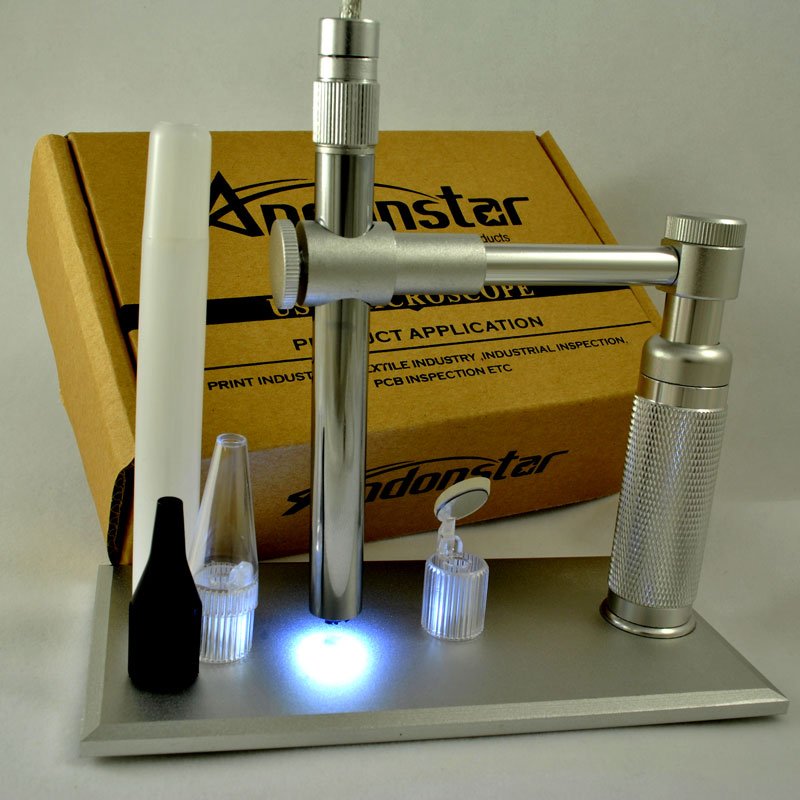

Included

  • 1x Digital Microscope Camera
  • 1x Software CD (User manual included)
  • 1x Metal big base Stand
Productformulier

Specifications DSP: High power Digital Image Monarch Processor Sensor: high-quality CMOS sensor, 2M pixel (hardware, no Interpolation) Resolution: 640x480,1600x1200 Interface:... Lees meer

€ 79,95€ 54,95 incl. BTW
Leden identiek

      Details

      SKU: 18131
      EAN: 018131

      Omschrijving

      Specifications

      • DSP: High power Digital Image Monarch Processor
      • Sensor: high-quality CMOS sensor, 2M pixel (hardware, no Interpolation)
      • Resolution: 640x480,1600x1200
      • Interface: USB 1.1 / USB 2.0
      • Frame rate: 30 frames/sec (When resolution at 640x480), 1600x1200 5 frames/sec
      • Focal distance: 5-30 mm (when Focal distance infinity, the microscope as a webcam, can not magnify)
      • Magnification: Please refer to the sample photos and video
      • Diameter: 12 mm
      • USB cable length: about 165 cm
      • USB cable color: black or transparent color (random)
      • Lighting: 8x LED around the camera lens

      Included

      • 1x Digital Microscope Camera
      • 1x Software CD (User manual included)
      • 1x Metal big base Stand

      Customer Reviews

      Based on 1 review
      100%
      (1)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      0%
      (0)
      M
      Martin
      Great usb microscope for the price and runs on Linux cheese

      I`ve been using this usb microscope mainly to look at my pcb etching and soldering details. To zoom in turn the small round section on the actual microscope shaft and also adjust the focus section on the main holding arm. I have it connected to my Linux computer laptop usb port and I use the cheese program utility to see the picture.

      My linux laptop is running the Ubuntu 16.04 32 bit OS - the usb microscope shows up as, ls -l /dev/video0

      To run cheese, and assuming it is the only usb connection, run the command `sudo cheese`.

      With the cheese program you can take snapshots and videos and completely take advantage of all the usb microscope`s functionality.
      The cheese program create jpg files for the pictures and saves them in the folder, `/home/martin/Pictures/Webcam`.

      The cheese video files are stored in the folder, `/home/martin/Videos/Webcam` as `2018-03-30-105851.webm` webm format. You can play the video files back using the default linux video program and/or VLC and then convert them to mp4 files if you want to.

      I`ve also look close up on a piece of hair, a section of the page of a magazine, very clear pictures.

      I`m not sure what the actual zoom times is but it is very impressive.

      Again great product for a great price and runs on Linux (not just windows).
