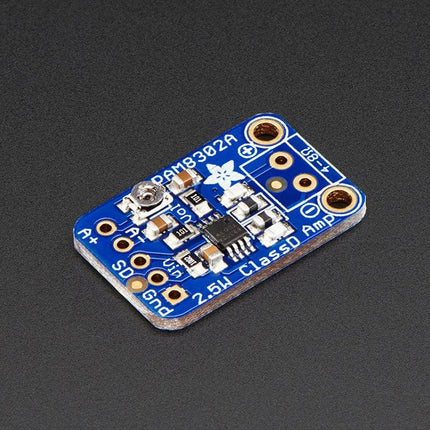

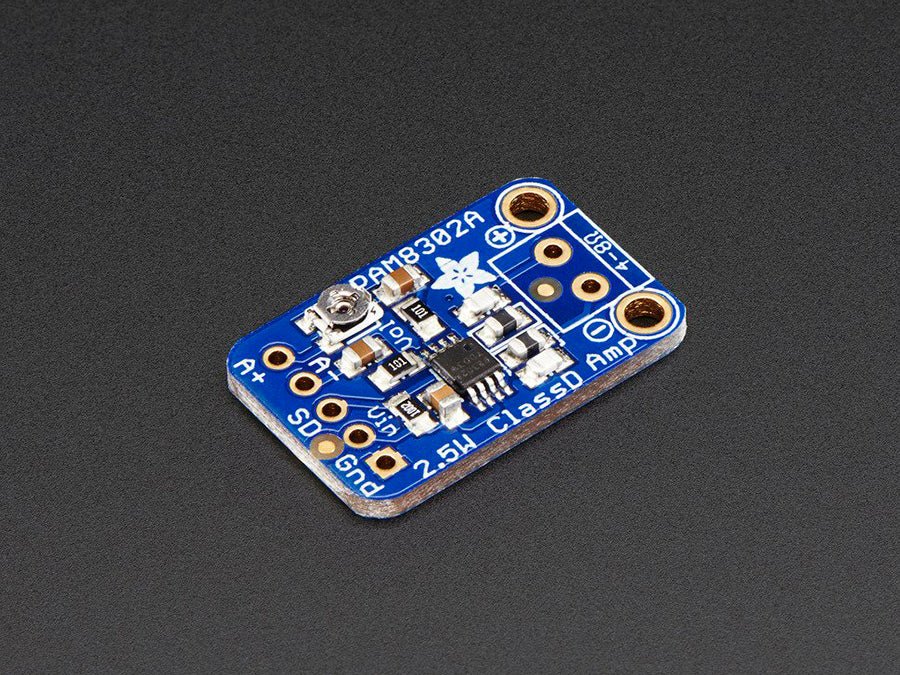

Adafruit 2.5 W Class D Mono Amplifier (PAM8302)

Omschrijving

This small mono amplifier is surprisingly powerful – able to deliver up to 2.5 W into 4-8 Ω impedance speakers. Inside the miniature chip is a class D controller, able to run from 2.0-5.5 V DC. Since the amplifier is a class D, it's very efficient making it perfect for portable and battery-powered projects. It has built-in thermal and over-current protection. There's even a volume trim pot so you can adjust the volume on the board down from the default 24 dB gain.

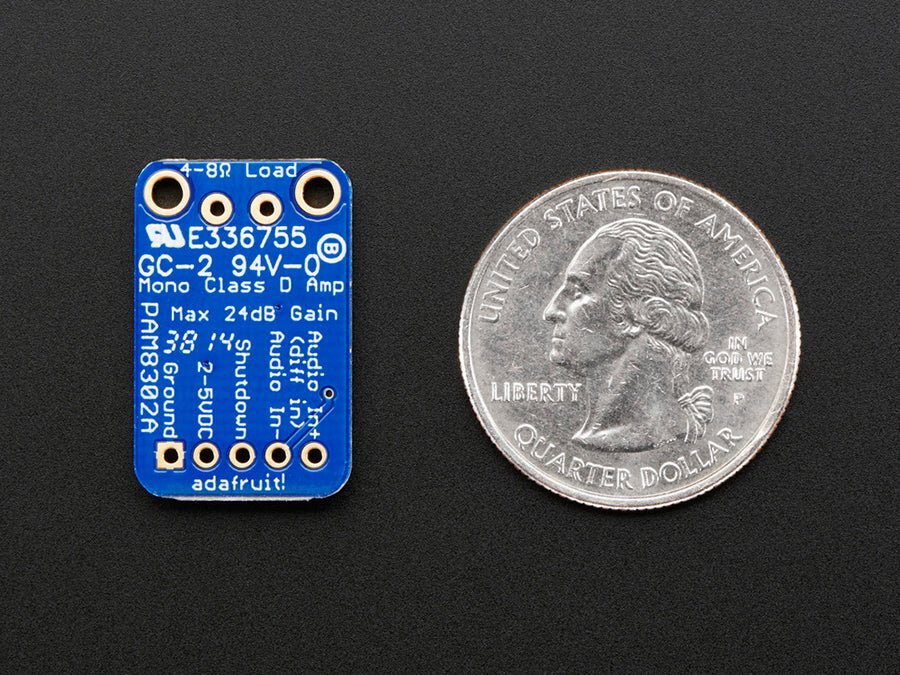

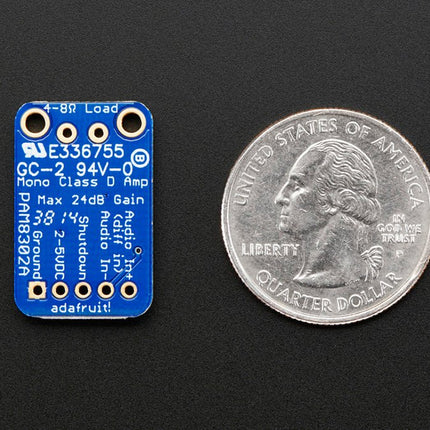

The A+ and A- inputs of the amplifier go through 1.0 µF capacitors, so they are fully 'differential' – if you don't have differential outputs, simply tie the Audio-pin to ground. The output is 'Bridge Tied' – that means the output pins connect directly to the speaker pins, no connection to ground. The output is a high frequency 250 KHz square wave PWM that is then 'averaged out' by the speaker coil – the high frequencies are not heard. All the above means that you can't connect the output into another amplifier, it should drive the speakers directly.

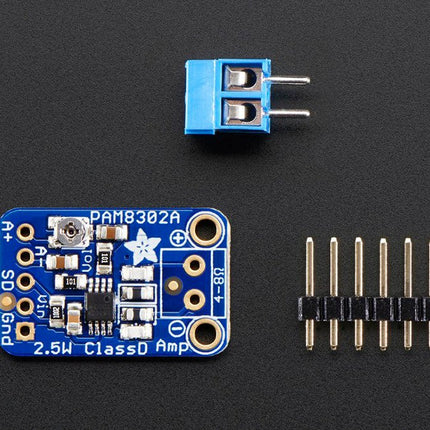

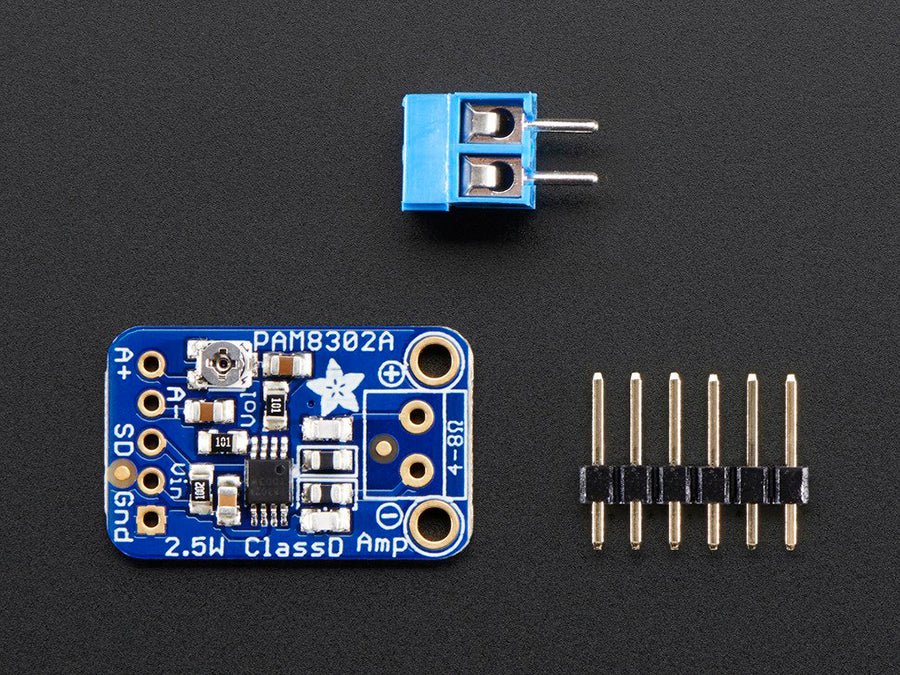

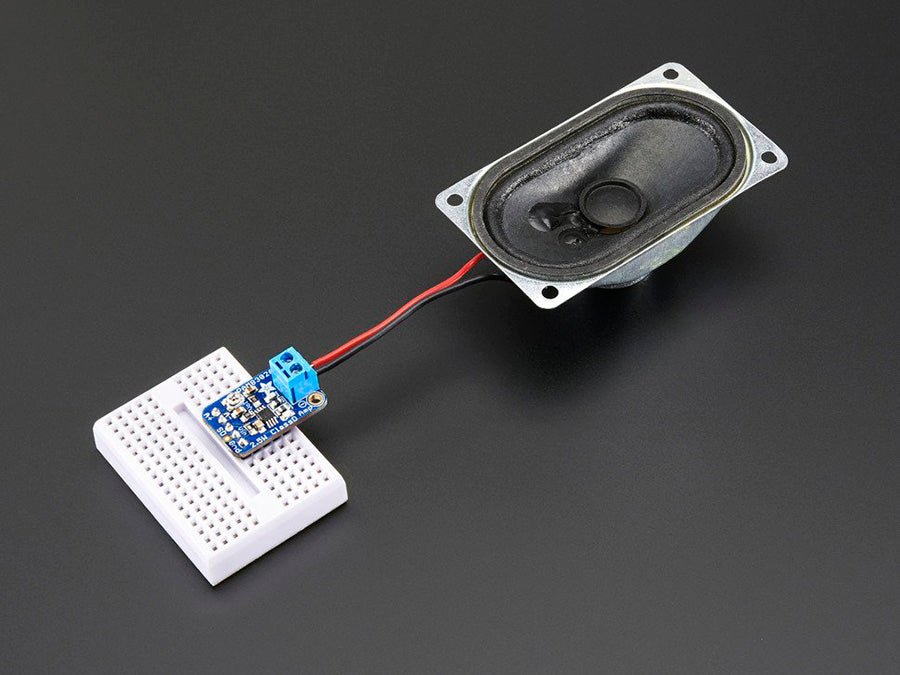

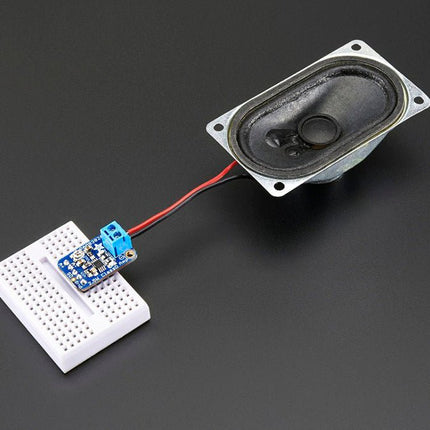

The amplifier comes with a fully assembled and tested breakout board, a header to plug it into a breadboard and a 3.5 mm screw-terminal blocks so you can easily attach/detach your speaker. Speaker is not included, we recommend using any 4 Ω or greater impedance speaker.

Features

  • Output Power: 2.5 W at 4Ω, 10% THD (total harmonic distortion), 1.5 W at 8 Ω, 10% THD, with 5.5 V Supply
  • 50 dB PSRR (power supply rejection ratio) at 1 KHz
  • Filterless design, with ferrite bead + capacitors on output.
  • Fixed 24 dB gain, an onboard trim potentiometer for adjusting input volume.
  • Thermal and short-circuit/over-current protection
  • Low current draw: 4 mA quiescent and 0.5 mA in shutdown (due to pull-up resistor on SD pin)
Productformulier

This small mono amplifier is surprisingly powerful – able to deliver up to 2.5 W into 4-8 Ω impedance speakers. Inside the... Lees meer

€ 5,95 (incl. BTW)
Leden € 5,36

    • Vandaag verstuurd? Je hebt nog: Aug 15, 2025 16:00:00 +0200

    Details

    SKU: 18745
    EAN: 018745

    Omschrijving

    This small mono amplifier is surprisingly powerful – able to deliver up to 2.5 W into 4-8 Ω impedance speakers. Inside the miniature chip is a class D controller, able to run from 2.0-5.5 V DC. Since the amplifier is a class D, it's very efficient making it perfect for portable and battery-powered projects. It has built-in thermal and over-current protection. There's even a volume trim pot so you can adjust the volume on the board down from the default 24 dB gain.

    The A+ and A- inputs of the amplifier go through 1.0 µF capacitors, so they are fully 'differential' – if you don't have differential outputs, simply tie the Audio-pin to ground. The output is 'Bridge Tied' – that means the output pins connect directly to the speaker pins, no connection to ground. The output is a high frequency 250 KHz square wave PWM that is then 'averaged out' by the speaker coil – the high frequencies are not heard. All the above means that you can't connect the output into another amplifier, it should drive the speakers directly.

    The amplifier comes with a fully assembled and tested breakout board, a header to plug it into a breadboard and a 3.5 mm screw-terminal blocks so you can easily attach/detach your speaker. Speaker is not included, we recommend using any 4 Ω or greater impedance speaker.

    Features

    • Output Power: 2.5 W at 4Ω, 10% THD (total harmonic distortion), 1.5 W at 8 Ω, 10% THD, with 5.5 V Supply
    • 50 dB PSRR (power supply rejection ratio) at 1 KHz
    • Filterless design, with ferrite bead + capacitors on output.
    • Fixed 24 dB gain, an onboard trim potentiometer for adjusting input volume.
    • Thermal and short-circuit/over-current protection
    • Low current draw: 4 mA quiescent and 0.5 mA in shutdown (due to pull-up resistor on SD pin)
