01Space RP2040-0.42LCD Development Board

Omschrijving

Arduino, MicroPython, and CircuitPython-compatible compact development board powered by Raspberry Pi RP2040

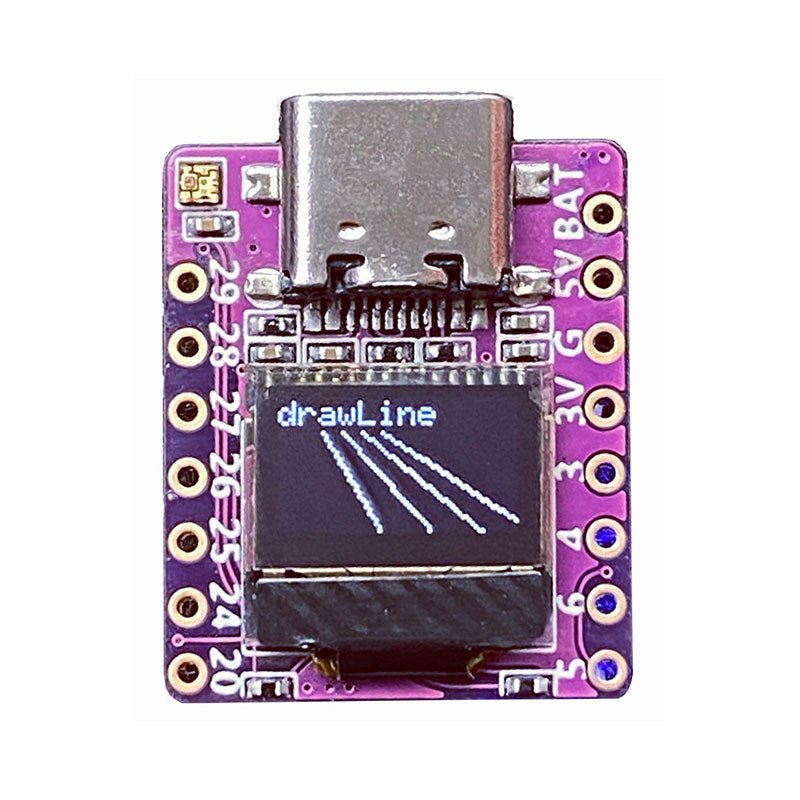

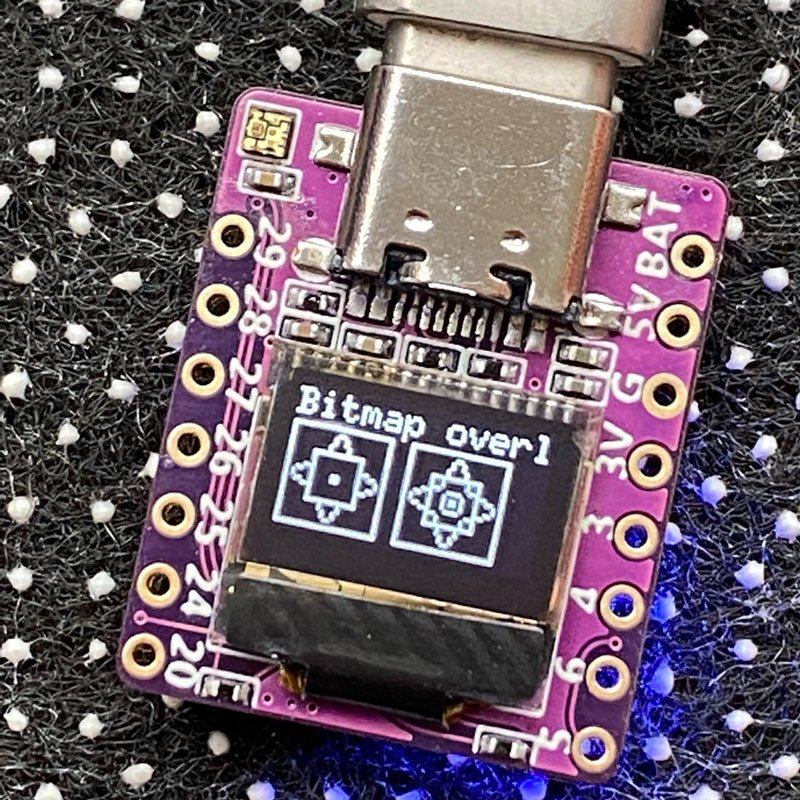

RP2040-0.42LCD is a high-performance development board with integrated 0.42' LCD (70x40 resolution) with flexible digital interfaces.

It incorporates Raspberry Pi's RP2040 microcontroller chip. The RP2040 features a dual-core Arm Cortex-M0+ processor clocked at 133 MHz with 264 KB internal SRAM and 2 MB flash storage.

Specifications

SoC Raspberry Pi RP2040 dual-core Cortex-M0+ microcontroller at up to 125 MHz, with 264 KB SRAM
Storage 2 MB SPI flash
Display 0.42-inch OLED
USB 1x USB Type-C port for power and programming
Expansion – Qwiic I²C connector

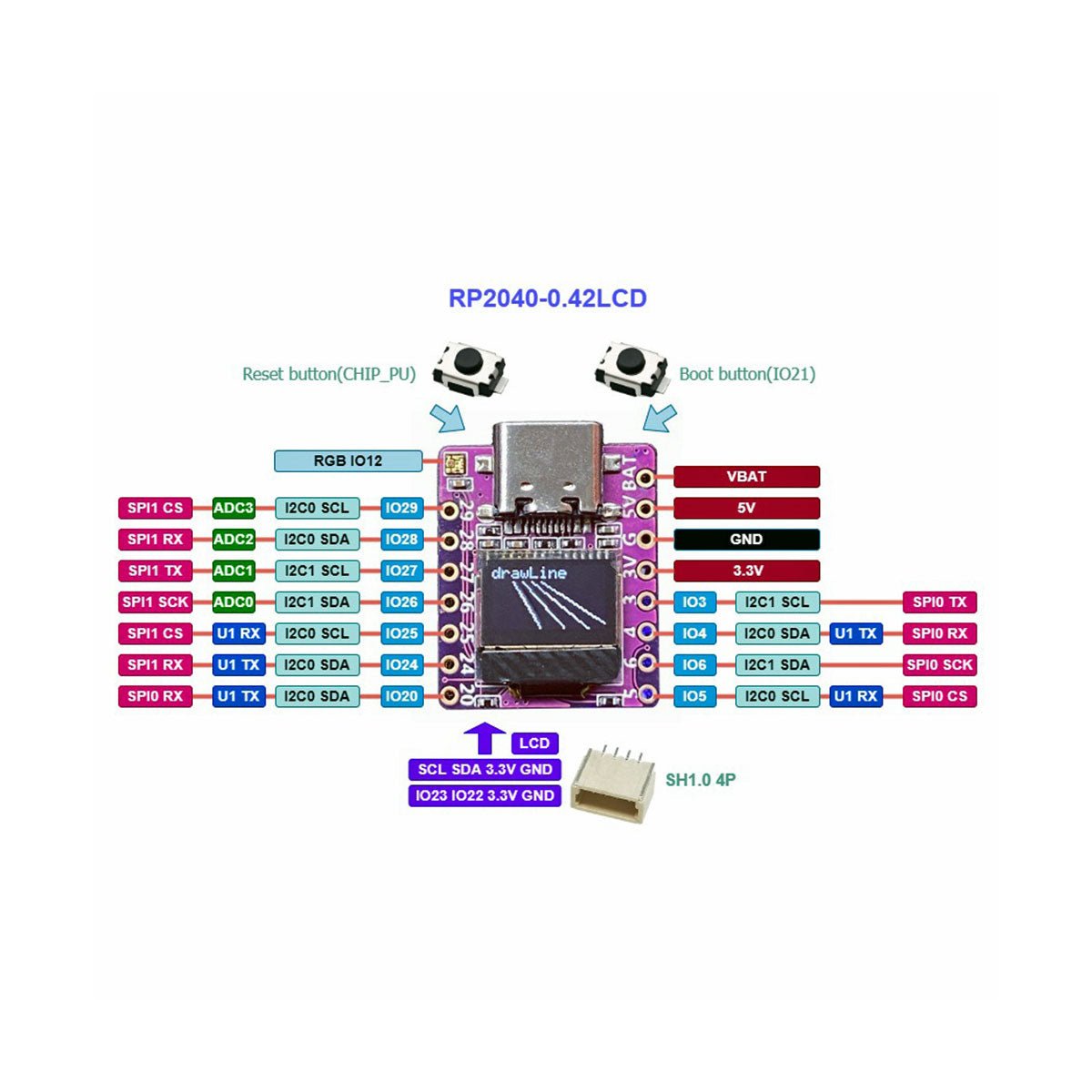

– 7-pin and 8-pin headers with up to 11x GPIOs, 2x SPI, 2x I²C, 4x ADC, 1x UART, 5 V, 3.3 V, VBAT, GND
Misc

– Reset and Boot buttons
– RGB LED, power LED

Power supply

– 5 V via USB-C port or Vin
– VBAT pin for battery input
– 3.3 V regulator with 500 mA peak output

Dimensions 23.5 x 18 mm
Weight 2.5 g

Downloads

Productformulier

Arduino, MicroPython, and CircuitPython-compatible compact development board powered by Raspberry Pi RP2040RP2040-0.42LCD is a high-performance development board with integrated 0.42'... Lees meer

€ 19,95 incl. BTW
Leden € 17,96

    • Vandaag verstuurd? Je hebt nog May 28, 2024 17:00:00 +0200

    Details

    SKU: 20231
    EAN: 020231

    Omschrijving

    Arduino, MicroPython, and CircuitPython-compatible compact development board powered by Raspberry Pi RP2040

    RP2040-0.42LCD is a high-performance development board with integrated 0.42' LCD (70x40 resolution) with flexible digital interfaces.

    It incorporates Raspberry Pi's RP2040 microcontroller chip. The RP2040 features a dual-core Arm Cortex-M0+ processor clocked at 133 MHz with 264 KB internal SRAM and 2 MB flash storage.

    Specifications

    SoC Raspberry Pi RP2040 dual-core Cortex-M0+ microcontroller at up to 125 MHz, with 264 KB SRAM
    Storage 2 MB SPI flash
    Display 0.42-inch OLED
    USB 1x USB Type-C port for power and programming
    Expansion – Qwiic I²C connector
    – 7-pin and 8-pin headers with up to 11x GPIOs, 2x SPI, 2x I²C, 4x ADC, 1x UART, 5 V, 3.3 V, VBAT, GND
    Misc

    – Reset and Boot buttons
    – RGB LED, power LED

    Power supply

    – 5 V via USB-C port or Vin
    – VBAT pin for battery input
    – 3.3 V regulator with 500 mA peak output

    Dimensions 23.5 x 18 mm
    Weight 2.5 g
