0.96" OLED Display (Blue, I²C, 4-Pin)

Omschrijving

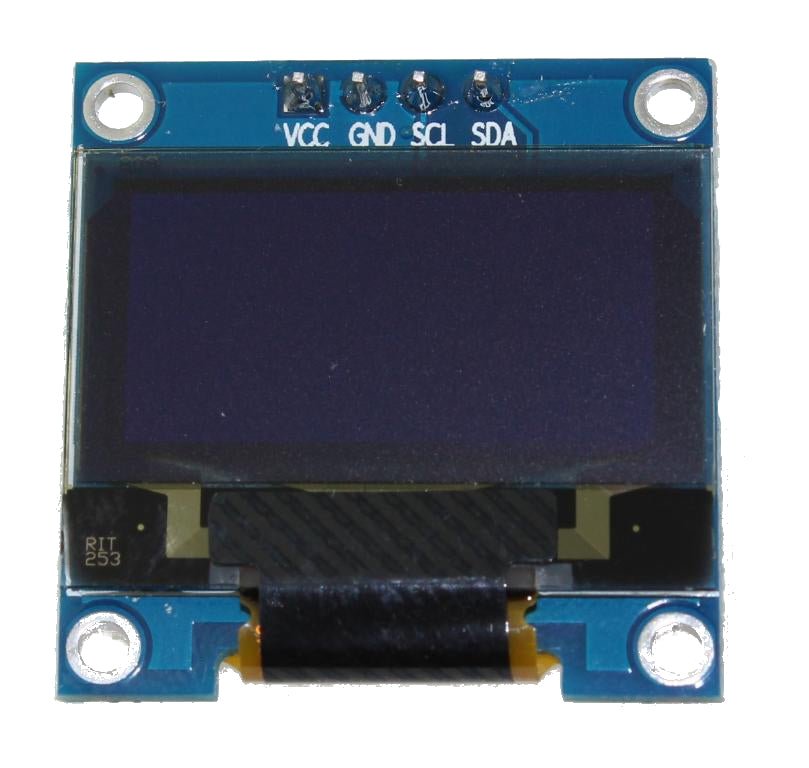

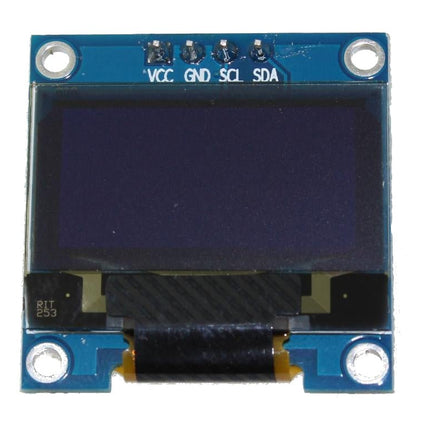

0.96' (24 mm) monochrome graphical OLED display with a resolution of 128 x 32 pixels mounted on a 28 x 28 mm PCB. The effective display surface is 11 x 23 mm. It has a 4-pin connector to be used with an I²C bus (with SCL & SDA signals). The display works with 5 V and 3.3 V applications.

Specifications

  • Size: 0.96 inch / 24 mm
  • Resolution: 128 x 32 pixels
  • Board size: 28 x 28 mm
  • Effective display surface: 11 x 23 mm
  • Visual Angle: > 160 °
  • Input Voltage: 3.3 V ~ 6 V
  • Wide voltage support: 3.3 V, 5 V
  • Viewing angle: > 160
  • Drive IC: SSD1306
  • Operating temperature: -30 °C to 80 °C

I²C

  • Signals: SCL, SDA

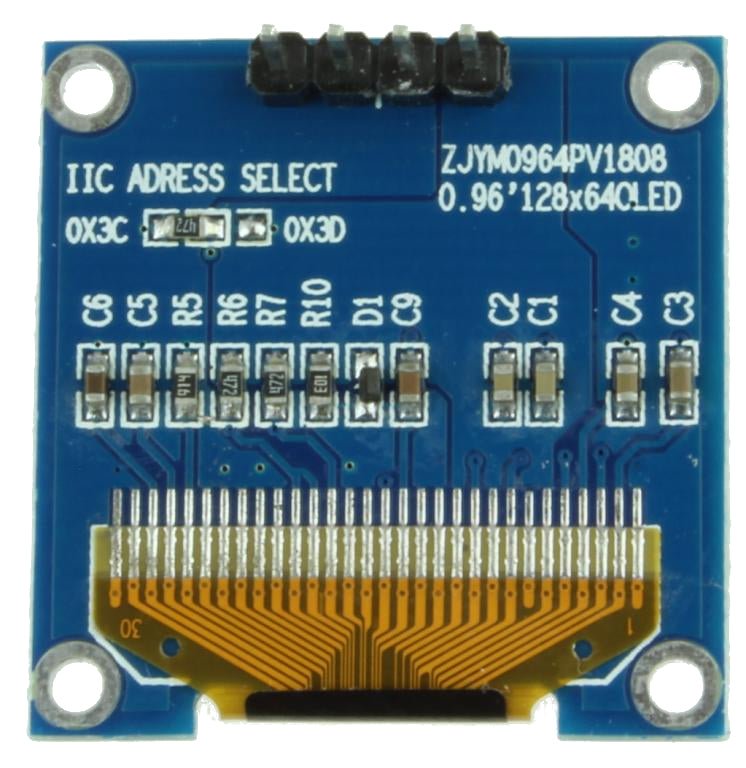

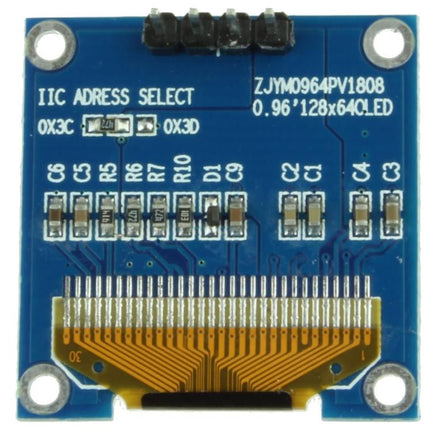

  • I²C address: 0x78 (or 0x3c, default) or 0x7a (or 0x3d).

Note: I²C addresses can (unfortunately) be specified in two ways: including R/W bit or not. Therefore 0x78 (0x7a) including the R/W bit is equal to 0x3c (0x3d) without R/W bit.

OLED Advantages

  • Smaller volume
  • Ultra-low power consumption
  • High Contrast
  • Display dot self-luminous
  • Wide voltage support

Warning: The display’s glass is fragile, please be careful while handling it. If the glass is broken, the screen will not work well.

Productformulier

0.96' (24 mm) monochrome graphical OLED display with a resolution of 128 x 32 pixels mounted on a 28 x... Lees meer

SKU: 18747
Barcode: 018747

€ 9,95 Incl. BTW
Leden € 8,96

      Omschrijving

      0.96' (24 mm) monochrome graphical OLED display with a resolution of 128 x 32 pixels mounted on a 28 x 28 mm PCB. The effective display surface is 11 x 23 mm. It has a 4-pin connector to be used with an I²C bus (with SCL & SDA signals). The display works with 5 V and 3.3 V applications.

      Specifications

      • Size: 0.96 inch / 24 mm
      • Resolution: 128 x 32 pixels
      • Board size: 28 x 28 mm
      • Effective display surface: 11 x 23 mm
      • Visual Angle: > 160 °
      • Input Voltage: 3.3 V ~ 6 V
      • Wide voltage support: 3.3 V, 5 V
      • Viewing angle: > 160
      • Drive IC: SSD1306
      • Operating temperature: -30 °C to 80 °C

      I²C

      • Signals: SCL, SDA
      • I²C address: 0x78 (or 0x3c, default) or 0x7a (or 0x3d).

      Note: I²C addresses can (unfortunately) be specified in two ways: including R/W bit or not. Therefore 0x78 (0x7a) including the R/W bit is equal to 0x3c (0x3d) without R/W bit.

      OLED Advantages

      • Smaller volume
      • Ultra-low power consumption
      • High Contrast
      • Display dot self-luminous
      • Wide voltage support

      Warning: The display’s glass is fragile, please be careful while handling it. If the glass is broken, the screen will not work well.
