Siglent SPD4306X 4-kanaals Voeding (400 W)

  • FabrikantSiglent

Omschrijving

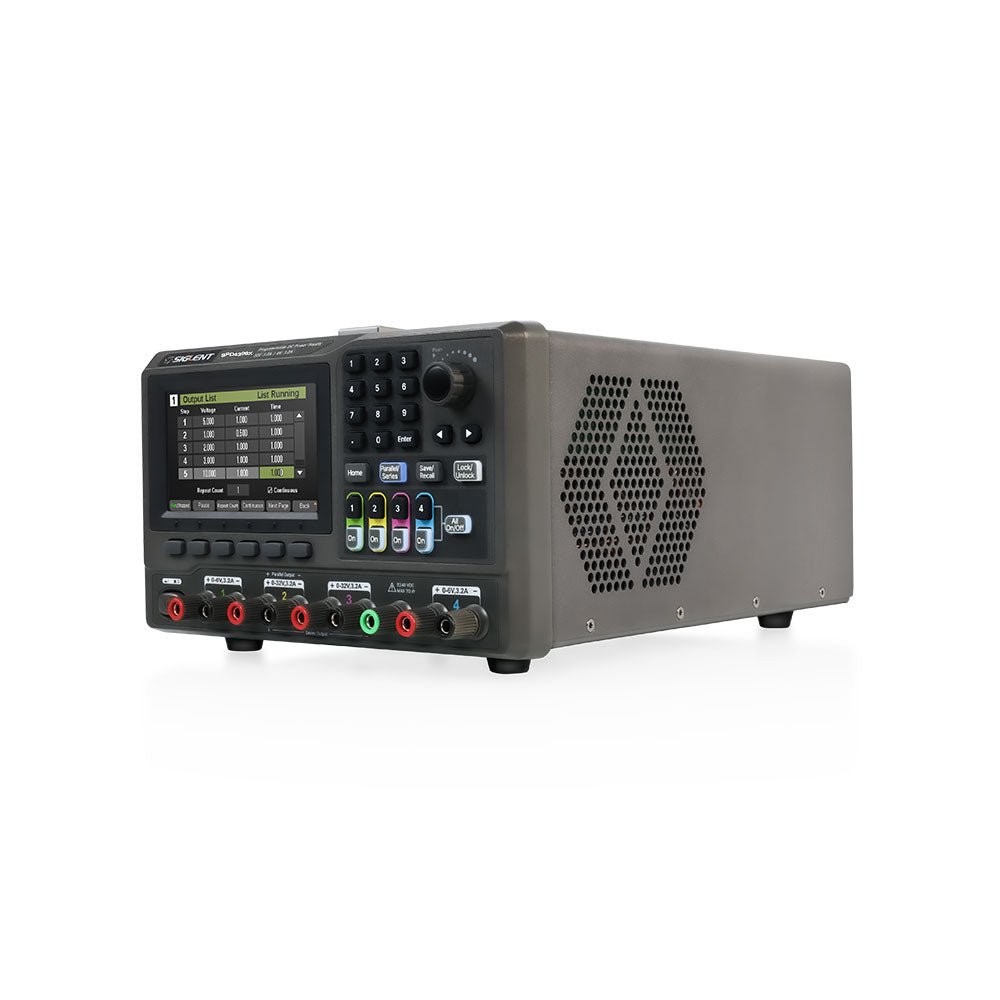

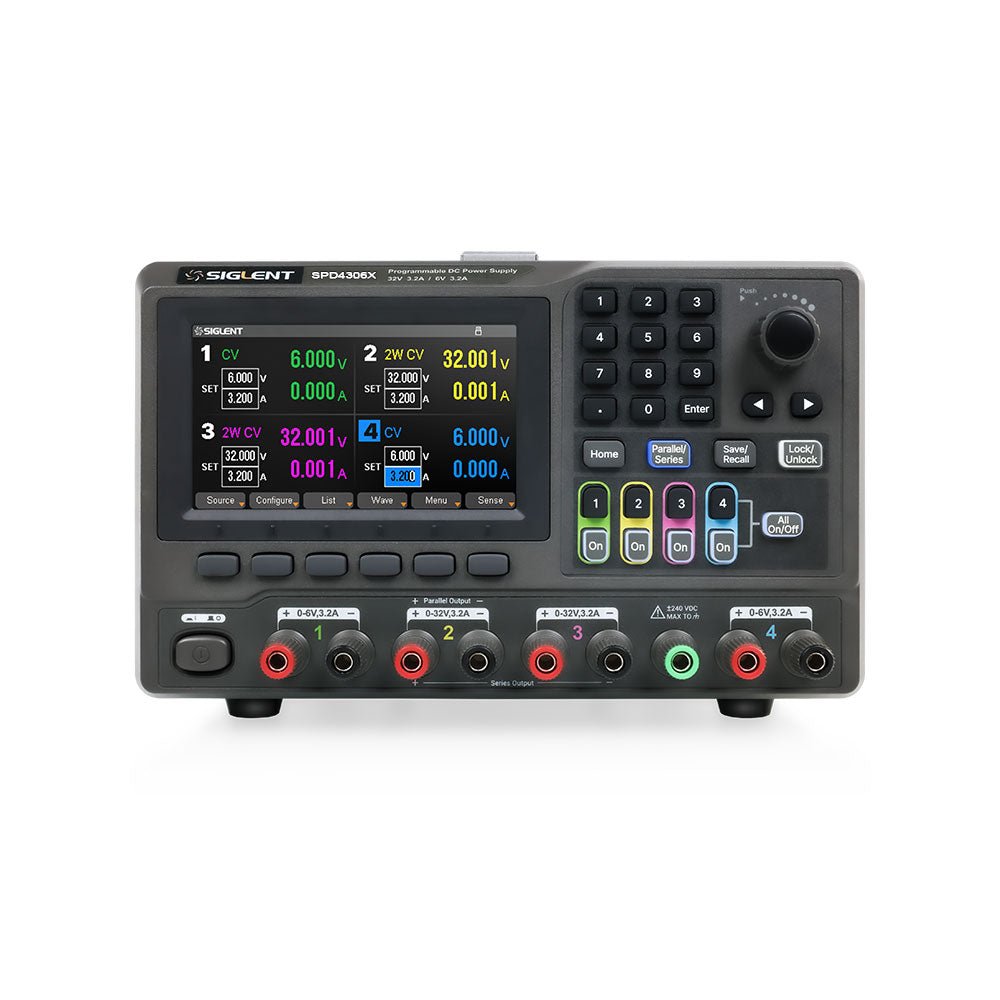

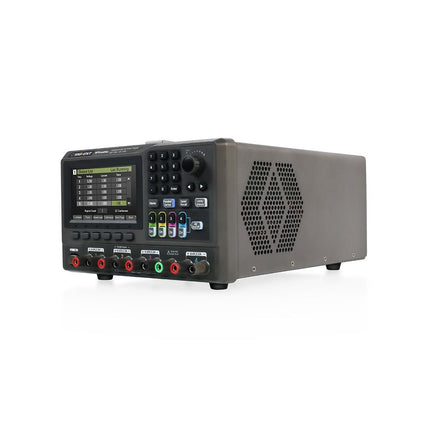

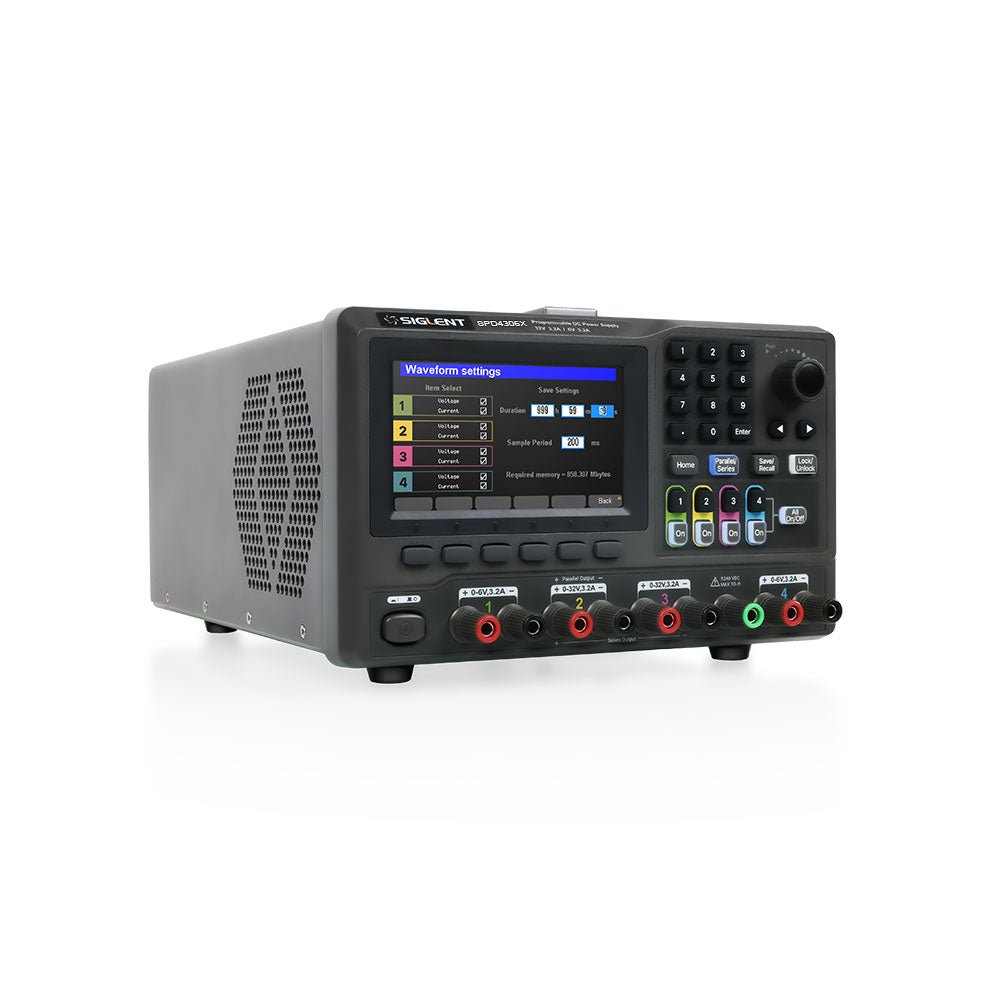

The Siglent SPD4306X is a 4-channel DC Linear Programmable Power Supply equipped with a 4.3-inch TFT-LCD display, friendly human-machine interface, and excellent performance indicators. Real-time waveform display provides engineers with an informative user interface.

SPD4306X offers a total output power of 400 W with a resolution of 1 mV/1 mA. The maximum voltage and current for each channel are as follows:

  • CH1: 15 V/1.5 A
  • CH2: 30 V/6 A
  • CH3: 30 V/6 A
  • CH4: 15 V/1 A

Kenmerken

  • Rated output power: 400 W
  • Rated voltage: 32 V, 12 V, 30 V
  • Up to four high-precision power supplies with independent controllable outputs, supporting CH2 and CH3 series and parallel connections
  • Clear graphical interface with waveform and timer display modes
  • 5-digit voltage and current display with minimum resolution of 1 mV, 1 mA
  • Fast output response time: <50us
  • The high current channel support remote voltage compensation sense function. The maximum compensation voltage is 0.6 V
  • Overvoltage protection and overcurrent protection or safe and accurate operation
  • Equipped with a 4.3-inch TFT-LCD display (480 x 272 resolution)
  • USB and LAN standard communication
  • USB-GPIB module is optional
  • Excellent channel density with up to 4 channels in a 3U half rack package
  • Internal data storage for setups and parameters
  • Embedded Web Server with instrument communication that doesn’t require software installation
  • Fully SCPI programming command set support as well as a LabView driver for remote control and system automation

Specificaties

SPD4323X SPD4121X SPD4306X
Channel Output CH1: Voltage 0 to 6 V Current 0 to 3.2 A
CH2: Voltage 0 to 32 V Current 0 to 3.2 A
CH3: Voltage 0 to 32 V Current 0 to 3.2 A
CH4: Voltage 0 to 6 V Current 0 to 3.2 A
CH1: Voltage 0 to 15 V Current 0 to 1.5 A
CH2: Voltage 0 to 12 V Current 0 to 10 A
CH3: Voltage 0 to 12 V Current 0 to 10 A
CH4: Voltage 0 to 15 V Current 0 to 1.5 A
CH1: Voltage 0 to 15 V Current 0 to 1.5 A
CH2: Voltage 0 to 30 V Current 0 to 6 A
CH3: Voltage 0 to 30 V Current 0 to 6 A
CH4: Voltage 0 to 15 V Current 0 to 1 A
Resolution 1 mV, 1 mA 1 mV, 1 mA 1 mV, 1 mA
Setting Accuracy Voltage: ±(0.03% of reading+10) mV, Current: ±(0.3% of reading+10) mA Voltage: ±(0.03% of reading+10) mV, Current: ±(0.3% of reading+10) mA Voltage: ±(0.03% of reading+10) mV, Current: ±(0.3% of reading+10) mA
Readback Accuracy Voltage: ±(0.03% of reading+10) mV, Current: ±(0.3% of reading+10) mA Voltage: ±(0.03% of reading+10) mV, Current: ±(0.3% of reading+10) mA Voltage: ±(0.03% of reading+10) mV, Current: ±(0.3% of reading+10) mA
Display 4.3" TFT-LCD 5-digit voltage and current display 4.3" TFT-LCD 5-digit voltage and current display 4.3" TFT-LCD 5-digit voltage and current display
Output power 240 W 285 W 400 W

Inbegrepen

  • 1x Siglent SPD4306X Power Supply
  • 1x Power cord (EU)
  • 1x Output test cord (3 A)
  • 1x USB cable
  • 1x Quick start guide

Downloads


Productformulier

The Siglent SPD4306X is a 4-channel DC Linear Programmable Power Supply equipped with a 4.3-inch TFT-LCD display, friendly human-machine interface,... Lees meer

Nog 2 op voorraad

€ 1.099,00 incl. BTW
