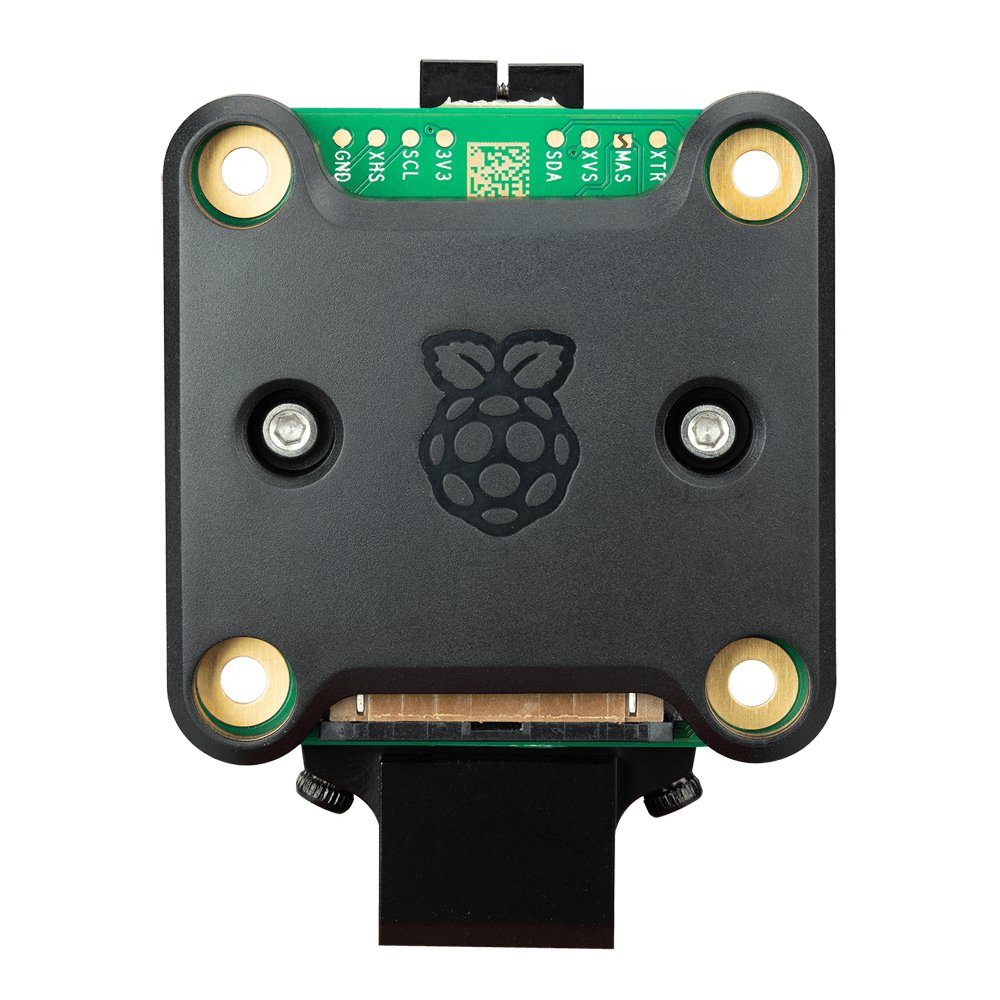

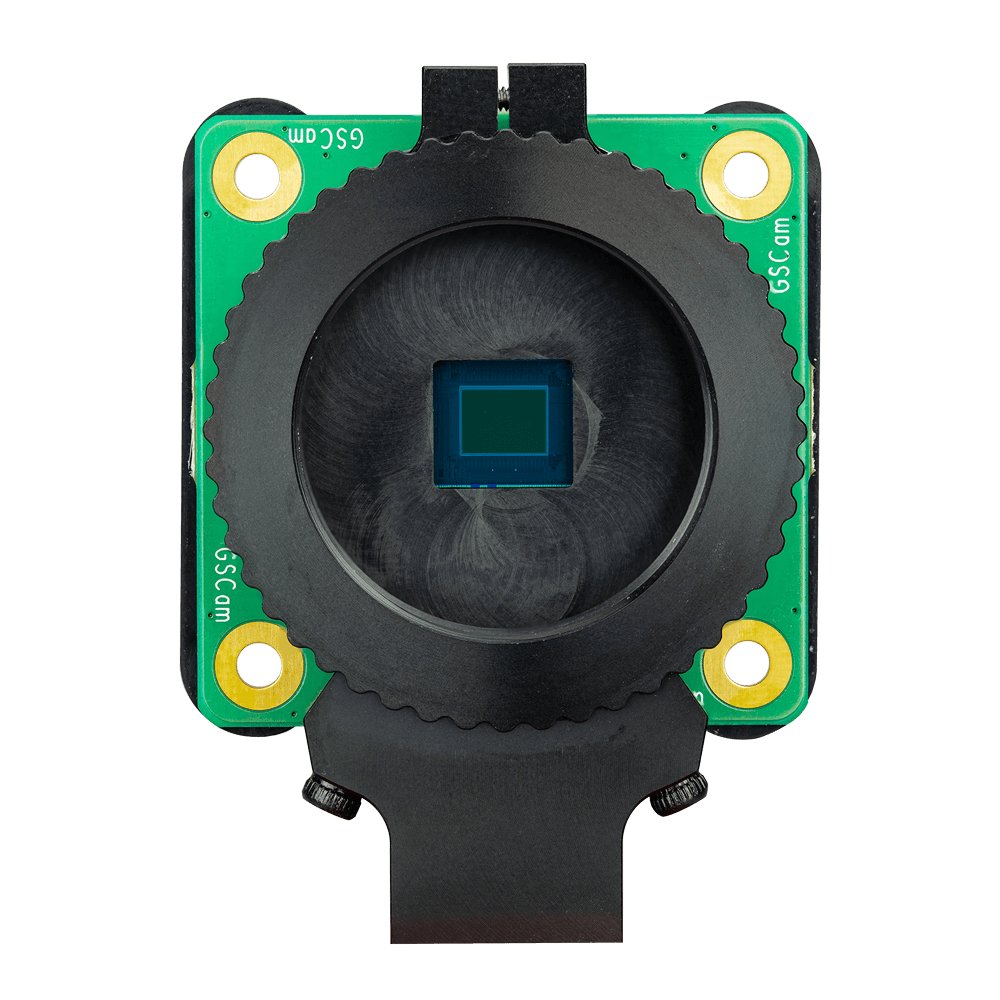

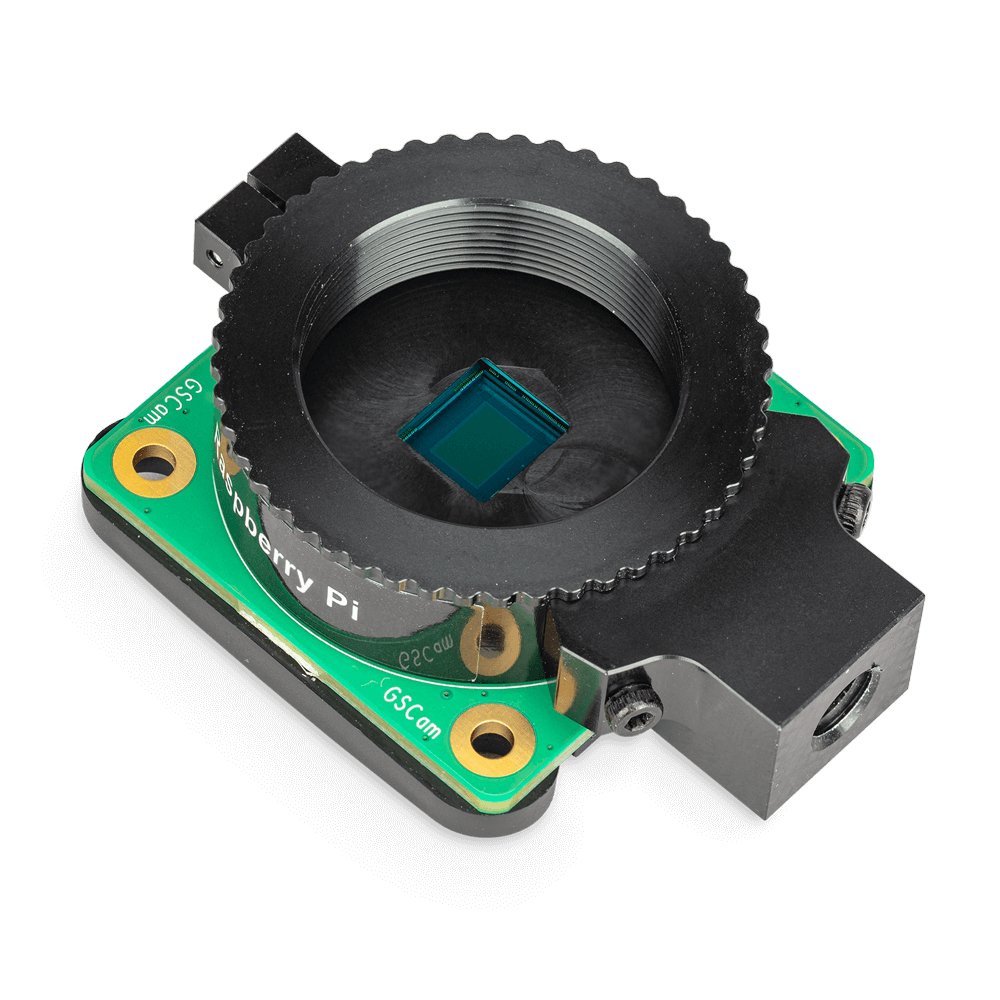

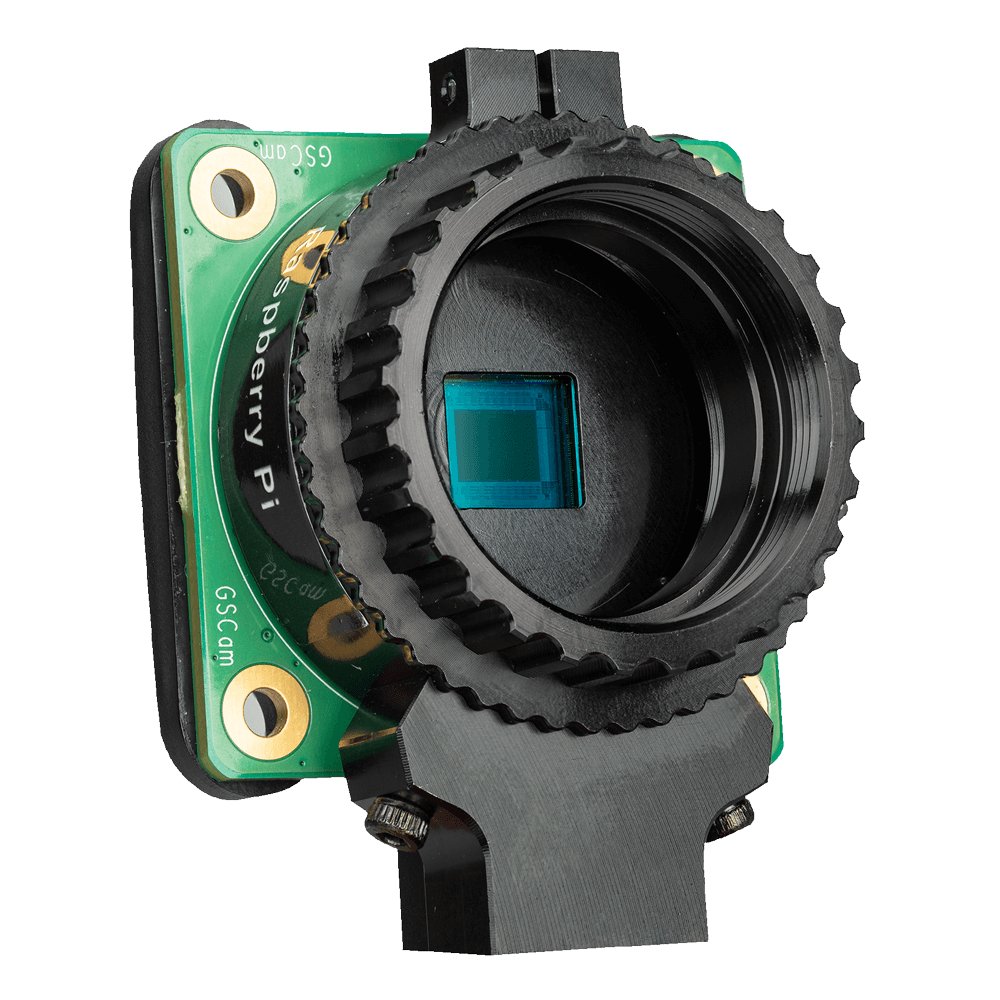

Raspberry Pi Global Shutter Camera

The Raspberry Pi Global Shutter Camera is a specialised 1.6 MP camera from Raspberry Pi that is able to capture rapid motion without introducing artefacts typical of rolling shutter cameras. It is ideally suited to fast motion photography and to machine vision applications, where even small amounts of distortion can seriously degrade inference performance.

With a large pixel size of 3.45 x 3.45 μm providing high light sensitivity, the Global Shutter Camera can operate with short exposure times (as low as 30 μs with adequate lighting), an advantage for high-speed photography.

It features a 1.6 MP Sony IMX296 sensor, and it has the same C/CS-mount lens assembly as the Raspberry Pi High Quality Camera, for compatibility with the same broad variety of lenses. In common with other global shutter sensors, the IMX296 has a lower resolution than similarly sized rolling shutter sensors; a low pixel count is appropriate for machine vision applications, where high-resolution images are challenging to process in real time. The Global Shutter Camera's lower resolution means that with appropriate lens magnification, an image suitable for processing by a machine vision model can be captured natively.

The Raspberry Pi Global Shutter Camera is compatible with any Raspberry Pi computer that has a CSI connector.

Specifications

Form factor 38 x 38 x 19.8 mm (29.5 mm adapter and dust cap)
Weight 34 g (41 g with adapter and dust cap)
Sensor Sony IMX296LQR-C
Resolution 1.58 MP (color)
Sensor size 6.3 mm (sensor diagonal)
Pixel size 3.45 x 3.45 μm
Output RAW10
Back focus length of lens Adjustable (12.5-22.4 mm)
Lens standards CS-Mount
C-Mount (C-CS adapter included)
IR cut filter Integrated
Ribbon cable length 150 mm
Included accessories C-CS mount adapter
Screwdriver
Tripod mount 1/4”-20

Included

  • Raspberry Pi Global Shutter Camera
  • C-CS mount adapter
  • Screwdriver
  • Ribbon cable (150 mm)

Downloads

Productformulier

The Raspberry Pi Global Shutter Camera is a specialised 1.6 MP camera from Raspberry Pi that is able to capture... Lees meer

No reviews

SKU: 20418
EAN: 5056561803234

€ 59,95 Incl. BTW
Leden identiek

    • Vandaag verstuurd? Je hebt nog: Mar 01, 2024 17:00:00 +0100

    The Raspberry Pi Global Shutter Camera is a specialised 1.6 MP camera from Raspberry Pi that is able to capture rapid motion without introducing artefacts typical of rolling shutter cameras. It is ideally suited to fast motion photography and to machine vision applications, where even small amounts of distortion can seriously degrade inference performance.

    With a large pixel size of 3.45 x 3.45 μm providing high light sensitivity, the Global Shutter Camera can operate with short exposure times (as low as 30 μs with adequate lighting), an advantage for high-speed photography.

    It features a 1.6 MP Sony IMX296 sensor, and it has the same C/CS-mount lens assembly as the Raspberry Pi High Quality Camera, for compatibility with the same broad variety of lenses. In common with other global shutter sensors, the IMX296 has a lower resolution than similarly sized rolling shutter sensors; a low pixel count is appropriate for machine vision applications, where high-resolution images are challenging to process in real time. The Global Shutter Camera's lower resolution means that with appropriate lens magnification, an image suitable for processing by a machine vision model can be captured natively.

    The Raspberry Pi Global Shutter Camera is compatible with any Raspberry Pi computer that has a CSI connector.

    Specifications

    Form factor 38 x 38 x 19.8 mm (29.5 mm adapter and dust cap)
    Weight 34 g (41 g with adapter and dust cap)
    Sensor Sony IMX296LQR-C
    Resolution 1.58 MP (color)
    Sensor size 6.3 mm (sensor diagonal)
    Pixel size 3.45 x 3.45 μm
    Output RAW10
    Back focus length of lens Adjustable (12.5-22.4 mm)
    Lens standards CS-Mount
    C-Mount (C-CS adapter included)
    IR cut filter Integrated
    Ribbon cable length 150 mm
    Included accessories C-CS mount adapter
    Screwdriver
    Tripod mount 1/4”-20

    Included

    • Raspberry Pi Global Shutter Camera
    • C-CS mount adapter
    • Screwdriver
    • Ribbon cable (150 mm)

    Downloads
