Omschrijving

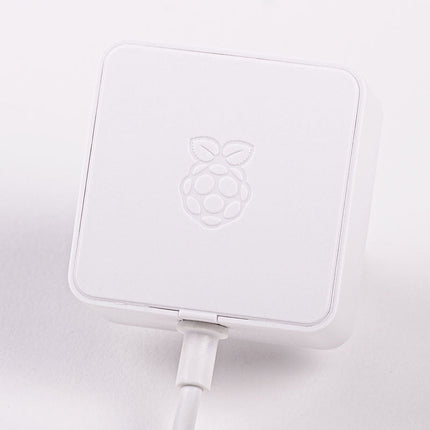

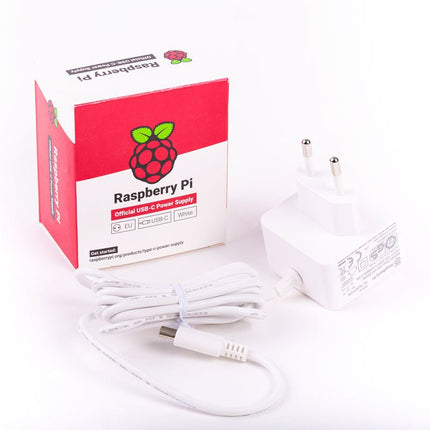

De Raspberry Pi USB-C voeding is speciaal ontworpen om de nieuwste Raspberry Pi 4 van stroom te voorzien.
De voeding is voorzien van een USB-C-kabel en is verkrijgbaar in vier verschillende modellen voor verschillende internationale stopcontacten, en in twee kleuren.
Specificaties
| Output |
| Output voltage |
+5.1 V DC |
| Minimum load current |
0 A |
| Nominal load current |
3.0 A |
| Maximum power |
15.3 W |
| Load regulation |
±5% |
| Line regulation |
±2% |
| Ripple & noise |
120 mVp-p |
| Rise time |
100 ms maximum to regulation limits for DC outputs |
| Turn-on delay |
3000 ms maximum at nominal input AC voltage and full load |
| Protection |
Short circuit protection
Overcurrent protection
Over temperature protection |
| Efficiency |
81% minimum (output current from 100%, 75%, 50%, 25%)
72% minimum at 10% load |
| Output cable |
1.5 m 18AWG |
| Output connector |
USB Type-C |
| Input |
| Voltage range |
100-240 V AC (rated)
96-264 V AC (operating) |
| Frequency |
50/60 Hz ±3 Hz |
| Current |
0.5 A maximum |
| Power consumption (no load) |
0.075 W maximum |
| Inrush current |
No damage shall occur, and the input fuse shall not blow |
| Operating ambient temperature |
0-40 °C |
