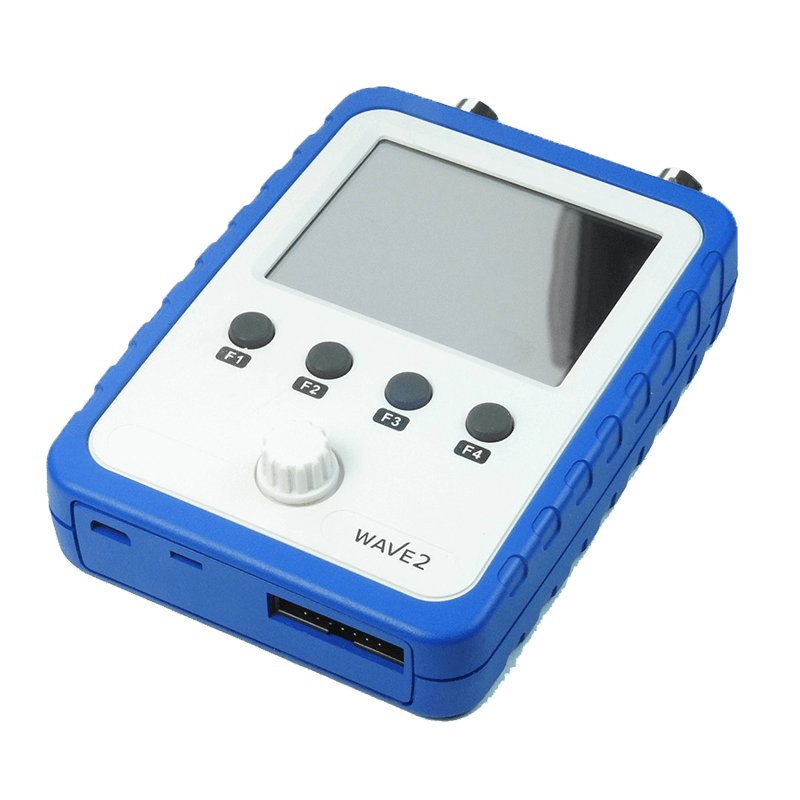

JYE Tech WAVE2 2-ch Portable Oscilloscope DIY Kit

  • FabrikantJYE Tech

Omschrijving

Features

  • No. of Channels: 2
  • Bandwidth: 0 – 200 KHz per channel
  • Sensitivity range: 5 mV/DIV – 20 V/DIV (using x1 probe)
  • Maximum input voltage: 50 Vpk (using x1 probe)
  • Maximum real time sampling rate: 1 MS/s
  • Time Base range 10 us/DIV – 500 s/DIV
  • X-Y Display Feature: Yes
  • Function Generator Capability: Built-in 0 – 20 KHz (sine) dual channel DDS function generator
  • Display Resolution: 320 x 240 Color display
  • Display Size: 2.4?
  • Touch Display Capability: Yes
  • Battery powered and portable (battery not included in DIY Kit)

Specifications

General

  • 2.4” 320x240 color display
  • Touch panel operation
  • Y-X mode available
  • Built-in 2-channel DDS function generator
  • Light weight and portable

Vertical

  • Number of Channel: 2
  • Analog Bandwidth: DC – 200 KHz
  • Sensitivity: 5 mV/Div - 20 V/Div (with x1 probe)
  • Sensitivity error: < 5%
  • Resolution: 12-bit
  • Input Impedance: 1 M ohm / 25 pF
  • Maximum Input Voltage: 50 Vpk
  • Coupling: DC, AC

Horizontal

  • Max Real-time Sampling Rate: 1 Msps (per channel)
  • Timebase: 10 us/Div - 500 s/Div
  • Record Length: 1024 points

Trigger

  • Trigger Modes: Auto, Normal, Single
  • Trigger Types: Rising/falling edge
  • Trigger Position: 1/2 of buffer size
  • Trigger Source: Ch1, Ch2, External
  • Maximum external trigger voltage: 15 V
  • External trigger threshold: LVTTL

Function Generator

  • Number of channel: 2
  • Waveform type: Sine, Square, Saw-tooth, Stair
  • Frequency range: DC – 20 KHz (Sine)
  • Amplitude range: 0 – 3 V (peak value)
  • Offset: 0 V or +3.3 V
  • Duty Cycle: 0 – 100%
  • Phase: -360 – 360 degree

Power Supply

  • Powered on 3.7 V Li-ion battery or USB
  • Current consumption: ~30 0mA @ 3.7 – 5V
  • Internal batter charger (optional)
  • Automatic power off on battery
  • Battery running time: Appr. 3 hrs (when fully charged)

Other Features

  • Y-X display mode
  • On-screen measurement display
  • Save / recall up to 4 captures
  • Serial output of captured data
  • Serial port format: LVTTL, 115200 bps, 8N1
  • Built-in 1 KHz/3.3 V test signal

Physical

  • Dimension: 115 x 72 x 30 mm
  • Weight: 0.29 kg (excluding battery and probes)
Productformulier

Features No. of Channels: 2 Bandwidth: 0 – 200 KHz per channel Sensitivity range: 5 mV/DIV – 20 V/DIV (using... Lees meer

€ 84,95 incl. BTW
Leden € 76,46

      Details

      SKU: 19350
      EAN: 019350

      Omschrijving

      Features

      • No. of Channels: 2
      • Bandwidth: 0 – 200 KHz per channel
      • Sensitivity range: 5 mV/DIV – 20 V/DIV (using x1 probe)
      • Maximum input voltage: 50 Vpk (using x1 probe)
      • Maximum real time sampling rate: 1 MS/s
      • Time Base range 10 us/DIV – 500 s/DIV
      • X-Y Display Feature: Yes
      • Function Generator Capability: Built-in 0 – 20 KHz (sine) dual channel DDS function generator
      • Display Resolution: 320 x 240 Color display
      • Display Size: 2.4?
      • Touch Display Capability: Yes
      • Battery powered and portable (battery not included in DIY Kit)

      Specifications

      General

      • 2.4” 320x240 color display
      • Touch panel operation
      • Y-X mode available
      • Built-in 2-channel DDS function generator
      • Light weight and portable

      Vertical

      • Number of Channel: 2
      • Analog Bandwidth: DC – 200 KHz
      • Sensitivity: 5 mV/Div - 20 V/Div (with x1 probe)
      • Sensitivity error: < 5%
      • Resolution: 12-bit
      • Input Impedance: 1 M ohm / 25 pF
      • Maximum Input Voltage: 50 Vpk
      • Coupling: DC, AC

      Horizontal

      • Max Real-time Sampling Rate: 1 Msps (per channel)
      • Timebase: 10 us/Div - 500 s/Div
      • Record Length: 1024 points

      Trigger

      • Trigger Modes: Auto, Normal, Single
      • Trigger Types: Rising/falling edge
      • Trigger Position: 1/2 of buffer size
      • Trigger Source: Ch1, Ch2, External
      • Maximum external trigger voltage: 15 V
      • External trigger threshold: LVTTL

      Function Generator

      • Number of channel: 2
      • Waveform type: Sine, Square, Saw-tooth, Stair
      • Frequency range: DC – 20 KHz (Sine)
      • Amplitude range: 0 – 3 V (peak value)
      • Offset: 0 V or +3.3 V
      • Duty Cycle: 0 – 100%
      • Phase: -360 – 360 degree

      Power Supply

      • Powered on 3.7 V Li-ion battery or USB
      • Current consumption: ~30 0mA @ 3.7 – 5V
      • Internal batter charger (optional)
      • Automatic power off on battery
      • Battery running time: Appr. 3 hrs (when fully charged)

      Other Features

      • Y-X display mode
      • On-screen measurement display
      • Save / recall up to 4 captures
      • Serial output of captured data
      • Serial port format: LVTTL, 115200 bps, 8N1
      • Built-in 1 KHz/3.3 V test signal

      Physical

      • Dimension: 115 x 72 x 30 mm
      • Weight: 0.29 kg (excluding battery and probes)
