DIY LiPo Supercharger Kit V2 (by GreatScott!)

  • FabrikantElektor Labs

Omschrijving

This DIY LiPo Supercharger/Booster (developed the electronics engineer/YouTuber GreatScott! and produced by Elektor) can charge a single-cell LiPo battery and protect it against the effects of overvoltage, overload, and short-circuits. Additionally, it can boost the battery voltage to 5 V or 12 V. The boosted output voltage is protected by an ‘eFuse’ IC outputting 1.52 A at 5 V or 0.76 A at 12 V maximum.

The charger part of the circuit needs a +5 V power supply which can be connected through USB-C, or simply two wires soldered to pads on the PCB.

In addition, other connections can be soldered to pads on the PCB or by using single pinheaders.

Included

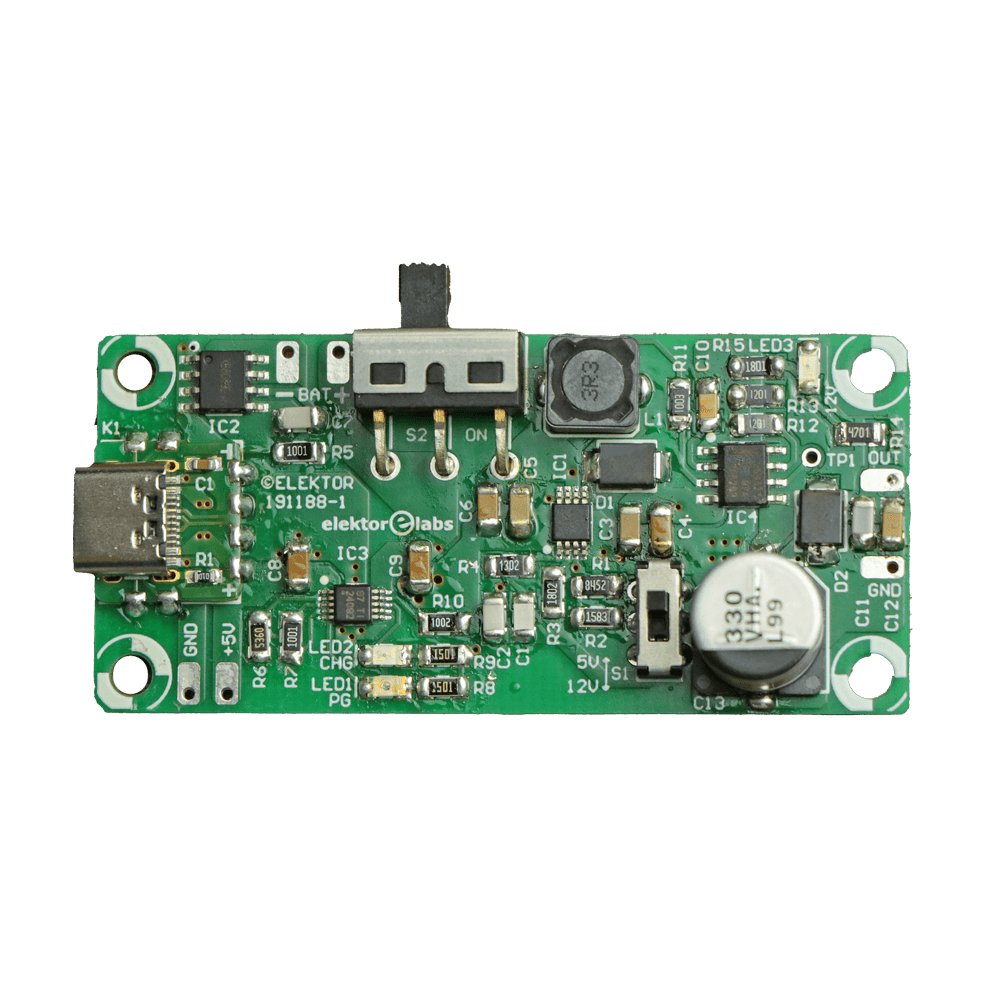

  • 1x Mainboard pre-assembled with the 4 ICs
  • 15x Resistors
  • 3x LEDs
  • 13x Capacitors
  • 2x Switches
  • 1x USB-C on a breakout board
  • 2x Diodes

Please note: Battery is not included.

The board uses a DC/DC Converter, an IC charger, and an e Fuse from Texas Instruments. The battery protection IC is from Xysemi and provides under-voltage lockout, over current protection, and reverse battery protection.

The board is connected to the power and recharges the batteries via a USB-C connection.

Specifications

Battery Single-cell lithium-ion or lithium-polymer battery
Input Voltage +5 V / 2 A max.
Output Voltage 5 V / 1.52 A
12 V / 0.76 A
LiPo Protection XB8089D
Overcharge Detection 4.250 V
Overcharge Release 4.10 V
Overdischarge Detection 2.50 V
Overdischarge Release 3 V
Overcurrent Detection 10.0 A
Thermal Shutdown Auto-retry
Enable/Undervoltage Lockout Rising: 1.2 V (typ.)
Falling: 1.1 V (typ.)


Productformulier

This DIY LiPo Supercharger/Booster (developed the electronics engineer/YouTuber GreatScott! and produced by Elektor) can charge a single-cell LiPo battery and... Lees meer

€ 29,95 incl. BTW
Leden € 26,96

    • Vandaag verstuurd? Je hebt nog Jun 25, 2024 17:00:00 +0200

    Details

    SKU: 19525
    EAN: 7442105129188

    Omschrijving

    This DIY LiPo Supercharger/Booster (developed the electronics engineer/YouTuber GreatScott! and produced by Elektor) can charge a single-cell LiPo battery and protect it against the effects of overvoltage, overload, and short-circuits. Additionally, it can boost the battery voltage to 5 V or 12 V. The boosted output voltage is protected by an ‘eFuse’ IC outputting 1.52 A at 5 V or 0.76 A at 12 V maximum.

    The charger part of the circuit needs a +5 V power supply which can be connected through USB-C, or simply two wires soldered to pads on the PCB.

    In addition, other connections can be soldered to pads on the PCB or by using single pinheaders.

    Included

    • 1x Mainboard pre-assembled with the 4 ICs
    • 15x Resistors
    • 3x LEDs
    • 13x Capacitors
    • 2x Switches
    • 1x USB-C on a breakout board
    • 2x Diodes

    Please note: Battery is not included.

    The board uses a DC/DC Converter, an IC charger, and an e Fuse from Texas Instruments. The battery protection IC is from Xysemi and provides under-voltage lockout, over current protection, and reverse battery protection.

    The board is connected to the power and recharges the batteries via a USB-C connection.

    Specifications

    Battery Single-cell lithium-ion or lithium-polymer battery
    Input Voltage +5 V / 2 A max.
    Output Voltage 5 V / 1.52 A
    12 V / 0.76 A
    LiPo Protection XB8089D
    Overcharge Detection 4.250 V
    Overcharge Release 4.10 V
    Overdischarge Detection 2.50 V
    Overdischarge Release 3 V
    Overcurrent Detection 10.0 A
    Thermal Shutdown Auto-retry
    Enable/Undervoltage Lockout Rising: 1.2 V (typ.)
    Falling: 1.1 V (typ.)
