Raspberry Pi 4 |

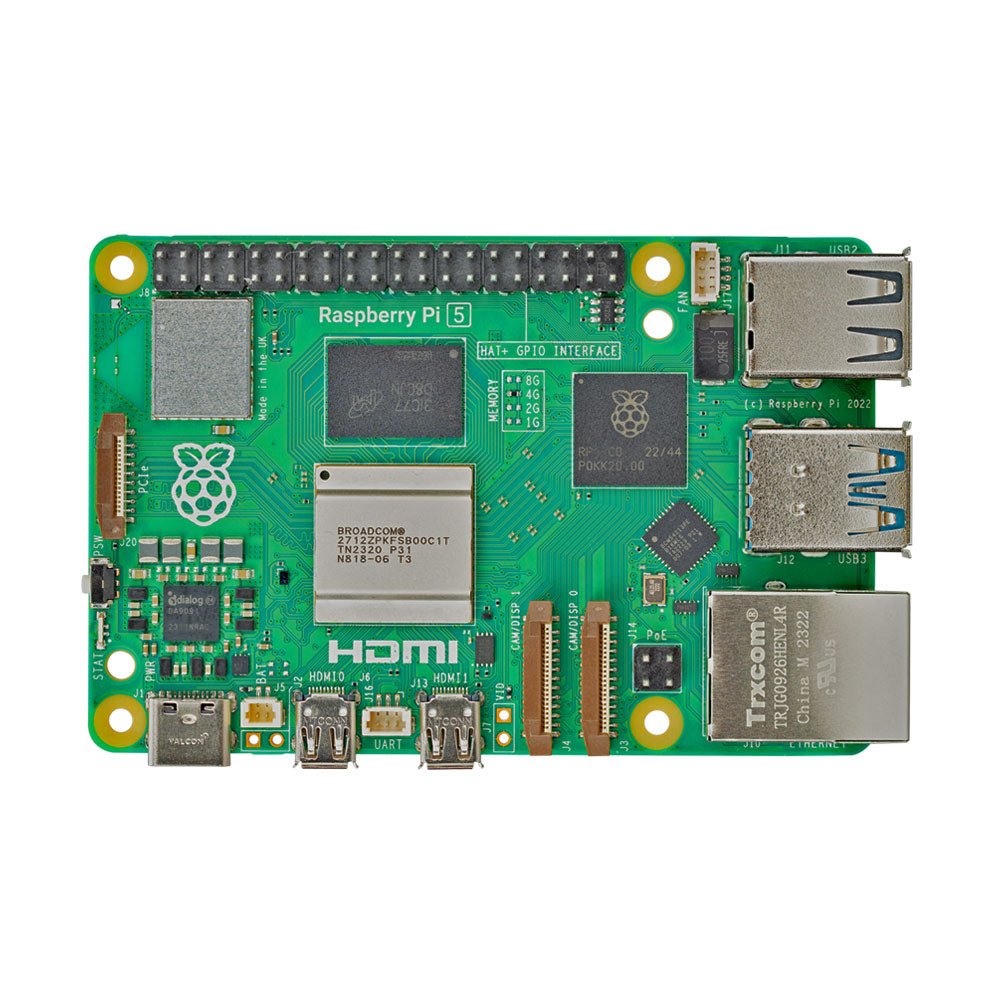

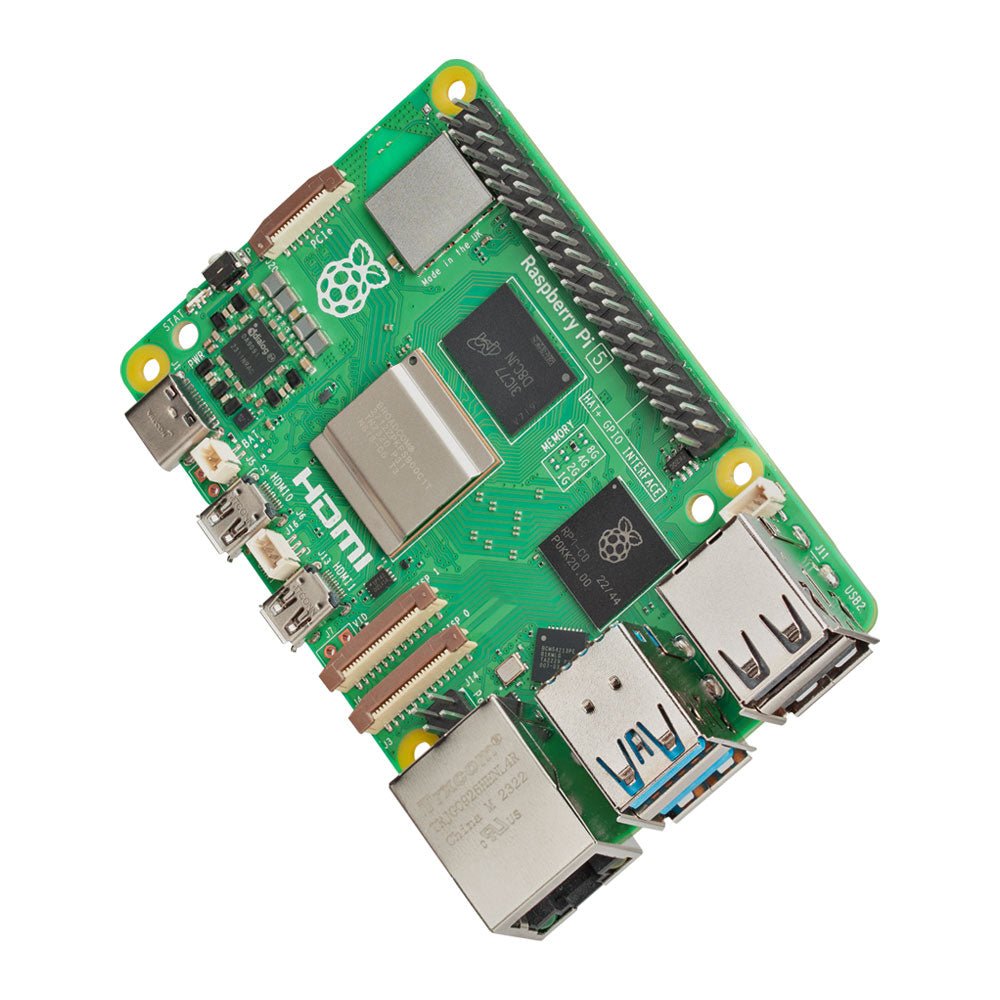

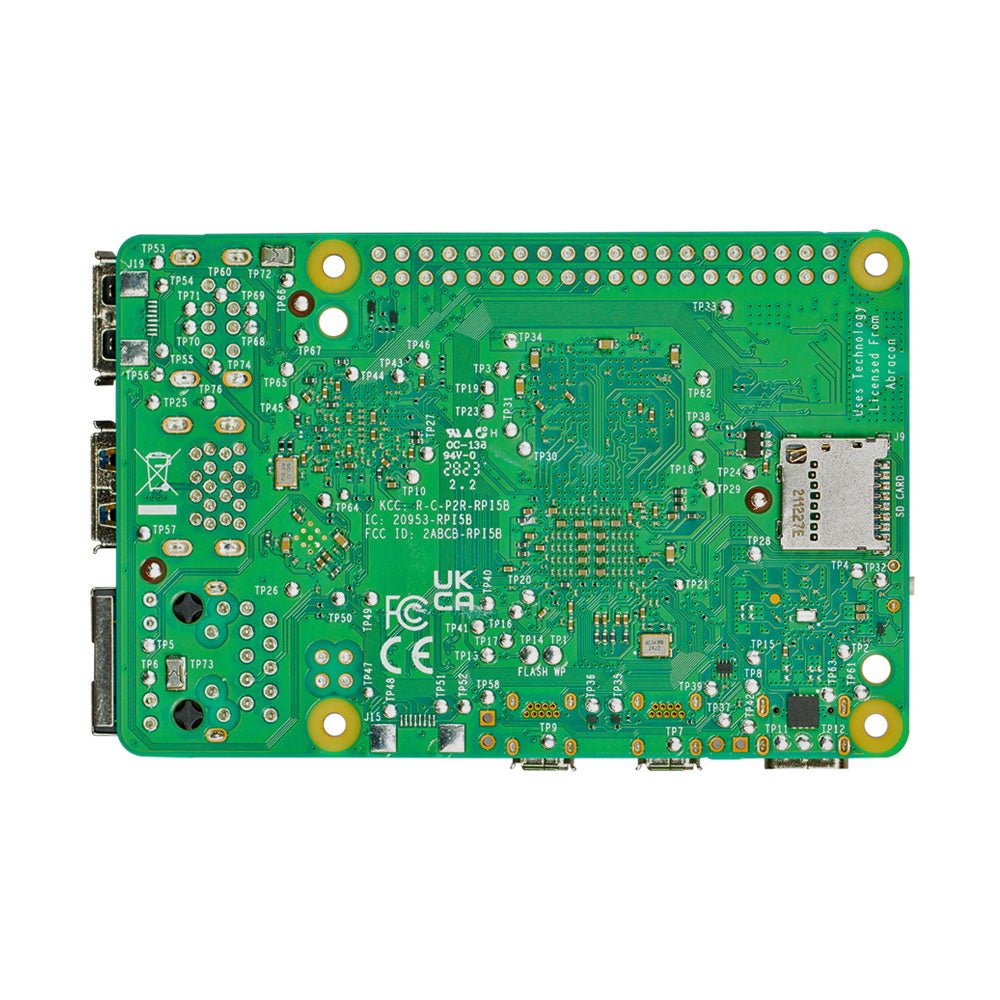

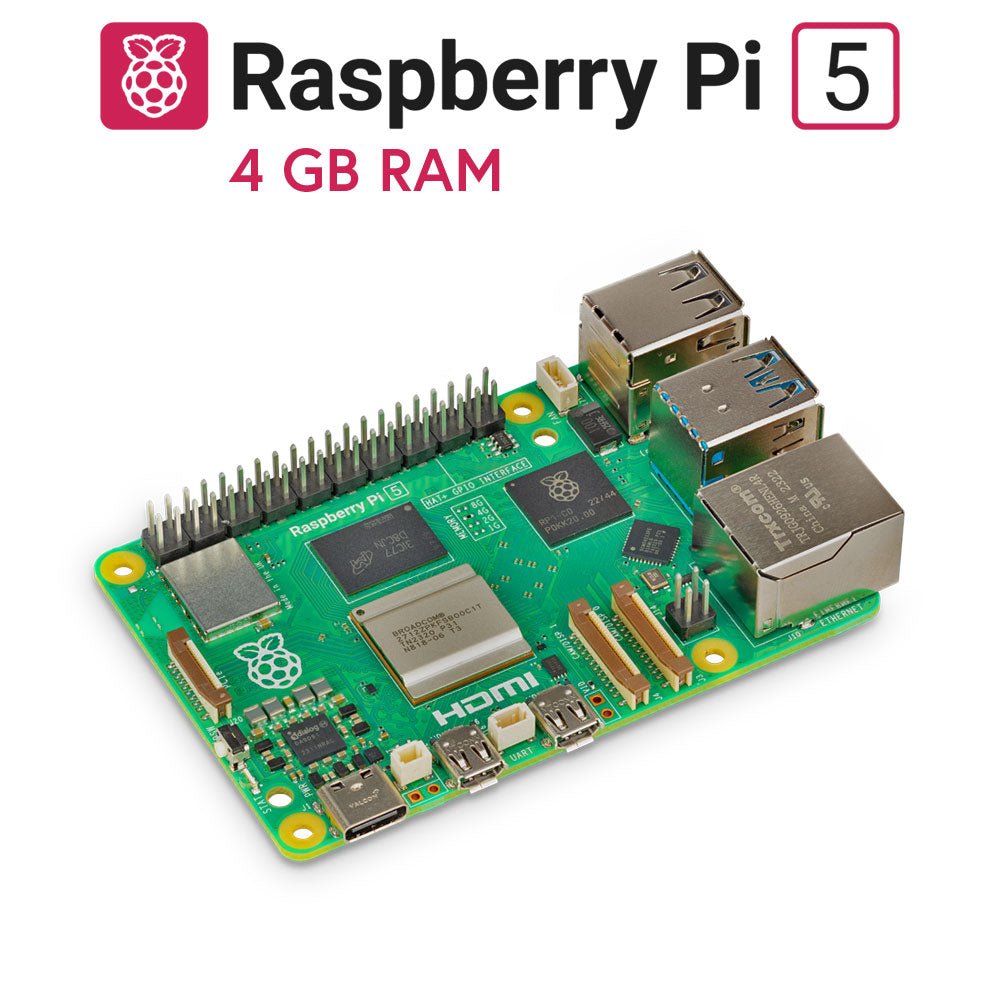

Raspberry Pi 5 |
| SoC |
Broadcom BCM2711 |
Broadcom BCM2712 |
| CPU |
ARM Cortex-A72 (ARM v8) 64-bit |
ARM Cortex-A76 (ARM v8) 64-bit |
| Kloksnelheid |
4x 1,5 GHz |
4x 2,4 GHz |
| L2-cache |
1 MByte gedeeld |
4x 512 KByte |
| L3-cache |
N/A |
2 MByte gedeeld |
| GPU |
VideoCore VI (500 MHz) |
VideoCore VII (800 MHz) |
| RAM |
4 GB LPDDR4 (3200 MHz) |
4 GB LPDDR4X (4267 MHz) |
| WiFi |
IEEE 802.11b/g/n/ac (2,4 GHz/5 GHz) |
IEEE 802.11b/g/n/ac (2,4 GHz/5 GHz) |
| Bluetooth |
Bluetooth 5.0, BLE |
Bluetooth 5.0, BLE |
| Ethernet |
Gigabit Ethernet (met PoE ondersteuning) |
Gigabit Ethernet (met PoE+ ondersteuning) |
| USB |
2x USB-A 3.0
2x USB-A 2.0 |
2x USB-A 3.0 (5 GBit/s)
2x USB-A 2.0 |
| I/O-controllerchip |
N/A |
Raspberry Pi Silicon RP1 |
| PCI Express |
N/A |
1x PCIe 2.0 |
| Real Time Clock (RTC) |
N/A |
RTC en RTC-batterijconnector |
| Aan/uit-knop |
N/A |
Aan/uit-knop aan boord |
| Koeling |
N/A |
Ventilatorconnector |
| GPIO |
Standaard 40-pins GPIO-header |
Standaard 40-pins GPIO-header |
| UART |
via GPIO |
1x UART-connector |
| SD-kaart |
microSD-slot (DDR50) |
microSD-slot (SDR104) |
| Video |
2x micro-HDMI-poorten (4K60)
1x 2-lane MIPI DSI-poort (beeldscherm)
1x 2-lane MIPI CSI-poort (camera) |
2x micro-HDMI-poorten (4K60)
2x 4-lane MIPI (DSI/CSI) |
| Audio |
4-polige 3,5 mm audio jack (stereo audio en composite video) |
N/A |
| Multimedia |
H.265 (4K60 decode)
H.264 (1080p60 decode, 1080p30 encode)
OpenGL ES, 3.0 graphics |
H.265 (4K60 decode)
OpenGL ES 3.1, Vulkan 1.2 |
| Stroomvoorziening |
5 V/3 A (15 W)
Power over Ethernet (PoE) |
5 V/5 A (25 W), USB PD
Power over Ethernet (PoE+) |
