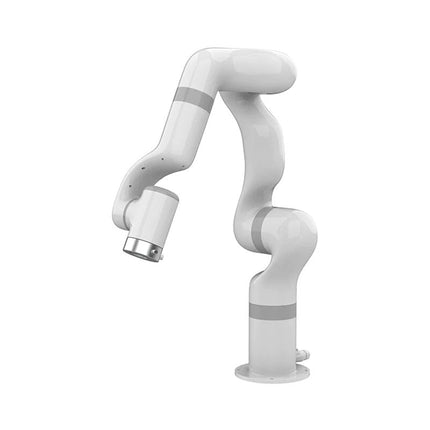

UFactory 850 Robotic Arm

  • FabrikantUFactory

Omschrijving

UFactory 850 is the most powerful robot with industrial grade performance.

Features

  • 6DoF
  • Payload: 5 kg
  • Reach: 850 mm
  • Repeatability: 0.02 mm
  • Weight: 20 kg

Applications

  • Glambot
  • Welding
  • Screwdriving
  • Robot Vision
  • Industrial Production

Designed for both mobile platforms and your workbench

  • The AC control box contains an AC-DC adapter inside, 100-240 V AC is all ready to go.
  • The DC control box supports 48-72 V wide inputs, it perfectly fits the battery system on your mobile platform.

Flexible Deployment With Safe Feature

  • Hand teaching, space-saving and easy to re-deploy to multiple applications without changing your production layout. Perfectly for recurrent tasks.
  • Collision detection is available for all of our cobots. Your safety is always the top priority.

Graphical Interface For Beginner-Friendly Programming

  • Compatible with various operation systems, including macOS and Windows.
  • Web-based technology compatible with all major browsers.
  • Drag and drop to create your code in minutes.

Powerful And Open Source SDK At Your Fingertips

  • Fully functional open-source Python/C++ SDK provides more flexible programming.
  • ROS/ROS2 packages are ready-to-go.
  • Example codes help you to deploy the robotic arm smoothly.

Specifications

UFactory 850 xArm 5 xArm 6 xArm 7
Payload 5 kg 3 kg 5 kg 3.5 kg
Reach 850 mm 700 mm 700 mm 700 mm
Degrees of freedom 6 5 6 7
Repeatability ±0.02 mm ±0.1 mm ±0.1 mm ±0.1 mm
Maximum Speed 1 m/s 1 m/s 1 m/s 1 m/s
Weight (robot arm only) 20 kg 11.2 kg 12.2 kg 13.7 kg
Maximum Speed 180°/s 180°/s 180°/s 180°/s
Joint 1 ±360° ±360° ±360° ±360°
Joint 2 -132°?132° -118°?120° -118°?120° -118°?120°
Joint 3 -242°~3.5° -225°~11° -225°~11° ±360°
Joint 4 ±360° -97°~180° ±360° -11°?225°
Joint 5 -124°~124° ±360° -97°~180° ±360°
Joint 6 ±360° ±360° -97°~180°
Joint 7 ±360°

Hardware

Ambient Temperature Range 0-50°C
Power Consumption Typical 240 W, max 1000 W
Input Power Supply 48 V DC, 20.8 A
Footprint Ø 190 mm
Materials Aluminum, Carbon Fiber
Base Connector Type M8x4
ISO Class Cleanroom 5
Robot Mounting Any
End Effector Communication Protocol Modbus RTU
End Effector I/O 2x DI / 2x DO / 2x AI / 1x RS485
Communication Mode Ethernet

Included

  • 1x UFactory 850 robotic arm
  • 1x AC control box
  • 1x Control box power cable
Productformulier

UFactory 850 is the most powerful robot with industrial grade performance. Features 6DoF Payload: 5 kg Reach: 850 mm Repeatability:... Lees meer

€ 11.779,00 incl. BTW
Leden identiek

    Details

    SKU: 20811
    EAN: 0618455052675

    Omschrijving

    UFactory 850 is the most powerful robot with industrial grade performance.

    Features

    • 6DoF
    • Payload: 5 kg
    • Reach: 850 mm
    • Repeatability: 0.02 mm
    • Weight: 20 kg

    Applications

    • Glambot
    • Welding
    • Screwdriving
    • Robot Vision
    • Industrial Production

    Designed for both mobile platforms and your workbench

    • The AC control box contains an AC-DC adapter inside, 100-240 V AC is all ready to go.
    • The DC control box supports 48-72 V wide inputs, it perfectly fits the battery system on your mobile platform.

    Flexible Deployment With Safe Feature

    • Hand teaching, space-saving and easy to re-deploy to multiple applications without changing your production layout. Perfectly for recurrent tasks.
    • Collision detection is available for all of our cobots. Your safety is always the top priority.

    Graphical Interface For Beginner-Friendly Programming

    • Compatible with various operation systems, including macOS and Windows.
    • Web-based technology compatible with all major browsers.
    • Drag and drop to create your code in minutes.

    Powerful And Open Source SDK At Your Fingertips

    • Fully functional open-source Python/C++ SDK provides more flexible programming.
    • ROS/ROS2 packages are ready-to-go.
    • Example codes help you to deploy the robotic arm smoothly.

    Specifications

    UFactory 850 xArm 5 xArm 6 xArm 7
    Payload 5 kg 3 kg 5 kg 3.5 kg
    Reach 850 mm 700 mm 700 mm 700 mm
    Degrees of freedom 6 5 6 7
    Repeatability ±0.02 mm ±0.1 mm ±0.1 mm ±0.1 mm
    Maximum Speed 1 m/s 1 m/s 1 m/s 1 m/s
    Weight (robot arm only) 20 kg 11.2 kg 12.2 kg 13.7 kg
    Maximum Speed 180°/s 180°/s 180°/s 180°/s
    Joint 1 ±360° ±360° ±360° ±360°
    Joint 2 -132°?132° -118°?120° -118°?120° -118°?120°
    Joint 3 -242°~3.5° -225°~11° -225°~11° ±360°
    Joint 4 ±360° -97°~180° ±360° -11°?225°
    Joint 5 -124°~124° ±360° -97°~180° ±360°
    Joint 6 ±360° ±360° -97°~180°
    Joint 7 ±360°

    Hardware

    Ambient Temperature Range 0-50°C
    Power Consumption Typical 240 W, max 1000 W
    Input Power Supply 48 V DC, 20.8 A
    Footprint Ø 190 mm
    Materials Aluminum, Carbon Fiber
    Base Connector Type M8x4
    ISO Class Cleanroom 5
    Robot Mounting Any
    End Effector Communication Protocol Modbus RTU
    End Effector I/O 2x DI / 2x DO / 2x AI / 1x RS485
    Communication Mode Ethernet

    Included

    • 1x UFactory 850 robotic arm
    • 1x AC control box
    • 1x Control box power cable
